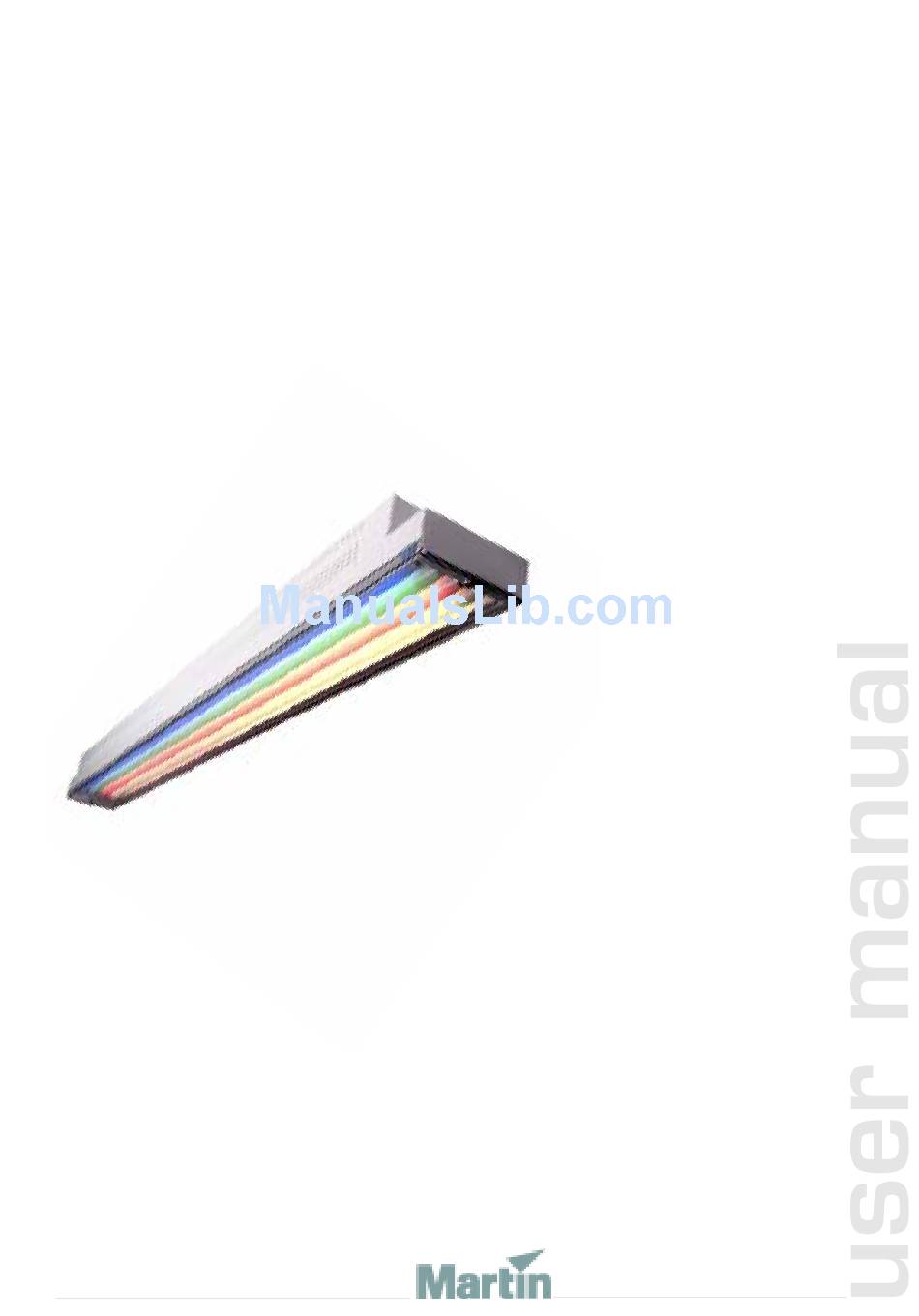

- Page 1 m a r t i n a r c h i t e c t u r a l Cyclo...
- Page 2 © 2002 Martin Professional A/S, Denmark. All rights reserved. No part of this manual may be reproduced, in any form or by any means, with- out permission in writing from Martin Professional A/S, Denmark. Printed in Denmark. P/N 35000124, Rev C...
- Page 3 Cyclo fixtures C Y C L O 0 2 Cyclo 02 contains a single warm white tube and a single cold white tube. It is designed as a functional lighting fixture for applications where dimmable color temperature control ranging from 2700K up to 6000K are desirable.
-
Page 4: Safety Information
C Y C L O 0 4 Cyclo 04 contains dimmable red, green, blue and white tubes, and provides a wider color range. S A F E T Y I N F O R M A T I O N Warning! This product is for professional use only. -
Page 5: Installation
NSTALLATION This section describes in general terms how to install the fixture and connect it to AC and dimmer power. These procedures shall be performed by qualified professionals. Mains 200-250V AC 50/60 Hz 5 1 6 DMX control device DMX-to-analog (10V) converter Open the fixture: 1 Remove the fixture’s clear plastic cover using a 2.5 mm Allen wrench. - Page 6 A C P O W E R Maximum power usage data for the three Cyclo models in supplied in “Specifications - Cyclo 02” on page 11. You can power Cyclo fixtures by wiring them in series. The internal wiring of the fixtures carries AC power through the fixture.
- Page 7 The cable for AC power is passed through one of the two 5 mm holes at the end of the fixture. These are sealed with plastic and you will need to break a hole in one of the them. A clamp connector can be found at each end of the fixture.
- Page 8 The 516-II DMX to 0-10 V Converter has 16 analog outputs for connecting 0-10 V analog devices. For independent control, a Cyclo 02 requires two of these outputs (one per ballast), a Cyclo 03 requires three outputs, and a Cyclo 04 requires four outputs.
- Page 9 Conn ecting the dimmer control cable to a Cycl o fixture The cable for dimmer control is passed through one of the two 5 mm holes at the end of the fixture. These are sealed with plastic and you will need to break a hole in one of the them.
-
Page 10: F L U O R E S C E N T T U B E S
F L U O R E S C E N T T U B E S Burning in new tubes In order to obtain the full 20000 hour life time, new fluorescent tubes must be burned in for 100 hundred hours at full power (10 volts). I dentifying tube positi ons Tube positions are identified in the Cyclo 03 and Cyclo 04 as follows: Marking in fixture Marking on tube Color... -
Page 11: Specifications
Number of independently controllable dimming channels ......16 Channels required per independently controlled Cyclo 02 group ..... 2 Channels required per independently controlled Cyclo 03 group . - Page 12 Number of independently controllable dimming channels ......16 Channels required per independently controlled Cyclo 02 group ....2 Channels required per independently controlled Cyclo 03 group .
- Page 13 A C C E S S O R I E S Martin 516 II DMX to 0-10V Converter ......P/N 90758225...
- Page 14 Number of independently controllable dimming channels ......16 Channels required per independently controlled Cyclo 02 group ..... 2 Channels required per independently controlled Cyclo 03 group .
- Page 15 A C C E S S O R I E S Martin 516 II DMX to 0-10V Converter ......P/N 90758225...
- Page 16 www.martin-architectural.com • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark Tel: +45 8740 0000 • Fax +45 8740 0010...
