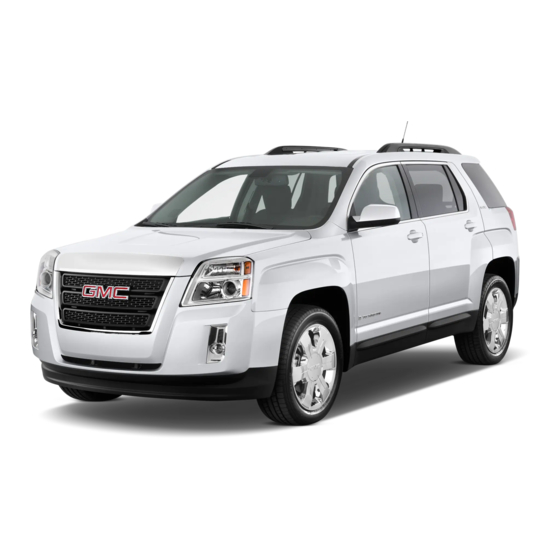

GMC 2012 Terrain Owner's Manual

GMC 2012 Terrain Owner's Manual

Hide thumbs Also See for 2012 Terrain:

Owner's manual (438 pages)

,

Manual (128 pages)

,

Brochure & specs (32 pages)

page of 428

/ 428
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Manual

2012 GMC Terrain Owner Manual

In Brief . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Instrument Panel . . . . . . . . . . . . . . 1-2

Initial Drive Information . . . . . . . . 1-4

Vehicle Features . . . . . . . . . . . . . 1-19

Performance and

Maintenance . . . . . . . . . . . . . . . . 1-24

Keys, Doors, and

Windows . . . . . . . . . . . . . . . . . . . . 2-1

Keys and Locks . . . . . . . . . . . . . . . 2-2

Doors . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Vehicle Security. . . . . . . . . . . . . . 2-13

Exterior Mirrors . . . . . . . . . . . . . . . 2-15

Interior Mirrors . . . . . . . . . . . . . . . . 2-17

Windows . . . . . . . . . . . . . . . . . . . . . 2-18

Roof . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Seats and Restraints . . . . . . . . . 3-1

Head Restraints . . . . . . . . . . . . . . . 3-2

Front Seats . . . . . . . . . . . . . . . . . . . . 3-3

Rear Seats . . . . . . . . . . . . . . . . . . . 3-10

Safety Belts . . . . . . . . . . . . . . . . . . 3-12

Airbag System . . . . . . . . . . . . . . . . 3-21

Child Restraints . . . . . . . . . . . . . . 3-35

Storage . . . . . . . . . . . . . . . . . . . . . . . 4-1

Storage Compartments . . . . . . . . 4-1

Additional Storage Features . . . 4-2

Roof Rack System . . . . . . . . . . . . . 4-2

Instruments and Controls . . . . 5-1

Controls . . . . . . . . . . . . . . . . . . . . . . . 5-2

Warning Lights, Gauges, and

Indicators . . . . . . . . . . . . . . . . . . . . 5-7

Information Displays . . . . . . . . . . 5-23

Vehicle Messages . . . . . . . . . . . . 5-26

Vehicle Personalization . . . . . . . 5-33

Lighting . . . . . . . . . . . . . . . . . . . . . . . 6-1

Exterior Lighting . . . . . . . . . . . . . . . 6-1

Interior Lighting . . . . . . . . . . . . . . . . 6-4

Lighting Features . . . . . . . . . . . . . . 6-5

Infotainment System . . . . . . . . . 7-1

Introduction . . . . . . . . . . . . . . . . . . . . 7-1

Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8

Audio Players . . . . . . . . . . . . . . . . 7-14

Rear Seat Infotainment . . . . . . . 7-22

Phone . . . . . . . . . . . . . . . . . . . . . . . . 7-34

Trademarks and License

Agreements . . . . . . . . . . . . . . . . . 7-46

I n f o r ma t i o n P r o v i d e d b y :

Climate Controls . . . . . . . . . . . . . 8-1

Climate Control Systems . . . . . . 8-1

Air Vents . . . . . . . . . . . . . . . . . . . . . . . 8-5

Maintenance . . . . . . . . . . . . . . . . . . . 8-6

Driving and Operating . . . . . . . . 9-1

Driving Information . . . . . . . . . . . . . 9-2

Starting and Operating . . . . . . . 9-20

Engine Exhaust . . . . . . . . . . . . . . 9-28

Automatic Transmission . . . . . . 9-29

Drive Systems . . . . . . . . . . . . . . . . 9-32

Brakes . . . . . . . . . . . . . . . . . . . . . . . 9-32

Ride Control Systems . . . . . . . . 9-35

Cruise Control . . . . . . . . . . . . . . . . 9-38

Object Detection Systems . . . . 9-40

Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 9-51

Towing . . . . . . . . . . . . . . . . . . . . . . . 9-56

Conversions and Add-Ons . . . 9-64

Vehicle Care . . . . . . . . . . . . . . . . . 10-1

General Information . . . . . . . . . . 10-2

Vehicle Checks . . . . . . . . . . . . . . . 10-4

Headlamp Aiming . . . . . . . . . . . 10-30

Bulb Replacement . . . . . . . . . . 10-32

Electrical System . . . . . . . . . . . . 10-38

Wheels and Tires . . . . . . . . . . . 10-44

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the 2012 Terrain and is the answer not in the manual?

Questions and answers

Summary of Contents for GMC 2012 Terrain

Page 1 2012 GMC Terrain Owner Manual In Brief ......1-1 Storage ..... . . 4-1 Climate Controls .
Page 2: Table Of Contents
2012 GMC Terrain Owner Manual Jump Starting ....10-76 Customer Information ..13-1 Towing ..... . 10-79 Customer Information .
Page 3 For vehicles first sold in Canada, to, GM, the GM logo, GMC, the substitute the name General Helm, Incorporated GMC Truck Emblem, and TERRAIN Motors of Canada Limited for GMC P.O.
Page 4: Index
Introduction Using this Manual Symbols WARNING To quickly locate information about The vehicle has components and These mean there is something the vehicle, use the Index in the labels that use symbols instead of that could hurt you or other back of the manual.
Page 5: Onstar
Introduction Vehicle Symbol Chart : Fuses Here are some additional symbols : Headlamp High/Low-Beam that may be found on the vehicle Changer and what they mean. For more : LATCH System Child information on the symbol, refer to Restraints the Index. : Malfunction Indicator Lamp : Airbag Readiness Light : Oil Pressure...
Page 6 Introduction NOTES I n f o r ma t i o n P r o v i d e d b y :...
Page 7: In Brief
In Brief In Brief Interior Lighting ....1-14 Performance and Maintenance Exterior Lighting ... . . 1-14 Traction Control Windshield Wiper/Washer .
Page 8 In Brief Instrument Panel I n f o r ma t i o n P r o v i d e d b y :...
Page 9: Information
In Brief A. Air Vents on page 8 5. Safety Locks on page 2 8. R. Climate Control Systems on page 8 1 (If Equipped). B. Turn and Lane Change Lever. Infotainment on page 7 1. See Turn and Lane-Change Automatic Climate Control Navigation System (If Signals on page 6 3.
Page 10: Initial Drive Information
In Brief Initial Drive : For vehicles with the power liftgate, press and hold until the Information liftgate begins to move to open the liftgate. This section provides a brief overview about some of the For vehicles without the power important features that may or may liftgate, first press , then press...
Page 11: Remote Vehicle Start
In Brief Remote Vehicle Start Canceling a Remote Start Door Locks To cancel a remote start, do one of With this feature the engine can be To lock or unlock the vehicle from the following: started from outside of the vehicle. the outside, press on the Remote Keyless Entry (RKE)
Page 12 In Brief Liftgate Manual Liftgate Operation Unlock the vehicle before opening the liftgate. Press the touch pad located in the handle of the liftgate, above the license plate, and lift up to open. Do not press the touch pad while closing the liftgate.
Page 13 In Brief Power Liftgate Operation If you open the liftgate Windows without checking for overhead obstructions such as a garage door, you could damage the liftgate or the liftgate glass. Always check to make sure the area above and behind the liftgate is clear before opening it.
Page 14 In Brief Raise or lower the entire seat by Raise or lower the front or rear Seat Adjustment moving the control (B) up part of the seat cushion by or down. moving the front or rear of the Four Way Power Driver Seat control up or down.
Page 15 In Brief Lumbar Adjustment Reclining Seatbacks To return the seatback to the upright position: Manual Reclining Seatbacks 1. Lift the lever fully without applying pressure to the seatback, and the seatback will return to the upright position. 2. Push and pull on the seatback to make sure it is locked.
Page 16: Memory Features
1-10 In Brief Power Reclining Seatbacks Memory Features turned off. These automatically stored positions are referred to as RKE Memory positions. Storing Button Memory Positions To save positions into Button Memory: 1. Adjust the driver seat, seatback recliner, and both outside mirrors to the desired driving positions.
Page 17: Climate Controls
In Brief 1-11 To automatically recall RKE Memory Heated Seats Head Restraint positions, unlock the driver door Adjustment with the RKE transmitter and open the driver door. If the driver door is Do not drive until the head restraints already open, pressing the RKE for all occupants are installed and transmitter button will also...
Page 18 1-12 In Brief Safety Belts Passenger Sensing The passenger sensing system will turn off the right front passenger System frontal airbag under certain conditions. The driver airbag, seat mounted side impact airbags, and roof rail airbags are not affected by the passenger sensing system. The passenger airbag status indicator will be visible on the United States...
Page 19: Mirror Adjustment
In Brief 1-13 Mirror Adjustment Interior Steering Wheel Adjustment Manual inside rearview mirrors can Exterior be adjusted by holding in the center to move the mirror for a clearer view of behind the vehicle. Adjust the mirror to avoid glare from the headlamps behind you.
Page 20: Exterior Lighting
1-14 In Brief Interior Lighting AUTO: Turns the exterior lamps on : Turns the dome lamps on. and off automatically depending on The dome lamps can also be turned Reading Lamps the exterior light. on and off by pressing the buttons These lamps are located on the : Turns on the parking lamps, next to the lamps.
Page 21 In Brief 1-15 Windshield Wiper/Washer Rear Window Wiper/Washer The rear wiper controls are on the end of the windshield wiper lever. OFF: Use to turn the wipers off. : For a single wipe, briefly move the wiper lever down. For several The windshield wiper/washer lever wipes, hold the wiper lever down.
Page 22: Climate Controls
1-16 In Brief Climate Controls The vehicle's heating, cooling, defrosting, and ventilation can be controlled with these systems. Climate Control System E. Front Defrost A. Fan Control Rear Window Defogger B. Air Delivery Mode Controls G. Recirculation C. Temperature Control H.
Page 23 In Brief 1-17 Automatic Climate Control System Parking Brake To set the parking brake, hold the A. Fan Control H. Driver and Passenger Heated regular brake pedal down, then Seats B. AUTO (Automatic Operation) push the parking brake pedal down. Rear Window Defogger C.
Page 24 1-18 In Brief To release the parking brake, hold To use this feature: the regular brake pedal down, then 1. Move the shift lever to push down momentarily on the M (Manual Mode). parking brake pedal until you feel 2. Press the plus/minus button on the pedal release.
Page 25: Vehicle Features
In Brief 1-19 Vehicle Features For more information about the Rear Satellite Radio Seat Entertainment (RSE) System Vehicles with an XM satellite radio (if equipped), see Rear Seat Radio(s) tuner and a valid XM satellite radio Entertainment (RSE) System on subscription can receive XM page 7 22.
Page 26: Portable Audio Devices
1-20 In Brief Portable Audio Devices See Bluetooth (Overview) on : Press to silence the page 7 34 or Bluetooth vehicle speakers only. Press again Some vehicles have a 3.5 mm (Infotainment Controls) on to turn the sound on. For vehicles (1/8 in) auxiliary input and a USB page 7 36 or Bluetooth (Voice with OnStar or Bluetooth systems,...
Page 27: Cruise Control
In Brief 1-21 Cruise Control SET/ : Move the thumbwheel Driver Information down toward SET/- to set a speed Center (DIC) and activate cruise control, or to make the vehicle decelerate. The DIC display is located in the center of the instrument panel See Cruise Control on page 9 38.
Page 28 1-22 In Brief The forward-looking FCA camera : Use these buttons to The LDW indicator, , appears sensor is on the windshield ahead scroll through the items in each green if a lane marking is detected. of the rearview mirror. FCA detects menu.
Page 29: Roof Rack System
In Brief 1-23 Rear Vision Keep the sensors on the vehicle's Power Outlets rear bumper clean to ensure proper Camera (RVC) The accessory power outlets can be operation. used to connect electrical If available, the rear vision camera See Ultrasonic Parking Assist on equipment, such as a cell phone or displays a view of the area behind page 9 43 for more information.
Page 30: Maintenance
1-24 In Brief ® Performance and StabiliTrak System Tire Pressure Monitor Maintenance The StabiliTrak system assists with This vehicle may have a Tire directional control of the vehicle in Pressure Monitor System (TPMS). difficult driving conditions. The Traction Control system is on when the vehicle is System (TCS) started.
Page 31: Driving For Better Fuel Economy
In Brief 1-25 During cooler conditions, the low tire Resetting the Oil Life System Fuel E85 (85% Ethanol) pressure warning light may appear 1. Turn the ignition to ON/RUN, Vehicles that have a FlexFuel badge when the vehicle is first started and with the engine off.
Page 32: Onstar Overview
Keep vehicle tires properly Mexico: 01-800-466-0801 and more. inflated. As the owner of a new GMC, you Sign up today at: U.S.: gmc.com Combine several trips into a are automatically enrolled in the (Click on "Owners," then single trip.
Page 33: Windows
Keys, Doors, and Windows Keys, Doors, and Doors Interior Mirrors Liftgate ......2-9 Manual Rearview Mirror ..2-17 Windows Automatic Dimming Rearview Vehicle Security...
Page 34: Keys And Locks
Keys, Doors, and Windows Keys and Locks Keys WARNING Leaving children in a vehicle with the ignition key is dangerous for many reasons. Children or others could be badly injured or even killed. They could operate the power windows or other controls The key that is part of the Remote Press the button on the RKE or even make the vehicle move.
Page 35: Remote Keyless Entry (Rke) System
Keys, Doors, and Windows Check the transmitter's battery. With an active OnStar subscription, See Battery Replacement later an OnStar Advisor may remotely in this section. unlock the vehicle. See OnStar Overview on page 14 1. If the transmitter is still not working correctly, see your Remote Keyless Entry dealer or a qualified technician...
Page 36 Keys, Doors, and Windows These settings can be modified. Programming Transmitters to (Remote Liftgate Release): See Unlocked Door Anti Lock Out the Vehicle First press , then press and hold under Vehicle Personalization on to unlock the liftgate. For Only RKE transmitters programmed page 5 33.
Page 37 Keys, Doors, and Windows The battery is not rechargeable. To Vehicles with an automatic climate Starting the Engine Using Remote Start replace the battery: control system will default to a heating or cooling mode depending To start the engine using the remote 1.
Page 38 Keys, Doors, and Windows There is an emission control Extending Engine Run Time Shutting the Engine Off After a system malfunction. Remote Start For a 10-minute extension, repeat The engine coolant temperature To shut off the engine: Steps 1 and 2 while the engine is is too high.
Page 39: Power Door Locks
Keys, Doors, and Windows Door Locks Power Door Locks WARNING (Continued) WARNING Outsiders can easily enter through an unlocked door Unlocked doors can be when slowing or stopping the dangerous. vehicle. Lock the doors to help prevent this from Passengers, especially happening.
Page 40: Safety Locks
Keys, Doors, and Windows Pressing the power lock switch Rear door safety locks prevent passengers from opening the rear twice or on the RKE transmitter doors from inside the vehicle. twice will override the delayed locking feature and immediately lock Press to activate the safety locks.
Page 41: Doors
Keys, Doors, and Windows Doors Manual Liftgate WARNING (Continued) To unlock the liftgate, press the Liftgate Adjust the climate control power door lock switch or press system to a setting that on the Remote Keyless Entry brings in only outside air and (RKE) transmitter twice.
Page 42 2-10 Keys, Doors, and Windows Power Liftgate The three modes are: MAX: The liftgate power opens to On vehicles with a power liftgate, the full open height. the vehicle must be in P (Park) to operate. The taillamps flash when 3/4: The liftgate power opens to a the power liftgate moves.
Page 43 Keys, Doors, and Windows 2-11 In either the MAX or the 3/4 mode, Do not force the liftgate open or the liftgate can be power opened closed during a power cycle. and closed by: The power liftgate may be temporarily disabled under extreme First pressing and then temperatures or low battery...
Page 44 2-12 Keys, Doors, and Windows Obstacle Detection Features Power Liftgate 3/4 Mode If there is no audible and visual feedback when setting the If the liftgate encounters an obstacle To program the liftgate opening intermediate stop position, the during a power open or close cycle, height: liftgate height is being set below the a warning chime will sound and the...
Page 45: Vehicle Security
Keys, Doors, and Windows 2-13 To open the liftgate, press the touch Vehicle Security Disarming the System pad on the handle on the outside of To disarm the system, do one of the This vehicle has theft-deterrent the liftgate, and lift the gate open. To following: features;...
Page 46: Immobilizer Operation
2-14 Keys, Doors, and Windows How to Detect a Tamper The vehicle is automatically When trying to start the vehicle, the immobilized when the key is security light comes on briefly when Condition removed from the ignition. the ignition is turned on. is pressed and the horn The system is automatically If the engine does not start and the...
Page 47: Exterior Mirrors
Keys, Doors, and Windows 2-15 Exterior Mirrors Power Mirrors Heated Mirrors For vehicles with heated mirrors: Convex Mirrors The heated outside rearview mirrors turn on when the rear window WARNING defogger is on and help to clear fog or frost from the surface of the A convex mirror can make things, mirrors.
Page 48 2-16 Keys, Doors, and Windows Driving with the Blind Spot 1. When the approaching vehicle is Using the Outside Mirror with a long distance away, the image Mirror the Blind Spot Mirror in the main mirror is small and 1. Set the main mirror so that the near the inboard edge of the side of the vehicle can just be mirror.
Page 49: Interior Mirrors
Keys, Doors, and Windows 2-17 Park Tilt Mirrors Interior Mirrors Automatic Dimming Rearview Mirror If the vehicle is equipped with Manual Rearview Mirror memory mirrors, there is an option The vehicle may have an automatic to have the mirrors tilt down, when dimming inside rearview mirror.
Page 50: Windows
2-18 Keys, Doors, and Windows Windows Power Windows WARNING WARNING Leaving children in a vehicle with Leaving children, helpless adults, the keys is dangerous for many or pets in a vehicle with the reasons. Children or others could windows closed is dangerous. be badly injured or even killed.
Page 51 Keys, Doors, and Windows 2-19 Express Down Windows Window Lockout Windows that have the express down feature allow the windows to be lowered without holding the switch. Press the window switch fully and release it to activate the express down feature. The express mode can be canceled at any time by briefly pressing, or pulling the switch.
Page 52: Roof
2-20 Keys, Doors, and Windows Sun Visors Roof Sunroof On vehicles with a sunroof, the switches used to operate it are on the headliner above the rearview mirror. The ignition must be in ON/ RUN or ACC/ACCESSORY, or in Retained Accessory Power (RAP) to operate the sunroof.
Page 53 Keys, Doors, and Windows 2-21 Express-open/Express-close Press and release the front or rear of the driver side switch to express-open or express-close the sunroof. Anti-Pinch Feature If an object is in the path of the sunroof when it is closing, the Dirt and debris may collect on the anti-pinch feature detects the object sunroof seal or in the track.
