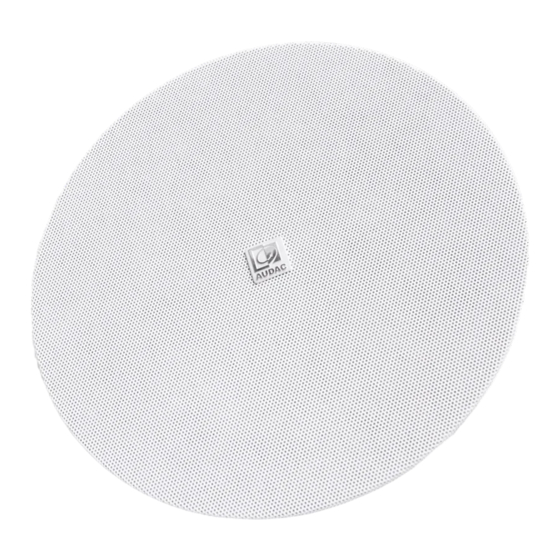

AUDAC SPRING-FIT CENA510D Installation Manual

INSTALLATION MANUAL
CENA SERIES SPRING-FIT™ CEILING SPEAKERS - 16 Ω VERSION

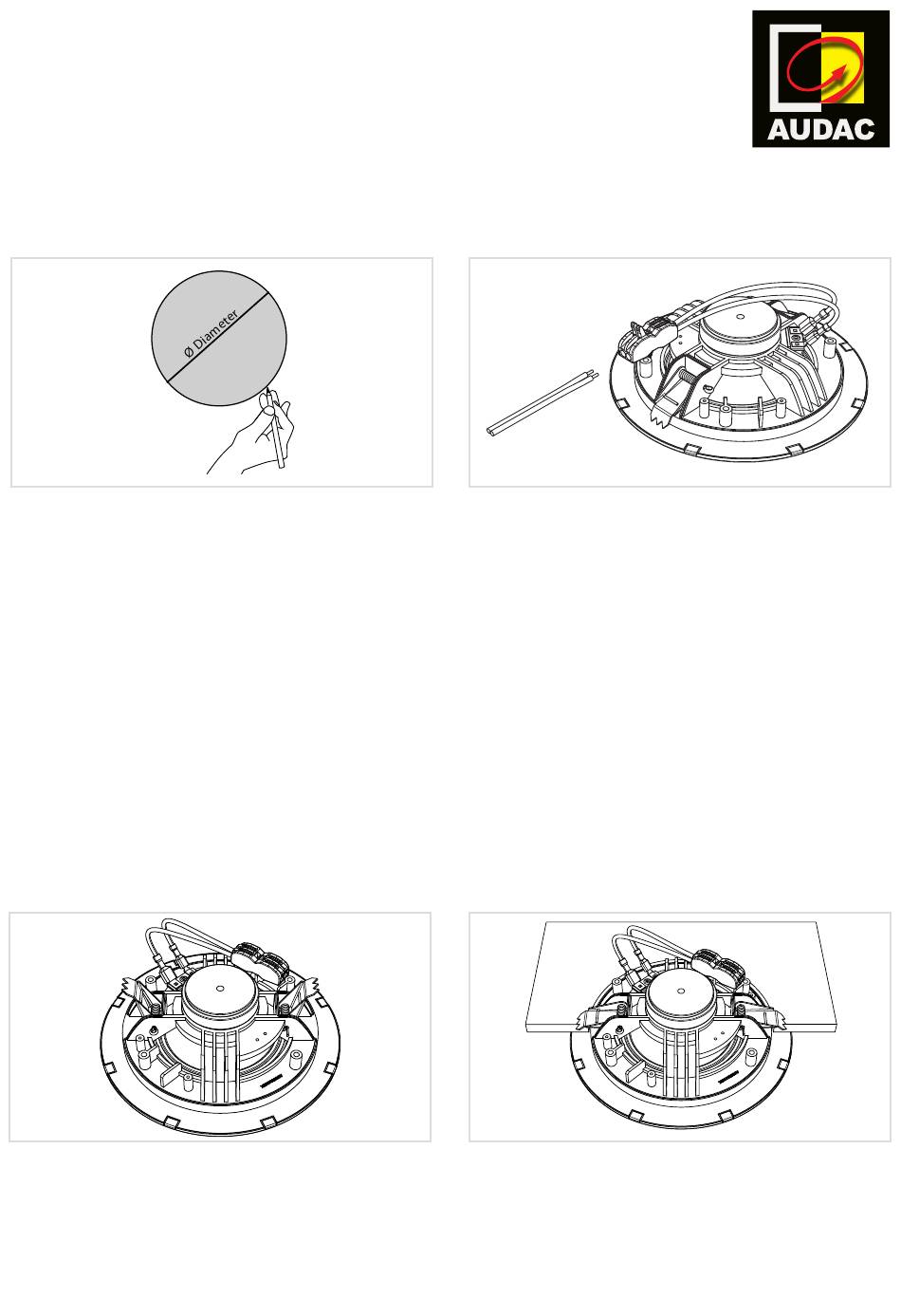

STEP 1
Cut a hole at the desired mounting location in the
ceiling. Make sure the dimension is matching the
cut-out measurement for the installing loudspeaker
• CENA510D = Ø 150 mm
• CENA710D = Ø 167 mm
• CENA820D = Ø 207 mm
Double check if there are no cables or other
obstructions behind the mounting surface before
making the cut-out.
STEP 3
Bend the spring loaded mounting arms inwards by
pushing them by fingers, making them fit through the
provided ceiling cut-out.
STEP 2
Connect the wires coming from the amplifier to the
SnapConnect™ on the loudspeaker.
The common ('COM' or '-' ) output of the amplifier shall
be connected to the black wire (-) of the loudspeaker,
while positive ('SIG' or '+') should be connected to the
red wire (+) of the loudspeaker.
STEP 4
Insert the speaker through the provided ceiling cut-
out, make sure the spring loaded mounting arms are
behind the clamping surface and release them. The
ceiling is clamped between the mounting arms and
the speaker baffle.
The speaker is now installed correctly and ready for
use.
