irLEDs FIVE series - 18x10W 5-in-1 LEDS PAR64 projectors with remote control

5 - Menus and functions

Access the internal menu by pressing MODE.
To access a submenu, press MODE again.
Press SETUP to configure the selected function.
Simultaneously press MODE and UP if you want the display to stay lit all the time.
If you want the display to lit off when the menu remains inactive for more than 20 seconds, press simultaneously
MODE and DOWN..
The irLED64FIVE projectors feature several DMX modes to be fully compatible with different remote controls and
projectors. Use the MODE button the choose a DMX mode. They are listed in the table below.

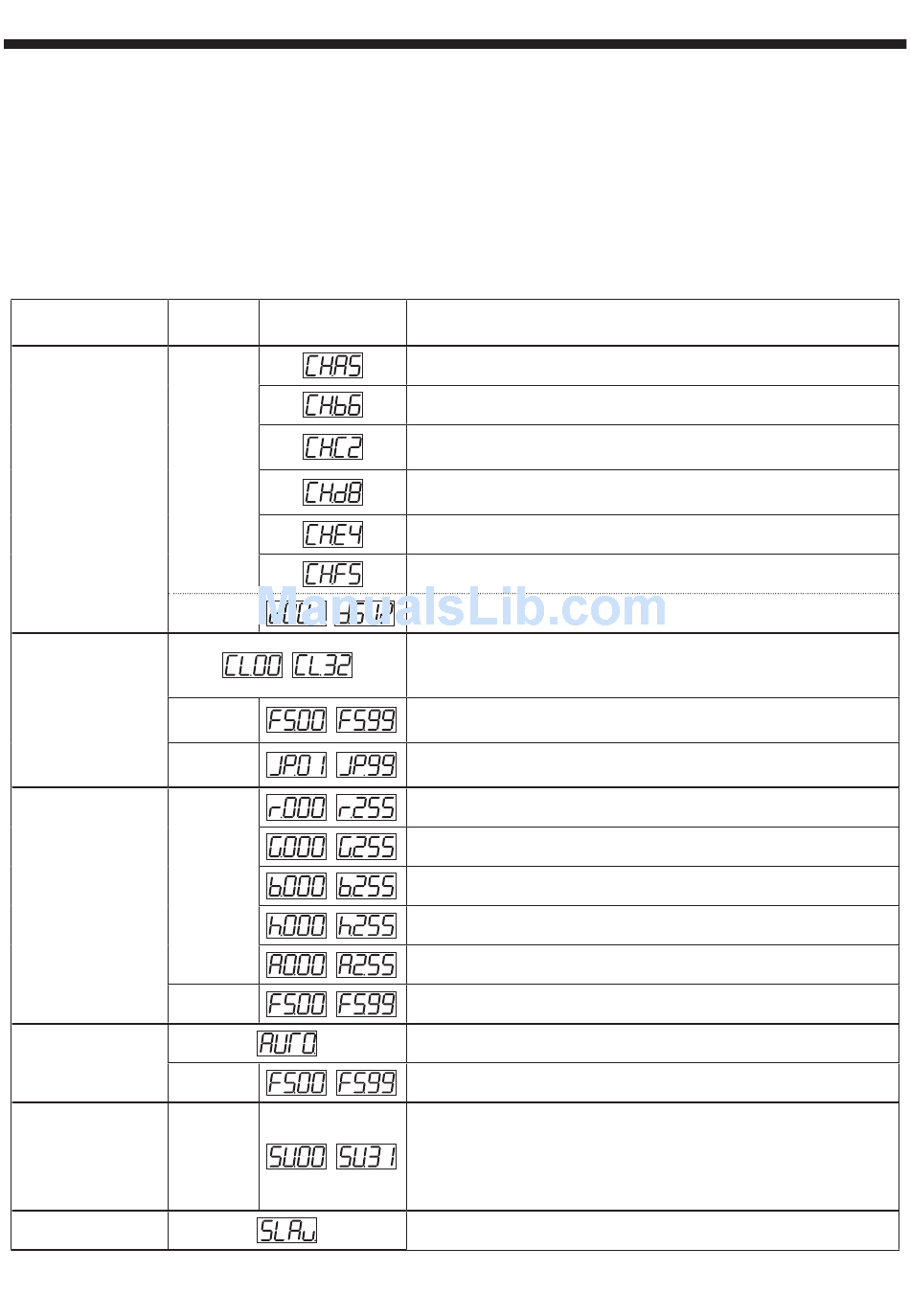

Mode
DMX modes
Fixed colours and
programs
RVBWA Dimmers
Automatic mode
Music-sensitive
mode sensitivity
Slave mode
SETUP UP and DOWN
Address
Strobe
Speed
Strobe
Strobe
Mic
5 channes: R / G / B / W / A Dimmers
6 channels: R / G / B / W / A Dimmers, Main dimmer and Strobe
2 channels: Fixed colours and macros / Dimmer, Strobe and
Music-sensitive mode
8 channels: RGBWA Dimmers/ Dimmer and Speed / Strobe /
Macros
4 channels: RGB Dimmers / Main dimmer and Strobe
5 channels: RGB Dimmers / Main dimmer and Strobe / White
DMX addressing
Blackout, 1-27 fixed colours selection, step colour program
selection, crossfade colour program selection, and 3x2 colour
programs with crossfade transitions
Strobe speed: FS.00 = no strobe ; FS.99 = Max. speed
Only for static colours
Crossfade programs speed settings
Only available for programs with crossfade transitions
Red: 0 - 100%
Green: 0 - 100%
Blue: 0 - 100%
White: 0 - 100%
Amber: 0 - 100%
Strobe speed : FS.00 = No strobe ; FS.99 = Full speed
The automatic mode is activated
Strobe speed : FS.00 = No strobe ; FS.99 = Full speed
SU.00 = min. sensitivity ; SU.31 = max. sensitivity
Starts the user program
Action
English
