Contest irLED64 18x10FIVEsb User Manual page 4

English

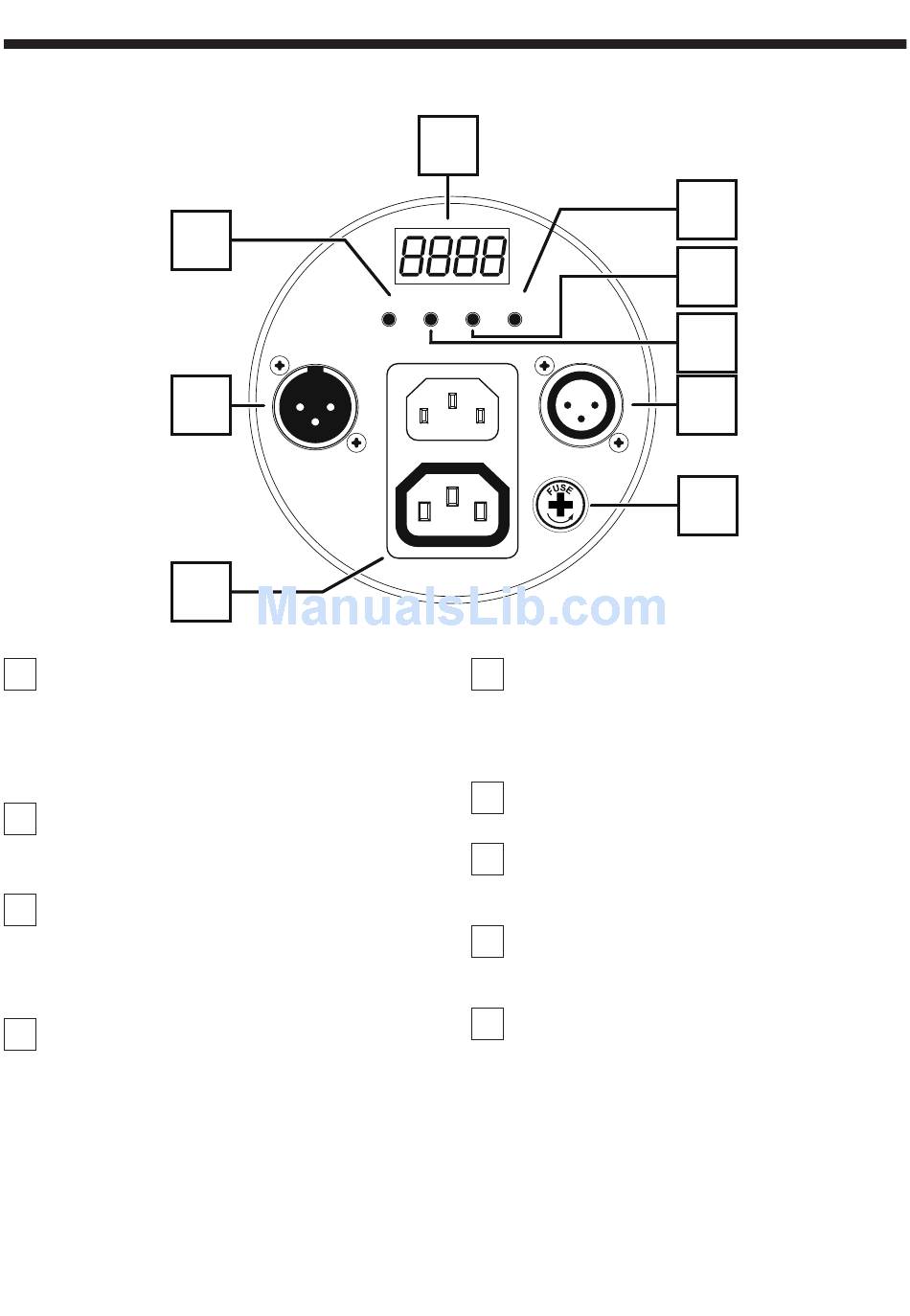

4 - Description
1
Power input/output socket
Allows you to connect the projector to an electrical outlet and
to link several projectors together via a Male/Female IEC cord.
Please make sure the voltage is in adequation with the product
indications.
Caution : Do NOT go over 700W on the same power source.
2
Fuse
If need to replace the fuse, please make sure the new fuse has
exactly the same characteristics as the original one.
3
DMX input
3-pin female XLR plug hardwired as follows :
- Mass: 1
- Negative signal: 2
- Positive signal: 3
4
DMX output
3-pin male XLR plug hardwired as follows :
- Mass: 1
- Negative signal: 2
- Positive signal: 3
Page 4
irLEDs FIVE series - 18x10W 5-in-1 LEDS PAR64 projectors with remote control
6
DMX IN
3
1
5
MODE SETUP UP DOWN
POWER IN 240V/50Hz
POWER OUT 240V/50Hz
5
Display
This intuitive display allows you to configure your projector.
Please refer to the next paragraphs for more details about the
projector configuration.
6
MODE button
Allows you to access menus and select a function.
7
SETUP button
Allows you to configure the parameters of the functions chosen
with the MODE button.
8
UP button
Press UP to increase the adjustable values or browse the sub-
menus.
9
Touche DOWN
Press DOWN to decrease the adjustable values or browse the
sub-menus.
9
8
7
DMX OUT
4
2
