USER MANUAL
COLOUR PRINTER
P-C3060DN
Print
A4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-C3060DN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Utax P-C3060DN

Summary of Contents for Utax P-C3060DN

  • Page 1 USER MANUAL COLOUR PRINTER P-C3060DN Print...
  • Page 2 P-C3060DN Advanced Operation Guide...

  • Page 4: Table Of Contents

    Contents Handling Paper General Guidelines ..............1-2 Selecting the Right Paper ............1-4 Special Paper ................1-7 Paper Type ................1-13 Loading Paper ................1-14 Using the Operation Panel General Information ..............2-2 Understanding the Operation Panel ......... 2-3 Keys ..................... 2-6 Using the Menu Selection System ..........
  • Page 6 NTRODUCTION This guide has the following chapters: 1 Handling Paper Explains how choose, handle and load paper. 2 Using the Operation Panel Explains how to use the operation panel to configure the printer. 3 Options Shows the available options. 4 Computer Interface Describes the possible connections between the printer and your computer.
  • Page 7 Conventions This manual uses the following conventions Convention Description Example Italic Typeface Used to emphasize a key word, To replace the toner container, refer to Toner phrase or reference to additional Container Replacement on page 3-2. information. Bold Used to denote buttons on the To start printing, click OK.

  • Page 8: Handling Paper

    1 Handling Paper This chapter contains explanations on the following topics: General Guidelines Selecting the Right Paper Paper Type 1-13 Loading Paper 1-14 Handling Paper...

  • Page 9: General Guidelines

    General Guidelines The machine is designed to print on standard copier paper (the type used in ordinary dry copier machines), but it can also accept a variety of other types of paper within the limits specified below. Note The manufacturer assumes no liability for problems that occur when paper not satisfying these requirements is used.

  • Page 10: Recommended Paper

    Minimum and Maximum Paper Sizes The minimum and maximum paper sizes are as follows. For non standard paper such as transparency, labels, vellum, cardstock, envelope, and coated, the MP (Multi-Purpose) tray must be used. Paper Cassette MP Tray Minimum Minimum Paper Size Paper Size 70 mm...

  • Page 11: Selecting The Right Paper

    Selecting the Right Paper This section describes the guidelines for selecting paper. Condition Avoid using paper that is bent at the edges, curled, dirty, torn, embossed, or contaminated with lint, clay, or paper shreds. Use of paper in these conditions can lead to illegible printing and paper jams, and can shorten the life of the machine.

  • Page 12: Basis Weight

    Smoothness The paper should have a smooth, uncoated surface. Paper with a rough or sandy surface can cause voids in the printed output. Paper that is too smooth can cause multiple feeding and fogging problems. (Fogging is a gray background effect.) Basis Weight Basis weight is the weight of paper expressed in grams per square meter (g/m²).

  • Page 13: Moisture Content

    Thickness The paper used with the machine should be neither extremely thick nor extremely thin. If you are having problems with paper jams, multiple feeds, and faint printing, the paper you are using may be too thin. If you are having problems with paper jams and blurred printing the paper may be too thick.

  • Page 14: Special Paper

    Whiteness: The contrast of the printed page depends on the whiteness of the paper. Whiter paper provides a sharper, brighter appearance. Quality control: Uneven sheet size, corners that are not square, ragged edges, welded (uncut) sheets, and crushed edges and corners can cause the machine to malfunction in various ways.
  • Page 15 Transparency Transparencies must be able to withstand the heat of fusing during the printing process. The recommended transparency product is 3M CG3700 (Letter, A4). The table below lists the specifications for transparency: Item Specification Tolerance of heat Must tolerate at least 190 °C (374 °F) Thickness 0.100 to 0.110 mm (3.9 to 4.3 mils) Material...
  • Page 16 Labels Labels must be fed from the MP tray or optional paper feeder PF-510. The basic rule for printing on adhesive labels is that the adhesive must never come into contact with any part of the machine. Adhesive paper sticking to the drum or rollers will damage the machine. Label paper has a structure comprising of three layers, as shown in the diagram.
  • Page 17 Postcards Fan the stack of postcards and align the edges before loading them in the MP tray. Make sure the postcards you are going to set are not curled. Feeding curled postcards may cause paper jams. Some postcards have rough Rough edges on the back (those are Edge...

  • Page 18: Thick Paper

    Thick Paper Fan the stack of paper and align the edges before loading them. Some types of paper have rough edges on the back (those are created when the paper is cut). In this case, put the paper on a flat place and rub the edges once or twice with, for example, a ruler to smooth them.
  • Page 19 IMPORTANT When printing on coated paper in very humid environments, ensure that the paper is kept dry as moisture may cause sheets to stick together when they are fed into the printer. Paper Type Indicators (Optional paper feeder PF-510) If you are going to load non standard paper in the optional paper feeder PF-510, cut out the blank section of the...

  • Page 20: Paper Type

    Paper Type The printer is capable of printing under the optimum setting for the type of paper being used. Setting the paper type for the paper source from the printer’s operation panel will cause the printer to automatically select the paper source and print in the mode best suited to that type of paper.

  • Page 21: Loading Paper

    Loading Paper The following explains the procedure for loading paper in the cassette and the MP tray. Loading Paper into the Cassette Fan the media (paper/transparencies), then tap it on a level surface to avoid media jams or skewed printing. Pull the paper cassette all the way out of the printer.
  • Page 22 Pull the release lever of both side guides and slide to the desired Paper Guides paper size. Release Lever Pull the release lever and slide the paper stopper to the desired paper Release Lever size. Paper Stopper When using non-standard size paper, move the paper guides and paper stopper all the way out, insert the paper, then adjust the paper guides and paper stopper to the size of the paper.
  • Page 23 Insert the paper cassette into the slot in the printer. Push it straight in as far as it will go. There is a paper gauge on the right side of the front of the paper cassette to indicate the remaining paper supply. When paper is exhausted, the pointer will go down to the level of (empty).
  • Page 24 Adjust the position of the paper guides on the MP tray. Standard paper sizes are marked on the MP tray. For standard paper sizes, slide the guides to the position marked correspondingly. Align the paper with the paper guides and insert as far as it will go. Note Do not load more paper than will fit under the load limits on the inside of the MP tray.

  • Page 25: Paper Stopper

    Paper stopper Align the paper stopper to the desired paper size. • For A4 or Letter size paper : Align with position  . • For Legal size paper : Align with position  . 1-18 Handling Paper...

  • Page 26: Using The Operation Panel

    Using the Operation Panel This chapter contains explanations on the following topics: General Information Understanding the Operation Panel Keys Using the Menu Selection System Setting a Mode Selection Menu 2-10 Report Print 2-11 USB Memory (USB memory selection) 2-16 Custom Box (Using a Custom Box) 2-18 Job Box 2-22...

  • Page 27: General Information

    General Information This chapter provides the information you need to configure the Ecosys Color printer. In general you need to use the operation panel only to make default settings. You can make most changes to the printer settings using the printer driver through the application software. Note Changes to printer settings made using a software application override changes made using the operation panel.

  • Page 28: Understanding The Operation Panel

    Understanding the Operation Panel The operation panel on the top of the printer has a 2-line by 21-character liquid crystal display (LCD), eight keys, and three indicators (LED). Messages that appear on the display and functions of indicators and keys are explained in this chapter.
  • Page 29 Status Information Message Meaning The printer is performing self-diagnostics after power-up. Self test The printer is warming up and is not ready. Please wait When the printer is switched on for the first time, this message will take several minutes. This message appears when the printer is preparing to print coated paper (COATED) fed Please wait from the optional paper feeder PF-510.

  • Page 30: Indicators In Message Display

    Indicators in Message Display Ready Ready, Data, and Attention Indicators The following indicators light during normal operation and whenever the printer needs attention. Depending on the status of lighting, each indicator has the following meaning: Indicator Description Flashing. Indicates an error that you can resolve. For details, refer to the Troubleshooting section in the Operation Guide.

  • Page 31: Keys

    Keys The operation panel keys are used to configure the printer operation. Note that certain keys have a secondary function. GO Key Use this key to: • Toggle the printer’s on-line and off-line states. You can temporarily stop the print job by switching the printer off-line. •...
  • Page 32 • When Use alternative? is shown in the message display, use  and  key to select an alternative paper source. OK Key This key is used to: • Finalize settings of numeric values and other selections. • Set the paper source when Use alternative? is shown in the message display.

  • Page 33: Using The Menu Selection System

    Using the Menu Selection System Menu Selection System This section explains how to use the menu selection system. [MENU] on the operation panel allows you to use the menu to configure the printer settings to your specific needs. Settings can be made when Ready is indicated on the printer message display.

  • Page 34: Paper Settings

    Selecting a Menu The mode selection menu is hierarchical. Press  or  to display the desired menu. If the selected menu has a sub-menu, > is displayed after the menu. Paper Settings > Press  to move to the sub-menu or  to go back. Indicates that there is a sub-menu >...

  • Page 35: Setting A Mode Selection Menu

    Setting a Mode Selection Menu This section explains the setting procedures used for each menu item in the mode selection menu. While the printer displays Ready, Please wait, Sleeping and Report Print > Processing, press [MENU]. The mode selection menu is displayed.

  • Page 36: Report Print

    Report Print The printer prints the report. Report Print includes the following items: • Print Menu Map • Print Status Page • Print Fonts List • Print RAM Disk File List • Print SSD File List Press [MENU]. Press  or  repeatedly until Report Print > appears. Report Print >...

  • Page 37: Menu Map

    Menu Map Sample Menu Map Printer Firmware version 2-12 Using the Operation Panel...

  • Page 38: Status Page

    Print Status Page You can check the printer's current status, including available memory space and option settings by printing a status page. Press  while Report Print > is displayed. Press  or  repeatedly until >Print Status Page appears. Press [OK].
  • Page 39 Firmware Version This item shows the version and release date of the printer firmware. Printer Settings Information This item shows various printer settings for hardware-related items: Paper Settings Group Settings Print Settings EcoPrint Device Common Settings Installed Options This item shows the options installed in the printer: Paper Feeder Network Status This item shows the IP address, subnet mask address, and...
  • Page 40 Print Fonts List To help you decide in selecting a font, you can printout lists of the internal fonts or the optional fonts. Press  while Report Print > is displayed. Press  or  repeatedly until >Print Fonts List appears. Press [OK].

  • Page 41: Usb Memory (Usb Memory Selection)

    USB Memory (USB memory selection) This specifies the settings for removing the USB memory and printing USB memory content. The USB Memory menu automatically appears when you install the USB memory. IMPORTANT This message is displayed only when the USB host block is set to Unblock.

  • Page 42: Print File List

    Copies (Number of copies) Sets the number of copies printed of the specified file in USB memory. IMPORTANT To use this feature, an optional SSD must be installed in the printer or the RAM disk must be set to On. While Copies in step 5 above is displayed, press ...

  • Page 43: Custom Box (Using A Custom Box)

    Custom Box (Using a Custom Box) IMPORTANT To use a Custom Box, an optional SSD must be installed in the printer. The SSD must be formatted from the printer. For more information, refer to SSD (Using the optional SSD) on page 2-67.
  • Page 44 Box Password (Box password input) User access to a Custom Box can be restricted by specifying a password for the box. The password is specified from the printer driver. If you have set a password for the Custom Box, press  while Box Password >Select Box >...
  • Page 45 Cassette 1 to 4 (optional paper feeder installed) Auto Press [OK]. The screen for choosing whether to delete the data after >>Delete after Printed printing appears with a blinking question mark (?). ? Off Select Off or On using  or . Press [OK].
  • Page 46 Delete All Files (Deletes all the data) Use this procedure to delete all the documents in the Custom Box. Press  while >Select Box > and the box number and box name >Select Box > are displayed. 0001:Box 1 Press  or  until >>Delete All Files, and press [OK]. A >>Delete All Files ? question mark (?) is displayed.

  • Page 47: Job Box

    Job Box IMPORTANT To use the Job Box, an optional SSD must be installed in the printer. The SSD must be formatted from the printer. For more information, refer to SSD (Using the optional SSD) on page 2-67. The RAM disk may also be used in the Proof-and-Hold and Private Print modes.
  • Page 48 • Printing a Private Print/Stored Job Private/Stored (User Name) (Selecting the User) (User Name) (Data Name) (Selecting the data) (Data Name) ID (number of copies) (Input passwords) (Data Name) Copies (number of copies) (Number of copies / deleted) • Job Box Configuration (Job Box Configuration) Press [MENU].
  • Page 49 Press [OK]. The number of copies to be printed can be set. To >Report increase the copy count, press ; to decrease the copy count, press Copies . Note If you selected All Files, press  after Copies -- - is displayed to set the number of copies. When using the number of copies specified with print job, select Copies ---.
  • Page 50 Press [OK]. The job name entered in the printer driver (Report, in >Arlen this example) appear with a blinking question mark (?) before the ?Report letters. Press  or  to scroll to the desired job title. Note If you selected All Files, this process is applied to all the documents in the Quick Copy/Proof-and-Hold.
  • Page 51 Press  or  to display the desired user name (Arlen, in this example). Press [OK]. The user name and the job name (Agenda, in this >Arlen example) entered in the printer driver appear with a blinking question ?Agenda mark (?). Press ...
  • Page 52 Changing the Maximum Number of Quick Copy This changes maximum number of Quick Copy from 0 to 50. The default is 32. Press  while Job Box > is displayed. Press  or  repeatedly until >Job Box Configuration > >Job Box >...

  • Page 53: Counter (Viewing The Counter Value)

    Counter (Viewing the counter value) Displays the number of pages printed. The options available in Counter are as follows: • Printed Pages (Displaying the total printed pages) • Color (Displaying the color printed pages) • Black & White (Displaying the Black & White printed pages) Press [MENU].

  • Page 54: Paper Settings

    Paper Settings This sets the paper size and type for the MP tray and cassettes from which paper is supplied. The options available in Paper Settings are as follows: • MP Tray Size (Setting MP tray paper size) • MP Tray Type (Setting the MP tray paper type) •...
  • Page 55 Oficio II 216x340mm Statement Folio Youkei 2 Youkei 4 Press [OK]. Press [MENU]. The display returns to Ready. MP Tray Type (Setting the MP tray paper type) You can use this to set the paper type that can be supplied from the MP tray.
  • Page 56 Cassette (1 to 4) Size (Setting the cassette paper size) To set the standard sizes A5, A4, B5, Letter, and Legal size for the paper cassette, load the paper and turn the paper size dial so that the size of the paper you are going to use appears in the paper size window.
  • Page 57 Letter Legal Envelope #9 Envelope #6 ISO B5 Custom Oufuku Hagaki Oficio II 216x340mm Statement Folio Youkei 2 Youkei 4 Note A6 is displayed for Cassette Size or Cassette 1 Size. Envelope Monarch, Envelope #10, Envelope #9, Envelope #6, Envelope DL, OufukuHagaki, Youkei 2 and Youkei 4 are displayed when one of cassettes 2 to 4 in the optional paper feeder PF-500/PF-510 is installed.
  • Page 58 Entering the Width and Length Enter the paper size for X Dimension and Y Dimension as shown in the figure. X Dimension 105 to 216 mm (4.13 to 8.5 inches) When the unit of measurement is set, press . >>X Dimension appears (the paper width setting). Press [OK].
  • Page 59 If optional paper feeders are added, Cassette 1 Type will appear for the standard paper cassette and Cassette 2 Type, Cassette 3 Type, and Cassette 4 Type will appear for the optional paper feeders. To change paper type, press [OK]. A blinking question mark (?) >Cassette Type appears.
  • Page 60 Press  or  to display the desired paper type. The display changes as shown below. PLAIN TRANSPARENCY PREPRINTED LABELS BOND RECYCLED VELLUM ROUGH LETTERHEAD COLOR PREPUNCHED ENVELOPE CARDSTOCK COATED THICK HIGH QUALITY CUSTOM 1 (to 8) Press [OK]. Press  and proceed to the next step Paper Weight (Setting the paper weight).
  • Page 61 Press [OK]. A blinking question mark (?) appears. >>>Duplex Path ? Enable Select Enable or Disable using  or . For details of the default setting for each paper type, refer to Paper Specifications on page 1-2. Press [OK]. Press [MENU]. The display returns to Ready. The custom paper type setting is completed.

  • Page 62: Print Settings

    Print Settings These settings specify printing parameters such as the print quality used for printing (Normal or Fine), the gloss mode (Low or High), the number of copies, reduced printing and the page orientation. The options available in Print Settings are as follows: •...
  • Page 63 Auto Cass. Change (Auto Cassette Change setting) You can select the following actions when the paper runs out in the paper source while printing. By default, this feature is On. The printer displays Load Cassette # (# is a cassette number) or Load MP Tray, and stops printing.
  • Page 64 When the Paper Runs Out During Printing When Paper Feed Mode is set to Fixed, if the paper in the cassette runs out during printing, Load Cassette 1 is displayed and the printer stands by. In this event, either replenish the paper in the empty cassette or use the procedure below to print from another paper source.
  • Page 65 Binding Modes Binding refers to the manner in which printed pages of paper are joined together (by gluing, stitching, etc.) in book form. The two possible types of binding are: long-edge binding, in which pages are joined together along their long edge; and short-edge binding, in which they are joined together along their short edge.
  • Page 66 Override A4/LT (Overriding difference between A4 and Letter) When the Override A4/LT is turned On using the operation panel, the printer ignores the difference between A4 and Letter paper sizes. Printing is performed without an error message even if the actual paper size in the current cassette differs from the paper size formatting the job.
  • Page 67 Select KPDL or KPDL (AUTO) using  or . Press [OK]. >Emulation > ? KPDL (AUTO) Press . >>Error Report appears. Press [OK]. A blinking question mark (?) appears. Select On or Off using  or . Press [OK]. >>Error Report ? On Press [MENU].

  • Page 68: Gloss Mode

    Press  while >Print Quality > is displayed. Press  or  repeatedly until >>Gloss Mode appears. Press [OK]. A blinking question mark (?) appears. >>Gloss Mode ? Low Select Low or High using  or . Press [OK]. Press [MENU]. The display returns to Ready. EcoPrint Mode (Selecting the EcoPrint mode) By enabling EcoPrint mode, you can minimize the amount of toner used during printing.
  • Page 69 Press  or  repeatedly until >>Copies appears. Press [OK]. A blinking cursor (_) appears. >>Copies Press  or  to increase or decrease, respectively, the value at the blinking cursor. The number of copies can be set between 1 and 999. Use ...
  • Page 70 Press [MENU]. The display returns to Ready. XPS FitTo Page (Print area setting for XPS data) Select On in this setting to enlarge or reduce XPS files to fit the printable area during printing. Press  while >Page Set > is displayed. Press ...
  • Page 71 Job Name (The Job Name display settings) Set whether the job name set in the printer driver is displayed. Press  while Print Settings > is displayed. Press  or  repeatedly until >Job Name appears. Press [OK]. A blinking question mark (?) appears. >Job Name ? Off Press ...

  • Page 72: Network (Network Settings)

    Network (Network settings) This printer supports TCP/IP and TCP/IP (IPv6) protocols. IP is an abbreviation for Internet Protocol. This printer routinely uses the TCP/IP (IPv4) protocol, but provides a separate setting for the next- generation IP, IPv6. TCP/IP (IPv4) uses 32-bit IP addresses, but the rapid growth in the number of Internet users has resulted in a shortage of IP addresses.
  • Page 73 Press  while Network > is displayed. Press  or  repeatedly until >TCP/IP > appears. Press [OK]. A blinking question mark (?) appears. >TCP/IP > ? Off Select On or Off using  or . Select On and press [OK]. Configure the settings shown below. DHCP (DHCP setting) DHCP (Dynamic Host Configuration Protocol) is the protocol that assigns the information required to establish a network connection when a host...
  • Page 74 IP Address (IP address setting) An IP address is the address of a network device such as a computer and is included in IP packets as needed for the sending and receiving of Internet data (IP packets). (IP addresses can be either destination addresses or source addresses.) Specifically, an IP address is a bit string consisting of a host address (or host section) that identifies a computer connected to the Internet and a...

  • Page 75: Subnet Mask

    Press [OK]. A blinking cursor (_) appears. >>Subnet Mask 000.000.000.000 Press  or  to increase or decrease, respectively, the value at the blinking cursor. You can set any value between 000 and 255. Use  and  to move the cursor right and left. Display the desired subnet mask and press [OK].
  • Page 76 Press [OK]. A blinking cursor (_) appears. >>Bonjour ? Off Select On or Off using  or . Press [OK]. Press [MENU]. The display returns to Ready. TCP/IP (IPv6) (IPv6 settings) This selects the settings for TCP/IP (IPv6). TCP/IP (IPv6) is based on the current Internet protocol, TCP/IP (IPv4). IPv6 is the next-generation Internet protocol and expands the available address space, which resolves the problem of the lack of addresses under IPv4, while also introducing other improvements such as additional...
  • Page 77 DHCPv6 (DHCPv6 setting) DHCPv6 is the next-generation of the Internet's Dynamic Host Configuration Protocol and supports IPv6. It extends the BOOTP startup protocol that defines the protocols used for transferring configuration information to hosts on the network. DHCPv6 permits the DHCP server to use its expanded functionality to send configuration parameters to an IPv6 node.
  • Page 78 SNMPv3 (SNMPv3 setting) Set SNMPv3. Press  while >Protocol Detail > is displayed. Press  or  repeatedly until >>SNMPv3 appears. Press [OK]. A blinking question mark (?) appears. >>SNMPv3 ? Off Select On or Off using  or . Press [OK].
  • Page 79 Press [OK]. Press [MENU]. The display returns to Ready. POP3 (POP3 setting) Select whether or not to receive email using POP3. Press  while >Protocol Detail > is displayed. Press  or  repeatedly until >>POP3 appears. Press [OK]. A blinking question mark (?) appears. >>POP3 ? Off Select On or Off using ...
  • Page 80 Press [OK]. A blinking question mark (?) appears. >>HTTP ? On Select On or Off using  or . Press [OK]. Press [MENU]. The display returns to Ready. Restart Network (Restarting the network card) After all network related settings have been done, restart the network card of the device.

  • Page 81: Optional Network (Optional Network Settings)

    Optional Network (Optional Network settings) This selects the settings for the optional network interface kit (IB-50) or wireless network interface kit (IB-51). Note This is only displayed when a network interface kit (IB-50) or wireless network interface kit (IB-51) is installed as an option. Refer to the IB-51 User’s Manual for information on the wireless network settings.
  • Page 82 Once you have entered the correct ID in the previous step (ID Password (Administrator ID input)), the message display shows Password (Administrator password input) and a blinking cursor (_). Press  or  to increase or decrease, respectively, the value at the blinking cursor.
  • Page 83 AppleTalk (AppleTalk setting) AppleTalk is a communications protocol used primarily on Macintosh computers and also refers to the Mac OS network functions. AppleTalk assigns 24-bit network addresses (a 16-bit network section and an 8-bit node address) that are used to identify devices (computers, printers, etc.) on the network.
  • Page 84 Press  or  to select the desired LAN Interface. The available LAN Interface are as follows: Auto 10BASE-Half 10BASE-Full 100BASE-Half 100BASE-Full 1000BASE-T Press [OK]. Press [MENU]. The display returns to Ready. MACAddressFilter (MAC address filtering setting) This sets whether or not to enable MAC address filtering. Note The detailed settings for MAC address filtering are selected using the optional network interface kit utility software.
  • Page 85 Restart Network (Restarting the optional network interface kit) After all network related settings have been done, restart the network card of the device. This is mandatory to make the settings effective. After entering the administrator ID and password, press  or  repeatedly until >Restart Network appears.

  • Page 86: Device Common (Selecting/Setting The Common Device)

    Device Common (Selecting/Setting the common device) Selects/sets all the functions in this printer. The options available in Device Common are as follows: • Message Language (Selecting the message language) • Date Setting (Date and time settings) • Buzzer (Alarm (Buzzer) setting) •...
  • Page 87 Date Setting (Date and time settings) Set the date and time. The date and time settings consist of the following items: • ID (Administrator ID input) • Password (Administrator Password input) • Date (date setting) • Time (time setting) • Date Format (date format selection) •...
  • Page 88 Date (date setting) After entering the administrator ID and password, press  or  repeatedly until >>Date (Year/Mon/Day) appears. Press [OK]. A blinking cursor (_) appears. >>Date (Year/Mon/Day) 2013 / 01 / 01 Use the arrow keys to set the year, month, and day. Press  or  to increase or decrease, respectively, the value at the blinking cursor.
  • Page 89 Time Zone (time difference setting) Set the time difference from GMT. After entering the administrator ID and password, press  or  repeatedly until >>Time zone appears. Press [OK]. A blinking question mark (?) appears. >>Time zone ? -05:00 Estn Time Press ...
  • Page 90 Select On or Off using  or . Press [OK]. Press [MENU]. The display returns to Ready. Job End (Job completed tone setting) When On is selected in this setting, a tone sounds when printing ends. The default setting is Off. Press ...
  • Page 91 RAM Disk Mode (Using the RAM disk) The RAM disk is a memory space shared within the printer memory that can temporarily store print jobs. The stored print job can then be used to print multiple copies of the job reducing the total amount of time required to print the whole job.
  • Page 92 When the desired RAM disk size is displayed, press [OK]. Press [MENU]. The display returns to Ready. Turn the printer off and then on again. The selected RAM disk size is activated after the printer is restarted. SSD (Using the optional SSD) Installing the optional SSD into the printer allows you to perform the following operations on the SSD.

  • Page 93: Error Handling

    Error Handling (Error detection setting) This specifies the settings for the detection methods used for duplex printing errors and for paper size and paper type errors when the paper source is fixed. The options available in Error Handling are as follows: •...
  • Page 94 Press [MENU]. The display returns to Ready. MP Tray Empty (Warning when the MP tray is empty) Turn this setting to On if you want the error displayed when the MP tray is configured as the default paper source, and there is no paper in the MP tray, or turn it to Off not to have the error displayed.

  • Page 95: Auto Panel Reset

    Press  or  to increase or decrease, respectively, the value at the blinking cursor. Enter the specified ID. Use  and  to move the cursor right and left. Enter an ID consisting of between 1 and 16 numbers. Press [OK].
  • Page 96 Press  or  to increase or decrease the value at the blinking cursor and set the desired time. The time must be set between 005 and 495 seconds, in 5-second increments. Use  and  to move the cursor right and left.
  • Page 97 Auto Error Clear (Auto error clear setting) If an error that still allows you to continue printing occurs, the next received data is automatically printed after a set period of time elapses. For example, if the printer is shared over a network as a network printer and one person causes one of the above errors, after the set period of time elapses, the data sent from the next person is printed.

  • Page 98: Form Feed Time Out

    Form Feed Time Out (Automatic form feed timeout setting) If the printer receives no data for a certain period, it will time out and release the current interface. It prints whatever data it has in its buffer and feeds out the page. The default form feed timeout time is 30 seconds. After entering the administrator ID and password, press ...
  • Page 99 Password (Administrator Password input) To set up the Sleep Level settings, you must enter an administrator ID and administrator password. For information on how to set the administrator password, refer to Administrator (Administrator settings) on page 2-94. Once you have entered the correct ID in the previous step (ID Password (Administrator ID input)), the message display shows Password (Administrator password input) and a blinking cursor (_).
  • Page 100 ID (Administrator ID input) To use the Sleep Level settings, you must enter an administrator ID. For information on how to set the administrator ID, refer to Administrator (Administrator settings) on page 2-94. Press  while >Sleep Level Set. > is displayed. The message display shows ID and a blinking cursor (_).
  • Page 101 After entering the administrator ID and password, press  or  repeatedly until >>Sleep Level appears. Press [OK]. A blinking question mark (?) appears. >>Sleep Level ? Energy Saver Press  or  to select Quick Recovery or Energy Saver. Press [OK].
  • Page 102 TonerAlert Level (Setting for the alert level for toner addition) This sets the toner addition alert level displayed on the status monitor. The options available in TonerAlert Level are as follows: • ID (Administrator ID input) • Password (Administrator Password input) •...
  • Page 103 Off/On (Setting toner addition notifications) Select whether Toner Alert Level is enabled. After entering the administrator ID and password, press  or  repeatedly until >>Off/On appears. Press [OK]. A blinking question mark (?) appears. >>Off/On ? Off Select On or Off using  or . Press [OK].

  • Page 104: Security

    Security The security functions can be set up to protect printer operation and the print data. The options available in Security are as follows: • ID (Administrator ID input) • Password (Administrator Password input) • I/F Block (Interface (external device) block setting) •...

  • Page 105: Usb Interface

    Press  or  to increase or decrease, respectively, the value at the blinking cursor. Enter the specified password. Use  and  to move the cursor right and left. Enter a password consisting of between 0 (no settings) and 16 numbers. Note If you enter the incorrect administrator ID or password, the message Wrong ID or Wrong Password appears and the input screen then reappears.

  • Page 106: Network Interface

    Option I/F (Network interface card setting) This locks and protects the network interface card (NIC). The default setting is Unblock. Note Option I/F is displayed only when the optional network interface is installed on the printer. Press  while >I/F Block > is displayed. Press ...
  • Page 107 Press [OK]. A blinking question mark (?) appears. >Enhanced WSD ? On Press  or  to select whether Enhanced WSD is enabled. Press [OK]. Press [MENU]. The display returns to Ready. EnhancedWSD(SSL) (Enhanced WSD (SSL) setting) Set whether to use our proprietary web services over SSL. SSL must be set to On in SSL Server (SSL Server setting) on page 2-83.
  • Page 108 SSL Server (SSL Server setting) SSL (Secure Sockets Layer) refers to a protocol used to encrypt information sent and received over a network. SSL can currently be used to encrypt data such as the WWW or FTP files widely used on the Internet so that privacy-related information, credit card numbers, corporate secrets and other confidential information can be sent and received safely.
  • Page 109 3DES (SSL Server 3DES setting) 3DES (Triple Data Encryption Standard) is a high level of encryption in which DES encryption is repeated threefold. The default setting is Off. Press  while >SSL Server On > is displayed. >>3DES appears. Press [OK]. A blinking question mark (?) appears. >>3DES ? Off Select On or Off using ...
  • Page 110 HTTPS (SSL Server HTTPS setting) HTTPS (HyperText Transfer Protocol Secure) is a protocol that adds SSL data encryption, message authentication and a digital signature function to the HTTP protocol used for data transfer between WWW servers and clients. S-HTTP is a similar protocol, but HTTPS differs in that it uses SSL. The default setting is Off.
  • Page 111 LAN Interface (LAN Interface setting) Specify the settings for the LAN interface to be used. The default setting is Auto. After entering the administrator ID and password, press  or  >LAN Interface repeatedly until >LAN Interface appears. Auto Press [OK]. A blinking question mark (?) appears. >LAN Interface ? Auto Press ...

  • Page 112: Job Accounting (Job Accounting Selection/Setting)

    Job Accounting (Job Accounting selection/ setting) Job Accounting is a function that allows the number of pages used to be managed by each department to be managed through the use of entered account IDs. Job accounting on this machine offers the following features: •...

  • Page 113: Job Accounting (Job Accounting Selection/Setting)

    Password (Administrator Password input) To set up Job Accounting, you must enter an administrator ID and administrator password. For information on how to set the administrator password, refer to Administrator (Administrator settings) on page 2-94. Once you have entered the correct ID in the previous step (ID Password (Administrator ID input)), the message display shows Password (Administrator password input) and a blinking cursor (_).
  • Page 114 Select Account (Department-specific settings) This specifies the functions used for managing individual account IDs. The options available in Select Account are as follows: • Counter (Account-specific counter management [color + Black & White total]) • Color Counter (Account-specific counter management [color]) •...
  • Page 115 Restriction (Print restriction selection [color + Black & White total]) Sets restricted functionality for all printing on the currently selected account. You can use the restrictions to prohibit printing by individual departments or to limit the number of pages they can print. Set the account ID and then press ...

  • Page 116: Reset Counter

    Press  or  to increase or decrease, respectively, the value at the blinking cursor. Set the desired number of pages. You can set a number between 0000001 and 9999999 as the number of pages. Use  and  to move the cursor right and left. Press [OK].
  • Page 117 Press  or  to increase or decrease, respectively, the value at the blinking cursor. Set the desired account ID. You can set a number between 1 and 8 digits. Use  and  to move the cursor right and left.
  • Page 118 Press [OK]. A blinking question mark (?) appears. >Apply Limit ? Subsequently Press  or  to select a setting. Immediately (prohibit printing from this job onwards) Subsequently (prohibit printing from the next job onwards) Press [OK]. Press [MENU]. The display returns to Ready. Unknown ID Job (Operation settings for unknown account IDs) Use this procedure to specify whether print jobs from departments with...

  • Page 119: Administrator (Administrator Settings)

    Administrator (Administrator settings) The Administrator setting is a function that identifies a user who can use the printer and manage other users. When using the Security and Job Accounting functions, the administrator ID and password set here are authenticated, and settings can be specified after they are properly authenticated.

  • Page 120: Change Password

    the cursor right and left. Enter a password consisting of between 0 and 16 digits. Note If you enter the incorrect administrator ID or password, the Wrong ID or Wrong Password message appears and the input screen then reappears. Re-enter the ID or password correctly.
  • Page 121 Press  or  to increase or decrease, respectively, the value at the blinking cursor. Enter the password to be changed. Use  and  to move the cursor right and left. Enter a password consisting of between 0 and 16 numbers. Press [OK].

  • Page 122: Adjust/Maintenance (Adjust/Maintenance Selection/Setting)

    Adjust/Maintenance (Adjust/Maintenance selection/setting) Adjust/Maintenance is used to adjust the print quality and to carry out printer maintenance. The options available in Adjust/Maintenance are as follows: • Color Calibration • Registration Normal (Color registration [standard]) • Registration Details (Color registration [detailed]) •...
  • Page 123 Print Registration Chart (Printing the color registration correction chart) You can use this option to print a color registration correction chart for use in correcting the color registration. Press  while Adjust/Maintenance > is displayed. Press  or  repeatedly until >Registration Normal > appears. Press .
  • Page 124 Sample Color Registration Correction Chart Color Registration Correction Chart MH-L MH-R CH-L CH-R YH-L YH-R When printing ends, the display returns to Ready. Adjust Magenta Corrects the registration for magenta (red). Press  while Adjust/Maintenance > is displayed. Press  or  repeatedly until >Registration Normal > appears. Press .
  • Page 125 Look at the left chart (L) in the magenta portion of the color registration correction chart. Find the two lines that most seem to overlap as a single straight line and note the number value listed there. In the left example, the value would be B. Press ...
  • Page 126 Print Registration Chart (Printing the color registration correction chart) You can use this option to print a color registration correction chart for use in correcting the color registration. Press  while Adjust/Maintenance > is displayed. Press  or  repeatedly until >Registration Details > appears.
  • Page 127 Press [OK]. Processing appears and a color registration correction chart is printed out. There are horizontal (H) and vertical (V) registration charts for each color (magenta, cyan and yellow) included on the color registration correction chart. When printing ends, the display returns to Ready. M 12345 3 (Adjust magenta) Makes detailed corrections to the registration for magenta (red).
  • Page 128 Press  or  repeatedly until >>M 12345 3 appears. Press [OK]. 00000 or 0 will be displayed for each value and the >>M 12345 cursor (_) will flash under the H value. MH=00000 MV=0 In the color registration correction chart printed in Print Registration Chart above, note the numbers of the sections in the magenta H and V charts where the lines most closely coincide as a single straight line.
  • Page 129 Restart Printer The procedure described below resets the printer’s temporary conditions, such as the current page orientation, font, etc., set by commands to their default values. Downloaded fonts and macros are deleted from the printer’s memory. Press  while Adjust/Maintenance > is displayed. Press ...
  • Page 130 When printing ends, the display returns to Ready. Print Network Status Page (Printing the network status page) The network status page contains detailed information on the network settings. This is primarily used for maintenance by service personnel, but it contains information that may also be useful to you. Press ...
  • Page 131 Write Data This writes data to USB memory. Note This menu only appears when USB memory is inserted. Press  while >Service > is displayed. Press  or  repeatedly until >>Write Data appears. Press [OK]. A question mark (?) appears. >>Write Data ? Press [OK] again.
  • Page 132 When refreshing ends, the display returns to Ready. LSU (LSU cleaning mode setting) This sets the cleaning mode for the LSU. When the printing quality declines, cleaning the LSU can restore the printing quality. This is primarily used for maintenance by service personnel. Press ...
  • Page 133 2-108 Using the Operation Panel...

  • Page 134: Options

    3 Options This chapter contains explanations on the following topics: General Information Expansion Memory Modules General Description of Options For availability of the options, consult your service technician. Options...
  • Page 135 General Information This printer has the following options available to satisfy your printing requirements. For instructions on installing individual options, refer to the documentation included with the option. Some options are explained in the following sections. Paper Feeder PF-500/ PF-510 Base CA-500 USB memory Expansion Memory...
  • Page 136 Expansion Memory Modules The printer's main controller board has a memory slot into which you can plug in optional memory modules (dual in line memory modules). You can increase the printer's memory up to 1536 MB by plugging in the optional memory modules.
  • Page 137 Installing the Memory Modules IMPORTANT Remove any USB memory that is attached to the printer's USB memory slot. Power off the printer and unplug the printer power cord. Unscrew two screws at the back of the main controller board. Pull out the main controller board gently. Main Controller Board Remove the memory module from its package.

  • Page 138: General Description Of Options

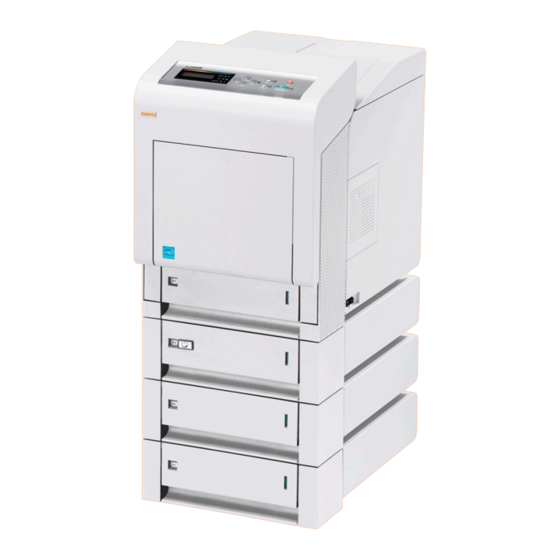

    General Description of Options PF-500, PF-510 Paper Feeder The optional paper feeder PF-500 (for plain paper) and PF-510 (for multiuse media) will each hold approximately 500 sheets of paper. Up to 3 optional feeders can be added to the bottom of the printer, allowing continuous feeding of up to 2,000 sheets of paper when combined with the printer's own cassette.
  • Page 139 With SSD installed in the printer, received data can be rasterized and stored on this SSD. This enables high-speed printing of multiple copies using an electric sort function. Also, you can use the Custom Box and Job Box functions. For details, refer to Custom Box (Using a Custom Box) on page 2-18 and Job Box on page 2-22.

  • Page 140: Computer Interface

    4 Computer Interface This chapter contains explanations on the following topics: Interface USB Interface Network Interface Computer Interface...

  • Page 141: Usb Interface

    Interface This chapter explains the signals used in the printer's USB, and network interfaces. It also lists pin assignments, signal functions, timings, connector specifications, and voltage levels. • USB Interface • Network Interface USB Interface This printer supports the Hi-Speed USB. USB (Universal Serial Bus) interface specifications and interface signals are as follows.

  • Page 142: Network Interface

    Network Interface Features Automatic IP Address Resolution This feature is compatible with the DHCP/DHCPv6 protocol and allows the printer to automatically receive IP addresses from the DHCP/DHCPv6 server. Management using Web Browsers HTTP pages are incorporated in to the interface, so that a web browser can be used to monitor and change a range of settings.
  • Page 143 Operation Environment 10 to 35 °C (50 to 95 °F), 20-80 % RH (condensation-free) EMI Countermeasures VCCI Class B, FCC Class B (U.S.), CE (Europe) IMPORTANT When IPv6 functions are used, the devices used on the network (routers, PCs, etc) must support IPv6. Computer Interface...

  • Page 144: Glossary

    Glossary Additional memory An additional memory (optional) is used for increasing the memory capacity of this machine. For DIMM that can be used in this machine, contact your service technician. AppleTalk AppleTalk offers file sharing and printer sharing and it also enables you to utilize application software that is on another computer on the same AppleTalk network.
  • Page 145 dpi (dots per inch) This indicates the number of dots printed per inch (25.4 mm) as a unit for expressing resolution. EcoPrint This is a printing mode that reduces toner consumption. Pages printed in the EcoPrint mode are lighter than pages printed in the normal mode. Emulation This refers to emulation of other manufacturers’...

  • Page 146: Printer Driver

    Outline font With outline fonts, character outlines are represented with numerical expressions and fonts can be enlarged or reduced in different ways by changing the numeric values of those expressions. Printing remains clear even if you enlarge fonts, since the characters are defined with outlines represented with numerical expressions.
  • Page 147 Status page This lists machine conditions, such as the machine’s memory, the total number of prints and paper source settings. You can print the status page from the operation panel. Subnet Mask This is a 32-bit numerical value that defines which bits of the IP address specify the network address and which specify the host address.

  • Page 148: Index

    Index ....... . 2-69 MP tray empty Paper mismatch ....... 2-68 .
  • Page 149 ............1-3 Indicators Minimum and maximum sizes .
  • Page 150 ........2-71 Low power ........2-70 Panel reset .
  • Page 151 Index-4...
  • Page 152 We recommend the use of our own brand supplies. We will not be liable for any damage caused by the use of third party supplies in this machine.
  • Page 153 TA Triumph-Adler GmbH Betriebsstätte Norderstedt Ohechaussee 235 22848 Norderstedt Germany First edition 2013.10 2PPGEEN400...
