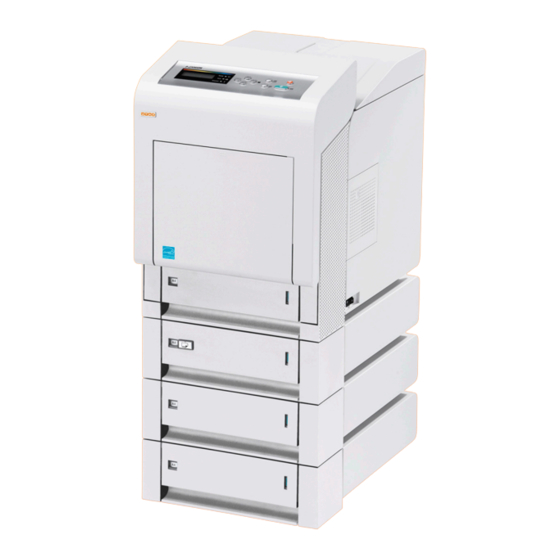

  • Page 1 USER MANUAL COLOUR PRINTER P-C3060DN Print...
  • Page 2 P-C3060DN Operation Guide...

  • Page 4: Table Of Contents

    Contents Machine Parts Components at the Front of the Printer ........1-2 Components at the Left of the Printer ........1-2 Internal Components ..............1-3 Components at the Rear of the Printer ........1-3 Operation Panel ................1-4 Printing Operation Changing Network Interface Parameters .........

  • Page 6: Legal And Safety Information

    Legal and Safety Information CAUTION NO LIABILITY IS ASSUMED FOR ANY DAMAGE CAUSED BY IMPROPER INSTALLATION. Notice on Software SOFTWARE USED WITH THIS PRINTER MUST SUPPORT THE PRINTER'S EMULATION MODE. The printer is factory-set to emulate the PCL. Notice The information in this guide is subject to change without notification. Additional pages may be inserted in future editions.
  • Page 7 • UFST™ MicroType® fonts by Monotype Imaging Inc. are installed in this machine. • AirPrint and the AirPrint logo are trademarks of Apple Inc. • iOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license by Apple Inc. •...
  • Page 8 You agree that you will not modify, alter, disassemble, decrypt, reverse engineer or decompile the Software. Monotype Imaging warrants that for ninety (90) days after delivery, the Software will perform in accordance with Monotype Imaging- published specifications, and the diskette will be free from defects in material and workmanship.

  • Page 9: Original Ssleay License

    All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)" The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission.
  • Page 10 Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. All advertising materials mentioning features or use of this software must display the following acknowledgement: "This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)"...

  • Page 11: Interface Connectors

    Compliance and Conformity This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 12: Safety Information

    Radio Frequency Transmitter This machine contains a transmitter module. We, the manufacturer hereby declare that this equipment (page printer), model P-C3060DN is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Radio Tag Technology...
  • Page 13 Cautionary Labels The printer bears any of the following labels. High temperature inside. Do not touch parts in this area, because there is a danger of getting burned. Label inside the printer (Laser radiation warning)

  • Page 14: Cdrh Regulations

    CDRH Regulations The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented regulations for laser products on August 2, 1976. These regulations apply to laser products manufactured after August 1, 1976. Compliance is mandatory for products marketed in the United States.
  • Page 15 Canadian Department of Communications Compliance Statement This Class B digital apparatus complies with Canadian ICES-003. Avis de conformité aux normes du ministère des Communications du Canada Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. EN ISO 7779 Maschinenlärminformations-Verordnung 3.

  • Page 16: Energy Saving Control Function

    Energy Saving Control Function The device comes equipped with a Low Power Mode where energy consumption is reduced after a certain amount of time elapses since the device was last used, as well as a Sleep where printer functions remain in a waiting state but power consumption is still reduced to a minimum when there is no activity with the device within a set amount of time.
  • Page 17 consumption is possible. It is recommended that the machine be used with the activation time for energy-saving mode set to the default setting. ® Energy Star (ENERGY STAR ) Program We have determined as a participating company in the International Energy Star Program that this product is compliant with the standards laid out in the International Energy Star Program.

  • Page 18: Installation Precautions

    Installation Precautions Environment CAUTION Avoid placing the printer on or in locations which are unstable or not level. Such locations may cause the printer to fall. This type of situation presents a danger of personal injury or damage to the printer. Avoid locations with humidity or dust and dirt.

  • Page 19: Precautions For Use

    Power Supply/Grounding the Printer WARNING Do not use a power supply with a voltage other than that specified. Avoid multiple connections in the same outlet. These types of situations present a danger of fire or electrical shock. Plug the power cord securely into the outlet. If metallic objects come in contact with the prongs on the plug, it may cause a fire or electric shock.
  • Page 20 danger of fire or electrical shock. (Always grasp the power plug when removing the power cord from the outlet.) • Always remove the power plug from the outlet when moving the printer. If the power cord is damaged, there is a danger of fire or electrical shock.
  • Page 21 About the Operation Guide This Operation Guide has the following chapters: Chapter 1 - Machine Parts This chapter explains the names of parts. Chapter 2 - Printing Operation This chapter explains how to print from your workstation. Chapter 3 - Maintenance This chapter explains how to replace the toner container and how to care for your printer.

  • Page 22: Machine Parts

    1 Machine Parts This chapter provides explanations and illustrations for you to determine the parts and their functions. Try to be familiar with the names and functions of these parts for correct use and optimal performance. This chapter contains explanations on the following topics: Components at the Front of the Printer Components at the Left of the Printer Internal Components...

  • Page 23: Components At The Front Of The Printer

    Components at the Front of the Printer Operation Panel Front Cover Paper Stopper Top Cover (Top Tray) MP (Multi-Purpose) Tray Paper Cassette Power Switch Components at the Left of the Printer 11 12 13 14 Left Cover Waste Toner Box 10 Main Charger Units on the Drum Units 11 Magenta Toner Container (M) 12 Cyan Toner Container (C)

  • Page 24: Internal Components

    Internal Components 15 Paper Transfer Unit 16 Paper Ramp 17 Duplex Unit 18 Envelope Switch Components at the Rear of the Printer 19 USB Memory Slot 20 Power Cord Connector 21 Option Interface Slot 22 Network Indicators 23 Network Interface Connector 24 USB Interface Connector 25 Rear Cover Machine Parts...

  • Page 25: Operation Panel

    Operation Panel 27 28 33 34 26 Message Display 27 Ready Indicator 28 Data Indicator 29 Attention Indicator 30 Arrow Keys 31 [MENU] Key 32 [OK] Key 33 [GO] Key 34 [Cancel] Key Machine Parts...

  • Page 26: Printing Operation

    2 Printing Operation This chapter contains explanations on the following topics: Changing Network Interface Parameters Printing a Network Interface Status Page Embedded Web Server RX Installing the Printer Driver 2-14 Printing from Application Software 2-21 Printing by AirPrint 2-22 Status Monitor 2-23 Energy Saver Function 2-27...
  • Page 27 Changing Network Interface Parameters This printer supports TCP/IP, TCP/IP (IPv6), NetWare, AppleTalk, IPP, SSL Server and the IPSec protocols and Security Level. The table below shows the items required for each of the settings. Configure the printer's network parameters as appropriate for your PC and your network environment.
  • Page 28 Menu Submenu Setting SSL Server On/Off On/Off 3DES On/Off On/Off IPP over SSL On/Off HTTPS On/Off IPSec On/Off LAN Interface Auto/10BASE-Half/ 10BASE-Full/ 100BASE-Half/ 100BASE-Full/ 1000BASE-T Security Level High/Low Note After all network related settings have been done, turn the machine OFF and ON again. This is mandatory to make the settings effective! Printing Operation...

  • Page 29: Printing A Network Interface Status Page

    Printing a Network Interface Status Page You can print out a status page for the network interface. The network status page shows the network addresses, and other information under various network protocols about the network interface. Adjust/Maintenance Adjust/Maintenance is used to adjust the print quality and to carry out printer maintenance.

  • Page 30: Embedded Web Server Rx

    Embedded Web Server RX If the machine is connected to the network, you can configure various settings using Embedded Web Server RX. This section explains how to access Embedded Web Server RX, and how to change security settings and the host name. For details on Embedded Web Server RX, refer to the Embedded Web Server RX User Guide.
  • Page 31 Accessing Embedded Web Server RX Launch your Web browser. In the address or location bar, enter the machine's IP address or the host name. Examples: https://192.168.48.21/ (for IP address) https://P001 (if the host name is "P001") The web page displays basic information about the machine and Embedded Web Server RX as well as their current status.

  • Page 32: Changing Security Settings

    Changing Security Settings This section explains how to change the security settings. Access Embedded Web Server RX by referring to Accessing Embedded Web Server RX on page 2-6. From the Security Settings menu, select the setting you want to configure. The configurable settings are Device Security, Network Security, and Certificates.
  • Page 33 Changing Device Information Change the device information of the machine. Access Embedded Web Server RX by referring to Accessing Embedded Web Server RX on page 2-6. From the Device Settings menu, select System. Enter the device information, and then click Submit. IMPORTANT After changing the setting, restart the network or turn the machine OFF and then ON.
  • Page 34 E-mail settings By configuring the SMTP settings, you can send E-mail notifications on completed jobs. To use this function, this machine must be connected to a mail server using the SMTP protocol. In addition, check the following. • The network environment used to connect this machine to the mail server A full-time connection via a LAN is recommended.
  • Page 35 Enter the appropriate values to each field. Setting Description SMTP Set to send e-mail from the machine. SMTP Protocol Set SMTP protocol. Set the SMTP (E-mail TX) setting to On on the Protocol Settings page. SMTP Server Enter the host name or IP address of the SMTP server. Name SMTP Port Specify the port number to be used for SMTP.
  • Page 36 Setting Description E-mail E-mail Size Limit Enter the maximum size of E-mail that can be sent in kilobytes. Send When E-mail size is greater than this value, an error message Settings appears and E-mail sending is cancelled. Use this setting if you have set E-mail Size Limit for SMTP server.
  • Page 37 Registering a Custom Box You can register a custom box from Embedded Web Server RX. Access Embedded Web Server RX by referring to Accessing Embedded Web Server RX on page 2-6. From the Document Box menu, click Custom Box. Click Add. Enter the box details.
  • Page 38 Printing a document stored in a Custom Box A document stored in a Custom Box can be printed from Embedded Web Server RX. Access Embedded Web Server RX by referring to Accessing Embedded Web Server RX on page 2-6. From the Document Box menu, click Custom Box. Click the number or name of the Custom Box in which the document is stored.

  • Page 39: Installing The Printer Driver

    Installing the Printer Driver Ensure the printer is plugged in and connected to the PC before installing the printer driver from the DVD-ROM. Note Installation on Windows must be done by a user logged on with administrator privileges. When connected by USB cable, Plug and Play is disabled on this device when in Sleep mode.
  • Page 40 Select the device to be installed. You can also select Use host name for port name and set to use the host name of the standard TCP/IP port. (A USB connection cannot be used.) Note The machine cannot be detected unless it is on. If the computer fails to detect the machine, verify that it is connected to the computer via a network or USB cable and that it is turned on and click...
  • Page 41 Custom Install The following procedure is an example for installing the software in Windows 7 using Custom Install. Insert the DVD-ROM. Note Installation on Windows must be done by a user logged on with administrator privileges. If the Welcome to the Found New Hardware Wizard dialog box displays, select Cancel.
  • Page 42 Select the device to be installed and driver to be installed, and then click the arrow button to move it to the Products to Install list. Select the utility to be installed, and then click the arrow button to move it to the Products to Install list. Click Install.

  • Page 43: Uninstalling The Software

    Uninstalling the Software Perform the following procedure to delete the Software from your computer. Note Uninstallation on Windows must be done by a user logged on with administrator privileges. Click Start button on the Windows and then select All Programs, (name of offer company), and Uninstall Product Library to display the Uninstall Wizard.
  • Page 44 Insert the DVD-ROM. Double-click the GEN_LIB icon. Double-click OS X 10.5 or higher . Double-click (Brand Name) OS X 10.5+. The printer driver installation program starts up. Install the printer driver as directed by the instructions in the installation software. This completes the printer driver installation.
  • Page 45 Click the plus symbol (+) to add the installed printer driver. Click the IP icon for an IP connection and then enter the IP address and printer name. The number entered in Address will automatically appear in Name. Change if needed. Note When using a Bonjour connection, select Default and click the item that appears in Printer Name.

  • Page 46: Printing From Application Software

    Printing from Application Software The steps required to print a document created with an application are explained below. You can select the printing Paper Size and Output Destination. Load the paper required into the paper cassette. From the application File menu, select Print. The Print dialog box displays.

  • Page 47: Printing By Airprint

    Printing by AirPrint AirPrint is a printing function that is included standard in iOS 4.2 and later products, and Mac OS X 10.7 and later products. This function enables you to connect and print to any AirPrint compatible device without installing a printer driver. To allow the machine to be found when printing by AirPrint, you can set machine location information in Embedded Web Server RX.

  • Page 48: Status Monitor

    Status Monitor The Status Monitor monitors the printer status and provides an ongoing reporting function. Note When you activate Status Monitor, check the status below. • Printing System Driver is Installed. • Either Enhanced WSD or EnhancedWSD(SSL) are set to On in Security section of the Advanced Operation Guide.
  • Page 49 Printing Progress Tab The status of the print jobs is displayed. Job list Status icon Select a job on the job list and it can be canceled using the menu displayed with a right-click. Paper Tray Status Tab Information is displayed about the paper in the printer and about the amount of paper remaining.
  • Page 50 Alert Tab If an error occurs, a notice is displayed using a 3D image and a message. Status Monitor Context Menu The following menu is displayed when the settings icon is clicked. Settings icon • Configure... If the printer is connected to a TCP/IP network and has its own IP address, use a web browser to access the Embedded Web Server RX to modify or confirm the network settings.
  • Page 51 Status Monitor Notification Settings The Status Monitor settings and event list details are displayed. Select whether notification is performed when an error in the event list occurs. Select Enable event notification. If this setting is set to Off, then the Status Monitor will not start up even when printing is executed.

  • Page 52: Energy Saver Function

    Energy Saver Function Low Power Mode When the set time (factory setting is 1 minute) elapses after the printer is last used, the printer automatically enters low power mode. The message display backlight and lights turn off and power consumption is reduced. This status is referred to as Low Power Mode.
  • Page 53 Note that ambient environmental conditions, such as ventilation, may cause the machine to respond more slowly. For more information about configuring settings, refer to Sleep Timer (Sleep timer timeout setting) section of the Advanced Operation Guide. Energy Saver Mode This mode reduces power consumption even more than quick recovery mode, and allows Sleep mode to be set separately for each function.

  • Page 54: Maintenance

    3 Maintenance This chapter contains explanations on the following topics: General Information Toner Container Replacement Replacing the Waste Toner Box Cleaning the Printer Maintenance...

  • Page 55: Toner Container Replacement

    General Information This chapter describes basic maintenance tasks you can perform on the printer. You can replace the following component according to the printer’s display: • Toner Kits • Waste Toner Box Also, the following parts need periodic cleaning: • Paper Transfer Unit Note Information Collection on Memory Chips - The memory chip attached to the toner container is designed to improve convenience for the end user;...
  • Page 56 • Waste Toner Box • Installation Guide Note Do not remove the toner container from the carton until you are ready to install it in the printer. Understanding Messages Requesting Toner Container Replacement The printer displays messages for individual colors at two stages of toner usage.

  • Page 57: Replacing The Toner Container

    Replacing the Toner Container This section explains how to replace the toner containers. When replacing the toner container of any color, always replace the waste toner box at the same time. If this box is full, the printer may be damaged or contaminated by the waste toner that may spill over the box.
  • Page 58 Put the old toner container in the plastic bag (contained in the toner Plastic Bag kit) and discard it later according to the local code or regulations for waste disposal. Take the new toner container out of the toner kit. Shake the new toner container 5 or 6 times as shown in the figure in order to distribute the toner evenly inside the container.

  • Page 59: Replacing The Waste Toner Box

    Replacing the Waste Toner Box Replace the waste toner box when the Check waste toner box message is displayed. A new waste toner box is included with the toner kit. The waste toner box needs to be replaced before the printer will operate.

  • Page 60: Cleaning The Printer

    Open the cap of the new waste toner box. New Waste Toner Box Insert the new waste toner box as shown in the figure. When the box is set correctly, it will snap into place. New Waste Toner Box Make sure that the waste toner box is correctly inserted and close the left cover.

  • Page 61: Cleaning The Printer

    Cleaning the Printer The paper transfer unit should be cleaned each time the toner container and waste toner box are replaced. To maintain optimum print quality, it is also recommended that the inside of the printer be cleaned once a month as well as when the toner container is replaced.
  • Page 62 Wipe away the paper dust on the registration roller and the paper ramp using the dry cloth. Paper Transfer Unit Duplex Unit Dry Cloth Paper Ramp Transfer Belt (Black) Registration Roller (Metal) Transfer Roller (Black) Note Be careful not to touch the black transfer roller and black transfer belt during cleaning as this may adversely affect print quality.
  • Page 63 3-10 Maintenance...

  • Page 64: Troubleshooting

    4 Troubleshooting This chapter contains explanations on the following topics: General Guidelines Print Quality Problems Error Messages Clearing Paper Jams 4-11 If a problem cannot be corrected, contact your service technician. Troubleshooting...

  • Page 65: General Guidelines

    General Guidelines The table below provides basic solutions for problems you may encounter with the printer. We suggest you consult this table to troubleshoot the problems before calling for service. Symptom Check Items Corrective Action Print quality is not good. Refer to Print Quality Problems on page 4-3.

  • Page 66: Print Quality Problems

    Print Quality Problems The tables and diagrams in the following sections define print quality problems and the corrective action you can conduct to solve the problems. Some solutions may require cleaning or replacing parts of the printer. If the suggested corrective action will not solve the problem, call for service.
  • Page 67 Printed Results Corrective Action Black or white vertical streaks Check the operation panel for toner. If the Toner low C,M,Y,K message is displayed with color description, install a new toner kit for the color. To replace the toner container, refer to Toner Container Replacement on page 3-2.
  • Page 68 Printed Results Corrective Action Grey background Clean the main charger units. For details, refer to LSU/Charger (LSU/Main charger cleaning mode setting) section of the Advanced Operation Guide. Conduct color calibration either by switching the printer off then on or using the printer operation panel.

  • Page 69: Error Messages

    Error Messages The following table lists errors and maintenance messages that you can be dealt with by yourself. If appears, turn off the printer, Call service disconnect the power cord, and contact your service technician. is displayed, turn off the printer Call service Error.Power off.
  • Page 70 Message Corrective Action This message is displayed when Remove Device was selected while a USB memory was being used. Device busy The previous screen is displayed again 1 or 2 seconds. You attempted to print with a paper size and paper type that cannot be used for duplex Duplex disabled printing.
  • Page 71 Message Corrective Action Current print processing cannot continue because of occurrence of KPDL error which KPDL error is categorized by ##. To print out an error report, display >>Error Report from the Press GO menu system, and select On. Press [GO] to resume printing. You can abandon printing by pressing [Cancel].
  • Page 72 Message Corrective Action A RAM disk error has occurred. Look at the error code given in place of ## and refer to RAM disk error## Storage Error Codes on page 4-10. To ignore the RAM disk error, press [GO]. Press GO Replace Maintenance Kit which is displayed on the message display.

  • Page 73: Storage Error Codes

    Storage Error Codes SSD Errors Code Meaning The SSD is write protected using command operation. Remove the write protection using the command. There is no available SSD space. Delete unnecessary files, etc., in order to free up space. The desired file does not exist in the SSD. Stored the file in the SSD. The file stored in the SSD is write protected using command operation.

  • Page 74: Clearing Paper Jams

    Clearing Paper Jams If the paper jammed in the paper transport system, or no paper sheets were fed at all, the Paper jam message appears and the location of the paper jam (the component where the paper jam has occurred) is also indicated.

  • Page 75: General Considerations For Clearing Jams

    General Considerations for Clearing Jams Bear in mind the following considerations when attempting jam removal: CAUTION When pulling the paper, pull it gently so as not to tear it. Torn pieces of paper are difficult to remove and may be easily overlooked, deterring the jam recovery. •...
  • Page 76 Paper Jam in Printer Paper is jammed at the paper cassette or inside the printer. Remove the jammed paper using the procedure given below. CAUTION Components inside the fuser cover are hot. Do not touch it with your hands as it may result in burn injury. Press the lever to release the lock.
  • Page 77 If the paper has jammed inside the duplex unit, as shown in C, lift the duplex unit and remove the paper by holding it in the middle. Duplex Unit Close the front cover. Paper Jam at Cassette 2 (to 4) Paper is jammed at the paper cassette.

  • Page 78: Specifications

    5 Specifications Note Specifications are subject to change without notice. Item Description Printing Electrophotographic four color (CMYK) printing using tandem (4) drum system Method † Printing Cassette A4: 30 ppm, B5, A5, A6: 27 ppm , Letter: 32 ppm, Legal: 26 ppm Speeds †...
  • Page 79 Item Description † Paper Types Cassette Plain, preprinted, bond, recycled, rough, letterhead, color, prepunched, high quality, (Optional Paper and custom Feeder PF-500) Cassette Plain, preprinted, labels, bond, recycled, rough, letterhead, color, prepunched, (Optional Paper envelope, cardstock, coated, thick, high quality, and custom Feeder PF-510) MP Tray Plain, transparency, preprinted, labels, bond, recycled, vellum, rough, letterhead, color,...
  • Page 80 We recommend the use of our own brand supplies. We will not be liable for any damage caused by the use of third party supplies in this machine.
  • Page 81 TA Triumph-Adler GmbH Betriebsstätte Norderstedt Ohechaussee 235 22848 Norderstedt Germany First edition 2013.10 2PPGEEN000...
