Direct vent / natural vent gas heater
Hide thumbs Also See for 2465:
Table of Contents

Advertisement

Quick Links

INSTALLER/CONSUMER
SAFETY INFORMATION
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND
USING APPLIANCE
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLO-
SION MAY RESULT CAUSING
PROPERTY DAMAGE, PER-
SONAL INJURY OR LOSS OF
LIFE.
FOR YOUR SAFETY
Installation and service must
be performed by a qualified
installer, service agency or
the gas supplier.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electric switch;
do not use any phone in your
building.
• Immediately call your gas
supplier from your neighbor's
phone. Follow the gas suppliers
instructions.
• If you cannot reach your gas
supplier call the fire department.
DO NOT STORE OR USE
GASOLINE OR OTHER FLAM-
MABLE VAPORS AND LIQUIDS
IN THE VICINITY OF THIS OR
ANY OTHER APPLIANCE.
This appliance may be installed in
an after market permanently located
manufactured (mobile) home where not
prohibited by local codes.
This appliance is only for use with the
type of gas indicated on the rating plate.
This appliance is not convertible for use
with other gases unless a certified kit is
used.
Direct Vent / Natural
Vent Gas Heater
Models: 2465, 2466
Homeowner's Installation
and Operating Manual
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
1935
Dutchwest

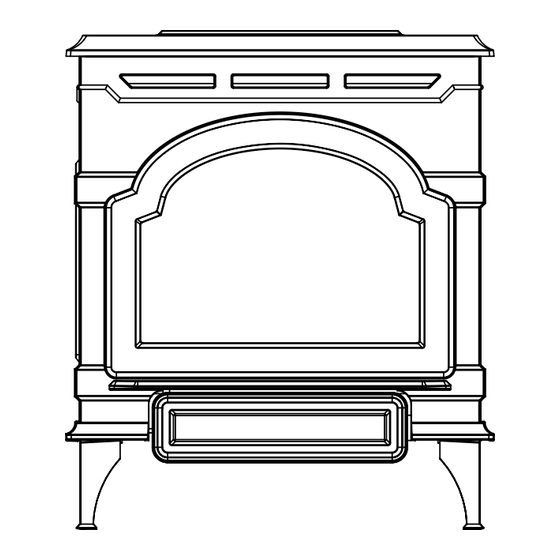

gas stove
cover
5/03
C E RT I F I E D
30001935 12/06 Rev. 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2465 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DutchWest 2465

Summary of Contents for DutchWest 2465

  • Page 1 Direct Vent / Natural WARNING! IF THE INFORMATION IN THIS Vent Gas Heater MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLO- Models: 2465, 2466 SION MAY RESULT CAUSING PROPERTY DAMAGE, PER- SONAL INJURY OR LOSS OF LIFE. FOR YOUR SAFETY Installation and service must be performed by a qualified...

  • Page 2: Table Of Contents

    Table of Contents PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE. Thank you and congratulations on your purchase of a Dutchwest stove. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty.

  • Page 3: Installation & Operating Instructions

    Dutchwest Direct Vent / Natural Vent Gas Heater General Information The Dutchwest Direct Vent/Natural Vent Room Heater, WARNING: Operation of this heater when not con- Model Nos. 3070, 3071, 3072 and 3073, is a vented gas nected to a properly installed and maintained venting appliance listed to the ANSI standard Z21.88b-2001 and...

  • Page 4: Stove Dimensions

    DV/NV dimensions The Dutchwest stove is shipped from the factory as a Direct Vent Gas Heater. This heater may be convert- 5/15/03 ed into a Natural Vent unit in the field. If a Natural Vent heater is desired, the Z31D00 FSDHAG Draft Hood must be directly installed to the top of the unit according to the installation instructions.

  • Page 5: Installation Requirements

    Dutchwest Direct Vent / Natural Vent Gas Heater Installation Requirements The installation must conform with local codes or, in Direct Vent System Only the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54 - latest edition. (EXCEP- TION: Do not derate this appliance for altitude.

  • Page 6: Parallel & Corner Installation

    Fig. 4 Corner installation, minimum corner clearances and ST129c flue centerline. Hearth Requirements Dutchwest The Dutchwest Heater must be installed on rigid floor- corner specs ing. When the heater is installed directly on any com- 5/15/03 djt bustible surface other than wood flooring, a metal or wood panel extending the full width and depth of the unit must be used as the hearth.

  • Page 7: Gas Specifications

    Dutchwest Direct Vent / Natural Vent Gas Heater Horizontal Termination - Gas Specifications Direct Vent ONLY Max. Min. Input Input The vent must rise vertically a minimum of 24” (610mm) Model Fuel Gas Control BTU/h BTU/h off the top of the unit, before the first elbow. The hori-...

  • Page 8: Vertical Termination - Direct Vent Only

    Dutchwest Direct Vent / Natural Vent Gas Heater Vertical Termination - Direct Vent ONLY A vertical vent system must terminate no less than 8’ (2.44m) and no more than 40’ (12m) above the appli- ance flue collar. A 2¹⁄₄” restrictor plate (supplied) must be used where specified in all vertically terminated vent...
  • Page 9 Dutchwest Direct Vent / Natural Vent Gas Heater Venting Termination Clearances Your stove is approved to be vented either through the There must not be any obstruction such as bushes, side wall, or vertical through the roof. garden sheds, fences, decks or utility buildings within 24”...

  • Page 10: General Venting Information - Termination Location

    Dutchwest Direct Vent / Natural Vent Gas Heater General Venting Information - Termination Location INSIDE CORNER DETAIL Fixed Fixed Closed Closed Fixed Operable Closed AREA WHERE TERMINAL IS NOT PERMITTED VENT TERMINATION AIR SUPPLY INLET CFM145a Canadian Installations US Installations...

  • Page 11: Termination Clearances

    Dutchwest Direct Vent / Natural Vent Gas Heater Termination Clearances Termination clearances for buildings with combustible and noncombustible exteriors. Inside Corner Recessed Location Outside Corner Combustible 6"(152mm) Combustible 6"(152mm) Noncombustible 2"(50mm) Noncombustible 2"(50mm) Balcony - Balcony - with no side wall with perpendicular side wall C = Maximum depth of 48"...

  • Page 12: Venting Requirements And Options - Direct Vent Only

    Through the Wall Vent Kit 7TFSDVSK Approved Vent System Components (1) 90-Degree Elbow (CG) The Dutchwest Heater must be vented to the outdoors (1) 24” Straight pipe (CG) through an adjacent exterior wall or through the roof. The (1) 48” Straight pipe (CG)

  • Page 13: Install The Optional Fan

    Dutchwest Direct Vent / Natural Vent Gas Heater • Remove the plug from the rheostat bracket. Install the Optional Fan • Insert the switch box shaft through the hole in the If you are installing the optional convection Fan Kit back of the right side of the valve bracket, aligning #2767 (FK26), continue here.

  • Page 14: Venting System Assembly - Direct Vent

    1” from the end. Insert the pipe over the stove flue collar, keeping the vertical seam oriented to the back The Dutchwest is approved for installation only with the of the stove. Also, be sure to align holes on the pipe vent components listed on Page 12.

  • Page 15: Install Vent Adapter Pipe (Simpson Dura-Vent Components)

    Dutchwest Direct Vent / Natural Vent Gas Heater Side Wall Termination Assembly Install the Vent Adapter Pipe 1. Locate the vent opening on the wall. Refer to Fig- (Simpson Dura-Vent Components) ure 5, Page 6, to determine the opening centerline.
  • Page 16 Dutchwest Direct Vent / Natural Vent Gas Heater For DuraVent pipe only: Install vent pipe by align- ing the locking system together, sliding the pipes together and twisting clockwise. • Install 90° elbow. Twist lock as before. • Slide the wall plate over horizontal run before at- taching the horizontal run to the elbow.

  • Page 17: Vent Termination Below Grade

    Dutchwest Direct Vent / Natural Vent Gas Heater Vent Termination Below Grade Recessed Wall Install Snorkel Kit #7FSDVSKS when it is not possible to meet the required vent termination clearances of 12” Firestop (305mm) above grade level. The snorkel kit will allow Finishing installation depth of down to 7”...

  • Page 18: Venting System Assembly - Natural Vent

    flashing. The enlarged ends of General Information the vent sections always face downward. The Dutchwest Heater is shipped from the factory as 9. Install the storm collar and seal around the joints. a Direct Vent Heater. It may be converted to a Natural (Fig.

  • Page 19: Install The Log Set

    Check the Rating Plate attached by a steel cable to the firebox, to confirm that you have the appropriate firebox for the type of fuel to be used. The Dutchwest may be converted from one gas to another using the appropri- LG141 ate Fuel Conversion Kit listed on Page 34.

  • Page 20: Burner Information

    7. Hold the burner at the right hand side and lift to clear the right burner leg. Then pull to the right to clear the The Dutchwest is shipped from the factory with the air injectors on the left hand side.

  • Page 21: Complete The Assembly

    Dutchwest Direct Vent / Natural Vent Gas Heater 8. The air shutter is located on the bottom of the burner Should color need further adjustment, repeat steps 1 to the left. (Fig. 37) Unfasten the two nuts holding - 12 for air shutter adjustment.

  • Page 22: Thermostat Connection (Optional)

    Dutchwest Direct Vent / Natural Vent Gas Heater Thermostat Connection (optional) Use only a thermostat rated for 500 millivolts. Check the table below for the appropriate gauge ther- mostat wire to use for the length of lead required in your installation.

  • Page 23: Operation

    Dutchwest Direct Vent / Natural Vent Gas Heater Operation Flame & Temperature Adjustment Your First Fire For stoves equipped with HI/LO valves, flame adjust- Read these instructions carefully and familiarize your- ment is accomplished by rotating the HI/LO adjustment self with the burner controls. Locate the pilot assembly, knob located near the center of the gas control valve.

  • Page 24: Lighting And Operating Instructions

    Dutchwest Direct Vent / Natural Vent Gas Heater Lighting and Operating Instructions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING:If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

  • Page 25: Troubleshooting - Honeywell #8420 Gas Control System

    Dutchwest Direct Vent / Natural Vent Gas Heater Troubleshooting / Honeywell #8420 Gas Control System NOTE: Before troubleshooting the gas control system, be sure the external gas shutoff is in the “ON” position. WARNING: REMOVE THE GLASS PANEL BEFORE PERFORMING ANY GAS CONTROL SERVICE WORK.

  • Page 26: Fuel Conversion Instructions

    Dutchwest Direct Vent / Natural Vent Gas Heater Fuel Conversion Instructions WARNING! This conversion kit shall be installed Remove Screws Rear Log Bracket by a qualified service agency in accordance with the manufacturer’s instructions and all applicable Pilot codes and requirements of the authority having jurisdiction.
  • Page 27 Dutchwest Direct Vent / Natural Vent Gas Heater Pilot Hood Pilot Bracket CO105a Fig. 53 Remove pilot hood. Allen Wrench Index Tab CO105a gas conversion FC107 Pilot Fig. 51 Remove mounting screws, pressure regulator tower 1/28/00 djt and spring and diaphragm assembly.
  • Page 28 Dutchwest Direct Vent / Natural Vent Gas Heater 21. Replace burner. Slide the burner in at an angle Left Burner Leg with left side lower than the right side. Slide the left side onto the injectors, making sure the burner leg Injector Shoulder remains at a 90°...

  • Page 29: Maintenance

    Dutchwest Direct Vent / Natural Vent Gas Heater Maintenance Your Dutchwest Gas Heater will provide years of ser- CAUTION vice with minimal upkeep. The following procedures will help ensure that your stove continues to function TURN THE PILOT OFF BEFORE PAINTING. ALLOW THE HEATER TO COOL COMPLETELY BEFORE properly.

  • Page 30: Gasket Replacement

    Dutchwest Direct Vent / Natural Vent Gas Heater Gasket Replacement Check the Gas Flame Regularly The Dutchwest Gas Heater uses a ‘tadpole’ type gasket To ensure that the stove is operating properly, check the flames periodically to confirms they match Figure 61.

  • Page 31: Wiring Diagram

    Dutchwest Direct Vent / Natural Vent Gas Heater Wiring Diagrams POWER On/Off Switch Wiring CORD Chassis TP/TH Ground Millivolt Gas Valve Black ST124b Thermostat Optional Thermostat FAN JUNCTION BOX (Optional) Thermostat (Optional) Wiring Strain Relief St124b ON / OFF on/off/switch...

  • Page 32: Replacement Parts

    Dutchwest Direct Vent / Natural Vent Gas Heater 13a,b 16a,b, 37a,b CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. 1935 Dutchwest Direct Vent / Natural Vent Gas Heater...
  • Page 33 Dutchwest Direct Vent / Natural Vent Gas Heater Dutchwest Direct Vent / Natural Vent Gas Heater Models 2465, 2466 (continued) Ref. Description Dutchwest Glass, DV25 1601691 Glass Frame Assembly - SDV30 30000127 Gasket, Glass - Med. Knit - RDV40 1203702 13a.

  • Page 34: Optional Accessories

    Dutchwest Direct Vent / Natural Vent Gas Heater Optional Accessories Fan Kits Remote Controls FK26 Fan The remote control allows you to turn the heater on or off from anywhere in the room. Refer to Page 32 for The FK26 fan helps distribute heated air from within wiring diagrams.

  • Page 35: Warranty

    • This warranty is void if: CONDITIONS AND LIMITATIONS a) The fireplace has been operated in atmospheres contaminated by • This new Dutchwest product must be installed by a competent, chlorine, fluorine, or other damaging chemicals. authorized, service contractor. A licensed technician, as prescribed b) The fireplace has been subjected to prolonged periods of damp-...

  • Page 36: Energuide

    Efficiency Ratings Model EnerGuide Ratings Fireplace Efficiency (%) 2465 63.0 2466 63.0 CFM Corporation 2695 Meadowvale Blvd. • Mississauga, Ontario, Canada L5N 8A3 800-668-5323 • www.cfmcorp.com...
