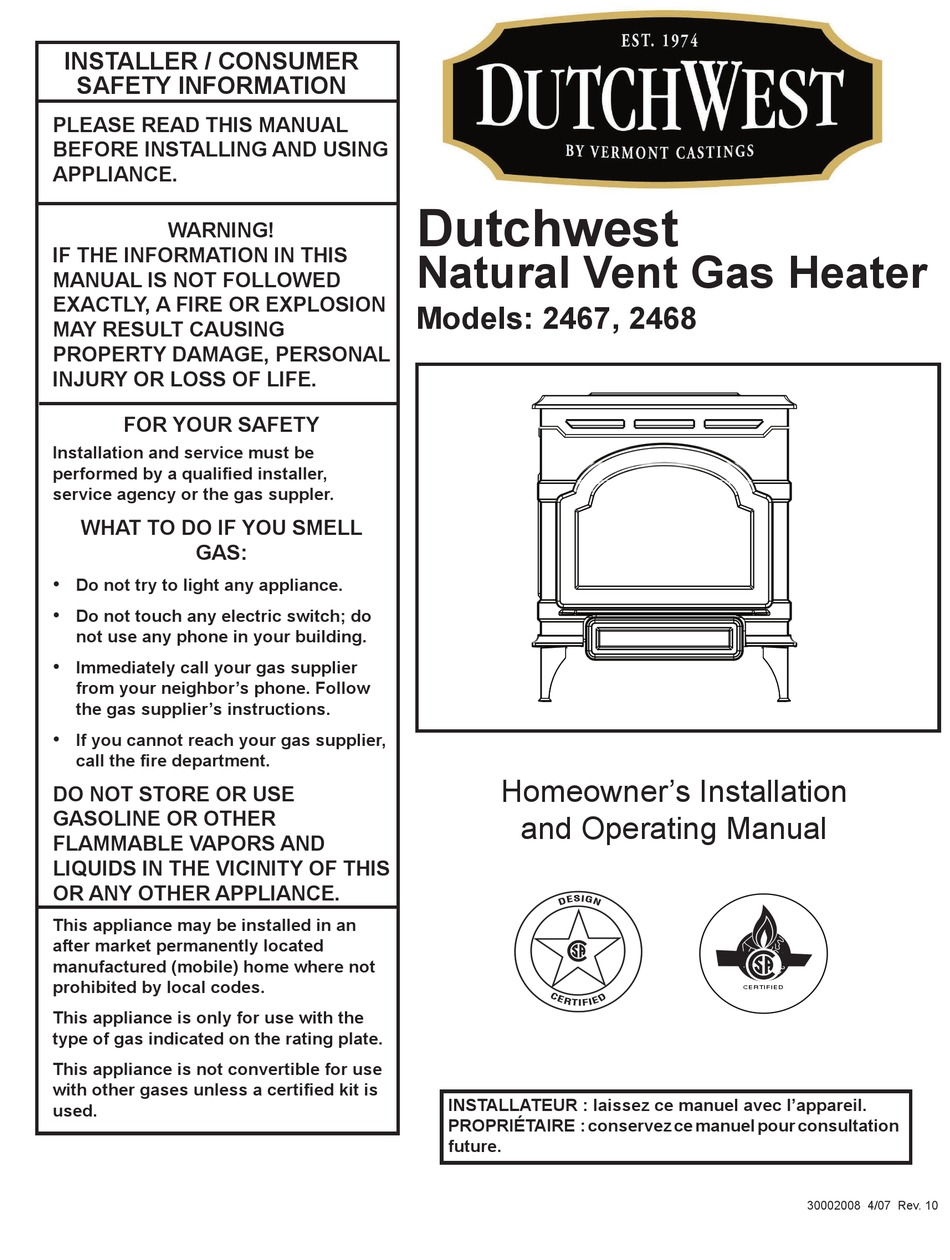

INSTALLER / CONSUMER
SAFETY INFORMATION
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND USING
APPLIANCE.
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
Installation and service must be
performed by a qualified installer,
service agency or the gas suppler.
WHAT TO DO IF YOU SMELL
GAS:
Do not try to light any appliance.
Do not touch any electric switch; do
not use any phone in your building.
Immediately call your gas supplier
from your neighbor's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas supplier,
call the fire department.
DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS
OR ANY OTHER APPLIANCE.
This appliance may be installed in an
after market permanently located
manufactured (mobile) home where not
prohibited by local codes.
This appliance is only for use with the
type of gas indicated on the rating plate.
This appliance is not convertible for use
with other gases unless a certified kit is
used.

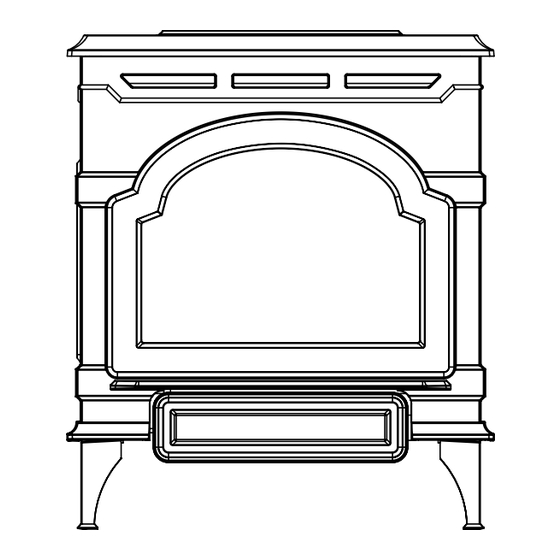

Dutchwest
Natural Vent Gas Heater
Models: 2467, 2468
Homeowner's Installation
and Operating Manual
INSTALLATEUR : laissez ce manuel avec l'appareil.
PROPRIÉTAIRE : conservez ce manuel pour consultation
future.
2008
Dutchwest
gas stove
cover
6/03
C E R T I F I E D
30002008 4/07 Rev. 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2467 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DutchWest 2467

  • Page 1 WARNING! IF THE INFORMATION IN THIS Natural Vent Gas Heater MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION Models: 2467, 2468 MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. FOR YOUR SAFETY Installation and service must be performed by a qualified installer,...
  • Page 2: Table Of Contents

    Table of Contents PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE. Thank you and congratulations on your purchase of a Dutchwest stove. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty.
  • Page 3: Installation & Operating Instructions

    Dutchwest Natural Vent Gas Heater Installation & Operating Instructions The Dutchwest Natural Vent Room Heater, Model Nos. 2467 This appliance may be installed in an aftermarket* manufactured and 2468, is a vented gas appliance listed to the ANSI standard (mobile) home, where not prohibited by state or local codes.
  • Page 4: Stove Dimensions

    Dutchwest Natural Vent Gas Heater Dutchwest Natural Vent Gas Heater Dimensions See Page 5 for Flue Collar Centerline Dimensions. 6���" (172 mm) Valve Inlet 24���" (622 mm) 28���" (721 mm) C L Valve 4���" Inlet (111 mm) 12���" 23" (318 mm) (584 mm) 17"...
  • Page 5: Clearance Requirements

    6/03 djt A: 4” (102mm) B: 33” (838mm) C: 5” (125mm) ST775 ST658 Fig. 5 The Dutchwest Natural Vent Stove is approved for Stove Clearances A: 5” (125mm) installation into alcoves built of combustible materials. alcove mins. B: 4” (102mm) Pipe Centerlines C: 16”...
  • Page 6: Gas Specifications

    Dutchwest Natural Vent Gas Heater Gas Specifications Venting Requirements and Options Max. Min. The Dutchwest must be properly connected to a listed Input Input 4” (102 mm) Type B venting system or to an approved Model Fuel Gas Control BTU/h BTU/h Class A masonry or factory-built chimney system.
  • Page 7: Passing Through A Combustible Wall Or Ceiling

    Dutchwest Natural Vent Gas Heater Passing Through a Venting Requirements Combustible Wall or Ceiling An approved pass-through device is always required when a vent passes through a combustible wall or ceil- ing. Check with the maker of the vent system for the correct listed devices that are available.
  • Page 8: Install The Optional Fan

    Dutchwest Natural Vent Gas Heater 4. Disassemble the inner shroud from the outer shroud Install the Optional Fan by removing the four screws, two on each side. 1. The fan kit includes a blower assembly and a rheo- 5. Place the grommet provided in the manual bag as- stat assembly, connected by a cable.
  • Page 9: Venting System Assembly

    Dutchwest Natural Vent Gas Heater Snapstat Venting System Assembly Left Air Duct The venting collar is on the sheet metal draft hood/heat exchanger assembly, over the firebox. Use a B-vent adapter, from the same maker as the rest of the B-vent components, to join the first section of venting to the...
  • Page 10: Connect The Gas Supply Line

    firebox, to confirm that you have the appropriate firebox may need to slip the decorative pipe over the venting for the type of fuel to be used. The Dutchwest may be sections before attaching upper sections to lower ones. converted from one gas to another using the appropri- The sections of decorative pipe should be oriented with ate Fuel Conversion Kit listed on Page 23.
  • Page 11: Burner Information

    Dutchwest Natural Vent Gas Heater Burner Information The appliance must only use the gas specified on the rating plate, unless converted using a CFM Corporation Fuel Conversion Kit. Refer to Page 23 for the correct Fuel Conversion Kit for your model.
  • Page 12: Install Stove Front

    Dutchwest Natural Vent Gas Heater Install the Stove Front Left Log Insert the handle stub into the hole in the front casting. Fasten in place with the 3/8” locking nut provided. (Fig. Right The front attaches to the stove by four steel tabs that engage with corresponding cast ribs onto the sides and bottom of the stove body.
  • Page 13: Operation

    Dutchwest Natural Vent Gas Heater Operation Your First Fire Read these instructions carefully and familiarize your- self with the burner controls. Locate the pilot assembly, Figure 25. Follow the lighting instructions on Page 14 exactly. During the first fire, it is not unusual to smell some odor associated with new logs, paint and metal being heated.
  • Page 14: Lighting And Operating Instructions

    Dutchwest Natural Vent Gas Heater Lighting and Operating Instructions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING:If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This heater has a pilot which must be lit manu- •...
  • Page 15: Troubleshooting

    Dutchwest Natural Vent Gas Heater Troubleshooting / Honeywell #8420 Gas Control System NOTE: Before troubleshooting the gas control system, be sure the external gas shutoff is in the “ON” position. WARNING: REMOVE THE GLASS PANEL BEFORE PERFORMING ANY GAS CONTROL SERVICE WORK.
  • Page 16: Fuel Conversion Instructions

    Dutchwest Natural Vent Gas Heater 5. Remove the rear log bracket by loosening the screw Fuel Conversion Instructions and sliding the bracket up. CAUTION: Do not re- move the screw completely. It would be very difficult WARNING! This conversion kit shall be installed to replace it.
  • Page 17 Dutchwest Natural Vent Gas Heater 2. Insure the rubber gasket (D) is properly positioned and install the new HI/LO pressure regulator assem- Pilot Hood bly to the valve using the new screws (E) supplied with the kit. Tighten the screws securely. (Ref. torque = 25 in/lb) (Fig.
  • Page 18 Dutchwest Natural Vent Gas Heater NOTE: It is very critical to keep the left burner leg, 1/8" Air Shutter which holds the injectors, at a 90° angel to the base. (LP Position) (Fig. 37) This keeps the orifices aligned with the tubes inside burner.
  • Page 19: Maintenance

    Dutchwest Natural Vent Gas Heater Maintenance Your Dutchwest Gas Heater will provide years of ser- CAUTION vice with minimal upkeep. The following procedures will help ensure that your stove continues to function TURN THE PILOT OFF BEFORE PAINTING. properly. ALLOW THE HEATER TO COOL COMPLETELY BEFORE PAINTING.
  • Page 20: Gasket Replacement

    Gasket Replacement Do not use your stove if the flame pattern differs from The Dutchwest Gas Heater uses a ‘tadpole’ type gasket that shown here. Contact your Dutchwest dealer or a to seal between the glass panel and the frame. In time, qualified technician for help.
  • Page 21 Dutchwest Natural Vent Gas Heater Wiring Diagrams POWER CORD On/Off Switch Wiring TP/TH Chassis Ground Black ST124b Thermostat Thermostat (Optional) (Optional) Optional Thermostat Millivolt Gas Valve Wiring FAN JUNCTION BO X St124b on/off/switch wiring Strain Relief 1/11/00 djt TP/TH ON / OFF...
  • Page 22 Dutchwest Natural Vent Gas Heater 14a,b 15a,b 22a,b,c,d 30a,b 23a,b 40a,b 2008 CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. Dutchwest Natural Vent Gas Heater...
  • Page 23 Bracket Piezo Ignitor (not shown) 20010876 *When converting to SIT valve, must order RP275 **When converting to SIT valve, must order RP269 Fuel Conversion Kits Conversion Kit, NG to LP - 2467 Kit #000-5022 Conversion Kit, LP to NG - 2468 Kit #000-5021 30002008...
  • Page 24 Dutchwest Natural Vent Gas Heater Optional Accessories Available Fan Kits Decorative Rings FK26 Fan 4” brass or black rings are available to add a decorative touch to the exposed stove pipe. The FK26 fan kit helps distribute heated air from within the firebox out into the room..
  • Page 25 Dutchwest Natural Vent Gas Heater 30002008...
  • Page 26 Dutchwest Natural Vent Gas Heater 30002008...
  • Page 27 fluorine, or other damaging chemicals. • This new Dutchwest product must be installed or serviced by a qualified b) The fireplace has been subjected to prolonged periods of dampness installer, preferably NFI or WETT (Canada) certified, as prescribed by or condensation the local jurisdiction.
  • Page 28 Efficiency Ratings Model EnerGuide Ratings Fireplace Efficiency (%) 2467 51.4 2468 51.4 CFM Corporation 410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 800-668-5323 • www.cfmcorp.com...
