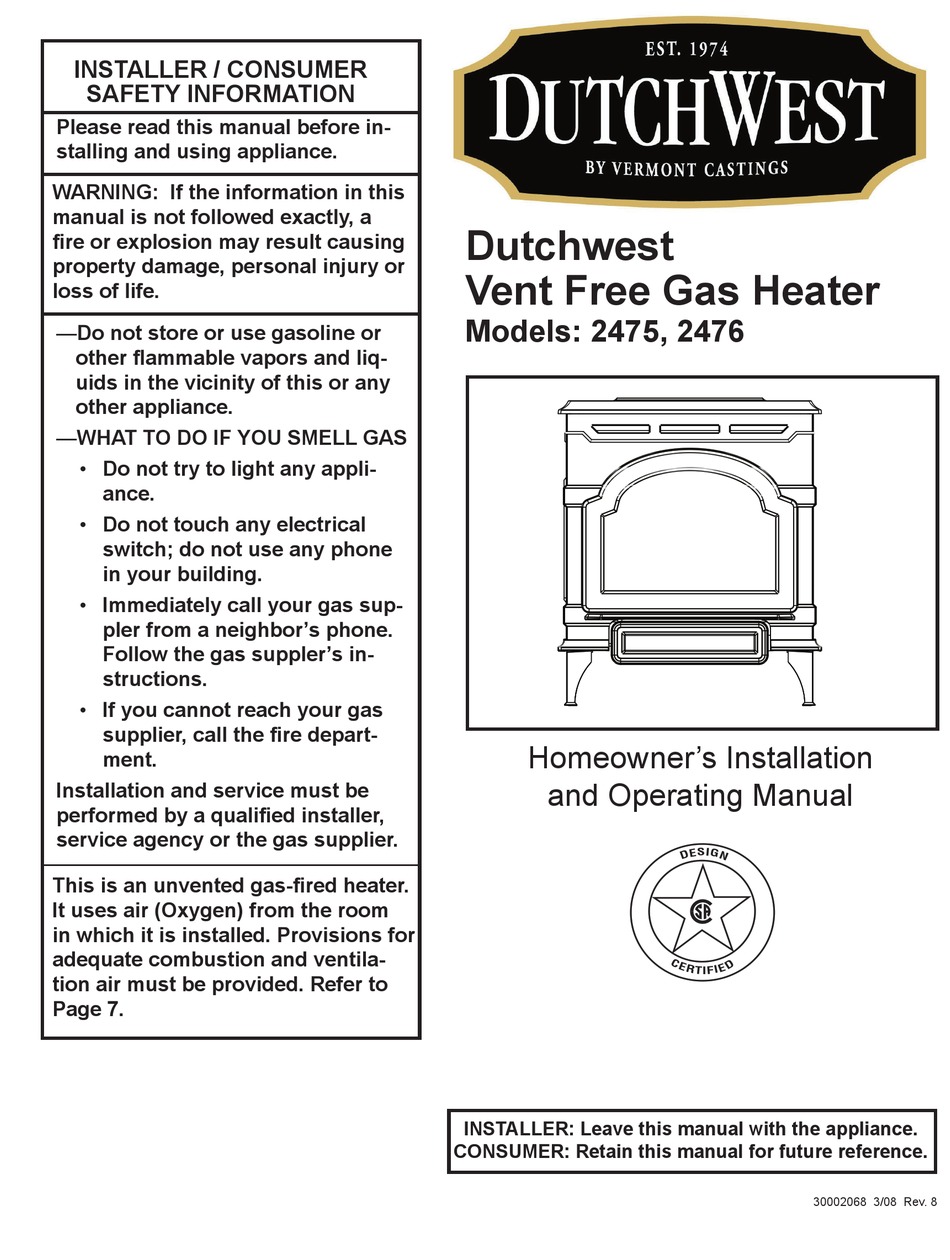

INSTALLER / CONSUMER
SAFETY INFORMATION
Please read this manual before in-
stalling and using appliance.
WARNING: If the information in this
manual is not followed exactly, a
fire or explosion may result causing
property damage, personal injury or
loss of life.
—Do not store or use gasoline or
other flammable vapors and liq-
uids in the vicinity of this or any
other appliance.
—WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appli-
ance.
• Do not touch any electrical
switch; do not use any phone
in your building.
• Immediately call your gas sup-
pler from a neighbor's phone.
Follow the gas suppler's in-
structions.
• If you cannot reach your gas
supplier, call the fire depart-
ment.
Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
This is an unvented gas-fired heater.
It uses air (Oxygen) from the room
in which it is installed. Provisions for
adequate combustion and ventila-
tion air must be provided. Refer to
Page 7.

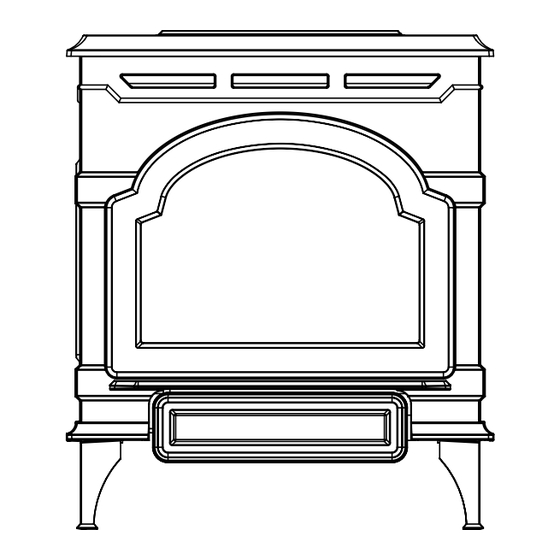

Dutchwest
Vent Free Gas Heater
Models: 2475, 2476
Homeowner's Installation
and Operating Manual
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
2008
Dutchwest
gas stove
cover
6/03
30002068 3/08 Rev. 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2475 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DutchWest 2475

Summary of Contents for DutchWest 2475

  • Page 1 fire or explosion may result causing property damage, personal injury or Vent Free Gas Heater loss of life. Models: 2475, 2476 —Do not store or use gasoline or other flammable vapors and liq- uids in the vicinity of this or any other appliance.

  • Page 2: Table Of Contents

    Table of Contents PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE. Thank you and congratulations on your purchase of a Dutchwest stove. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty.

  • Page 3: Installation And Operating Instructions

    Troubleshooting. PLEASE NOTE THE FOLLOWING: 11. DO NOT operate this heater 1. Use only Natural Gas with Model 2475. Use only Pro- • where flammable liquids or vapors are used or pane with Model 2476. Do not use any other fuels.

  • Page 4: Gas Heater Dimensions

    Dutchwest Vent-Free Gas Heater Dutchwest Vent Free Gas Heater Dimensions Drawing Not to Scale 6���" (172mm) Valve Inlet 24���" (622mm) 28���" (721mm) C L Valve 4���" Inlet (111mm) 12���" 23" (318mm) (584mm) 17" (419mm) 2068 Fig. 1 Dutchwest dimensions. 2008...

  • Page 5: Clearance Requirements

    Dutchwest Vent-Free Gas Heater Clearance Requirements Minimum Clearances to Combustible Materials Maintain clearance, (empty space), between combus- tible materials and the heater as specified below for the appropriate firebox shell being installed. ST101 ST599a A: Mantel/Trim* ......35” (889mm) / 2” (51 mm)

  • Page 6: Gas Specifications

    Unvented Heaters additional information consult a qualified installer, service agency, or the gas supplier. The installation of your Dutchwest stove must conform with local codes, or in the absence of lo- Odor During Operation cal codes, with the National Fuel Gas Code ANSI Z223.1/NFPA 54 - latest edition.

  • Page 7: Vent Free Features

    Provide For Adequate Ventilation Vent Free Features Any space within a home can be classified in the follow- The Dutchwest Vent Free, Model Nos. 2475 and 2476, ing categories: are unvented gas heating appliances tested and listed 1) Unusually Tight Construction to the ANSI Standard Z21.11.2a-2001.
  • Page 8 Dutchwest Vent-Free Gas Heater Example: A confined space may be ventilated in two ways: A room that is 18’ x 12’ x 8’ has a volume of 1728 A) Open up or provide at least two ventilating grilles to cubic feet, ( length x width x height). An adjoining open an adjoining unconfined space.

  • Page 9: Assembly Procedures

    Dutchwest Vent-Free Gas Heater Assembly Procedures 4. To install the fan assembly, it is necessary to remove Install the Optional Fan the firebox from the stove. Remove the stove front 1. The fan kit includes a blower assembly and a rheo- and screen.

  • Page 10: Install On/Off Switch

    Dutchwest Vent-Free Gas Heater Slot Outer Shroud Inner Shroud Slot Rheostat Retaining Nut ST194 Fig. 7 Position the fan to engage the inner shroud with the Control Knob ST758 fan bracket slots and secure with sheet metal screws. Fig. 9 Attach rheostat to left side of valve.

  • Page 11: Thermostat Connections

    Dutchwest Vent-Free Gas Heater Thermostat Wire / Gauge Maximum Run 40 feet 25 feet 16 feet 1. Install the wall thermostat in the desired location and run the wires to the stove location. Terminate these leads with 1/4” female connectors.

  • Page 12: Install Log Set

    When the log is in place it rests on the tab mentioned earlier and the tip of it comes in contact with the branch on the rear log. (Fig. 15) LG224 Fig. 15 Dutchwest logs in place. LG224 UVS27 30002068...

  • Page 13: Install Stove Front

    Dutchwest Vent-Free Gas Heater Install the Stove Front Engage steel tabs behind Insert the handle stub into the hole in the front casting. the cast iron bosses Fasten in place with the 3/8” locking nut provided. (Fig. The front attaches to the stove by four steel tabs that engage with corresponding cast ribs onto the sides and bottom of the stove body.

  • Page 14: Operation

    Dutchwest Vent-Free Gas Heater Operation Your First Fire Turn Read these instructions carefully and familiarize your- counterclockwise Turn clockwise self with the burner controls shown on Page 16. Locate to decrease to increase the pilot assembly, Figure 18. Follow the lighting instruc-...

  • Page 15: Lighting Instructions

    Dutchwest Vent-Free Gas Heater Lighting and Operating Instructions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING:If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This heater has a pilot which must be lit manu- •...

  • Page 16: Troubleshooting

    Dutchwest Vent-Free Gas Heater Troubleshooting Follow these procedures in the order presented. W A R N I N G TURN OFF HEATER AND ALLOW TO COOL COMPLETELY BEFORE SERVICING. CONDITION POSSIBLE CAUSE SOLUTION 1. Inspect and re-connect, replace No spark at pilot when Ignitor is 1.
  • Page 17 Dutchwest Vent-Free Gas Heater Troubleshooting cont’d. SOLUTION CONDITION POSSIBLE CAUSE Pilot lights but flame goes out 1. Control Knob not fully depressed 1. Depress Control Knob fully and when Control Knob is released. or held in long enough. hold in for a full 30 seconds.

  • Page 18: Maintenance

    Dutchwest Vent-Free Gas Heater Maintenance The following procedures will help ensure that your heater continues to perform safely and efficiently. Screen Hooks Firebox Cleaning and Inspection Cleanliness is critical to correct operation of the Glass Latch heater. The log set, burner, valve controls and air circulation areas must all be kept free of dust and unobstructed by debris.

  • Page 19: Replacement Parts

    9a,b 10a,b 18a,b,c,d 2068 CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. Dutchwest Vent Free Gas Heaters 2068 Dutchwest VF parts Models 2475, 2476 8/22/03 Ref.
  • Page 20 Dutchwest Vent-Free Gas Heater Dutchwest Vent Free Gas Heaters Models 2475, 2476 (continued) Ref. Description Dutchwest Leg, DW Gas 30001930 End, Rt - DW Gas 30001927 End, Lt - DW Gas 30001926 Valve NG Honeywell - VS84212003 10000235 Valve LP Honeywell - VS84212011 10000242 10a.

  • Page 21: Optional Accessories

    Dutchwest Vent-Free Gas Heater Optional Accessories Available Remote Controls Fan Kits The remote control allows you to turn the heater on or FK28 Fan Assembly off from anywhere in the room. Refer to Page 11, Figure The FK28 fan kit helps distribute heated air from within 13 for wiring diagram.
  • Page 22 Dutchwest Vent-Free Gas Heater 30002068...

  • Page 23: Warranty

    The fireplace has been operated in atmospheres contaminated by chlorine, fluorine, or other damaging chemicals. • This new Dutchwest product must be installed or serviced by a b) The fireplace has been subjected to prolonged periods of qualified installer, preferably NFI or WETT (Canada) certified, as dampness or condensation prescribed by the local jurisdiction.
  • Page 24 CFM Corporation 2695 Meadowvale Blvd. • Mississauga, Ontario, Canada L5N 8A3 800-668-5323 • www.cfmcorp.com...
