Summary of Contents for BIRO 722

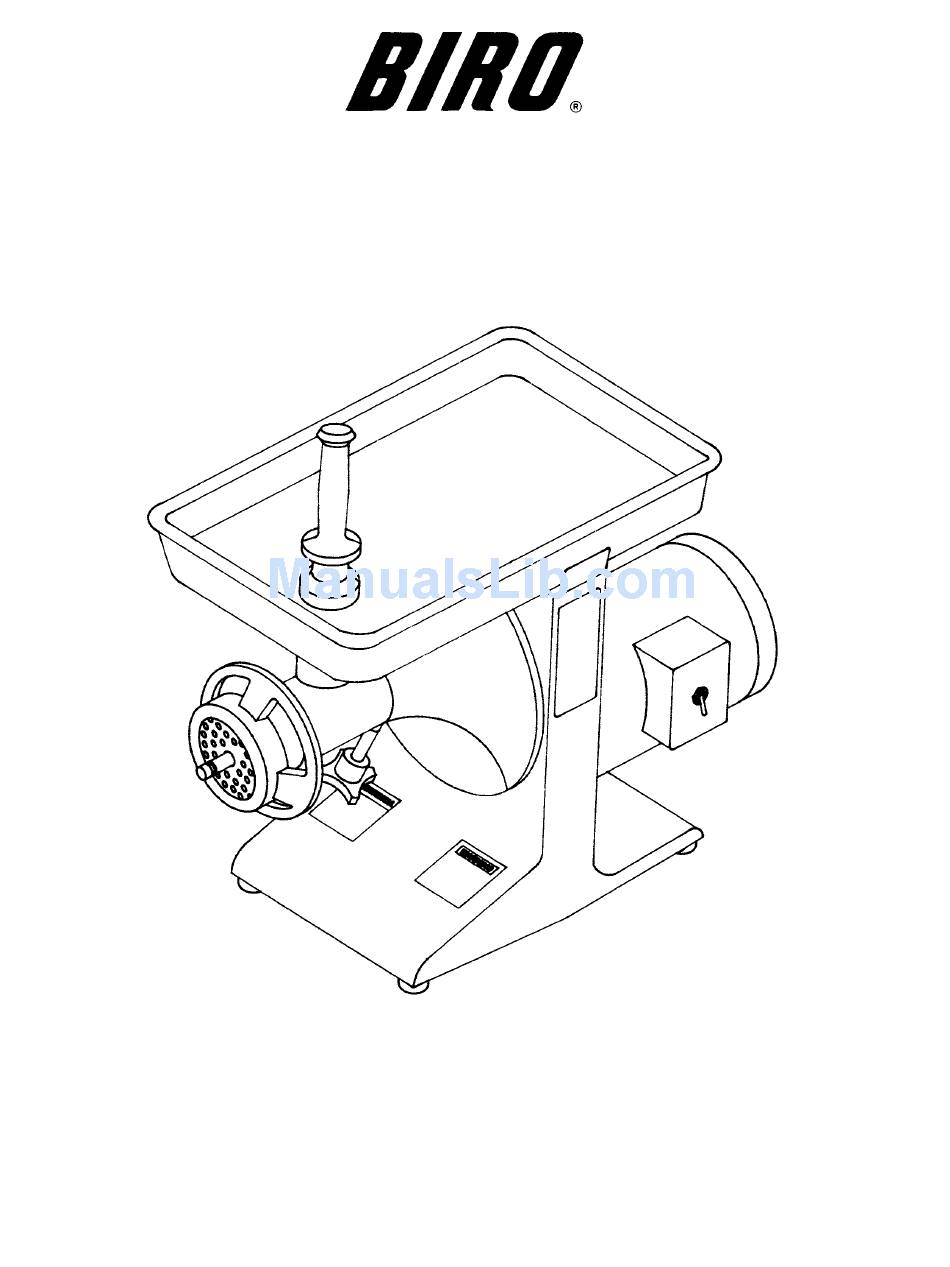

- Page 1 MODEL 722 GRINDER OPERATION MANUAL & PARTS LIST IMPORTANT SAFETY NOTICE This Manual contains important safety instructions which must be strictly followed when using this equipment. Part No. C757-275...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page NOTICE TO OWNERS AND OPERATORS ......... 1 SAFETY TIPS . -
Page 3: Notice To Owners And Operators
Manual. Warnings related to your personal safety are indicated by: Warnings related to possible damage are indicated by: BIRO also has provided warning labels on the equipment. If any warning label or Manual be- comes misplaced, damaged, or illegible, please contact your nearest Distributor or BIRO directly for a replacement. -
Page 4: Safety Tips
NEVER Leave Machine Unattended While Operating. NEVER Alter This Machine From its Original Form as Shipped From Factory. DO NOT Operate Machine With Parts Missing. PROMPTLY REPLACE Any Worn or Illegible Warning Labels. USE ONLY BIRO Parts and Accessories Properly Installed. -
Page 5: Installation
UNCRATING AND SET UP 1. Read this Manual thoroughly before installation and operation. Do not proceed with installation and operation if you have any questions or do not understand anything in this Manual. Contact your local Distributor, or BIRO first. -
Page 6: Motor Wiring And Electrical Requirements
10. Check placement of all warning labels and Manual. Machine is now ready for trained operators to process product. 11. Contact your local Distributor or BIRO directly if you have any questions or problems with the installation or operation of this machine. -
Page 7: Operation
OPERATION ROTATING GRINDING WORM TO AVOID SERIOUS PERSONAL INJURY ONLY Properly Trained Personnel Should Use This Equipment. NEVER Place Hands Into Machine Input or Output Openings. NEVER Open Machine During Operation. DO NOT Wear Gloves While Operating. DO NOT Tamper With, Bypass, Alter, or Modify This Equipment in Any Way From Its Original Condition. -
Page 8: Cleaning
NEVER Spray Water or Other Liquid Substances Directly at Motor, Power Switch or any Other Electrical Components. ALWAYS Thoroughly Clean Equipment at Least Daily. CLEANING THE BIRO TABLE TOP GRINDER 1. Disconnect grinder from power source and perform lockout/tagout procedures. 2. Remove grinding bowl end ring, breaker plate, knife and grinding worm. -
Page 9: Maintenance
USE ONLY GENUINE BIRO Parts and Accessories Properly Installed. A. HIGH TORQUE DRIVE SYSTEM The Model 722 is driven by a High Torque Drive system for power transmissions. “No Lubrication” is required (in fact) be sure no lubricant comes in contact with the sprockets or belt. -
Page 11: Parts List, Parts Ordering
Warning label, Spanish HHS004S Hex head screw, 8-32 ´ , SS H653-E Warning label, English (attach bumpers) VTS7181 BIRO logo decal HHS004S Hex head screw, 8-32 ´ , SS PC161 Power cord strain relief, (attach base top cover) 241-LN Locknut for strain relief... -
Page 16: Operator's Signature Page
OPERATOR'S SIGNATURE PAGE MY SIGNATURE ATTESTS THAT I HAVE COMPLETELY READ AND UNDERSTAND THIS MANUAL. I REALIZE THAT THIS MACHINE, IF OPERATED CARELESSLY, CAN CAUSE SE- RIOUS INJURY TO MYSELF AND OTHERS. SUPERVISOR’S NAME (PRINT) SIGNATURE DATE INITIALS... - Page 17 — NOTES —...
-
Page 18: Limited Warranty
BIRO will replace defective parts, which are covered by this limited warranty, provided that the de- fective parts are authorized for return, shipping charges prepaid, to a designated factory for in- spection and/or testing.
