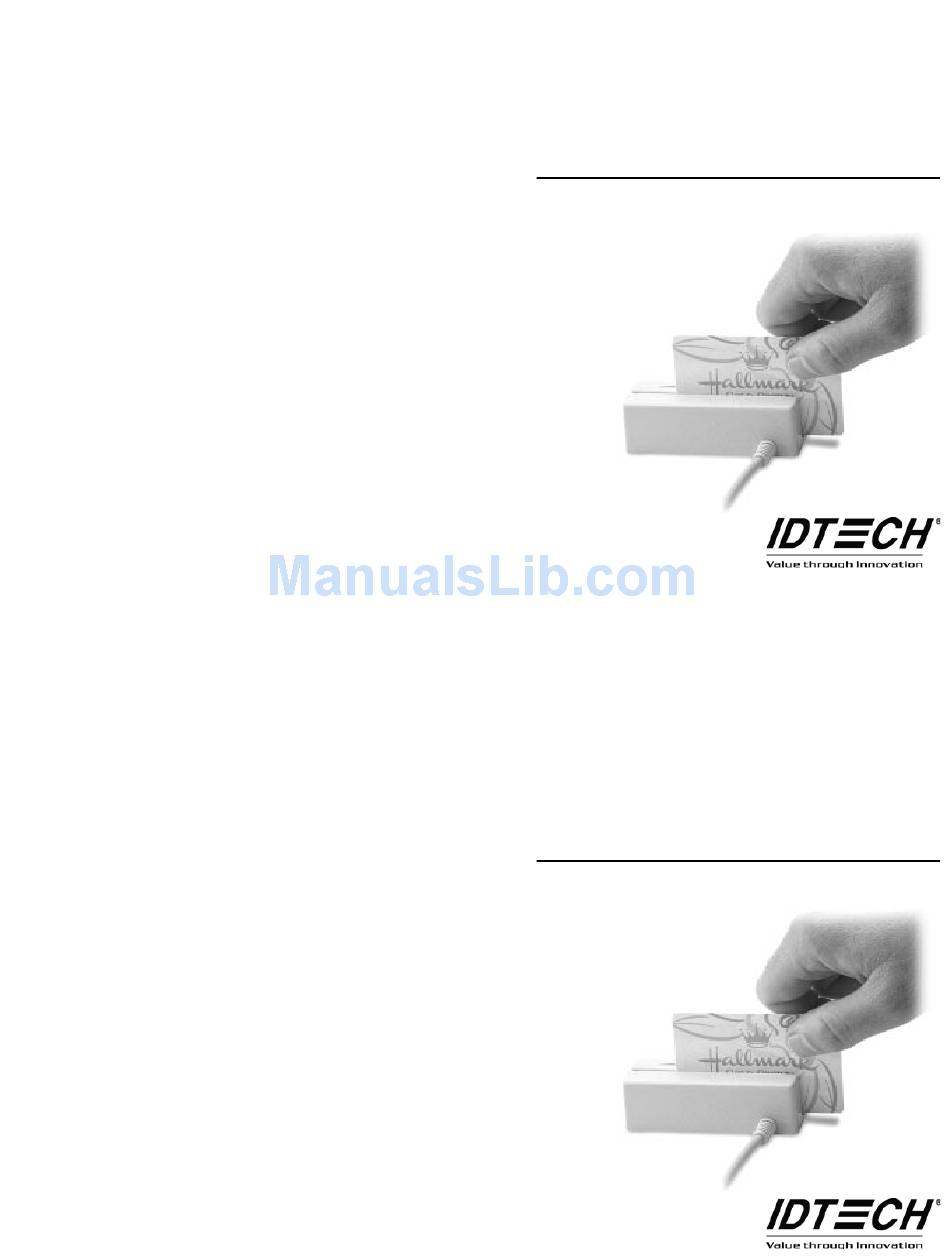

Page 1 MINIMAG Magnetic Stripe Reader User’s Manual ID TECH 10721 Walker Street Cypress, California 90630 (714) 761-6368 www.id-tech.net 80030501-005 Rev. A R02/05 #422 MINIMAG Magnetic Stripe Reader User’s Manual ID TECH 10721 Walker Street Cypress, California 90630 (714) 761-6368 www.id-tech.net 80030501-005 Rev.
Page 2: Limited Warranty
Limited Warranty ELECTRICAL CHARACTERISTICS ID TECH warrants this product to be in good working order for a period of one year from the date of purchase. If this product is not in good working DC Electrical Characteristics (25° C)
Page 3: Specifications
Operating Temperature: 32° F to 131° F (0° C to 55° C). The following is a timing diagram of typical DATA and CLOCK signals from ID TECH electronics: Storage Temperature: -22° F to 158° F (-30° C to 70° C).
Page 4 DESCRIPTION HOST CONNECTIONS The MiniMag™ compact magnetic stripe reader can read 1, 2, or 3 tracks of The undecoded MiniMag reader is connected to a decoder box magnetic stripe information. Power, when the MiniMag is connected to the using a 9-pin squeeze-to-release connector. Pinout designations host via a decoder box, is obtained from the decoder box.
