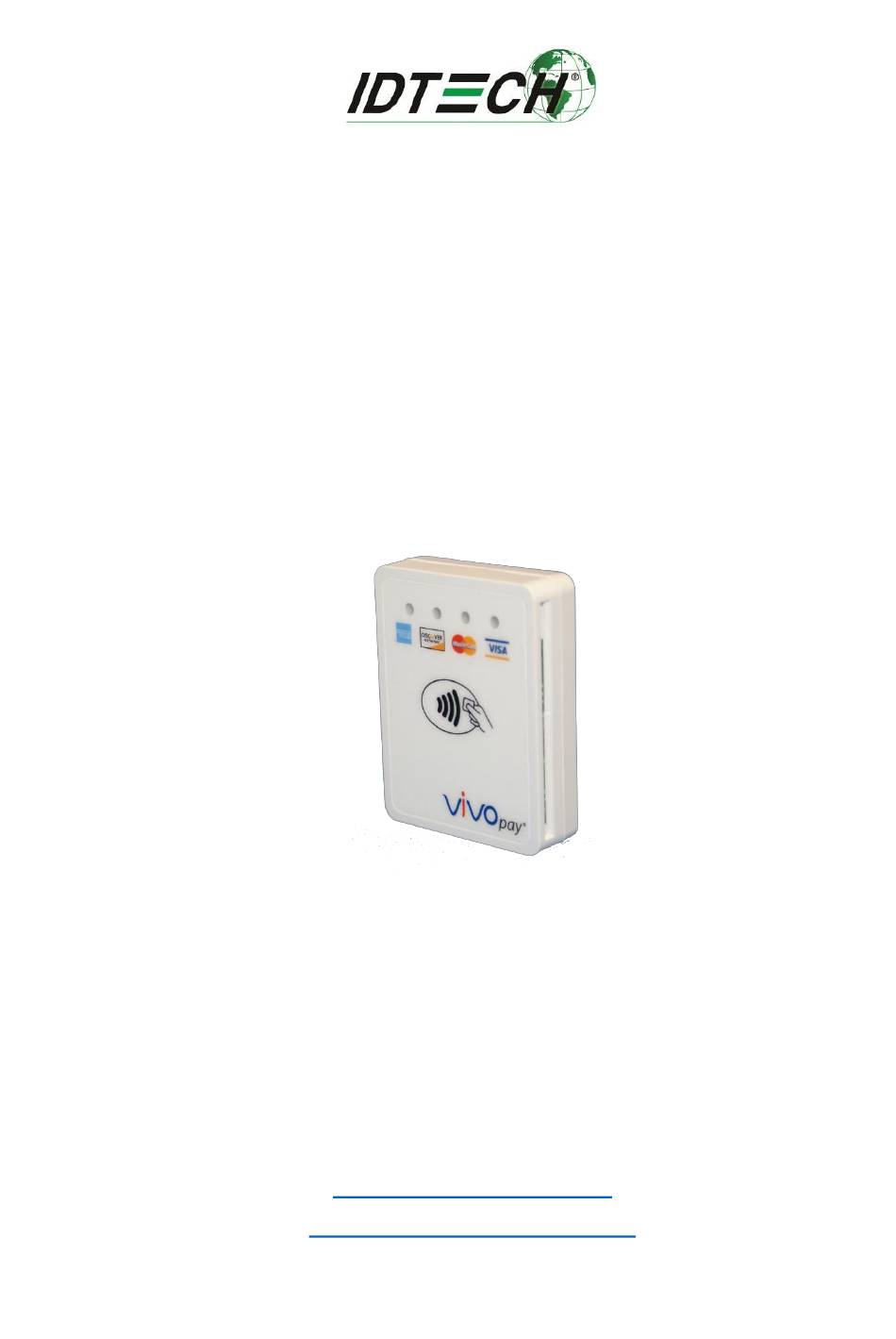

- Page 1 VP4880, VP4880C, VP4880E, VP4880 OEM User Manual 80149509-001-A ID TECH 10721 Walker Street Cypress, CA 90630 (714) 761-6368 www.idtechproducts.com support@idtechproducts.com...
- Page 2 The services and hardware are provided "as is" and "as-available" and the use of the services and hardware are at its own risk. ID TECH does not make, and hereby disclaims, any and all other express or implied warranties, including, but not limited to, warranties of merchantability, fitness for a particular purpose, title, and any warranties arising from a course of dealing, usage, or trade practice.
- Page 3 Magnetic stripe support (VP4880 only): ISO 7810/ISO 7811, Hi-Co+Lo-Co Magnetic, JIS1/JIS2. MSR (VP4880 only) is bidirectional, reading up to 3 tracks of data at once. ICC support (VP4880 and VP4880E): EMV Level 1 and EMV L2 approvals. All L1 &...
- Page 4 ISO 7810 / ISO 7811 AAMVA format JIS I / II Single / Dual / Triple Track Support Bi-directional reading Samsung Pay MST ICC Contact Card Features (VP4880, VP4880E) EMVCo Contact Level 1 & 2 compliant.
-
Page 5: Battery Charging Instructions
Devices in the VP4880 family are compact micro-USB devices for handling contactless transactions. (See chart above for differences between models.) Your VP4880-series device is designed to operate in conjunction with certified third party payment software and compatible hosts, such as USB-equipped tablets, PCs, and smartphones. - Page 6 Magnetic stripe read successful: Top LED displays solid green (2 seconds. Magnetic stripe read failed: Top LED displays solid red (2 seconds). Contactless read successful: All 4 LEDs on the unit's face (contactless antenna side) flash green simultaneously Physical Specifications (VP4880, VP4880C, VP4880E) Item Specification Physical 64mm x 49mm x 14.5mm(LxWxH)
- Page 7 Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to the VP4880, VP4880C, or VP4880E not expressly approved by ID TECH could void the user's authority to operate the device.
- Page 8 USB-HID. Nevertheless, if you need to communicate with the device via audio jack or via USB-HID, it is possible to do so. For a command reference for VP4880-series products, consult the NEO Interface Developers Guide (IDG), P/N 80139403-001.
- Page 9 The Demo App displays available commands in a command tree, as shown above. Single-click on a command to populate the center panel of the window with optional settings relevant to the command (e.g., "Amount" and "Start EMV Additional Tags" above). In some cases, text fields will appear, allowing you to enter custom values. When you are ready to execute the command in question, double-click it in the command tree.
- Page 10 Revision History Revision Date Description of Changes 9/15/2016 Initial release 10/26/2016 Add VP4880 OEM to cover. No content change.
