Summary of Contents for ID Tech VP3300

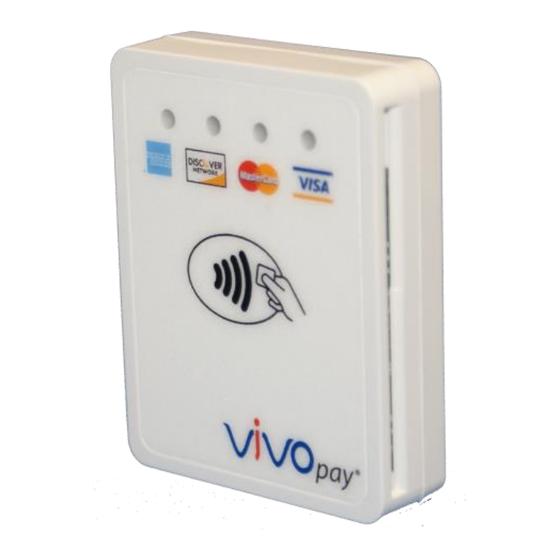

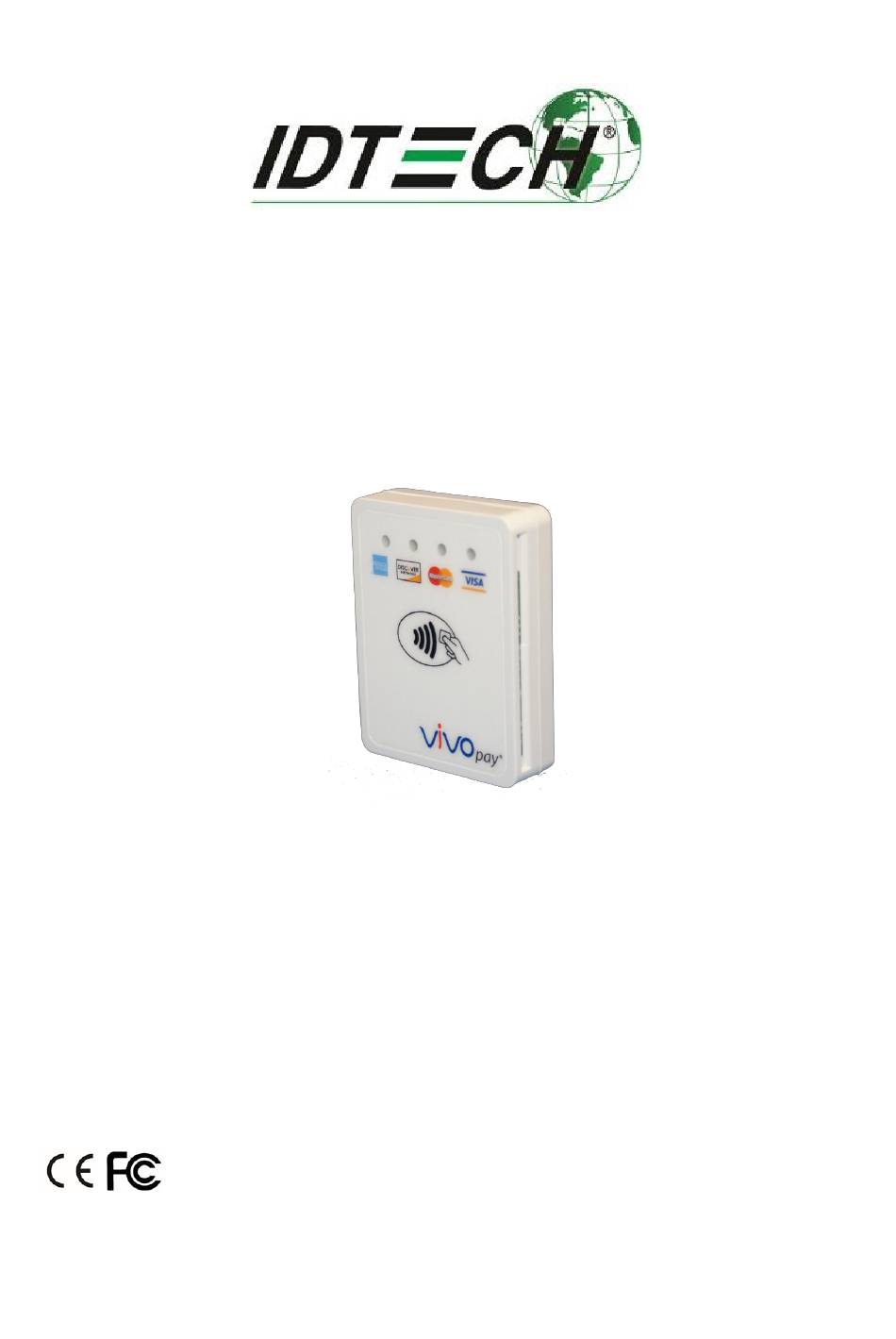

- Page 1 VP3300/VP3300C/VP3300E User Manual 80149509-001 Rev. D 3/30/2018...
-
Page 2: Warranty Disclaimer
The content of this document is furnished for information use only, is subject to change without notice, and should not be construed as a commitment by ID TECH. While every effort has been made to ensure the accuracy of the information provided, ID TECH assumes no responsibility or liability for any unintentional errors or inaccuracies that may appear in this document. -
Page 3: Fcc Regulatory Compliance
Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to the VP3300, VP3300C, or VP3300E not expressly approved by ID TECH could void the user's authority to operate the device. Cautions and Warnings... - Page 4 JIS1/JIS2. MSR (VP3300 only) is bidirectional, reading up to 3 tracks of data at once. ICC support (VP3300 and VP3300E): EMV Level 1 and EMV L2 approvals. All L1 & L2 on the device. Contactless transaction support via Near Field Communication (NFC): all models.
- Page 5 USB-equipped tablets, PCs, and smartphones. Before you connect VP3300 to the host, install and activate the software application service according to the instructions provided by your payment application service or software provider, then...
- Page 6 NOT remove card Magnetic Stripe Read Successful All 4 LEDs flash Once 1 longer beep Magnetic Stripe Read Failed 2 short beeps Physical Specifications (VP3300, VP3300C, VP3300E) Item Specification Physical Dimensions 64mm x 49mm x 14.5mm(LxWxH) Structure Material Plastic, PC UL 94V-0...
-
Page 7: Other Agency Approvals And Compliances
EMV Contactless L1 For Software Developers: Software Development Support VP3300 devices are designed to be compatible with a wide range of third party payment applications. ID TECH offers a Universal SDK (available for iOS, Android, or Windows) to enable rapid application development with any model of VP3300 as the target device. The languages supported include Objective C (on iOS), Java (on Android), and C# (on Windows). - Page 8 To use the demo app: On Windows, plug your VP3300-series device into the host using a USB-to-micro-USB cable (not included), then double-click the UniversalSDKDemo.exe file and allow a few seconds for the main window to appear (see illustration below). The Demo App displays available commands in a command tree, as shown above.
- Page 9 www.idtechproducts.com support@idtechproducts.com...
- Page 10 Revision History Revision Date Description of Changes 9/15/2016 Initial release 12/12/2016 -Removed all mentions of a battery -Some layout edits G.Wu 8/16/2017 Update product name 3/30/2018 Add electrical characteristics...
