Logic Board; Front Unit - Icom IC-M401EURO Service Manual

SECTION 7
7-1 IC-M401EURO
[CHASSIS PARTS]
REF. NO. ORDER NO.
J1 6510004880 Connector MR-DSE-01
W1 8900010710 Cable OPC-1087
W2 8900010490 Cable OPC-1041
MP2 8010018471 2438 Chassis-1
MP3 8930056120 2490 IC clip
MP4 8510013700 2438 Case
8510013850 2438 Case (A)
MP5 8930054660 2438 R-PACKING
MP6 8930045280 2040 F-PACKING
MP7 8930034300 1542 ANT SEAL
MP8 8930054620 2438 B-Bush plate
MP9 8830001531 2438 MB nut-1
MP10 8510011870 2040 MODULE cover
MP11 8930055070 2438 SHEET
MP12 8930053740 O ring (AJ)
MP13 8930052290 O ring (AD)
MP14 8810008680 Screw PH M3x8 NI
MP15 8810008660 Screw PH B0 M3x8 NI-ZU (BT)
MP16 8810008660 Screw PH B0 M3x8 NI-ZU (BT)
MP17 8810002950 Screw BiH M3x6 SUS
MP18 8820001210 2438 Screw
MP20 8930055040 2438 cap
MP21 8930049040 Insulating plate
MP22 6910008240 59TN4772
MP23 8930055850 2490 earth plate
MP24 8510014070 2490 B-Shield cover
MP25 8510014080 2490 A-Shield cover
MP26 8930056400 Shield sponge (H)
MP27 8810008630 Screw PH B0 M3x6 NI-ZU (BT)
MP28 8950000180 Cable tie-80

[FRONT UNIT]

REF. NO. ORDER NO.
MC1 0800006230 Microphone HM-132B ACC
0800006240 Microphone HM-132W ACC
SP1 2510001111 Speaker 045P1601A
W3 8900010500 Cable OPC-1046
MP1 8210018110 2438 Front panel (B)
8210018120 2438 Front panel (C)
MP2 8930055600 2438 Key board (A)
MP3 8310050810 2438 Window plate
MP4 8610011030 Knob N-286
8610011040 Knob N-286 (A)
MP5 8930014280 SP net
MP6 8810008660 Screw PH B0 M3x8 NI-ZU (BT)
MP7 8830001580 Sonicrock SL-M3-5.8
MP10 8110007580 2490 E-cover
8110007610 2490 E-cover (A)
MP12 8930052280 O ring (AC)
MP13 8310051220 2438 C-Bush plate
MP14 8610009240 Knob spring NO.7800P
MP15 8930055840 2490 earth spring
Screw abbreviations A0, B0, BT: Self-tapping
PH: Pan head
NI: Nickel
SUS: Stainless
NI-ZU: Nickel-Zinc
BiH: Bind head
MECHANICAL PARTS AND DISASSEMBLY
QTY.
DESCRIPTION
[BLACK]
[WHITE]
QTY.
DESCRIPTION
[BLACK]
[WHITE]
[BLACK]
[WHITE]
[BLACK]
[WHITE]
[BLACK]
[WHITE]

[LOGIC BOARD]

REF. NO. ORDER NO.
DS1 5030001950 LCD TTR5341
1
EP2 8930054970 LCD contact SRCN-2438-SP-N-W
1
1
MP1 8210017700 2438 Reflector
1 MP2 8930054650 2438 LCD holder
MP3 8930055060 2438 White sheet
1
1
1 [VR-A BOARD]
1
1
REF. NO. ORDER NO.
1
R1 7210002350 TP96N97N 15F-10KA-1301 (incl. nut)
1
2
1
[VR-B BOARD]
1
2
REF. NO. ORDER NO.
6
4 R1 7210002360 TP96N97 15F-10KB-1301 (incl. nut)
6
2
2
[MAIN UNIT]
6
1
REF. NO. ORDER NO.
1
IC3 1150001540 SC-1302
1
1
MP1 8510013860 2435 Shield case
1
MP2 8510013710 2438 Module plate
1
MP3 8510002280 VCO shield plate (A)
1
MP4 8930052270 Shield sponge (D)
1
MP5 8930056330 Thermally sheet (Z)
2
MP6 8510014180 2490 shield plate

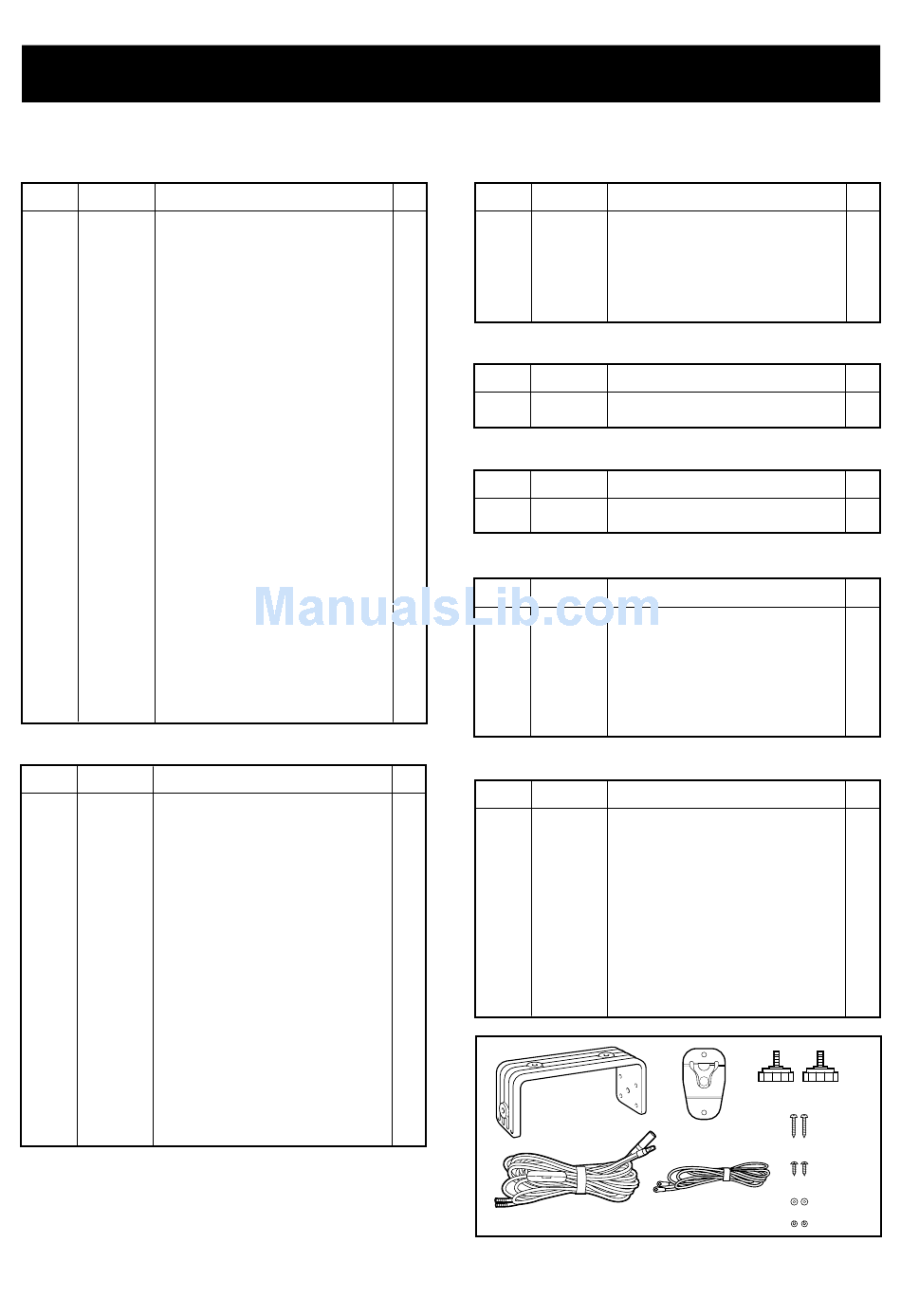

[ACCESSORIES]
REF. NO. ORDER NO.
1
W1 8900009040 Cable OPC-891
1
W2 8900010760 Cable OPC-1096
8900010770 Cable OPC-1097
1
MP1 8950005110 2289 MIC hanger
1
MP2 8010017250 2040 Mobile bracket
8010017270 2040 Mobile bracket (A)
1
MP3 8610010561 2040 Knob bolt-1
1
8610010591 2040 Knob bolt (A)-1
1
MP4 8810004700 Screw PH A0 3x16 SUS
1
MP5 8810001490 Screw PH A0 5x20 SUS
2
MP6 8850000180 Flat washer M5 SUS
2
MP7 8850000500 Spring washer M5 SUS
1
4
4
1
1
2
1
2
MP2
1
W1
7 - 1
