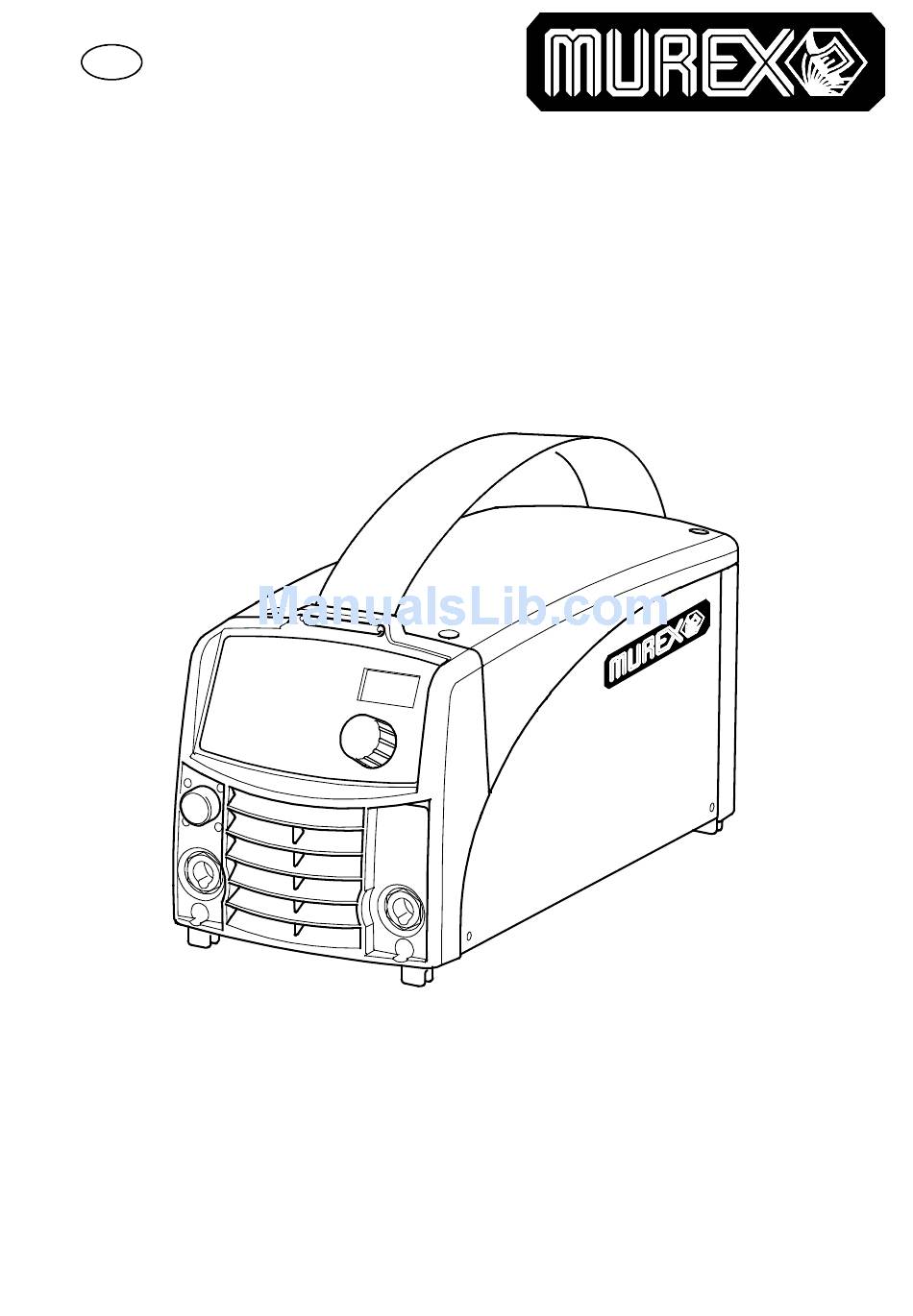

- Page 1 Tradesarc 200 Instruction manual and spare parts list 0460 473 074 090605 Valid for serial no. 827- -xxx- -xxxx...
-
Page 2: Table Of Contents
1 DIRECTIVE ............2 SAFETY . -
Page 3: Directive
Murex Welding Products Ltd, EN8 7TF England, gives its unreserved guarantee that welding power source Tradesarc 200 from serial number 827 (2008 w 27) are constructed and tested in compliance with the standard EN 60974--1 and EN 60974--10 (Class A) in accordance with the requirements of directive (2006/95/EC) and (2004/108/EEC). -
Page 4: Introduction
A equipment in those locations, due to conducted as well as radiated disturbances. INTRODUCTION Tradesarc 200 is a welding current power source intended for use with coated electrodes (MMA welding) and TIG welding. Accessories for the product can be found on page 26. -
Page 5: Equipment
Equipment Tradesarc 200 is supplied with a 3 m welding cable, return cable, 3 m mains cable and an instruction manual for power source and control panel. Control panel Welding process parameters are controlled via the control panel, see page 10. -
Page 6: Installation
A protective earth connection must be made in accordance with regulations Location of rating plate 5.2.1 Recommended fuse sizes and minimum cable area Tradesarc 200 Mains voltage 230 V ¦10 %, 1--phase Mains frequency 50--60 Hz Mains cable, area 3G2.5 mm... -
Page 7: Operation
OPERATION PFC - - Power factor correction The Tradesarc 200 is 230 V single--phase power sources equipped with a PFC cir- cuit making it possible to use the full range of the machine on a 16 A fuse. The PFC also protects the machines against fluctuating mains voltage and makes it safer to use with a generator. -
Page 8: Mma Welding
MMA welding Tradesarc 200 gives direct current, and you can weld most metals to alloy and non-- alloy steel, stainless steel and cast iron. Tradesarc 200 allows you to weld most coated electrodes from Ø 1.6 to Ø 3.25. MMA welding may also be referred to as welding with coated electrodes. Striking the arc melts the electrode, and its coating forms protective slag. -
Page 9: Remote Control Unit
”Live TIG- - start” With “Live TIG start” the arc strikes when the tungsten electrode is brought into contact with the workpiece and then lifted away from it. Remote control unit The remote control unit is connected to the remote control socket on the power source. -
Page 10: Fault- -Tracing
Check that the correct electrodes are being used. Check the gas flow. Fault codes Tradesarc 200 comes with built--in fault monitoring. If a fault occurs, a code is shown in the display, see page 15. CONTROL PANEL When mains power is supplied the unit runs a self diagnosis of the LEDs and the display, the program version is displayed and in this example the program version is 0.18. - Page 11 Display Indication of which parameter is shown in the display (current or percent) Knob for setting data (current or percent) Buttons for weld data memory settings. See title 12. Button for choosing parameters ”Hot start” or arc pressure ”Arc force” when MMA welding Choice of welding method MMA or TIG...
-
Page 12: Mma Welding
MMA WELDING 10.1 Settings Function Setting range Tradesarc 200 Current 4 max Active panel OFF or ON Remote control unit OFF or ON Hot start 0 -- 99% Arc force 0 -- 99% Drop welding OFF or ON The setting range is dependent on the power source used. -
Page 13: Hidden Functions Mma Welding
Function letter Function Arc Force Hotstart Drop welding To leave the function in Tradesarc 200 hold the button depressed for 5 seconds. Arc force The arc force is important in determining how the current changes in response to a change in the arc length. A lower value gives a calmer arc with less spatter. -
Page 14: Symbol And Function Explanations
11.2 Symbol and Function explanations TIG welding TIG welding melts the metal of the workpiece, using an arc struck from a tungsten elec- trode, which does not melt itself. The weld pool and the electrode are protected by shielding gas. ”LiveTig start”... -
Page 15: Fault Codes
FAULT CODES Fault codes are used to indicate that a fault has occurred in the equipment. It is indicated in the display by an E followed by a fault code number. If several faults have been detected only the code for the last occurring fault is displayed. -
Page 16: Ordering Spare Parts
Repair and electrical work should be performed by an authorized serviceman. Use only original spare and wear parts. Tradesarc 200 is designed and tested in accordance with the international and Europe- an standards IEC/EN 60974- -1 and EN 60974- -10. It is the obligation of the service unit which has carried out the service or repair work to make sure that the product still conforms to the said standard. - Page 17 - - 17 - -...
-
Page 18: Diagram
Diagram Tradesarc 200 - - 18 - - bh37e... - Page 19 - - 19 - - bh37e...
- Page 20 - - 20 - -...
-
Page 21: Spare Parts List
Ordering number 0460 441 881 Tradesarc 200, 230 V 50/60 Hz with MMA--kit Spare parts are to be ordered through the nearest MUREX agency. Kindly indicate type of unit, serial number, denominations and ordering numbers according to the spare parts list. - Page 22 Cord set Included in item AA50 0460 140 001 Rear panel 0460 143 001 Cover 0460 476 881 MMC Module Tradesarc 200 Control panel. Including Insulation sticker and 0460 420 001 Insulation sticker Included in AA5 0460 600 528 Knob...
- Page 23 Tradesarc 200 R0460 473 074/E090605/PNO TAG - - 23 - - bh37maa2...
- Page 24 0460 117 001 Inductor 15L2 0194 158 003 Capacitor 1000 uF 450 V DC 15C1 AB10 0467 065 002 Tradesarc 200, 24V DC; With cables and socket 15EV1 15xS3 AB11 Circuit board See item AB51 15AP1 AB12 Semiconductor module See item AB51...
- Page 25 Tradesarc 200 R0460 473 074/E090605/PNO TAG - - 25 - - bh37mab2...
-
Page 26: Accessories
Welding cable kit, Tradesarc 200 ..0700 006 900 Return cable kit, Tradesarc 200 ... 0700 006 901 R0460 473 074/E090605/PNO TAG... - Page 27 Tradesarc 200 Remote control MMA 1 (10 m cable) ..0349 501 024 MMA and TIG: current Foot control FS002 ..... .
- Page 28 Please ensure that this Operating Manual is available to the user of the equipment. Murex Welding Products Ltd Hanover House Queensgate Britannia Road Waltham Cross Hertfordshire EN8 7TF England...
