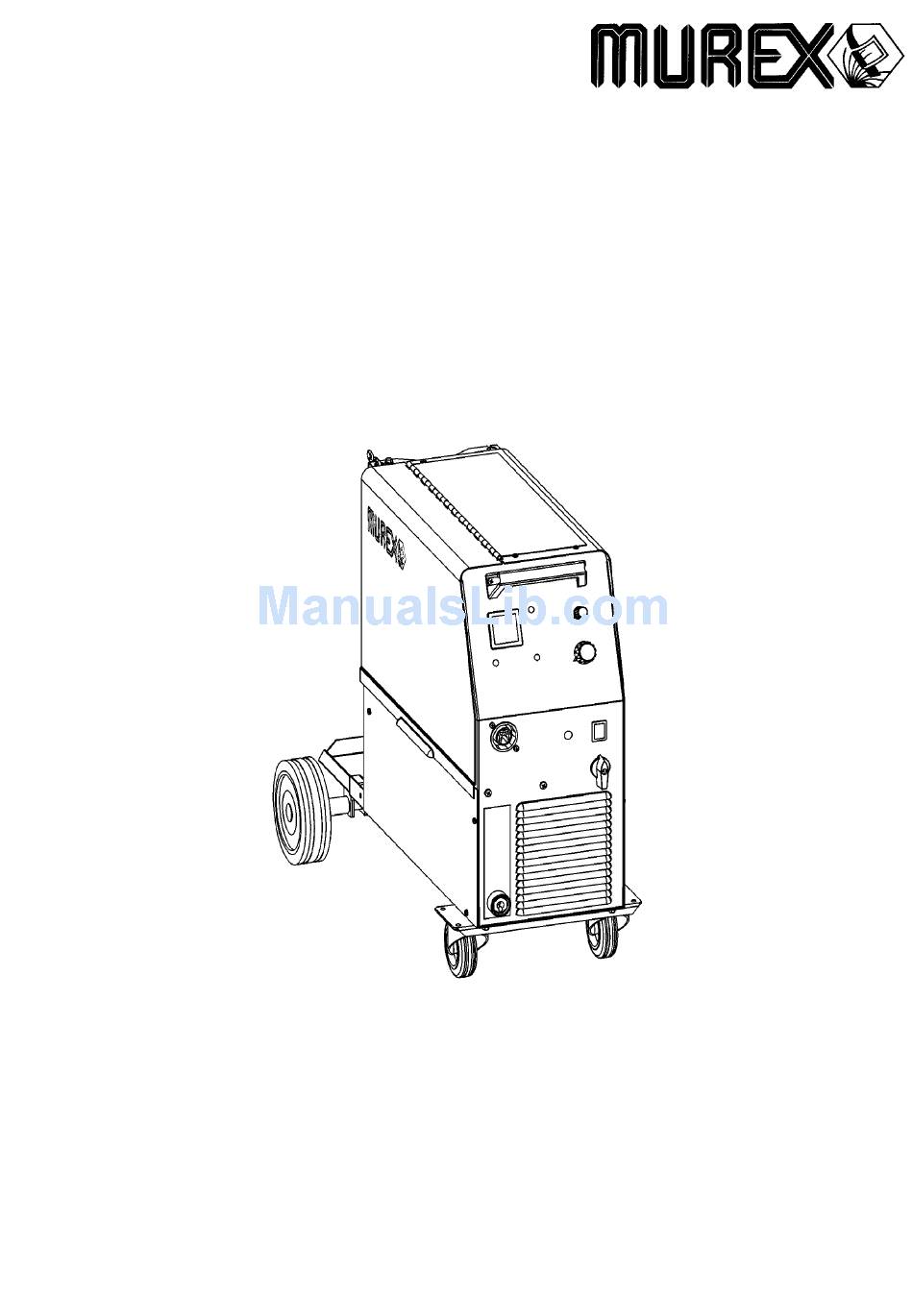

- Page 1 Tradesmig 171/201 Tradesmig 251 Instruction manual 0349 301 146 080722 Valid for serial no. 811...
-
Page 2: Declaration Of Conformity
DECLARATION OF CONFORMITY Murex Welding Products Ltd. Declare hereby that: Murex Tradesmig 171/201/251 Part No. 0349 311 660, 0349 311 650, 0349 311 640 Manufactured after 1st May 2005 conform with the requirements of Council Directive 72/23/EEC, amended by Council Directive 93/68/EEC, relating to electrical equipment designed for use within certain voltage limits. -
Page 3: Table Of Contents
ENGLISH 1 SAFETY ............2 INTRODUCTION . -
Page 4: Safety
SAFETY Users of welding equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of welding equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace. - Page 5 WARNING ARC WELDING AND CUTTING CAN BE INJURIOUS TO YOURSELF AND OTHERS. TAKE PRECAU- TIONS WHEN WELDING. ASK FOR YOUR EMPLOYER’S SAFETY PRACTICES WHICH SHOULD BE BASED ON MANUFACTURERS’ HAZARD DATA. ELECTRIC SHOCK - - Can kill Install and earth the welding unit in accordance with applicable standards. Do not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.
-
Page 6: Introduction

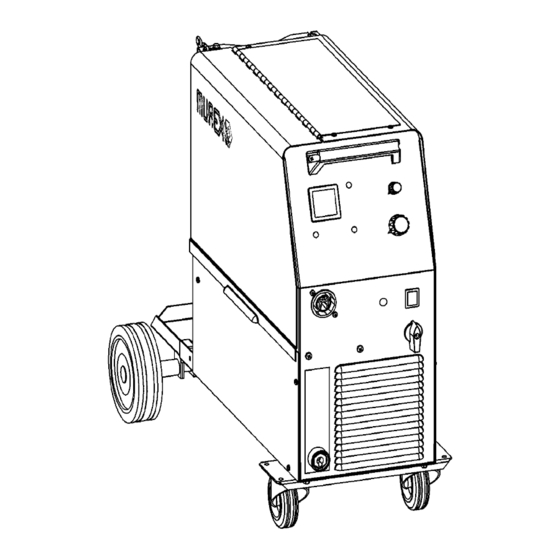

INTRODUCTION Tradesmig 171/201/251 are step controlled power sources in a compact design, intended for welding with solid steel, stainless steel or aluminium wire as well as tubular wire with or without shielding gas. Equipment The power source is supplied with:... - Page 7 Tradesmig Tradesmig Voltage 230- -240V, 1∼ 50/60Hz 230- -240V, 1∼ 50/60Hz Permissible load at 100% duty cycle 90A/18,5V 110A/19,5V 60 % duty cycle 115A/19,7V 140A/21,0V @ % duty cycle 185A/23,3V @ 23% 200A/24,0V @ 30% 20 % duty cycle 200A/23,0V 250A/21,0V Setting range (DC) 30A/15,5V--185A/23,3V...
-
Page 8: Installation
INSTALLATION The installation must be executed by a professional. WARNING! This product is intended for industrial use. In a domestic environment this product may cause radio interference. It is the user’s responsibility to take adequate precautions. Placing Position the welding power source such way that its cooling air inlets and outlets are not obstructed. -
Page 9: Electrical Installation
Check that the unit is connected to the correct mains power supply voltage, and that it is protected by the correct fuse size. A protective earth connection must be made, in accordance with regulations. Rating plate with supply connection data Tradesmig 171 Tradesmig 201 Tradesmig 251... -
Page 10: Operation
OPERATION General safety regulations for the handling of the equipment can be found on page 4. Read through before you start using the equipment! WARNING! Rotating parts can cause injury, take great care. WARNING - - TIPPING RISK! There is a risk of tipping while transportation and operation, if the welding machine leans more than 10 . -
Page 11: Functions Explanation
Functions explanation 5.2.1 Overheating protection When the machine is switched on with the mains switch [1], indicating lamp [1] is on and lamp [2] off -- the machine is ready to operate. If the internal temperature becomes too high, the welding is interrupted and disabled. This state is indicated by lighting of the orange indicating lamp [2] on the front of the machine. -
Page 12: Fault Tracing
Check the wire feed unit -- if proper rolls are applied and properly set the pressure of the wire feeder’s pressure rollers Tradesmig 171/201/251 is designed and tested in accordance with the international and European standards IEC/EN 60974- -1 and EN 60974- -10. It is the obligation of the servi- ce unit which has carried out the service or repair work to make sure that the product still conforms to the said standard. -
Page 13: Diagram
Diagram Tradesmig 171, 240V (valid untill June 2008) - - 13 - - dT1725... - Page 14 Tradesmig 171, 240V (valid from July 2008) - - 14 - - dT1725...
- Page 15 Tradesmig 201, 240V (valid untill June 2008) - - 15 - - dT1725...
- Page 16 Tradesmig 201, 240V (valid from July 2008) - - 16 - - dT1725...
- Page 17 Tradesmig 251, 240V (valid untill June 2008) - - 17 - - dT1725...
- Page 18 Tradesmig 251, 240V (valid from July 2008) - - 18 - - dT1725...
-
Page 19: Ordering Numbers
Tradesmig 171/201/251 Valid for serial no. 811- -XXX- -XXXX Ordering numbers 0349 311 660 Tradesmig 171 240V 1∼ ∼ ∼ ∼ 50/60Hz 0349 311 650 Tradesmig 201 240V 1∼ ∼ ∼ ∼ 50/60Hz 0349 311 640 Tradesmig 251 240V 1∼ ∼ ∼ ∼ 50/60Hz... -
Page 20: Wear Components
Tradesmig 171/201/251 Wear components (W. F. Mechanism 0455 890 890 / 0455 890 882) Item Denomination Ordering no. Notes Pressure roller 0455 907 001 0367 556 001 Ø 0.6--0.8mm Fe, Ss, cored wire. 0367 556 002 Ø 0.8--1.0mm Fe, Ss, cored wire. -
Page 21: Accessories
Tradesmig 171/201/251 Accessories Digital meter ......0349 308 400 Transformer kit for CO heater . - Page 22 - - 22 - - hints...
- Page 23 - - 23 - - hints...
- Page 24 - - 24 - - hints...
