Murex Tradesarc 150 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GB

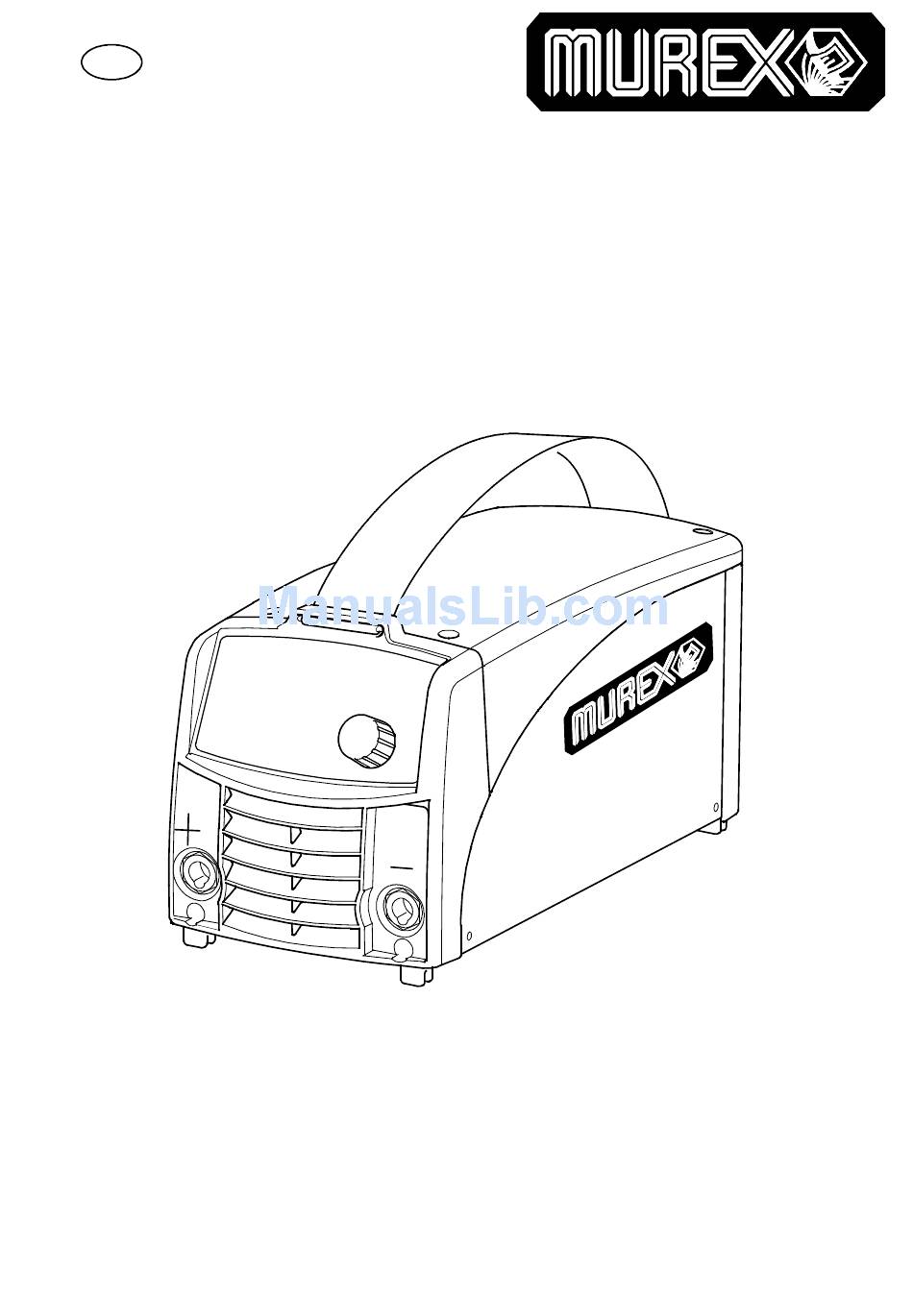

Tradesarc 150
Instruction manual and
spare parts list
0460 813 074
090605
Valid for serial no. 827- -xxx- -xxxx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tradesarc 150 and is the answer not in the manual?

Questions and answers

Related Manuals for Murex Tradesarc 150

Summary of Contents for Murex Tradesarc 150

  • Page 1 Tradesarc 150 Instruction manual and spare parts list 0460 813 074 090605 Valid for serial no. 827- -xxx- -xxxx...

  • Page 2: Table Of Contents

    1 DIRECTIVE ............2 SAFETY .

  • Page 3: Directive

    Murex Welding Products Ltd, EN8 7TF England, gives its unreserved guarantee that welding power source Tradesarc 150 from serial number 827 (2008 w 27) are constructed and tested in compliance with the standard EN 60974--1 and EN 60974--10 (Class A) in accordance with the requirements of directive (2006/95/EC) and (2004/108/EEC).
  • Page 4 There may be potential difficulties in ensuring electromagnetic compatibility of class A equipment in those locations, due to conducted as well as radiated disturbances. MUREX can provide you with all necessary welding protection and accessories. - - 4 - - bh33d1me...

  • Page 5: Introduction

    Tradesarc 150 is a welding current power source intended for use with coated electrodes (MMA welding) and TIG welding. Tradesarc 150 is supplied with 3 m of mains cable and an instruction manual. Accessories for the product can be found on page 21.

  • Page 6: Installation

    A protective earth connection must be made in accordance with regulations Rating plate with supply connection data 5.2.1 Recommended fuse sizes and minimum cable area Tradesarc 150 Mains voltage 230 V ¦10 %, 1--phase Mains frequency 50--60 Hz Mains cable, area 3G2.5 mm...

  • Page 7: Operation

    16 A fuse. The PFC also protects the machines against fluctuating mains voltage and makes it safer to use with a generator. Tradesarc 150 can operate with extra long mains cables, over 100 m, giving you a very larger working radius.

  • Page 8: Connection Of Welding And Return Cable

    MMA welding Tradesarc 150 gives direct current, and you can weld most metals to alloy and non-- alloy steel, stainless steel and cast iron. Tradesarc 150 allows you to weld most coated electrodes from ∅ 1.6 to ∅ 3.25.

  • Page 9: Maintenance

    TIG welding is particularly useful where high quality is demanded and for welding thin plate. Tradesarc 150 also has good characteristics for TIG welding. In order to TIG weld, Tradesarc 150 must be equipped with: a TIG torch with gas valve...

  • Page 10: Fault- -Tracing

    Repair and electrical work should be performed by an authorized serviceman. Use only original spare and wear parts. Tradesarc 150 is designed and tested in accordance with the international and Europe- an standard IEC/EN 60974- -1. EN 60974- -10 It is the obligation of the service unit which has carried out the service or repair work to make sure that the product still conforms to the said standard.
  • Page 11 - - 11 - -...

  • Page 12: Diagram

    Diagram - - 12 - - bh31e...
  • Page 13 - - 13 - - bh31e...
  • Page 14 - - 14 - -...

  • Page 15: Spare Parts List

    0460 441 880 Tradesarc 150, for 230 V 50/60 Hz with MMA--kit Spare parts are to be ordered through the nearest MUREX agency. Kindly indicate type of unit, serial number, denominations and ordering numbers according to the spare parts list.
  • Page 16 Tradesarc 150 C = component designation in the circuit diagram Item Ordering no. Denomination Notes 0193 317 001 Switch Included in item AA50 2QF1 Cord set Included in item AA50 0460 140 001 Rear panel 0460 143 001 Cover 0460 476 880...
  • Page 17 Tradesarc 150 Tradesarc 150 R0460 813 074/E090605/P20 - - 17 - - bh33ma1...
  • Page 18 Tradesarc 150 C = component designation in the circuit diagram Item Ordering no. Denomination Notes 0487 261 880 Power supply/control board 20AP1 0193 700 702 Ribbon cable with connectors 10 pole 20XS3, 20XS4 0468 940 005 Thermal switch Socket connector 15XS5 included...
  • Page 19 Tradesarc 150 Tradesarc 150 R0460 813 074/E090605/P20 - - 19 - - bh33mb1...
  • Page 20 R0460 813 074/E090605/P20 - - 20 - - paut...

  • Page 21: Accessories

    Tradesarc 150 Accessories Strap ........0460 265 001 Cable holder 2 pcs .
  • Page 22 NOTES - - 22 - - notes...
  • Page 23 NOTES - - 23 - - notes...
  • Page 24 Please ensure that this Operating Manual is available to the user of the equipment. Murex Welding Products Ltd Hanover House Queensgate Britannia Road Waltham Cross Hertfordshire EN8 7TF England...
