GB

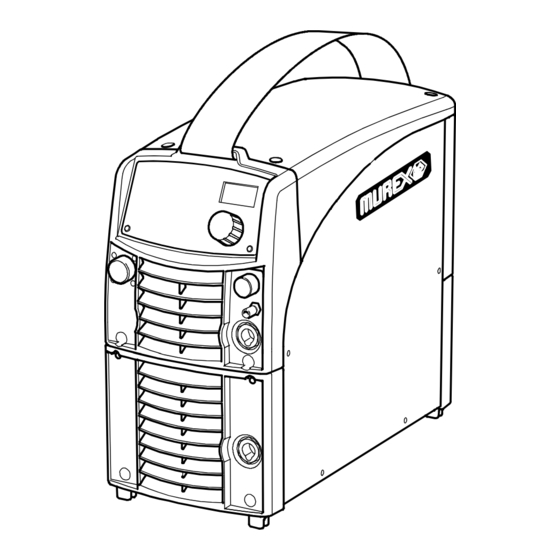

Tradestig AC 220
Tradestig AC 220a
Instruction manual and
spare parts list
0460 475 074
090227
Valid for serial no. 827- -xxx- -xxxx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tradestig AC 220 and is the answer not in the manual?

Questions and answers

Related Manuals for Murex Tradestig AC 220

Summary of Contents for Murex Tradestig AC 220

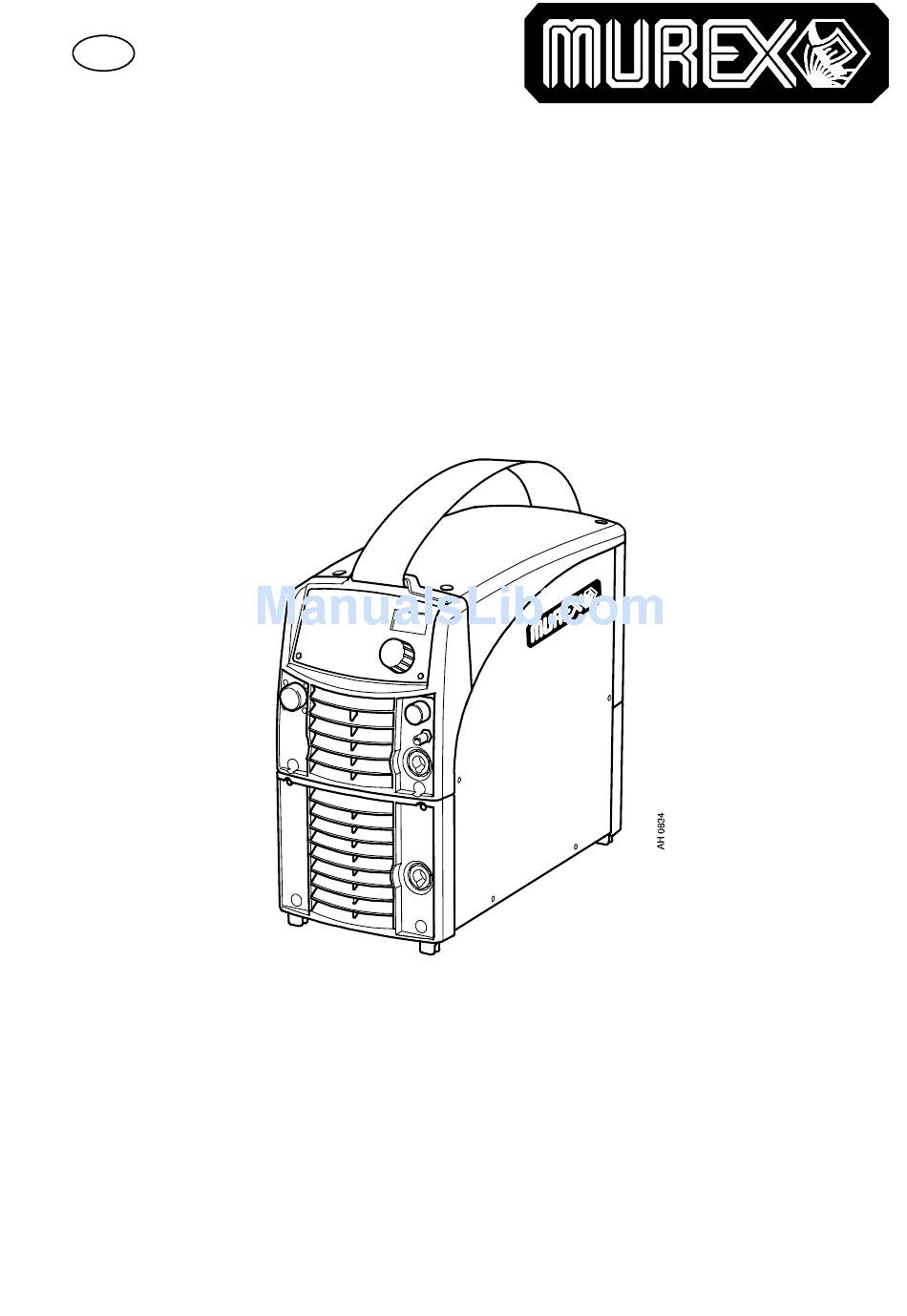

  • Page 1 Tradestig AC 220 Tradestig AC 220a Instruction manual and spare parts list 0460 475 074 090227 Valid for serial no. 827- -xxx- -xxxx...

  • Page 2: Table Of Contents

    ........... . . 10.1 Settings -- Tradestig AC 220 .

  • Page 3: Directive

    Murex Welding Products Ltd, EN8 7TF England, gives its unreserved guarantee that welding power source Tradestig AC 220 and Tradestig AC 220a from serial number 827 (2008 w 27) are con- tructed and tested in compliance with the standard EN 60974--1 /--3 and EN 60974--10 (Class A) in accordance with the requirements of directive (2006/95/EC) and (2004/108/EEC).
  • Page 4 MALFUNCTION - Call for expert assistance in the event of malfunction. Read and understand the instruction manual before installing or operating. PROTECT YOURSELF AND OTHERS! Murex can provide you with all necessary welding protection and accessories. WARNING! Do not use the power source for thawing frozen pipes.

  • Page 5: Introduction Power Source

    INTRODUCTION POWER SOURCE The Tradestig AC 220 / Tradestig AC 220a is a TIG welding power source, which can also be used for MMA welding. It can be used with alternating current (AC) or direct current (DC). Accessories for the product can be found on page 42.

  • Page 6: Installation

    Tradestig AC 220 / Tradestig AC 220a Efficiency at maximum current 66 % 74 % Open- -circuit voltage TIG 55 -- 60 V Open- -circuit voltage MMA 55 -- 60 V with VRD < 35 V Operating temperature --10 to + 40˚C Transportation temperature --25 to + 55˚C...

  • Page 7: Lifting Instructions

    A protective earth connection must be made in accordance with regulations. Rating plate with supply connection data Recommended fuse sizes and minimum cable area Tradestig AC 220/ AC 220a Mains voltage 230 V ¦10 %,1μ 230 V ¦10 %,1μ Mains frequency...

  • Page 8: Operation

    OPERATION General safety regulations for the handling of the equipment can be found on page 3. Read through before you start using the equipment! PFC - - Power factor correction The Tradestig AC 200 and Tradestig AC 220a are 230 V single--phase power sources equipped with a PFC circuit making it possible to use the full range of the machine on a 16 A fuse.

  • Page 9: Key To Symbols

    Key to symbols Return clamp Connection to cooling unit Only those persons who have appropriate electrical knowledge (authorized personnel) may remove the safety plates to connect or carry out service, maintenance or repair work on welding equipment. See installation instructions on page 26. Turning on the power source Turn on the mains power by turning the mains switch to the ”1”...

  • Page 10: Inspection And Cleaning

    Inspection and cleaning WARNING! The mains supply must be disconnected before cleaning! Power source Check regularly that the welding power source is not clogged with dirt. How often and which cleaning methods apply depend on: the welding process, arc times, placement, and the surrounding environment. It is normally sufficient to blow down the power source with dry compressed air (reduced pressure) once a year.

  • Page 11: Tradestig Ac 220

    Tradestig AC 220 Knob for setting data (current, voltage, material thickness or seconds) Display Choice of welding method TIG or MMA Choice of TIG / MMA welding with alternating current TIG / MMA welding with direct current Choice of HF start...

  • Page 12: Tradestig Ac 220A

    Tradestig AC 220a Knob for setting data (current, voltage, percentage, seconds, or frequency) Display Choice of welding method TIG or MMA Choice of TIG welding with alternating current TIG / MMA-- welding with direct current or TIG welding with pulsed current Choice of HF start or LiftArct Choice of 2--stroke...

  • Page 13: Tig Welding

    TIG WELDING 10.1 Settings - - Tradestig AC 220 Function Setting range In steps of Default value HF / LiftArc t HF or LiftArct LiftArct 2/4--stroke 2 stroke or 4 stroke 2 stroke Gas pre flow time 0 -- 5 s 0.1 s...

  • Page 14: Symbol And Function Explanations

    TIG with pulsing DC Function Setting range In steps of: Default value Pulse current 4 -- 220 A 60 A Pulse time 0.01 -- 2.5 s 0.01 s 1.0 s Micro pulse 0.001 -- 0.250 s 0.001 s Background current 4 -- 220 A 20 A Background time...
  • Page 15 Slope up The slope up function means that, when the TIG arc strikes, the current rises slowly to the set value. This provides ‘gentler’ heating of the electrode, and gives the welder a chance to position the electrode properly before the set welding current is reached. Pulse current The higher of the two current values in the event of pulsed current.
  • Page 16 The HF function strikes the arc by means of a spark from the electrode to the workpiece as the electrode is brought closer to the workpiece. LiftArct The LiftArct function strikes the arc when the electrode is brought into contact with the workpiece and then lifted away from it.
  • Page 17 Electrode preheating Setting value Tungsten electrode Tungsten electrode Shielding gas Ø Colour Type Ar + 30%He Green Green Black WL10 Black WL10 Green Green Black WL10 Black WL10 Green Green Black WL10 Black WL10 Green Green Black WL10 Black WL10 WP = Pure tungsten electrode WL10 = Lantha alloyed tungsten electrode 2 stroke...

  • Page 18: Hidden Tig Functions

    by the slope up function, if in operation). Releasing the trigger switch (2) reduces the current (or starts slope down if in operation) and extinguishes the arc. Gas post--flow follows if it is in operation. 4 stroke Gas pre--flow Slope Slope down Gas post-- flow...
  • Page 19 To leave hidden functions, press for 5 seconds. Tradestig AC 220 Function Settings A = gas pre--flow 0 -- 5 s b = slope up 0 -- 9.9 C = metric/inch 0 = inch, 1 = mm l = min current...

  • Page 20: Mma Welding

    NOTE! The VRD function is not active (LED has gone out) on delivery. Contact an authorised Murex service technician to activate the function. MMA welding MMA welding may also be referred to as welding with coated electrodes. Striking the arc melts the electrode, and its coating forms protective slag.

  • Page 21: Hidden Mma Functions

    The remote control unit must be connected to the remote control unit socket on the machine before activation. When the remote control unit is activated the panel is inactive. 11.3 Hidden MMA functions There are hidden functions in the control panel. To access the functions, press for 5 seconds.

  • Page 22: Welding Data Memory

    WELDING DATA MEMORY Two different welding data programs can be stored in the control panel memory. Press button for 5 seconds to store the welding data in the memory. The welding data is stored when the green indicator lamp starts to flash. To switch between the different welding data memories press button The welding data memory has a back--up battery so that the settings remain even if the machine has been switched off.

  • Page 23: Fault Code Descriptions

    13.2 Fault code descriptions Fault Description code 5 V power supply low The power supply voltage is too low. The current welding process is stopped and starting is prevented. Action: Turn off the mains power supply to reset the unit. Send for a service technician if the fault persists.
  • Page 24 Fault Description code E 20 High inductance in the welding circuit The power source cannot produce the desired current because the measured inductance in the welding circuit is too high. The fault indication is reset if the inductance reading receives a sufficiently low value at weld start. Resetting can also be achieved by turning off the power.

  • Page 25: Ordering Spare Parts

    Repair and electrical work should be performed by an authorized serviceman. Use only original spare and wear parts. Tradestig AC 220, Tradestig AC 220a is designed and tested in accordance with the international and European standards IEC/EN 60974- -1 /- -3 and EN 60974- -10. It is the obligation of the service unit which has carried out the service or repair work to make sure that the product still conforms to the said standard.

  • Page 26: Assembly Instructions

    Assembly instructions - - 26 - - bt33m11a...
  • Page 27 - - 27 - - R0460 475 074/E090227/P27...

  • Page 28: Diagram

    Diagram - - 28 - - Edition 090227 bt33e...
  • Page 29 - - 29 - - Edition 090227 bt33e...
  • Page 30 - - 30 - - R0460 475 074/E090227/P30...

  • Page 31: Spare Parts List

    0460 750 881 Tradestig AC 220a, 230 V 50/60 Hz with MMA kit Spare parts are to be ordered through the nearest MUREX agency. Kindly indicate type of unit, serial number, denominations and ordering numbers according to the spare parts list.
  • Page 32 Tradestig AC 220, Tradestig AC 220a C = component designation in the circuit diagram Item Ordering no. Denomination Notes 0193 317 001 Switch Included in item AA50 2QF1 Cord set Included in item AA50 0460 139 001 Rear panel AC...
  • Page 33 Tradestig AC 220, Tradestig AC 220a SPARE PARTS SETS Item Ordering no. Denomination Notes AA50 0459 183 880 Mains module Includes items: AA1 switch, AA2 mains cable with plug, cable clamp and two ferrite rings 2L1. AA51 0460 379 890...
  • Page 34 Tradestig AC 220, Tradestig AC 220a C = component designation in the circuit diagram Item Ordering no. Denomination Notes 0487 064 884 Power supply board 2AP1 0459 280 880 Cable set Including wires 1501, 1502 and their sockets 15XS1, 15XS2,...
  • Page 35 Tradestig AC 220, Tradestig AC 220a R0460 475 074/E090227/P27 - - 35 - - bt38mab1...
  • Page 36 Tradestig AC 220, Tradestig AC 220a C = component designation in the circuit diagram Item Ordering no. Denomination Notes 0193 054 005 Solenoid valve 230 V AC 10YV1 ML6M MF10x1 0456 496 001 Hose D = 9/5 mm, L = 0.57 metre reinforced PVC...
  • Page 37 Tradestig AC 220, Tradestig AC 220a R0460 475 074/E090227/P27 - - 37 - - bt33sac1...
  • Page 38 Tradestig AC 220, Tradestig AC 220a C = component designation in the circuit diagram Item Ordering no. Denomination Notes Spacer M5x8 0487 503 880 AC Control board 18AP1 Spacer 28.6 mm 0193 700 712 Ribbon cable with connectors 40 pole...
  • Page 39 Tradestig AC 220, Tradestig AC 220a R0460 475 074/E090227/P27 - - 39 - - bt33sad1...
  • Page 40 Tradestig AC 220, Tradestig AC 220a C = component designation in the circuit diagram Item Ordering no. Denomination Notes 0460 476 885 Operating panel, complete Tradestig AC 220 includes item MA1, MA2, MA3 MA4, MA5, MA6 and MA7 0460 476 886...
  • Page 41 R0460 475 074/E090227/P41 - - 41 - -...

  • Page 42: Accessories

    Tradestig AC 220, Tradestig AC 220a Accessories Remote control adapter RA12 12 pole ..0459 491 910 For analogue remote controls to CAN based equipment. Remote control unit MTA1 CAN ..
  • Page 43 Tradestig AC 220, Tradestig AC 220a Strap ........0460 265 001 Cable holder .
  • Page 44 Tradestig AC 220, Tradestig AC 220a Foot pedal TI Foot CAN ....0460 315 880 Cooling unit Tradescool ....0460 144 881...
  • Page 45 NOTES - - 45 - - notes...
  • Page 46 R0460 475 074/E090227/P46 - - 46 - - paut...
  • Page 47 NOTES - - 47 - - notes...
  • Page 48 Please ensure that this Operating Manual is available to the user of the equipment. Murex Welding Products Ltd Hanover House Queensgate Britannia Road Waltham Cross Hertfordshire EN8 7TF England...
