Lincoln Electric DC-655 Technical Specifications

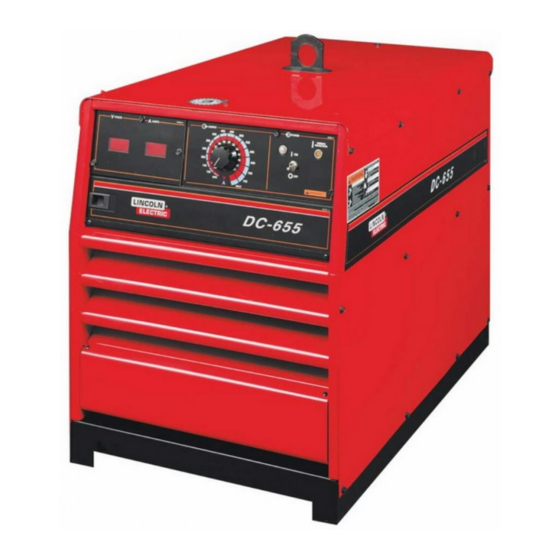

DC-655
This 650-amp, 100% duty cycle CV/CC power source is ideal for construction
and shop fabrication because of its excellent arc performance and many energy
saving features. This machine also has a high overall efficiency of 84% for even
more energy and cost savings. Save money with the idle shut down timer that
powers down the DC-655 when not in use for extra energy conservation. Keep
internal components cool without wasting energy with Lincoln's Fan-As-Needed
(F.A.N.) that shuts off automatically when the system is cooled. Don't think you're
sacrificing arc performance for efficiency; the DC-655 features a calibrated output
knob for precise procedure setting and adjustable arc force for a tailored arc and
ultimate low end performance – down to 50 amps – for excellent stick, MIG
and TIG performance.
Technical Specifications
Product Product
Name Number Input Power
Digital Meter Kit, Air Filter Kit, Dual Process Switch,
Paralleling Kit, Remote Output Control, Remote Control
Adapter, Deluxe Adjustable Gas Regulator & Hose Kit,
Undercarriage
Accessory Kit
Pro-Torch™ TIG Torches, TIG Module, Docking Kit, Hand
Amptrol™, Foot Amptrol, Remote Control Adapter, Amptrol
Adapter Kit, Water Valve, TIG Control Cable Extension
LN-7, LN-7 GMA, LN-742, LN-8, LN-9, LN-9 GMA, LN-15,
LN-23P, LN-25, LN-10, DH-10, Cobramatic
LT-7
K1609-2
K1609-4
K1610-1
Rated Output Input Current @
Current/Voltage/Duty Cycle Rated Output
MULTI-PROCESS WELDERS
CC
DC
CV
DC-655 230/460/575/3/60
DC-655 460/3/60
DC-655 230/400/3/50/60
Dimensions
H x W x D
Output Range in. (mm)
www.lincolnelectric.com
3
60 50
Hz Hz
PHASE
® , NA-3, NA-5,
Net Weight
lbs.(kg)
E5.46 11/02
