Instruction Manual
Contents
Features ............................................... 2
Controls and Indicators ..................... 3
Parts and Assembly ............................ 3
Getting Started .................................. 3
Battery Replacement ......................... 5
Button Functions ................................ 5
Clock Function .................................... 6
Fuel Timer Function ........................... 8
Chronograph Function .................... 10
Approach Timer Function ................ 11
Note/Scratchpad Function ............... 13
Backlight Operation ......................... 14
Device Reset ...................................... 14
Care ................................................... 14
Specifications .................................... 15
ASA Products .................................... 15
Limited Warranty ............................. 15
1
Advertisement
Table of Contents
Related Manuals for ASA Electronics Flight Timer
Summary of Contents for ASA Electronics Flight Timer
-
Page 1: Table Of Contents
ASA Flight Timer Instruction Manual Contents Features ..........2 Controls and Indicators ..... 3 Parts and Assembly ......3 Getting Started ........3 Battery Replacement ......5 Button Functions ........ 5 Clock Function ........6 Fuel Timer Function ......8 Chronograph Function .... -
Page 2: Features

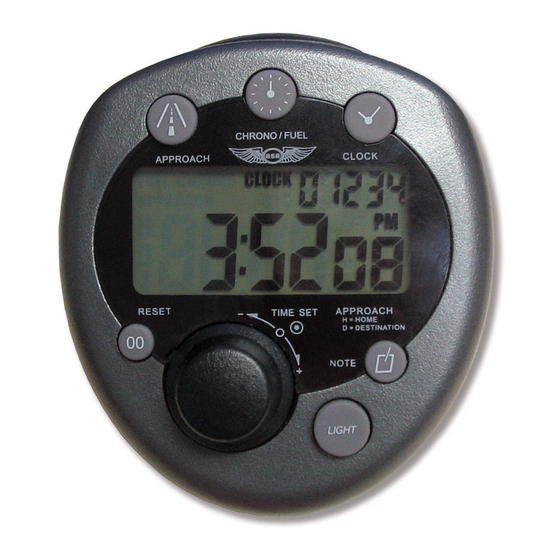

Timer from Aviation Supplies & Academics, Inc. (ASA). This is a quality timekeeping instrument engineered to meet the needs of pilots. We hope you enjoy the functionality and convenience of your new Flight Timer. Features Large, readable LCD display ◆... -
Page 3: Controls And Indicators
15 Mounting clip 16 Battery cover 17 Hook & loop mounting pad (optional) 18 Metric clip screw (M4 x 0.8mm) Getting Started To begin using your Flight Timer, turn the timer over and remove the battery tab. The timer should begin functioning. - Page 4 FUEL / CHRONO APPROACH CLOCK APPROACH RESET TIME SET H = HOME D = DESTINATION NOTE LIGHT...
-
Page 5: Battery Replacement
Battery Replacement Follow these steps to replace the batteries: Remove clip screw and mounting clip. ◆ Press snap tab down and remove battery cover. ◆ Install 2 AAA Alkaline batteries according to ◆ polarity diagram. Check to see that timer display is on. ◆... -
Page 6: Clock Function
NOTE can also accept a flashing value rather than stepping all the way through using the DIAL push button. Clock Function The Flight Timer keeps track of the current time and provides three display options: ◆ Standard 12-hour time (AM/PM) 24-hour military time ◆... - Page 7 Fig 2 — Standard 12-hour time format Fig 3 — Military time format Fig 4 — Universal coordinated time (UTC) format Setting Time ◆ With standard or military time formats displayed, push DIAL. The hour digits will flash. Rotate DIAL to set the hours. ◆...
-
Page 8: Fuel Timer Function
◆ Push DIAL to finish setting UTC hour digits. ◆ Fuel Timer Function The Flight Timer includes a fuel timer function to time the intervals between fuel tank selections or other intermittent events. Fuel timer features include: Up to 99-hour timer ◆... - Page 9 Fig 5 — Fuel timer display Countdown Operation Countdown operation can be used to time the interval between events. A beeping alarm, flashing icons and backlight notify the user that time has elapsed. If timer is running press START/STOP to stop ◆...
-
Page 10: Chronograph Function
◆ Elapsed time since alarm is maintained on ◆ screen. Chronograph Function The Flight Timer includes a chronograph (stopwatch) function for precise measurement of time intervals. The features of this timer are: Count-up measurement only. ◆ Precise 1/10th and 1/100th second digit display. -
Page 11: Approach Timer Function
Approach Timer Function The Flight Timer includes an approach timer function to time approach intervals. For convenience, multiple approach times can be programmed prior to flight. Features include: Count-up or countdown operation. ◆ Up to 59-minute 59-second timer. ◆ Stores 6 home (H) airport approach times. - Page 12 Approach Timer Alarm When the approach timer counts down to zero the Flight Timer sounds an audible and visible alarm then begins to count up, measuring the time since the alarm. If approach mode is active, the hour, minute and second digits flash.
-
Page 13: Note/Scratchpad Function
Original approach time data will appear. ◆ Note/Scratchpad Function The Flight Timer includes a 5-digit numeric note displayed in the upper right corner of the LCD. Use it as a scratchpad for remembering important flight numbers such as approach altitudes, frequen- cies, or squawk codes. -
Page 14: Backlight Operation
For extended battery life, avoid excessive use of the backlight. Device Reset The Flight Timer includes a user enabled reset in case of malfunction. Press and hold NOTE and START/STOP for several seconds to reset the device. Under normal use, avoid holding these buttons simultaneously since the reset clears the clock, timers and approach memories. -
Page 15: Specifications
Newcastle, Washington 98059-3153 Limited Warranty Aviation Supplies & Academics, Inc. (ASA) warrants this ASA Flight Timer to the original purchaser for a period of five years from the initial date of purchase, against defects in material and workmanship. Batteries are not covered by this warranty. - Page 16 Record the purchase date in the space provided below. Refer to this when contacting ASA regarding this product. The ASA Flight Timer is an instruction and pilot information aid, and is not an avionics instrument. Purchase Date: _____________________________...
