Summary of Contents for Denver MP–122

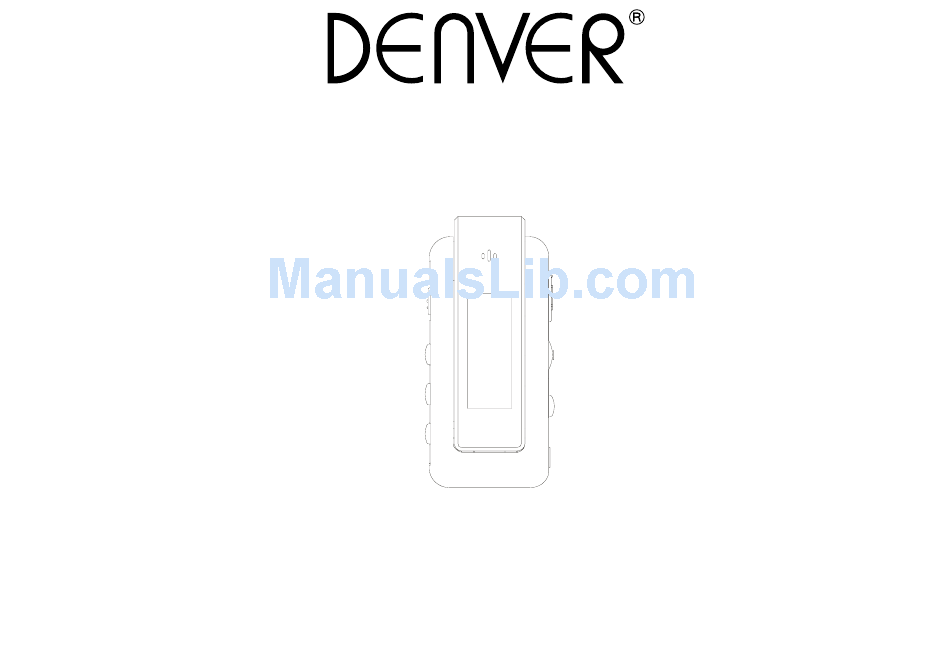

- Page 1 DIGITAL RECORDABLE MULTI PLAYER MP–122/222/522/1022 INSTRUCTION MANUAL...
- Page 2 ※CAUTION Ensure you read the safety warnings carefully below before you operate the unit. Don’t attempt to disassemble or repair this unit casually.Go to consult the properly qualified center when malfunction happened . Don’t use the unit in places such as airport where electricity products are forbidden. Don’t drop the unit into water and pay attention to prevent the liquid from the unit .
-
Page 3: For Safety
※FOR SAFETY Strong vibration or shocks result malfution, please protect it carefully’ When the unit distort because of strong smoke and heat, remove the batteries and cut off the power supply quickly. Strong pressure will damage the LCD screen and cause the display malfunction. Keep the unit away from long time sunshine ,liquid ans heat sources. - Page 4 1: CONTROLS S1. LCD S6. PHONE S2. REW / search up / MENU / S7. MIC FF /search down S8. Converse hole S3. Volume down - S9. A-B S4. Volume up + S10. Battery compartment S5. Power on / Play / Pause / Stop / Power OFF S11.
- Page 5 Feature： 1. Power Supply AAA/LR03/UM4 Size Battery X1 2. Battery life: Continue playing more than 7.5 Hrs 3. Support file Support Audio file Support MP3 ALL bit rates (8-320kbps) & ALL sample rates (8-48kHz). Constant bit rate (CBR) and variable bit rate (VBR) support too.
-
Page 6: Play Mode
Input and output Port Φ3.5mm Headphone Jack Φ3.5mm A type USB Socket Buildin MIC 8. Display 96X32 DOTS MATRIX LCD With Blue Back Light. 9. Key P lay/Stop (Power on/Play/Pause/Stop/Power Off) F F (next/search+/Tuning+) R EW (Back/Search -/Tuning-) ... -
Page 7: Specifications
specifications Frequency response :20 – 20000HWZ Outputs: Phones stereo jack (3.5 mm) Power supply : AAA / LRO3 Size Battery x 1 Dimensions: 68.9 x30.2 x 19.6 mm Weight: 23g (w/o Battery) Menu and Function Description： Description Key Function： Define： Press and Release = PR Press and Hold = PH... -
Page 8: Mode Select
V oice R ecord E rase S ettings A bout E xit OPERATION GUIDE 1： Power On & Power Off ： To turn power on by pressing “ ”... - Page 9 While Pause, press “A-B” key repeatedly with short time to choose: repeat 1 , repeat all ,random , shuffle and repeat all ,intro 10s , “normal” items. 3-7： Change Volume value To Change Volume value Press or hold “vol+”or “vol-” key. 3-8：...
- Page 10 RECORD 5： Select record menu and press “menu” key to record. 5-1： Record Pause Press to pause record. 5-2： Stop record Press “A-B” key to stop and exit the record mode. 6： Settings There are EQ, PlayMode, contrast, backlight, power Set, record set. 6-1：...
- Page 11 3: install host driver 3-1: Install MP3 HOST DRIVER Insert the disc to PC, Disc will auto run and guide you complate setup. English-10...
- Page 12 3-2: Start install. click “Next” English-11...
- Page 13 Click “Yes” English-12...
- Page 14 Click “Next” will install to the default folder, and you can select the other folder to install by “Browse”. English-13...
- Page 15 click “Next” to add program icons. English-14...
- Page 16 Click “Next ” to continue. English-15...
- Page 17 Install guage. English-16...
- Page 18 Press “Finish” to complete install. English-17...
- Page 19 3-3: link the player to PC and turn on player, The PC will found device and install host driver English-18...
- Page 20 Dubole click “My computer”, you can find “moveable disk” 3-4: Eject the player from PC Dubole click the icon English-19...
- Page 21 Click “Stop” English-20...
- Page 22 press “Ok” Click “Ok”, then you can pull out of PC. English-21...
- Page 23 4: Upgreat firmware 4-1: Connect the player to PC, press and keep , run “Firmware Download” English-22...
- Page 24 4-2: PC will seach devices connected to the system. find device and prepare download firmware. English-23...
- Page 25 You can click “Start”, or selete “Format Data Area” English-24...
- Page 26 Note: Formatting the date area will erase all files stored on the madia. Start download firmware。 English-25...
- Page 27 Click “Close” to complete upgreat firmware. 5: Disc oprate This player may be a USB disk, you can operate it refer some books of PC. Our commpany will be irresponsible for lost data during operation. English-26...
- Page 28 The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment. Please inquire at the community administration for the authorized disposal location. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S www.denver-electronics.com English-27...
