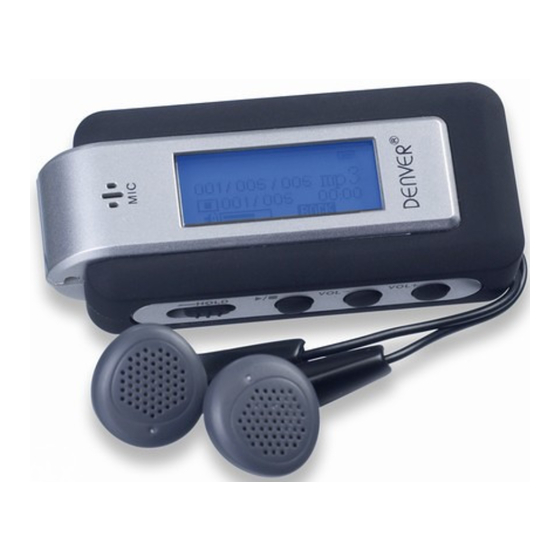

Denver MP-222 Instruction Manual

Digital recordable multi player
Hide thumbs Also See for MP-222:

Advertisement

Quick Links

Download this manual
DIGITAL RECORDABLE MULTI PLAYER
MP–222/522/1022PLL
INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the MP-222 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Denver MP-222

Summary of Contents for Denver MP-222

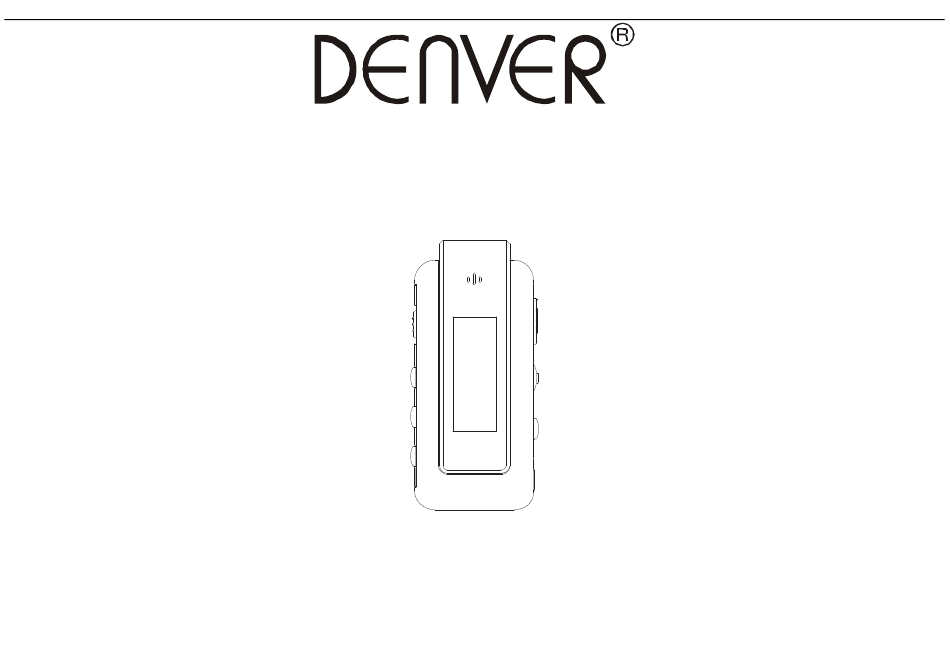

  • Page 1 DIGITAL RECORDABLE MULTI PLAYER MP–222/522/1022PLL INSTRUCTION MANUAL...

  • Page 2: For Safety

    ※CAUTION  Ensure you read the safety warnings carefully below before you operate the unit.  Don’t attempt to disassemble or repair this unit casually.Go to consult the properly qualified center when malfunction happened .  Don’t use the unit in places such as airport where electricity products are forbidden. ...
  • Page 3 1: CONTROLS S1. LCD S5. Power on / Play / Pause / Stop / Power OFF S2. REW / search up / MENU / S6. PHONE FF /search down S7. MIC S3. Volume down - S8. Converse hole S4. Volume up + S9.
  • Page 4 S10. Battery compartment S11. USB jack Feature： 1. Power Supply AAA/LR03/UM4 Size Battery X1 2. Battery life:  Continue playing more than 7.5 Hrs 3. Support file Support Audio file Support MP3 ALL bit rates (8-320kbps) & ALL sample rates (8-48kHz). Constant bit rate (CBR) and variable bit rate (VBR) support too.
  • Page 5 Input and output Port Φ3.5mm Headphone Jack Φ3.5mm A type USB Socket Buildin MIC 8. Display 96X32 DOTS MATRIX LCD With Blue Back Light. 9. Key Play/Stop (Power on/Play/Pause/Stop/Power Off) FF (next/search+/Tuning+) REW (Back/Search-/Tuning-) VOL+ VOL- Menu A-B/Rec Hold 10. Play Mode normal ...

  • Page 6: Specifications

    Fm frequency Range 87.5-108 MHZ PHILIPS TEAS767 specifications Frequency response :20 – 20000HWZ Outputs: Phones stereo jack (3.5 mm) Power supply : AAA / LRO3 Size Battery x 1 Dimensions: 68.9 x30.2 x 19.6 mm Weight: 23g (w/o Battery) Menu and Function Description： Description Key Function：...
  • Page 7 Structure of MENU There are 7 submenu in mainmenu follow as: Music Voice Fm Tuner Record Erase Settings About Exit OPERATION GUIDE 1： Power On & Power Off ： To turn power on by pressing “ ” and turn power off by pressing “ ”...
  • Page 8 Press with long time while playing. 3-5： A-B： While playing, Press “A-B” key twice to set A-B section repeat, It’s canceled by pressing “A-B”key again. 3-6： Repeat mode select While Pause, press “A-B” key repeatedly with short time to choose: repeat 1 , repeat all ,random shuffle and repeat all...
  • Page 9 4-8： Change Volume value Press “VOL+”or “VOL-” key. 4-9： Stop Press key about 1second to stop playing. Operation under Fm mode There are 4 operate: FM, SCAN, SAVE, EXIT. 5-1: Change Freauency press “menu” key to entry” scan” mode press or to change frequency, each press will increase or decrease 0,05MHZ.
  • Page 10 Press “A – B” key to stop Record 5-9: Exit Fm press “ menu” key change to Exit and press “ / ” key to return music code. 6： RECORD Select record menu and press “menu” key to record. 6-1： Record Pause Press to pause record.
  • Page 11 3: install host driver 3-1: Install MP3 HOST DRIVER Insert the disc to PC, Disc will auto run and guide you complate setup.
  • Page 12 3-2: Start install. click “Next”...
  • Page 13 Click “Yes”...
  • Page 14 Click “Next” will install to the default folder, and you can select the other folder to install by “Browse”.
  • Page 15 click “Next” to add program icons.
  • Page 16 Click “Next ” to continue.
  • Page 17 Install guage.
  • Page 18 Press “Finish” to complete install.
  • Page 19 3-3: link the player to PC and turn on player, The PC will found device and install host driver...
  • Page 20 Dubole click “My computer”, you can find “moveable disk” 3-4: Eject the player from PC Dubole click the icon...
  • Page 21 Click “Stop”...
  • Page 22 press “Ok” Click “Ok”, then you can pull out of PC.
  • Page 23 4: Upgreat firmware 4-1: Connect the player to PC, press and keep , run “Firmware Download”...
  • Page 24 4-2: PC will seach devices connected to the system. find device and prepare download firmware.
  • Page 25 You can click “Start”, or selete “Format Data Area”...
  • Page 26 Note: Formatting the date area will erase all files stored on the madia. Start download firmware。...
  • Page 27 Click “Close” to complete upgreat firmware. 5: Disc oprate This player may be a USB disk, you can operate it refer some books of PC. Our commpany will be irresponsible for lost data during operation.
  • Page 28 The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment. Please inquire at the community administration for the authorized disposal location. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S www.denver-electronics.com...

This manual is also suitable for:

Mp-522Mp-1022pll
