CONTACT TEMPERATURE MEASUREMENTS
1. Set the function switch to the black Type K ºF or ºC position.

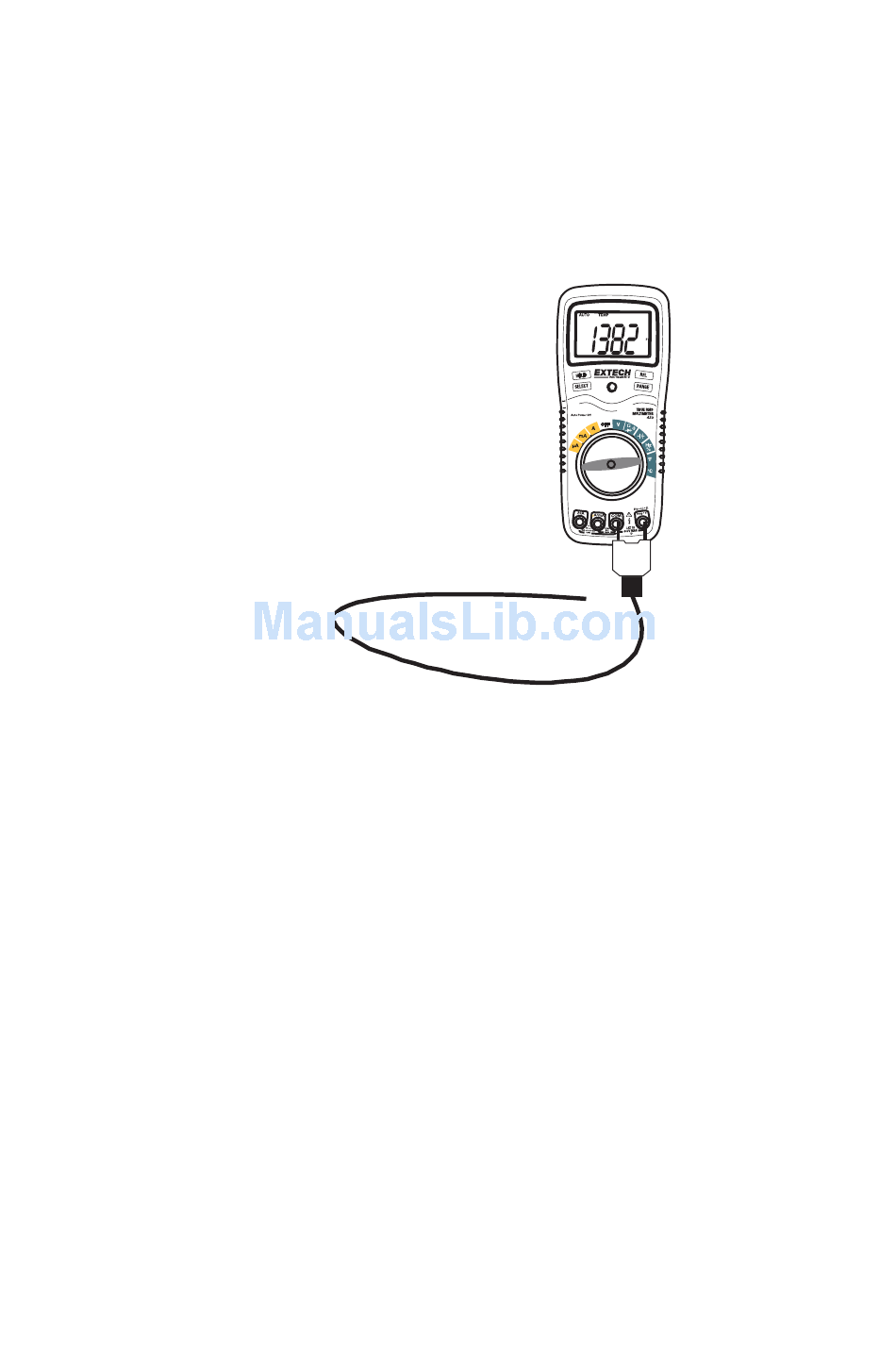

2. Insert the Temperature Probe into the input jacks, making sure
to observe the correct polarity.
3. Touch the Temperature Probe head to the part whose
temperature you wish to measure. Keep the probe touching the
part under test until the reading stabilizes
(about 30 seconds).
4. Read the temperature in the display.
Note: The temperature probe is fitted with a type
K mini connector. A mini connector to
banana connector adaptor is supplied for
connection to the input banana jacks.
