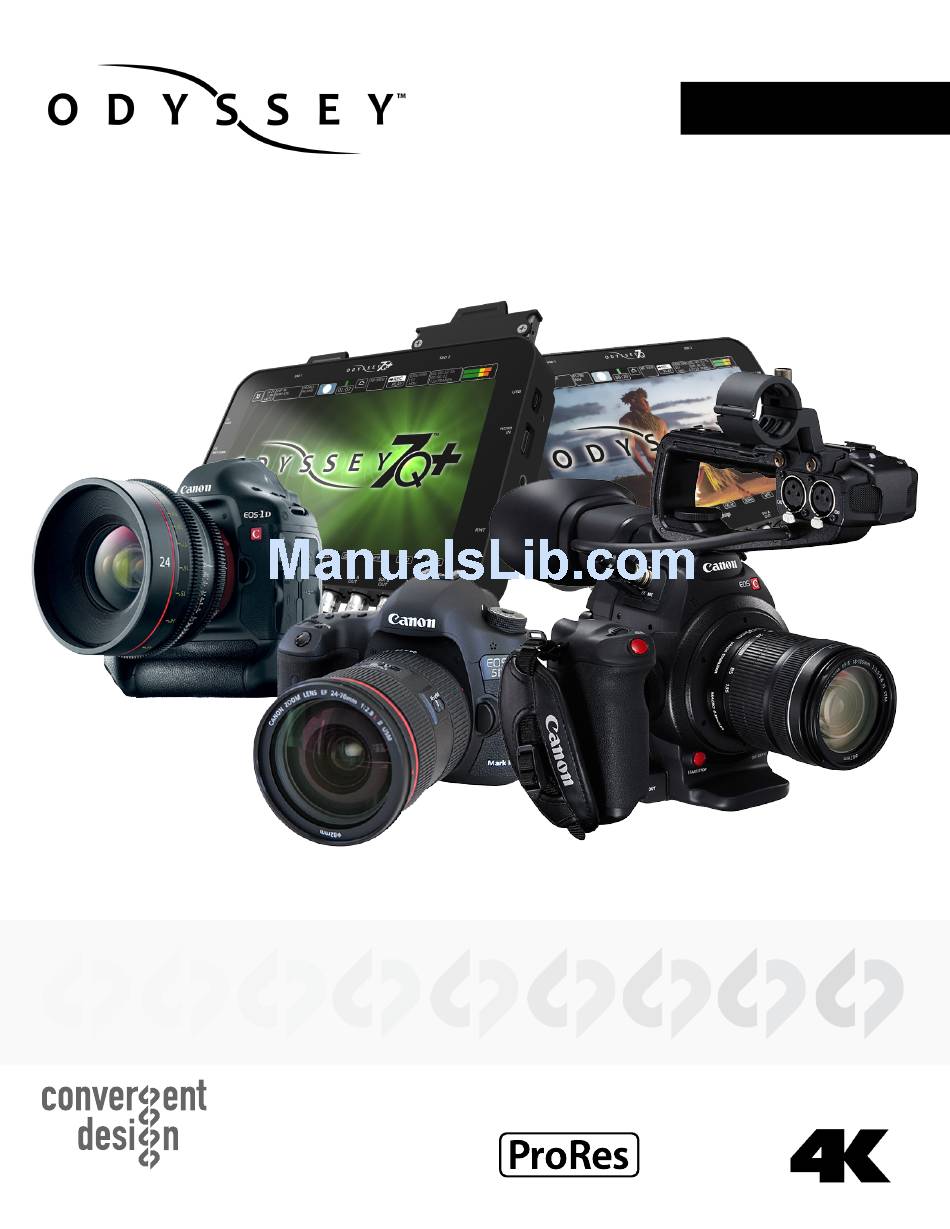

- Page 1 Canon HDMI SETUP GUIDE Odyssey7Q+ Odyssey7Q Odyssey7 Canon 5D Mark III Canon 1DC Canon C100 Canon C100 MKII HD Apple ProRes 1080p23.98,24,25,29.97,50*,60* 720p50/60 *1080p50/60 over HDMI only supported on Odyssey7Q+ Updated February 24, 2015 | Firmware Release v5.10.100 ProRes 422 (HQ) ProRes 422 ProRes 422 (LT)
- Page 2 CANON HDMI NOTES ABOUT USING THE ODYSSEY WITH CANON VIA HDMI This guide covers using the Odyssey with the following cameras: Canon 5D Mark III Canon 1DC Canon C100 Canon C100 MKII The Odyssey7/7Q do not support 1080p59.94 or 4K over HDMI due to a hardware constraint. If Auto HDMI output is used, the camera will output 1080i.
- Page 3 CANON HDMI CAMERA SETTINGS - CANON 1DC/ 5DMKII This section applies to the Canon 5D Mark III (firmware v1.2.3) and Canon 1DC (firmware v1.3.5). Please note that though the Canon 1DC can record 4K internally, the output is HD only. 1.
- Page 4 CANON HDMI CAMERA SETTINGS - CANON C100/C100MKII This section applies to the Canon C100 (firmware v2.0.0.1.00) and Canon C100 Mark III (firmware v1.0.0.1.00). 6. SET INTERNAL RECORDING MENU » (OTHER FUNCTIONS) » SYSTSEM FREQUENCY » (59.94/50) 7. SET FRAME RATE C100 MENU »...
- Page 5 CANON HDMI ODYSSEY CONFIGURATION 1. SET ODYSSEY TO HD->HD APPLE PRORES MODE ☼ » SETUP » CAMERA » CANON » HD/2K->HD/2K PRORES(.MOV) 2. MAKE CAMERA THE RECORD TRIGGER ☼ » SETUP » RECORD TRIGGER » CAMERA 3. SET TIMECODE SOURCE ☼...
- Page 6 CANON HDMI 7. CONNECT TO CAMERA AND VERIFY STATUS INPUT CONNECT CAMERA HDMI OUTPUT TO ODYSSEY HDMI INPUT The status on your Odyssey will display your camera’s output. Example: HD 4:2:2 PRORES CANON HD/2K 1920 x 1080 8. SET HDMI CADENCE Connect HDMI input, and verify the camera internal record rate matches the input indicator on the Odyssey.
- Page 7 OFF-LOADING DATA COPYING FILES TO YOUR COMPUTER 1. CONNECT SSD DRIVE TO ADAPTER Connect the Convergent Design 2.5” Premium SSD Media to any off-the-shelf 2.5” SATA adaptor (example: Seagate GoFlex Thunderbolt Adaptor or USB 3.0 Adaptor) 2. CONNECT ADAPTER TO COMPUTER The SSD will mount within 10-20 Seconds.
-
Page 8: Post Production
Note: To combine files into a single directory use our ProRes Utility. ☎ ++(720)221-3861 ✉ CDSupport@convergent-design.com ☁ Convergent-Design.com © 2015 Convergent Design, Inc. - All Rights Reserved. All copyrights and trademarks remain the property of their respective owners. Updated February 24, 2015...
