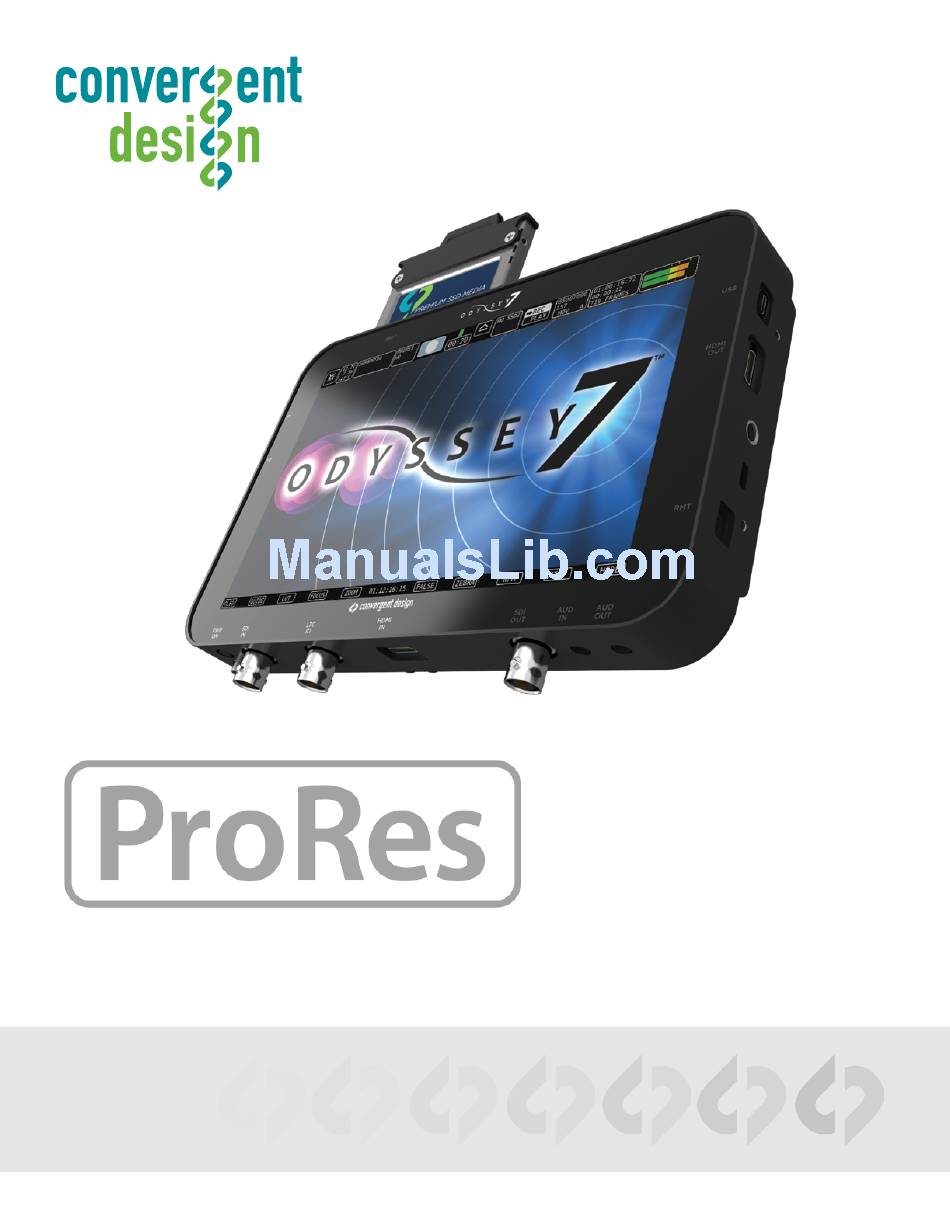

Setup Guide Odyssey7/7Q & Apple ProRes
Updated 19-Aug-2014 | Firmware Release v2.11.110
Odyssey7
Odyssey7Q

Advertisement

loading
Need help?

Need help?

Do you have a question about the Odyssey7 and is the answer not in the manual?

Questions and answers

Related Manuals for Convergent Design Odyssey7

Summary of Contents for Convergent Design Odyssey7

  • Page 1 Setup Guide Odyssey7/7Q & Apple ProRes Updated 19-Aug-2014 | Firmware Release v2.11.110 Odyssey7 Odyssey7Q...

  • Page 2: Record Time Capacities

    This Guide covers Recording in Apple ProRes 422(HQ) on the Odyssey7 and Odyssey7Q Apple ProRes 422 HQ The Odyssey7 and Odyssey7Q record in Apple ProRes HQ which is a 10 bit 4:2:2 220Mb compressed codec. This will allow for high quality recording while avoiding high data rates of working with uncompressed video.
  • Page 3 Odyssey7/7Q Apple ProRes Setup Guide ODYSSEY7 & 7Q/Apple ProRes CONFIGURATION CHART In HD there are different frame rates, resolutions and signal structures, all of which the Odyssey recorders can capture. In order to determine the correct settings for your camera, choose from the parameters below.
  • Page 4 Some cameras do offer a 23.98p or 24p mode that sends only the original frames in either a Progressive or PSF video stream. It is important to know what your camera outputs so that you know if you need to utilize the 3:2 PULLDOWN extraction function. © 2014 Convergent Design, Inc. - All Rights Reserved.

  • Page 5: Setting Up Your Camera

    1) Set your camera to recording internally to 1080p23.98 2) Set your camera output to be 1080p24 *Certain newer cameras have the ability to output 1080p24. **Odyssey7/7Q do not support 1080p/60 over HDMI, only SDI. Convergent Design, Inc. 4525 Northpark Dr. | Colorado Springs, CO 80918 | USA TEL: ++ (720) 221-3861 | FAX: ++ (720) 227-9296 | Office Hours: 8:00 A.M.
  • Page 6 INTERLACED 3:2 PULLDOWN (TO 24P) Verify that the input on the Odyssey7/7Q matches your camera The input status box on the top menu of your Odyssey7/7Q will reflect the frame rate that you are going to record. Example: Camera Output:...
  • Page 7 Odyssey7/7Q Apple ProRes - 3:2 Pulldown SET UP YOUR TIMECODE SOURCE The Odyssey 7Q can accept timecode from many sources such as SDI, LTC and generete it’s own via SEED / Record Run. Use the Apple ProRes Setup Guide (p3) to help best determine what is the best setting to use with your camera.
  • Page 8 Odyssey7/7Q Apple ProRes Setup Guide SET UP YOUR RECORD TRIGGER The Odyssey7/7Q can accept various triggering methods, depending on your camera and setup. Use the Apple ProRes Setup Guide (p3) to help best determine what is the best setting to use with your camera.
  • Page 9 Verify that when you press record the Odyssey7/7Q starts recording. TIMECODE TRIGGER Certain camera’s can trigger the Odyssey when you press record by setting the Odyssey7/7Q to timecode trigger. Please see ProRes Setup Guide for compatibility. Set your camera to Record Run for Timecode Set the Odyssey7/7Q to Timecode Trigger (LTC or SDI) MENU »...
  • Page 10 If your camera does not have a SDI trigger, or cannot be triggered over timecode via SDI or LTC, you will need to trigger the Odyssey7/7Q with the record button on the display. Please see Apple ProRes Setup Guide for compatibility.
  • Page 11 Odyssey7/7Q Off-Loading Data COPYING FILES FROM SSD MEDIA Connect SSD Drive to Adapter Connect the Convergent Design 2.5” Premium SSD Media to any off-the-shelf 2.5” SATA adap- tor (example: Seagate GoFlex Thunderbolt Adaptor or USB 3.0 Adaptor) Connect Adapter to Computer The SSD will mount within 10-20 Seconds.
  • Page 12 There are numerous post systems and NLEs that can read natively the various file formats recorded by the Odyssey7/7Q. Some NLEs may require plug-ins in order to read certain file formats. Blackmagic Design Resolve software is available for free and can read all formats recorded by the Odyssey7/7Q.

  • Page 13: Online Resources

    Odyssey7/7Q Apple ProRes Setup Guide ONLINE RESOURCES Firmware and Downloads https://convergent-design.com/support/firmware-downloads.html Software/Utilities https://convergent-design.com/support/firmware-downloads/software-utilities.html Knowledge Base https://convergent-design.com/support/knowledgebase.html Videos https://convergent-design.com/support/cd-videos.html NOT SUPPORTED AT THIS TIME • 720p 24/25/30 signal (720p with 3:2 or 2:2 Pulldown) • SD NTSC/PAL video • Analog audio input •...
  • Page 14 © 2014 Convergent Design, Inc. - All Rights Reserved. All copyrights and trademarks remain the property of their respective owners. 19-Aug-2014 © 2014 Convergent Design, Inc. - All Rights Reserved.
