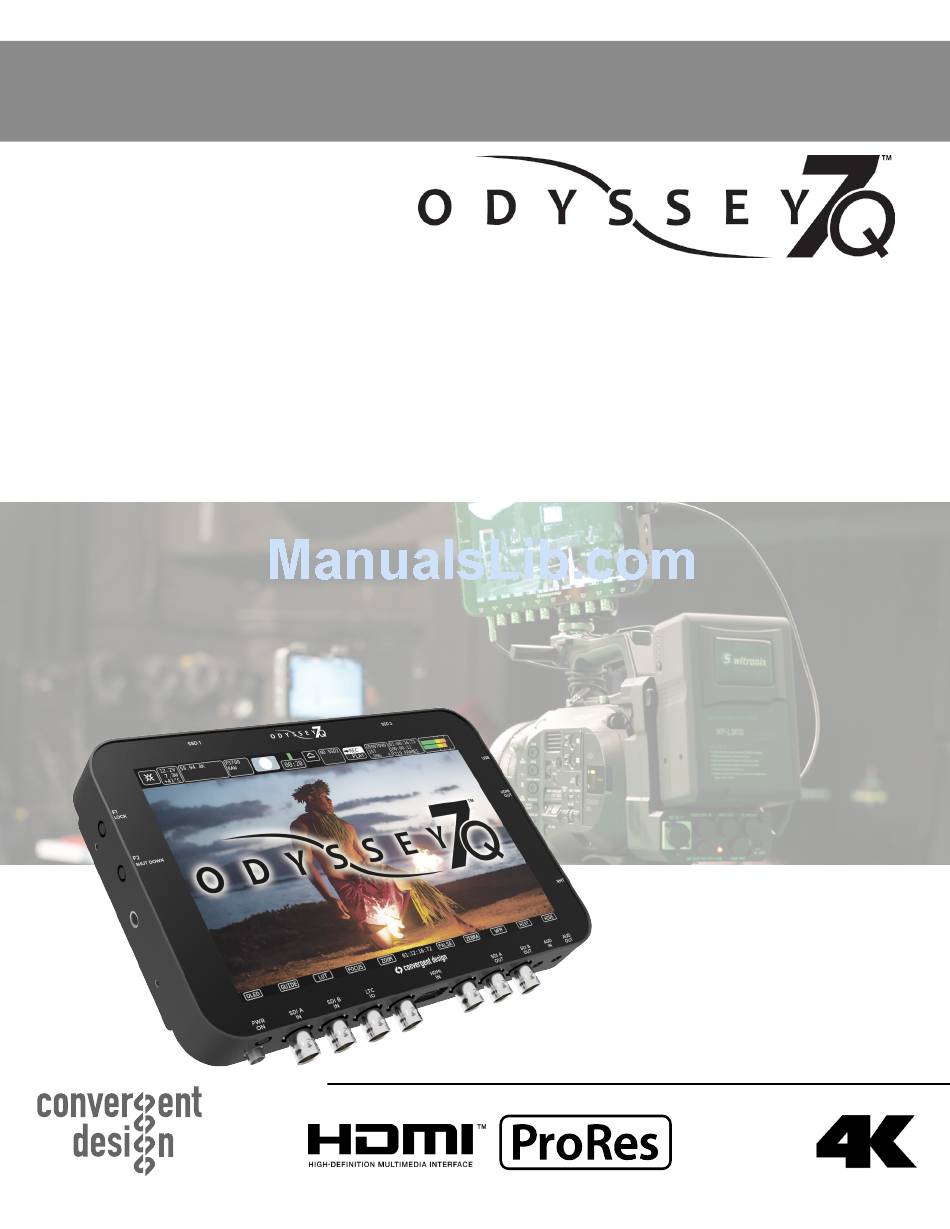

  • Page 1 USER MANUAL Apple ProRes 4444 (XQ) Apple ProRes 4444 Apple ProRes 422 (HQ) Apple ProRes 422 Apple ProRes 422 (LT) Updated November 16, 2015 2:27 PM | Firmware Release 2015.11...

  • Page 2: Table Of Contents

    Odyssey7Q User Manual v2015.8 WORKING WITH MEDIA Contents Recording to SSD Media INTRODUCTION Loss of Power During a Record Downloading Media PACKAGE CONTENTS OTHER FILES ON SSD MEDIA File Storage OVERVIEW SOFTWARE UTILITIES Features CD Data Unpacker Specifications CD Clip Merger RECORDING CAPABILITIES CD Apple ProRes Transfer Utility CD 3D-LUT Converter Included Free with Odyssey7Q+ POST PRODUCTION Odyssey RAW Bundle (available online) RECORD TIME CAPACITIES Working with Recorded Files Uncompressed Support (DPX sequence) Apple ProRes & Uncompressed DPX Apple ProRes...

  • Page 3: Introduction

    Power source must be able to provide up to 24 watts at all times to the Odyssey. When powering the Odyssey from an ARRI ALEXA camera, we recommend using the 24V R/S Fischer-3 output from the ALEXA using the optional Convergent Design cable. Familiarize yourself with the equipment and test prior to shooting.

  • Page 4: Package Contents

    Package Contents Included with Odyssey7Q • Odyssey7Q Monitor/Recorder • Odyssey Universal Power supply SSD Media and other accessories are sold separately. Convergent-Design.com...

  • Page 5: Overview

    4K / UHD / 2K / HD VIDEO RECORDING: Record 4K (4096x2160), UHD (3840x2160), 2K (2048x1080) and HD (1920x1080, 1280x720) Video in Apple ProRes 422 (HQ). The Odyssey7Q+ can record 4K/UHD 10-bit or 1080p60 10-bit over HDMI. 2K / HD 4:4:4 RGB VIDEO RECORDING: Record 2K (2048x1080) and HD (1920x1080) video up to 50p/59.94p in 12-bit or 10-bit in uncompressed DPX stacks, Apple ProRes 4444(XQ) or Apple ProRes 4444.

  • Page 6: Specifications

    PANASONIC), Timecode, Remote Cable (Optional Accessory) Recording Media Convergent Design Premium 2.5” SSDs with power-loss protection, in 256GB, 512GB and 1 TB sizes, 420Mb/sec write, 500Mb/sec read speed, compatible with USB 3.0 and Thunderbolt Adapters. SSDs and (Dual SSD Slots) adapters sold separately.

  • Page 7: Recording Capabilities

    HD video signals do not need to match frame rates or resolutions. Apple ProRes Recording Odyssey7Q+ supports recording in Apple ProRes 4444 (XQ), Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, and Apple ProRes 422 (LT). Files are saved in .MOV format.

  • Page 8: Odyssey Raw Bundle (Available Online)

    Recording Capabilites Odyssey RAW Bundle (available online) All recording option upgrades are available for demo on the Odyssey7Q+, but will appear with a blue or pink line “watermark” across the recorded image. Recording options are available to purchase as a permanent license...
  • Page 9 Recording Capabilities POV RAW IO Industries Flare 2KSDI: 2K/HD 10-Bit RAW / 23.98-60p Supports several industrial/ Indiecam indieGS2K: 2K/HD 10-Bit RAW / 60-120p special use cameras’ RAW outputs. Indiecam indieGS2K: HD 10-Bit RAW / 23.98-60p Indiecam indieGS2K: HD 12-Bit RAW / 23.98-60p (Available for purchase with the Odyssey RAW Bundle or daily NOTE: RAW data is recorded as .DNG files.

  • Page 10: Record Time Capacities

    Record Time Capacities Apple ProRes & Uncompressed DPX ProRes 422 (HQ) The Odyssey can record numerous video and data formats such as Apple ProRes and uncompressed DPX, which ProRes 422 are included free with the Odyssey. The chart below indicates maximum record time in minutes based on the use ProRes 422 (LT) of two 512 GB SSDs (1TB).

  • Page 11: Raw Recording Formats

    With the purchase of the Odyssey RAW Bundle or rental of a recording option upgrade (available online) the Odyssey7Q is capable of recording RAW output from certain cameras. The chart below indicates maximum record time in minutes based on the use of two 512 GB SSDs (1TB). For 512 GB (one 512 GB SSD or two 256 GB SSDs), divide in half.
  • Page 12 Record Time Capacities Recording Format ARRI ALEXA Recording Option (Included in the Odyssey RAW Bundle or available for daily rental) ARRIRAW 16:9 CANON C500 Recording Option (Included in the Odyssey RAW Bundle or available for daily rental) Canon 4K RAW Canon 4K Half RAW Canon QHD Raw Canon 4K RAW to 4K Apple ProRes 422 (HQ)

  • Page 13: Recording Option Rentals

    Recording Option Rentals Rental Activation Keys Rental Activation Keys may be purchased though our website for Sony FS7/FS700 RAW, Canon C500 Cinema RAW, the ARRI Alexa ARRIRAW and POV RAW recording options. Please visit the links in the Recording Capabilities section for more information.

  • Page 14: Ssd Media

    3D-LUT files. The Convergent Design SSD Utility Drive will not record video files. It is intended for Odyssey owners who do not wish to tie up an SSD with utility features, or for Odyssey owners who use their devices as monitors and do not need to purchase the more expensive recording media.

  • Page 15: Odyssey Anatomy

    Physical Caharcteristics Odyssey7Q - Bottom There are eleven connector ports on the bottom side of the Odyssey7Q (left to right) PWR ON Power input socket to Odyssey (see Getting Started – Power). Just in front of the PWR ON port is a button, which is a Force Power On/Off control.
  • Page 16 Odyssey7Q - Right Side There are three connector ports, (top to bottom) USB, HDMI OUT and RMT. An access point for servicing by Convergent Design. HDMI OUT Output to an HDMI compatible device A remote control connection to the Odyssey.

  • Page 17: Mechanical Drawings

    Odyssey Anatomy Mechanical Drawings [16] Convergent-Design.com...

  • Page 18: Odyssey Remote Trigger

    Odyssey Remote Trigger The Convergent Design Odyssey Remote Trigger is a pushbutton active remote start/stop trigger for Odyssey monitor/recorders. Remote Trigger feature has been enabled in firmware version 5.10.100 in HD ProRes recording only. The trigger button illuminates while recording. The trigger plugs into the RMT port on the left side of the Odyssey and comes in a six foot standard cable length.

  • Page 19: Getting Started

    Getting Started Odyssey Activation Convergent Design requires each Odyssey to be registered via our website. This is so that we can provide notices of free firmware updates, issue alerts for critical issues, and track rentals or purchases of record options.

  • Page 20: Powering Down

    Demo Mode Out of the box the Odyssey is in DEMO MODE and must be owner-registered with Convergent Design. On the Odyssey a watermarking blue bar will appear on the lower third of the image both on the OLED and in the recording while in DEMO MODE.

  • Page 21: Menu System

    Shows ACTIVE if a use cameras such as IO can then be entered into Industries or IndieCam the Odyssey7Q on the key has been entered for [activation] menu page. (Available in a future the record...

  • Page 22: Upper Tool Bar (Record Mode)

    Menu System SETUP Controls for Camera Type, Recording Format, and Trigger. Replication of RECORD STATUS button controls (for details see page 21) INPUTS Controls for video and timecode inputs. Replication of INPUT/OUTPUT STATUS button (Input Control Settings) (for details see page 19) OUTPUTS Controls for video outputs.
  • Page 23 SYSTEM STATUS VOLTS: 12.1V (6.5~34V) There are no vents or fans in the Odyssey7Q. Even under most harsh conditions, the Odyssey should POWER: 10.0W not suffer any operational issues due to heat. However, if the internal temperature of the Odyssey TEMP: +31°...
  • Page 24 Menu System Input/OUTPUT Status (Record Mode ONLY) 29.97 Displays current video input signal type. Tapping button brings up detailed information on Input and Output signals, record mode and frame rates. S-LOG2 Input Control Settings This identifies the cycling of the signal coming into the Odyssey and how VIDEO CADENCE: it is to be recorded.
  • Page 25 0-100 IRE. Output Control Settings The settings of the OUTPUTS menu allow adjustments to the video outputs of the Odyssey7Q+. The OUTPUTS menu is accessed by tapping * then tapping OUTPUTS. On/Off control to switch video outputs from True Progressive (p) to VIDEO PSF OUT: Progressive Segmented Frames (psf) signal structure.
  • Page 26 Menu System Allows for signal overlay onto HDMI OUT video. CUSTOMIZE HDMI: LUT OFF sends out the video signal or representation of the RAW data signal with no alteration. LUT ON applies the LUT image adjustment as selected in the LUT menu.
  • Page 27 Menu System Allows selection of record trigger mechanism for Odyssey7Q. Note that RECORD TRIGGER: some cameras do not output trigger signals over SDI or HDMI. AVAILABLE RECORD TRIGGERS RECORD BUTTON (Tap Record Button on Upper Toolbar to start/stop recording) CAMERA (Use camera’s trigger to stop/start recording -- trigger output...
  • Page 28 Menu System SSD1 Status (All Modes) Displays record time available given current settings (HH:MM). Tapping button brings up detailed 02:12 information on SSD1 status. Formatting and rebuilding options are also available here. Safe Eject (All Modes) Prompts a confirmation to Safely Eject one or both of the SSDs. This is the proper method for dismounting and ejecting SSDs so that the files and directories can be closed properly.

  • Page 29: Audio Options

    Tapping button brings up OLED monitor settings. Controls are for the Odyssey OLED panel only and OLED will not affect the recorded signal or the signal from any of the device’s outputs. The Odyssey7Q+ display is capable of presenting the full contrast and color gamut of both the REC709 and DCI-P3 standards.
  • Page 30 LUTs have expanded to also become tools to preview color grading decisions. The Odyssey7Q+ includes numerous 3D-LUTs for previewing the LOG video outputs of several popular cameras in standard REC709 contrast and color.
  • Page 31 Convergent Design website) for translation into the Odyssey LUT format. Load LUTs onto an Odyssey SSD or Utility Drive and mount in the Odyssey7Q+. Select IMPORT FROM SSD in the LUT menu to read SSD for LUTs. LUTs can be PREVIEWED by tapping on individual file name, but a destination folder must be selected in order to load LUTs onto the Odyssey7Q+.
  • Page 32 OLED screen. Hyper Zoom modes include 4:1, 6:1, 8:1, 10:1 and 12:1. When the Odyssey7Q+ is set to a 4K->HD SuperSampling mode, the Pixel Zoom functions reference the original higher resolution image.

  • Page 33: False Color

    Menu System False Color Tapping button activates False Color. Holding button brings up False Color settings. False Color is FALSE an exposure reference tool, attributing different colors to various brightness portions of the image. Available colors are Red, Yellow, Pink, Green, Blue and Purple. A video signal is measured in a scale from -7 to 109, often marked as a % or with the suffix IRE.
  • Page 34 Menu System Zebra Tapping button activates Zebras. Holding button opens Zebras settings. A Zebra stripe (/////) is an ZEBRA exposure tool to indicate any part of the image that is at a particular brightness. There are two Zebra stripe patterns, ///// and \\\\\. Each Zebra pattern can be represented in Black, White, Red, Green, Blue, Yellow, Cyan, or Magenta colored stripes, and the underlying image is visible in between the stripe lines.
  • Page 35 Menu System Waveform Tapping button activates Waveform. Holding button brings up Waveform settings. A Waveform is an exposure tool used for measuring the brightness of the image throughout the frame. It can be set for overall brightness (Luma), with the three color channels separated (RGB Parade), or as the individual color channels only (Red, Green, or Blue).
  • Page 36 Menu System Vectorscope Tapping button activates Vectorscope. Holding button brings up Vectorscope settings. A Vectorscope measures the color spectrum represented in the video signal. Different hues are represented by the rotation around the circle. Different saturations are represented by the distance from the center to the perimeter of the circle.

  • Page 37: Upper Tool Bar (Play Mode)

    Bad notes.Markers are flagged reference points within a file. Single flags as well CLIP as in/out points can be marked. Used in conjunction with the Convergent Design Apple ProRes Transfer Utility (1.4 or above) markers are translated into Final Cut GOOD <ENTER CLIP...

  • Page 38: Lower Tool Bar (Play Mode)

    Professional Monitor/Recorder Lower Tool Bar (Play Mode) A different tool bar will appear at the bottom of the screen in Play Mode. TOOLS <STEP ► STEP> NEXT> 00:12:16:72 05:59 14:55 Tools/Scrub Buttons (Play Mode Only) SCRUB Toggles Lower Tool Bar between PLAYBACK CONTROLS and IMAGE ANALYSIS TOOLS. For TOOLS information on TOOLS, please see LOWER TOOL BAR (RECORD MODE) on p.

  • Page 39: Working With Media

    Convergent Design offers a USB 3.0 SSD Adapter (CD-SSD-USB3) through authorized dealers and distributors. This device allows you to access files on the Convergent Design SSDs on any computer with a USB 3.0 or USB 2.0 port. (Please note that USB 2.0 ports have much slower data transfer rates.)

  • Page 40: File Storage

    Working With Media File Storage The Odyssey SSDs support read rates of 500 Mbytes/sec. Keep in mind you will be limited by the slowest media in the transfer process. For example: eSATA 3GBps interface cards have a max performance of ~270Mbps, and eSATA 1.5GBps have a max performance of ~130Mbps.

  • Page 41: Software Utilities

    Software Utilities Convergent Design has free file utility programs, CD Transfer, CD Clip Merger, CD ProRes Transfer Tool and CD 3D-LUT Converter available for download for both Mac & PC on our website. https://convergent-design.com/support/firmware-downloads/software-utilities.html CD Data Unpacker Higher frame rate 8-12-bit (1920x1080, 2048x1080) DPX files are recorded in “Packed” files. CD Data Unpacker Utility copies and converts 1080p/59.94 and 1080p/60 DPX files and clips.

  • Page 42: Cd 3D-Lut Converter

    • Added project name to note CD 3D-LUT Converter Convert 3D Look Up Table (LUT) files in .cube format to Convergent Design binary file format for use in the Odyssey7Q and Odyssey7Q monitor/recorders. Appropriate .cube files can be created in programs such as DaVinci Resolve and Pomfort LiveGrade.

  • Page 43: Post Production

    Post Production Working with Recorded Files There are numerous post systems and NLEs that can read natively the various file formats recorded by the Odyssey. Some NLEs may require plug-ins in order to read certain file formats. Blackmagic Design Resolve software is available for free and can read all formats recorded by the Odyssey.

  • Page 44: Apple Prores

    Post Production Apple ProRes The Odyssey can record in Apple ProRes 422 (HQ), Apple ProRes 422 and Apple ProRes 422 (LT) compressed codecs. This allows for high quality recording while avoiding high data rates of working with uncompressed video. Apple ProRes 4444 XQ The highest-quality version of Apple ProRes for 4:4:4:4 image sources (including alpha channels), and provides the following: •...

  • Page 45: Fs700 Raw Support (Dng Sequences)

    It is important to correctly set the white balance of the camera, as this is baked into the RAW file. FS7/FS700 RAW in DaVinci Resolve, Premiere, and Importing 3D-LUTs Detailed tutorial documentation and instructional videos are available on the Convergent Design website. Canon C500/C300mkII 4K RAW Support All Canon C500 &...

  • Page 46: Accessories

    Odyssey can range from 8-15w. Even small camcorder batteries can power the Odyssey for several hours. The Odyssey is supplied with a Convergent Design AC power supply. This is a universal switching power supply that can be used throughout the world, and comes complete with several interchangeable plug connectors. Only use a Convergent Design AC power supply on the Odyssey.
  • Page 47 Odyssey Protective Case The Convergent Design Odyssey Case is based on a Nanuk 910 case with custom foam insert. The use of precision-cut rigid foam means less is needed for protecting the gear The main cutout for an Odyssey includes removable layers of rigid foam to allow the Odyssey to fit snugly when bare or with a variety of battery plates and 3rd party accessory mounts.
  • Page 48 Odyssey SSD to connect to a USB 3.0 port. 6Ghz transfer speed. NOTE: While the Convergent Design USB 3.0 Adapter can be connected to a USB 2.0 port, download speeds will be extremely slow, requiring many hours to offload an SSD.

  • Page 49: Third Party Accessories

    Convergent Design works with numerous manufacturers for additional support products for the Odyssey Monitor/ Recorders. While we have provided information and support, Convergent Design makes no claim and accepts no responsibility in the use of these products. These products are available through these manufacturers’ own dealers.

  • Page 50: Release Notes

    • Option to skip every-other frame in playback of 50p/60p Apple ProRes files for real-time playback speed with audio sync • Currently available in all 2K & HD Apple ProRes modes NEW FEATURES ODYSSEY7Q+/7Q -- ODYSSEY RAW BUNDLE FS700 2K RAW HS -> 2K APPLE PRORES • Supports 100, 120, 200, & 240fps in 2K Apple ProRes (HQ/422/LT) FS7 2K RAW HS -> 2K APPLE PRORES...
  • Page 51 • Support for Apple ProRes 4444(XQ) and 4444 • Windows and Mac versions available FS RAW POST WORKFLOW LUT / WORKFLOW UPDATE • New LUTs for matching FS7/FS700 RAW recording to Apple ProRes recording • New documentation and video tutorials on Convergent Design website NEW CANON CLOG AND CLOG2 ADDITIONAL PRESETS AVAILABLE FOR DOWNLOAD • View LUT downloads on our website at https://www.convergent-design.com/download-luts.html KNOWN ISSUES •...

  • Page 52: Firmware Version 2015.8

    Disconnect & reconnect one of the SDI inputs to correct. Recording is unaffected. • IO Industries RAW files do not send color balance metadata to the Odyssey7Q so images appear incorrect. Recorded metadata color balance is set to 5600K but is not baked in.
  • Page 53 • SDI/HDMI outputs have a pink line in image on Canon C500 2K 12-bit/10-bit video. Recording is unaffected. • IO Industries RAW files do not send color balance metadata to the Odyssey7Q so images appear incorrect. Recorded metadata color balance is set to 5600K but is not baked in.

  • Page 54: Earlier Versions

    5.10.100 (March 2015) or 2015.5 (May 2015) then a qualified Samsung SSD (see list above) as well as an Odyssey SSD can be used to perform the update. Samsung SSDs require the Convergent Design SSD Handle kit to mount in an Odyssey monitor/recorder. Odyssey monitor/recorders running earlier firmware versions must use an Odyssey SSD to perform the update.

  • Page 55: Limited Warranty

    Also Convergent Design will not be liable for a failure of the unit to properly record or play back for any reason. Convergent Design’s total liability, in all cases, is limited to the actual purchase price.

  • Page 56: Appendix

    Appendix Monitor/Record Options SONY FS7/FS700 HD/2K 4:2:2 -> HD/2K ProRes (.MOV) FS 4K RAW -> HD ProRes (.MOV) FS 4K RAW -> 2K ProRes (.MOV) FS 4K RAW -> 4K ProRes (.MOV) FS 4K RAW -> UHD ProRes (.MOV) FS 4K/2K RAW -> RAW (.DNG) HD/2K 4:2:2/4:4:4 ->...

  • Page 57: Online Resources

    Appendix Online Resources Home Page http://convergent-design.com New Account https://convergent-design.com/new-north-america.html Activate Device https://convergent-design.com/next-steps Products https://convergent-design.com/products.html Odyssey7Q+ http://convergent-design.com/products/plus.html Odyssey7Q https://convergent-design.com/products/odyssey7q.html Odyssey7 https://convergent-design.com/products/odyssey7.html Legacy Products https://convergent-design.com/products/legacy-products.html Odyssey RAW Bundle https://convergent-design.com/products/odyssey-raw.html SSD Media https://convergent-design.com/products/premium-ssd-media.html Accessories https://convergent-design.com/products/accessories.html Account Dashboard https://convergent-design.com/dashboard.html My Devices https://convergent-design.com/my-devices.html My Orders https://convergent-design.com/my-orders.html...
  • Page 58 © 2015 Convergent Design, Inc. - All Rights Reserved. All copyrights and trademarks remain the property of their respective owners. Updated November 16, 2015 2:27 PM...
