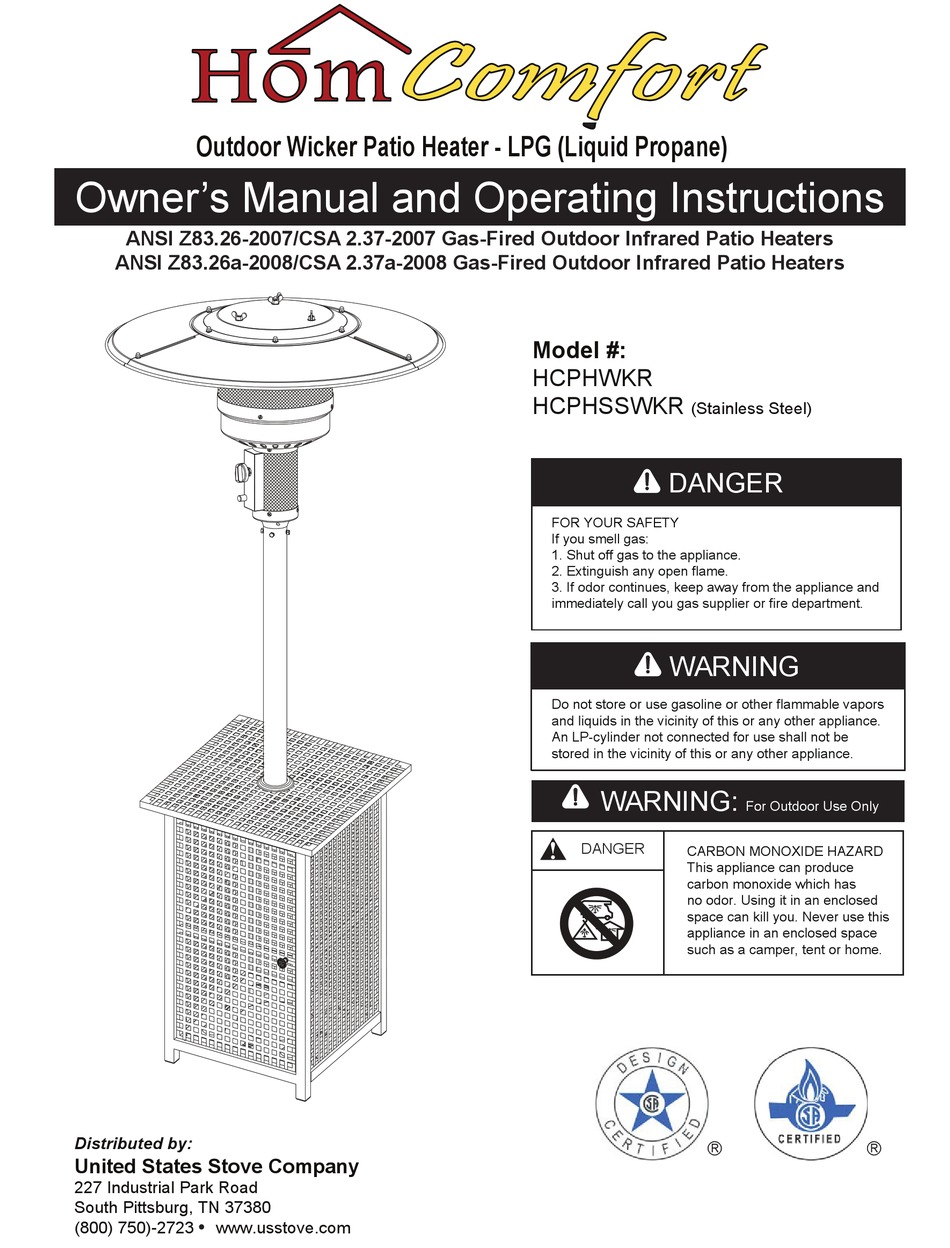

Outdoor Wicker Patio Heater - LPG (Liquid Propane)
Owner's Manual and Operating Instructions
Owner s Manual and Operating Instructions
ANSI Z83.26-2007/CSA 2.37-2007 Gas-Fired Outdoor Infrared Patio Heaters
ANS Z83.26-2007/CSA 2.37-2007 Gas-Fired Outdoor Infrared Patio Heaters
ANSI Z83.26a-2008/CSA 2.37a-2008 Gas-Fired Outdoor Infrared Patio Heaters
ANS Z83.26a-2008/CSA 2.37a-2008 Gas-Fired Outdoor Infrared Patio Heaters
Distributed by:
United States Stove Company
227 Industrial Park Road
South Pittsburg, TN 37380
•
(800) 750)-2723
www.usstove.com
Model #:
HCPHWKR
HCPHSSWKR
(Stainless Steel)
DANGER
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call you gas supplier or fire department.
WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WARNING:
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent or home.
R
For Outdoor Use Only
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCPHWKR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HomComfort HCPHWKR

Summary of Contents for HomComfort HCPHWKR

  • Page 1 ANSI Z83.26-2007/CSA 2.37-2007 Gas-Fired Outdoor Infrared Patio Heaters ANS Z83.26-2007/CSA 2.37-2007 Gas-Fired Outdoor Infrared Patio Heaters ANSI Z83.26a-2008/CSA 2.37a-2008 Gas-Fired Outdoor Infrared Patio Heaters ANS Z83.26a-2008/CSA 2.37a-2008 Gas-Fired Outdoor Infrared Patio Heaters Model #: HCPHWKR HCPHSSWKR (Stainless Steel) DANGER FOR YOUR SAFETY If you smell gas: 1.

  • Page 2: Package Contents

    PACKAGE CONTENTS QUANTITY Reflector Panel Reflector Plate Head Assembly Post Tabletop Main Frame Gas Hose Regulator...

  • Page 3: Safety Information

    HARDWARE CONTENTS (shown actual size) Wing nut Flange Screw Washer Qty. 3 Bolt Cap nut M6 X 10 Qty. 9 Washer M6 X 30 Reflector Qty. 9 Qty. 4 Qty. 9 Qty. 9 spacer Qty. 4 Qty. 3 Wrench Stainless steel Deck ring Qty.

  • Page 4: Carbon Monoxide Hazard

    SAFETY INFORMATION DANGER DANGER • EXPLOSION - FIRE HAZARD • CARBON MONOXIDE HAZARD • Keep solid combustibles, such as building materials, • This heater is a combustion appliance. All paper or cardboard, a safe distance away from the combustion appliances produce carbon monoxide heater as recommended by the instructions.

  • Page 5: Burn Hazard

    SAFETY INFORMATION WARNING WARNING California Proposition 65 • This product is fueled by propane gas. Propane gas Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and described as a “rotten egg”...
  • Page 6 ASSEMBLY INSTRUCTIONS 1. Fix the support post (D) with 4pcs M6x30 bolts (BB) and M6 flange nuts (AA). Hardware Used Bolt M6 x 30 M6 Flange nut 2. Put the tabletop (E) throught the support, secure the tabletop with 4pcs M6X12 bolts. Hardware Used Bolt M6 x 12 3.
  • Page 7 ASSEMBLY INSTRUCTIONS 4. Attach reflector spacers (CC) and three washers Ø8 (DD) to screen cover. Tighten the reflector spacers. Hardware Used Reflector spacer Washer 5. Attach head assembly to post. 5-1. Unscrew four stainless steel bolts M6 X 10 (II). Hardware Used Stainless steel bolt M6 X 10 5-2.
  • Page 8 ASSEMBLY INSTRUCTIONS 6. WARNING:Remove protective cover before assembling. Note: If necessary for proper alignment of reflector sections, loosen each bolt prior to further assembly and retighten after sections are aligned. 7. 7-1.Slide two reflector panels together. Insert one screw M6 X 10 (FF). Slide one washer (EE) over threaded end of screw M6 X 10 (FF) and screw on cap nut (GG) loosely.
  • Page 9 ASSEMBLY INSTRUCTIONS Support heater. Slide three washers washer 8 (DD ) over threaded end of spacer. Locate reflector assembly on 3 spacers. Install three washers 8 on spacers and securely tighten wing nuts (HH) but do not overtighten. Hardware Used Washer Wing nut 9.
  • Page 10 ASSEMBLY INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S.
  • Page 11 OPERATION INSTRUCTIONS Leak Check WARNING leak tested and do not leak. Hose / Regulator Regulator / Cylinder connection connection 1. Make 2-3 oz. of leak check solution (one part liquid dishwashing detergent and three parts water). 2. Apply several drops of solution where hose attaches to regulator. 3.
  • Page 12 OPERATION INSTRUCTIONS DANGER Caution: Do not attempt to operate until you have read and understand all General Safety Information in this manual and all assembly is complete and leak checks have been performed. Note: This heater is equipped with a pilot light that allows for safer startups and shutdowns. Pilot must be lit before main burner can be started.
  • Page 13 OPERATION INSTRUCTIONS 5. Push and release the igniter button until pilot flame is visible through viewing hole. 6. Once the pilot is lit, continue to depress the control knob for 30 seconds. 7. If the pilot does not stay lit, repeat steps 4 to 6. 8.

  • Page 14: For Your Safety

    OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this heater. Holding in the control know for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When heater is ON: Emitter screen will become bright red due to intense heat.

  • Page 15: Care And Maintenance

    OPERATION INSTRUCTIONS 9. Heater is away from gasoline or other flammable liquids or vapors. 10. Heater is away from windows, air intake openings, sprinklers and other water sources. 11. Heater is at least 24 in. on top and at least 36 in. on sides from combustible materials. 12.
  • Page 16 CARE AND MAINTENANCE Gas odor with extreme yellow tipping of flame. Heater does NOT reach the desired temperature. Heater glow is excessively uneven. Heater makes popping noises. Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and render it unsafe for use.

  • Page 17: Troubleshooting

    TROUBLESHOOTING n i l Clean or replace orifice or Blockage in orifice or pilot tube pilot tube Open gas line and bleed it Pilot won’t light Air in gas line (pressing control knob in) for not more than 1 - 2 minutes or until you smell gas Low gas pressure with cylinder valve Turn cylinder valve OFF and replace...
  • Page 18 Distributed By: United States Stove Company www.usstove.com 227 Industrial Park Rd (800) 750-2723 South Pittsburg, TN 37380 1 year limited warranty - Customers in the Continental US All components are warranted for a period of 1 year after date of purchase by the original owner against defects in materials and work- manship under normal use.

  • Page 19: Replacement Parts List

    REPLACEMENT PARTS LIST QUANTITY Reflector Panel Reflector Plate Head Assembly Post Tabletop Main Frame Gas Hose Regulator...
