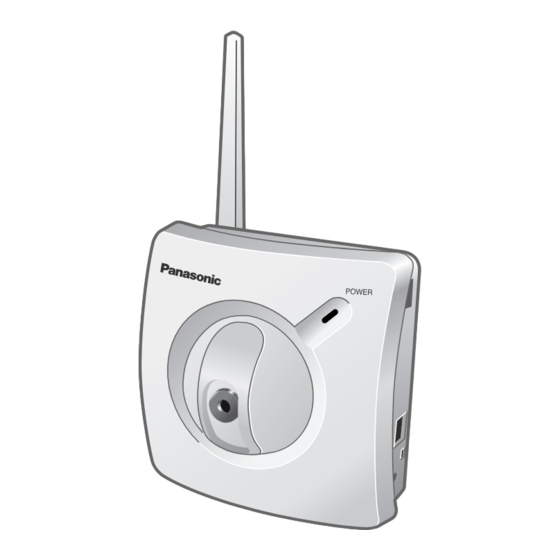

Panasonic KX-HCM10 Operating Instructions Manual
Network camera
Hide thumbs
Also See for KX-HCM10:
- Operating instructions manual (122 pages) ,
- Getting started (4 pages) ,
- Operating instructions manual (112 pages)
Related Manuals for Panasonic KX-HCM10
Summary of Contents for Panasonic KX-HCM10
- Page 1 Please read this manual before using and save this manual for future reference. Panasonic Network Camera Site: http://www.panasonic.com/netcam for customers in the USA or Puerto Rico...
-
Page 2: Additional Feature Table
Operating Instructions Additional Feature table The features described below are added in accordance with our modifications in the product specifications. Read both Operating Instructions manuals before starting to use the product. Additional Feature Page Viewing Buffered Image Screen Page 4—Page 5 Images can be buffered in the internal memory of the Network Camera. - Page 3 Operating Instructions Additional Feature Page Digital Zoom (KX-HCM280 only) Page 16 The 2x digital zoom feature is added. The Network Camera has a 42x magnifying capacity: the 21x magnifying capacity of the optical zoom and 2x magnifying capacity of the digital zoom.
-
Page 4: Viewing Buffered Image Screen
Operating Instructions Viewing Buffered Image Screen Images can be buffered in the internal memory of the Network Camera. They can be viewed by clicking [Start Capture] on Capture screen. Alarm/Timer mode in the Image Transfer on page 12 can also buffer images. The current images will be buffered in the internal memory of the Network Camera. - Page 5 The internal memory will be divided by the number of trigger settings in Image Transfer. If all three trigger settings are enabled, the Network Camera can buffer approximately 26 frames (KX-HCM8/KX-HCM10) or 186 frames (KX-HCM230/KX-HCM250/KX-HCM270/KX-HCM280) for each trigger setting at a resolution of 320 x 240 in standard.
-
Page 6: Viewing Still Images On Your Mobile Phone
Operating Instructions Viewing still images on your mobile phone A compatible mobile phone allows you to view still images over the Internet as well as control the motion and zoom settings of the camera (depends on model). Enter "http://IP address (or URL):Port No./mobile" on a mobile phone and press [OK]. - Page 7 Some phones may allow viewing only on port number 80, and some may not support password authentication. Refer to the Network Camera Technical Support Site at http://panasonic.co.jp/pcc/en/ for a list of mobile phone models, and the compatibility level which has been verified with the Panasonic Network Camera. •...
- Page 8 Some changes in the look of the Network window (KX-HCM250 and KX-HCM270 only) Disclosing Operating Instructions of wireless models from this page is strictly prohibited by export controls. Please call Panasonic Customer Support(1-800-272-7033) for assistance. We apologize for any inconvenience this may cause. Modified Modified...
- Page 9 Operating Instructions Disclosing Operating Instructions of wireless models from this page is strictly prohibited by export controls. Please call Panasonic Customer Support(1-800-272-7033) for assistance. Added...
-
Page 10: Adjusting Clock For Daylight Saving Time
Operating Instructions Adjusting Clock for Daylight Saving Time Adjust Clock for Daylight Saving Time is added on Name/Time window. Added Instructions for the data field Adjust During Daylight Saving Time, the clock will shift one hour Clock for forward at the set time on the Start Day, and move back one Daylight hour at the set time on the End Day. -
Page 11: Time Zone At Auto Adjustment
Operating Instructions Time Zone at Auto Adjustment The Daylight Times in the pull-down menu for the Time Zone at [3. Auto Adjustment] on Name/Time window have been deleted, because Adjust Clock for Daylight Saving Time has replaced its feature. GMT-10:00 Hawaii GMT-09:00 Alaska, Hawaii Daylight Time GMT-08:00 Pacific Time, Alaska Daylight Time GMT-07:00 Mountain Time, Pacific Daylight Time... -
Page 12: Transferring Camera Images
Operating Instructions Transferring Camera Images The Network Camera can buffer images and send them via E-mail or FTP by configuring Image Transfer. Capture, Alarm and Timer can be used simultaneously by checking [Enable] for Controls on each of their Image Transfer windows. -
Page 13: Transfer In The Alarm Mode
Operating Instructions Transfer in the Alarm Mode The alarm mode can transfer images via E-mail or FTP when the alarm trigger is active. Check [Enable] for Alarm Control when activating the Alarm mode. Added Check [Enable] when activating the Alarm mode. -
Page 14: Transfer In The Timer Mode
Operating Instructions Transfer in the Timer Mode The timer mode can be activated by entering the active time, the image setting, frequency setting and the transfer method on Image Transfer window. Buffered image can also be transferred via E-mail or FTP. Check [Enable] for Timer Control when activating the Timer mode. -
Page 15: Using The Preset Control (Except Kx-Hcm8)
Operating Instructions Using the Preset Control (Except KX-HCM8) Pan/Tilt/Preset Control on the Camera Setup window is divided into two controls: Pan/Tilt Control and Preset Control. Preset Control can be enabled or disabled independently. (The window below comes from KX-HCM280.) Modified... -
Page 16: Digital Zoom (Kx-Hcm280 Only)
Operating Instructions Digital Zoom (KX-HCM280 only) The 2x digital zoom feature is added. The Network Camera has a 42x magnifying capacity: the 21x magnifying capacity of the optical zoom and 2x magnifying capacity of the digital zoom. Zoom button increases or decreases the size of the object on the Single Camera screen. -
Page 17: Using The Color Night View (Kx-Hcm280 Only)
Operating Instructions Using the Color Night View (KX-HCM280 only) The Color Night View of the Network Camera enables you to view color images of objects even in the dark. Added Color Night The Color Night View enables the Network Camera to display View color images of objects even in the dark. -
Page 18: Default Settings List
Operating Instructions Default Settings List Factory Indispensable Items Default Note setting value Name/ Adjust Clock for No check Time Daylight Saving Time Start/End Day April/ Month October Start/End Day First Weekday Sunday/Last Sunday Start/End Day Hour 2 AM Capture Capture Control Enable Required when Mode... - Page 19 Operating Instructions Memo...
- Page 20 Symptom Send the unit to an authorized servicenter, prepaid and adequately insured. Do not send your unit to the Panasonic Consumer Electronics Company listed below or to executive or regional sales offices. These locations do not repair consumer products. Operating Instructions are subject to change without notice.
