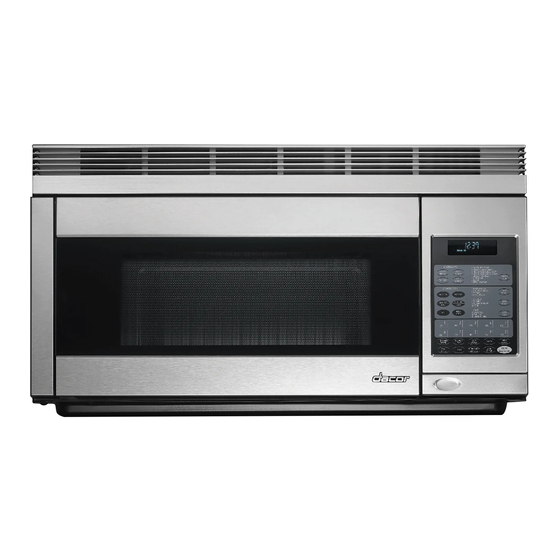

Use and Care Manual
MICROWAVE OVEN / HOOD SYSTEM
INSTALLATION INSTRUCTIONS
Please read all instructions thoroughly before installing the over the range microwave oven/hood system. Two
people are recommended to install this product.
If a new electrical outlet is required, its installation should be completed by a qualified electrician before the over
the range microwave oven/hood system is installed. See 3 ELECTRICAL GROUNDING INSTRUCTIONS on page 2.
1 MOUNTING SPACE
This microwave oven/hood requires a mounting space on
a wall as shown in Figure 1. It is designed to be used with
standard 12-inch wall cabinets.
Consult the installation instructions for the range or cooktop
being installed for additional and/or superseding minimum
distance requirements.
2 WALL CONSTRUCTION
This microwave oven/hood should be mounted against and supported by a flat vertical wall. The wall must be flat for proper
installation. If the wall is not flat, use spacers to fill in the gaps. Wall construction should be a minimum of 2" x 4" wood studding
and 3/8" or more thick dry wall or plaster/lath. The mounting surfaces must be capable of supporting a weight of 110 pounds—the
oven and contents—AND the weight of all items which would normally be stored in the top cabinet above the unit.
The unit should be attached to a minimum of one 2" x 4" wall stud.
To find the location of the studs, one of the following methods may be used:
A. Use a stud finder, a magnetic device which locates the nails in the stud.
B. Use a hammer to tap lightly across the mounting surface to find a solid sound. This will indicate stud location.
The center of the stud can be located by probing the wall with a small nail to find the edges of the stud and then placing a mark
halfway between the edges. The center of any adjacent studs will normally be 16" or 24" to either side of this mark.
Part No. 107002 Rev. C
PCOR30 OVER THE RANGE

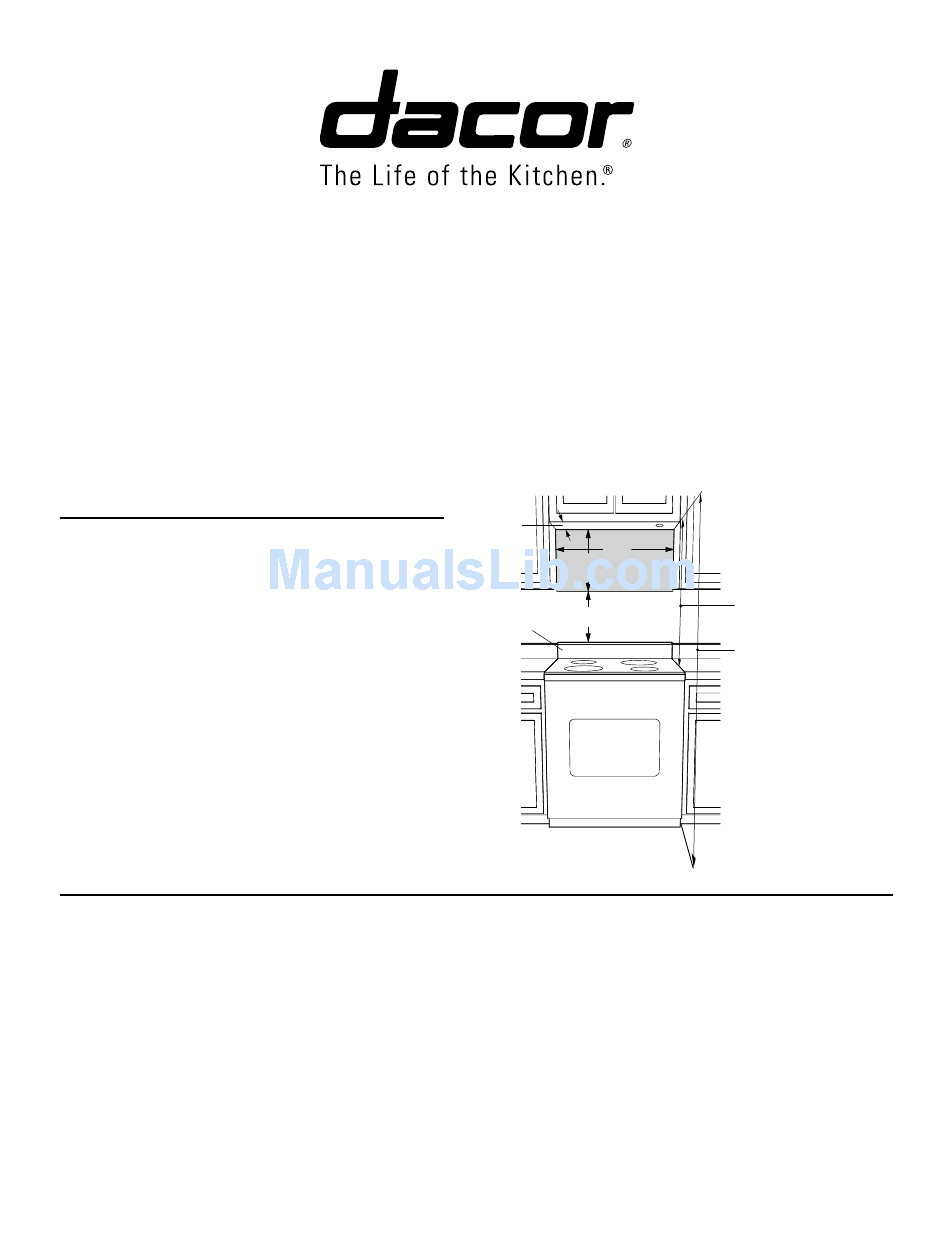

Figure 1
12"
30"
15.5"
At least 2"
Backsplash
1
30" or more from
cooking surface
66" or more
from floor
TINSEB319MRR1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dacor PCOR30
Summary of Contents for Dacor PCOR30
-
Page 1: Installation Instructions
PCOR30 OVER THE RANGE MICROWAVE OVEN / HOOD SYSTEM INSTALLATION INSTRUCTIONS Please read all instructions thoroughly before installing the over the range microwave oven/hood system. Two people are recommended to install this product. If a new electrical outlet is required, its installation should be completed by a qualified electrician before the over the range microwave oven/hood system is installed. - Page 2 1. If you have any questions about the grounding or electrical instruc- Power Cord tions, consult a qualified electrician or serviceperson. 2. Neither Dacor nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedures.
- Page 3 Parts shown not to common scale. The following items should also be included with the microwave-hood: grease filters (2), charcoal filter, turntable support, turn- table (glass), Use & Care Manual, Dacor Convection Microwave Cookbook, Warranty card, turntable racks (2), wall template, top cabinet template...
- Page 4 7 VENTILATION SYSTEM (PREPARING OVEN FOR INSTALLATION) This microwave oven/hood is designed for adaptation to three types of hood ventilation systems. Select the type required for your installation. Vertical Exhaust — outside ventilation. Follow installation procedure (A). Horizontal Exhaust — outside ventilation. Follow installation procedure (B). Recirculating —...
- Page 5 Fan Cover Bracket Hood Fan Unit Figure 8 Figure 9 Figure 10 Mounting Plate (back side) (C) RECIRCuLATING: Non-Vented, Ductless Operation Figure 11 1. Remove and save 4 fan cover screws and fan cover bracket as shown in Fig. 6. 2.
- Page 6 8 OVEN INSTALLATION IMPORTANT: THIS OVEN CANNOT BE PROPERLY INSTALLED WITHOUT REFERRING TO THE MOUNTING INSTRUC- TIONS FOUND ON WALL AND TOP CABINET TEMPLATES. MOuNTING PLATE 1. Separate 4 toggle bolts, packed in the installation hardware, from the toggle nuts. 2.
- Page 7 3. Place the oven and the carton portions together on the top of the range. See Fig. 17. Slide carton toward backsplash until it stops. Align the lower back edge of the oven with the mounting plate. 4. Thread the power supply cord through the hole made in the bottom of the top cabinet. 5.
- Page 8 1. Make sure the unit has been installed according to all of the installation instructions and the wall and top cabinet templates. 2. Plug in the power cord. 3. Keep the use and care manual. DACOR INC. 14425 Clark Avenue, City of Industry, CA 91745 1-800-793-0093 • www.dacor.com...
