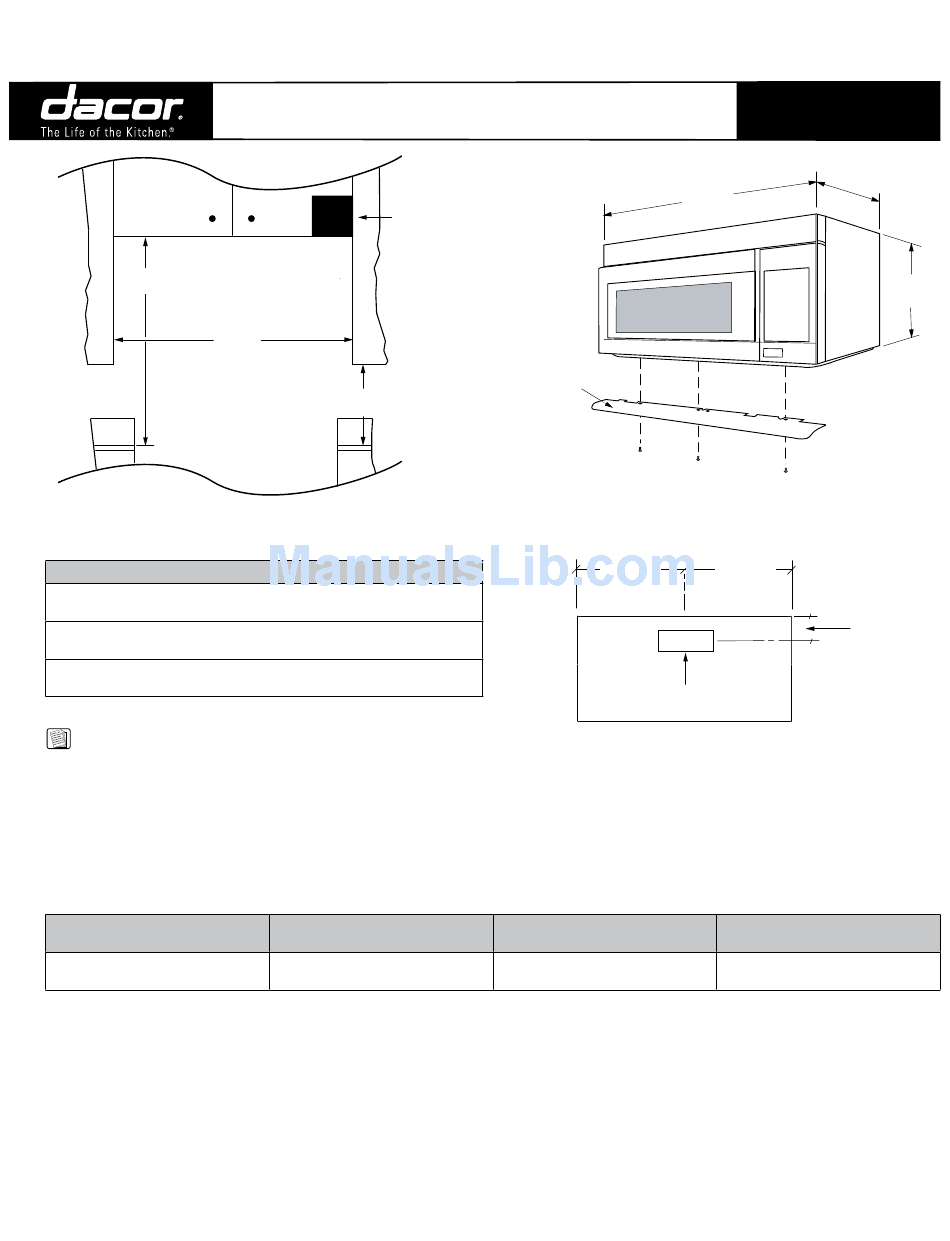

Dacor PCOR30 Planning Manual

092105
"A"
(762mm)
UPPEr CAbINET DImENsIoNs
(Upper Cabinets 13" (330mm) Maximum Depth)
"A" - From Top of PCOR30 to Finished Countertop
34" (864mm) Minimum with deflector for a maximum
cooktop surface BTU rating of 44,000 BTU's.
36" (914mm) Minimum without deflector for a maximum
cooktop surface BTU rating of 44,000 BTU's.
36" (914mm) Minimum with deflector for a maximum
cooktop surface BTU rating of 60,000 BTU's.
NOTES:
1. 30" electric cooktops or ranges can be installed at
34" (864mm) with deflector or 36" (914mm) without
deflector for a maximum cooktop surface rating of
10,000 watts.
2. Microwave is supplied with a 48" (1219mm) power
cord, with a three prong grounded plug.
Model No.
PCOR30
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
over the range
Convection microwave oven
Recommended
Utility Location
30"
18" (457mm) Min.
Both Sides
Dedicated Circuit Required
120VAC, 60Hz, 15A
(Breaker)
PCor30
Deflector
(89mm x 254mm)
Direct Connection
Total Connected Load
1.56kW (13A)
Specifications are subject to change without notice.
See installation instructions for additional details.
PLANNING
1/1
29 15/16"
(761mm)
ovErALL DImENsIoNs
c
L
Equal
Equal
3 1/4" x 10"
mICrowAvE ToP vIEw
ExHAUsT LoCATIoN
Shipping Weight
GUIDE
15 1/4"
(387mm)
16 1/4"
(413mm)
4"
(102mm)
c
L
Approximate
84 lbs.
12.4
