DX Air Curtain
1
APPLICATION
Every air curtain is manufactured conforming with European directives and the latest standards. Air curtains prevent air
currents and draughts and produce a comfortable environment in the door entrance area
The air curtains are manufactured to the latest technical standards and regulations. The quality controls include
material and function controls and ensure a quality product with a long life span.
The air curtains are built to CE guide lines.
The fan-motors used in the Air Curtain comply with ErP 2013 (Commission Regulation (EU) No 327/2011).
Correct installation is of paramount importance. This includes that unit and control are also used in the correct
environment. The air curtains and controls are manufactured for indoor use only.
Do not install in humid, aggressive or explosive areas. During the installation the unit has to be kept clean and dry.
Applications:
DX Air curtains are only applicable:-
For indoor areas (shops, warehouses, exhibition halls, or banks, etc.)
Installed in false ceilings or free hanging
DX Air curtains must not be installed:-
In humid areas like swimming pools
Areas with danger of explosion
Areas with aggressive air
Areas with extreme high dust exposure
Vertically (Only horizontally hung installations are permitted)
Twin / Triple Restriction:
To ensure reliable operation DX Air Curtains must be connected to a single outdoor unit (no twin or triple installations).
Model Range:
"Air On" Temperature Limits: Minimum 15°CDB / Maximum 28°CDB
In Heating mode (reverse cycle) when the outdoor unit is producing hot gas, the DX coil in the Air Curtain is effectively
the condenser. Air temperatures flowing across the coil below this level, can cause over condensing of the refrigerant.
This can result in liquid being returned to the compressor which will cause a mechanical failure of the outdoor unit. Low
air temperatures will also cause the unit to use it's defrost mode more often

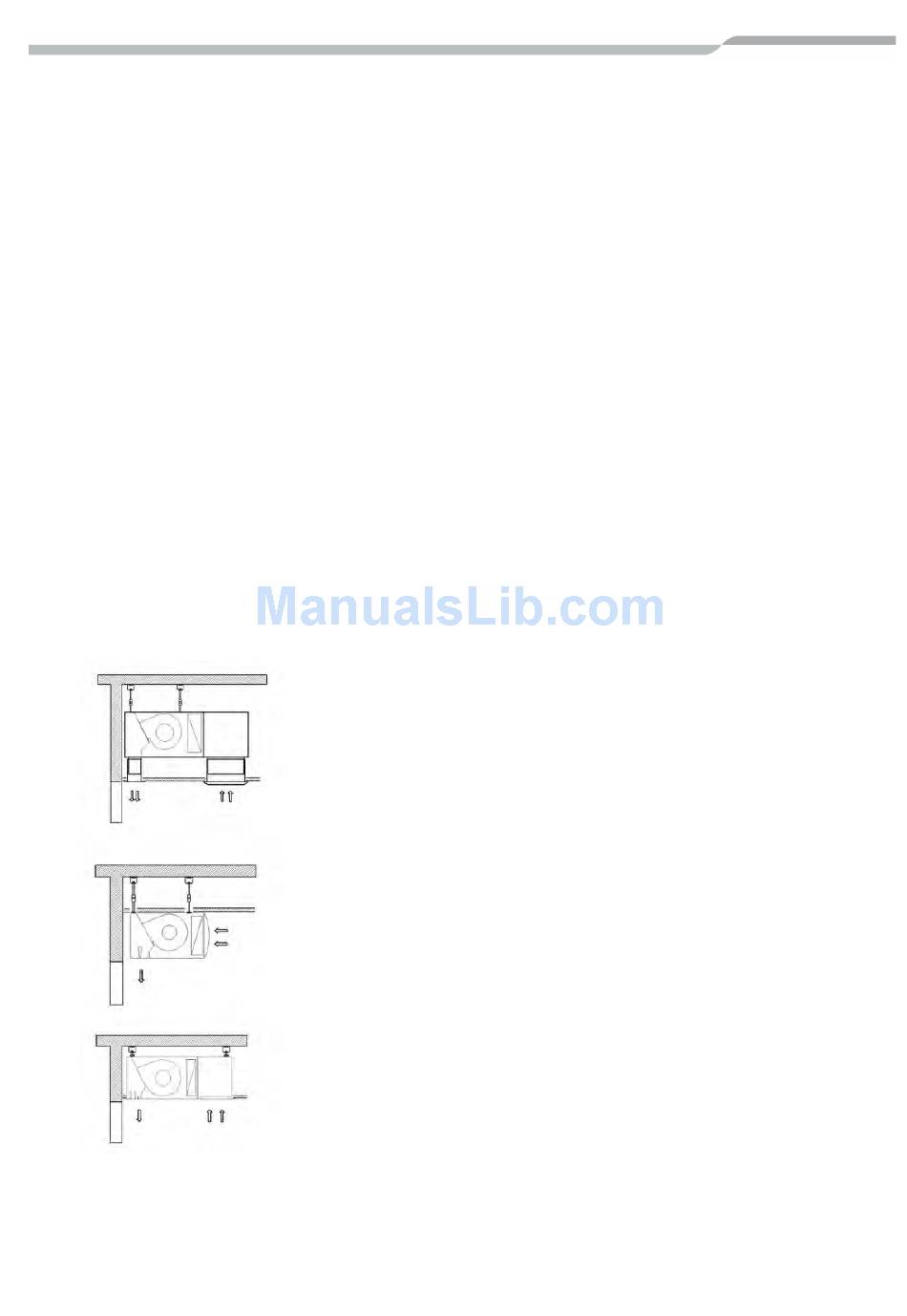

Built-in unit (BH)
Suitable for installation in the ceiling space above the door, only the inlet
grille and discharge outlet will be visible.
Door widths:
2 versions offered:
Free-Hanging unit (CH)
Suitable for installation above the door, where whole unit will be visible.
Door widths:
2 versions offered:
Cassette unit (UH)
Suitable for installation where the ceiling space is limited above the door,
the full panel will be visible.
Door widths:
2 versions offered:
2
1.0m, 1.5m, 2.0m and 2.5m
Medium (Door height range: 2.5m to 3.0m)
Large (Door height range: 2.7m to 3.2m)
1.0m, 1.5m, 2.0m and 2.5m
Medium (Door height range: 2.5m to 3.0m)
Large (Door height range: 2.7m to 3.2m)
1.0m, 1.5m, 2.0m and 2.5m
Medium (Door height range: 2.5m to 3.0m)
Large (Door height range: 2.7m to 3.2m)
