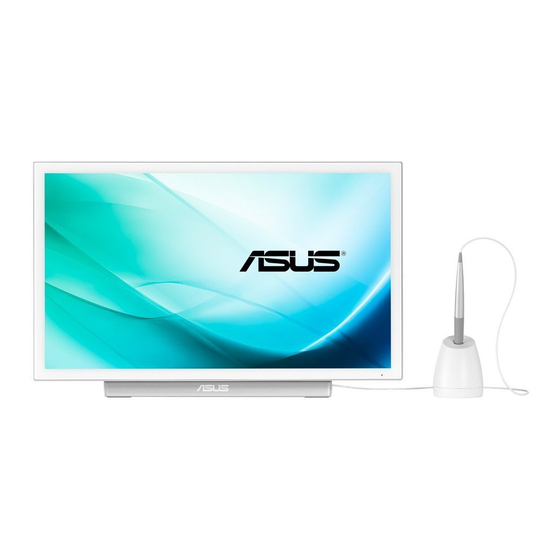

PT201 Series

LCD Monitor

Setup Manual

Advertisement

Table of Contents
loading

Summary of Contents for Asus PT201 series

  • Page 1: Lcd Monitor

    PT201 Series LCD Monitor Setup Manual...
  • Page 2 E9529 June 2014 First Edition Information on the Disposal of this Equipment Do not throw your this product in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste.
  • Page 3: Table Of Contents

    SERVICE PERSONNEL. DEAR ASUS CUSTOMER Thank you for your purchase of an ASUS LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product. To maintain compliance with EMC regulations, use shielded cables to connect to the following terminals: HDMI input terminal and DisplayPort input terminal.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire.
  • Page 5: Safety Instructions

    - Do not use in applications where water or other fluid may adhere to the screen. If fluid adheres to the screen, the touch panel may not operate correctly. - Do not use your nails, touch pens or digitizer pens other than the one supplied, ASUS pencils, or other hard objects to operate the unit.
  • Page 6: Connecting Devices

    Connecting Devices Caution TIPS • Be sure to turn off the power and disconnect the plug from • The length of the signal cables or surrounding environment the power outlet before connecting/disconnecting cables. may affect the image quality. Also, read the manual of the equipment to be connected. • The video from the terminal that has signal input is • Do not forcibly bend or apply force to cables. Doing so may displayed. In this state, even if a signal is input from the result in wire breakage or other damage. other terminal, the display is not switched. To switch the • When connecting cables, spread a soft cloth on a stable display, use [Input Select] on the menu screen. level surface such as a desk, and gently place the monitor • If the LCD monitor is turned on when there are input signals on it with the screen facing down. from both terminals, the video from the DisplayPort input • Do not use any cable that has a damaged or deformed terminal is displayed (factory default). terminal. Using such cables may cause malfunctions. nUsing the touch panel • Connect USB devices that have the following thicknesses around the connector area. To use the touch panel, connect the monitor to a USB port on a PC using the supplied USB cable. 1/2 inch (12mm) 1-1/2 inch (38mm) 5/16 inch (8mm) 11/16 inch (17mm)
  • Page 7: Binding Cables

    Binding Cables Caution • When connecting cables, spread a soft cloth on a stable level surface such as a desk, and gently place the monitor on it with the screen facing down. Video cable and USB cable Secure the video cable (HDMI or DisplayPort) and USB cable using the cable clamp. 1. Remove the cable clamp. 2. Route the cables through the cable 3. Push the cable clamp down into restraint slot. place. Cable restraint slot Cable clamp Cable clamp Digitizer pen cable You can secure the digitizer pen cable using the supplied clamper and fixing screw.
  • Page 8: Connecting The Monitor To A Power Source

    Connecting the Monitor to a Power Source Caution • Use only the AC adapter and power cord supplied with the monitor. 1. Connect the monitor to the power outlet using the supplied AC adapter and power cord. Back of monitor For power outlet AC adapter connection terminal Power cord (Supplied) AC adapter (Supplied) Core restrainer AC adapter core 2.
  • Page 9: Installation

    Installation Installing on a stand 3. Place the monitor in the standing position, and adjust the angle of the stand. (Standing position) Hold the top of the display with one hand so that it does not fall over, hold the rear leg of the stand with your other hand, Placement on the variable stand and adjust the angle of the stand. Place the unit on the supplied variable stand. Caution • The variable stand is designed for placement of the unit in the landscape orientation. It cannot be used for the portrait orientation. • When connecting the stand, spread a soft cloth on a stable level surface such as a desk, and gently place the monitor on it with the screen facing down. • Applying excessive pressure to the LCD panel with your hands may result in damage to the unit.
  • Page 10: Installing On A Table

    Installation Installing on a table Horizontal position Place the monitor on a table or other level surface. (Pen writing position/Horizontal position) Caution • When using the monitor horizontally, use the horizontal tab Remove the monitor from the stand and place face-down on a in the upright position. table or other level surface. 1. Lift up the two tabs on the back of the monitor. Caution • Do not exert a large amount of force on the monitor from above. Doing so may damage the flap. • After removing the monitor from the rack stand, store the stand so that the screws will not be lost. Pen writing position Place the monitor on a table or other level surface. 1. Hold the flap by the depression on the back of the monitor and pull the flap up. 2. Place the monitor where you want to use it. Depression 2.
  • Page 11: Turning Power On/Off

    Turning Power On/Off Turning on the power Turning off the power 1. Press the POWER button. 1. Turn off the PC. 2. Depress the POWER button for around 2 seconds. POWER button POWER button Press Depress for around 2 seconds The power LED turns off.
  • Page 12: Specifications

    (mm) 432 x 243 Input terminals HDMI DisplayPort Other terminals USB Type A Ver.2.0 Digitizer pen terminal Speaker output 1 W + 1 W (stereo) Touch panel Touch screen system Capacitive USB (for touch panel x 1, microUSB Type B Ver.2.0 communication) Maximum touch points 10-point multi-touch Power requirement AC 100 V - 240 V, 50/60 Hz (when using the supplied AC adapter), DC 19 V Operating temperature 0°C to 35°C Operating humidity 20% to 80% (no condensation) Power consumption 41W (29W, 0.3W) (when using the supplied AC adapter) (during normal operation, power off) * Dimensions (excluding protrusions) (mm) Approx. 463.8 x 25.2 x 274.8 (WDH) Weight (kg) Approx. 2.3 (excluding stand) Approx. 3.6 (including stand) * When the DisplayPort input terminal and touch panel are connected. As a part of our policy of continuous improvement, ASUS reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.
