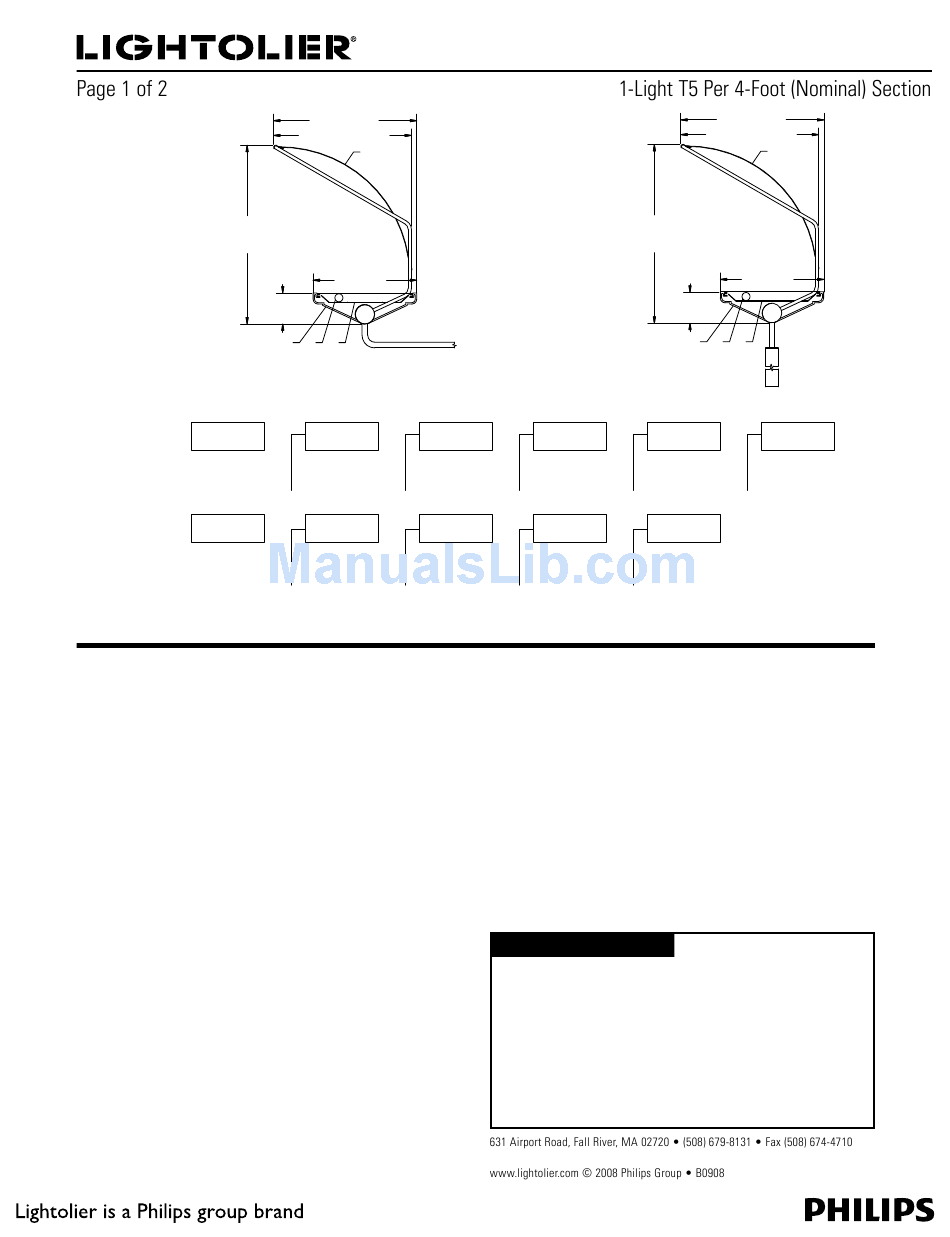

Lightolier Lighting Systems SORA-1 Specification Sheet

13.73"
Wall and Post & Beam
(34.87cm)
Ordering Information
Family
S
Body
Family
S
Arm
Complete Ordering Instructions below.
Features
1. Housing: Aluminum extruded in 4-foot nominal lengths.
2. Lamp: T5 linear fluorescent, 28 or 54 watt. (by others).
3. Reflector: 24 gauge CRS painted high reflectance.
4. Lens: Translucent matte white acrylic, 0.20" (0.51cm) thick.
Electrical
Ballast is electronic, low harmonic distortion, high power and ballast factor, uni-
versal voltage with two conductors and a ground. Mark X dimming (no extra control
wire required) is available. EM battery pack not available. Integral On/Off switch
provided. Pulling wires (by others) from the fixture base to a junction box (via 3/8"
(0.95cm) conduit) in the panel completes the electrical power on integrated
versions. Fixtures have 20' (6.10m) of wire coming out of the base (Black, white
and green only). Wall mounted versions have the electrical conductors extended
out the end of the support arm to be connected at j-box (by others). Post & Beam
products have solid arms thus electrical connections are made via cord. Factory
installed ballast disconnect allows the ballast to be disconnected from and
reconnected to incoming power under load without turning the entire circuit off.
Mounting
Fixture mounting distance is 50.125" (127.32cm) between stantion arms.
Continuous row mounting is not available. Stanchion height determines the
distance to the bottom of the fixture. 5.5" (13.97cm) stanchions will have an
overall height of 5.5" (13.97cm) + 13.73" (34.87cm) = 19.23" (48.84cm).
Finish
Powder coated Steelcase Platinum or White baked enamel.
Custom colors available, consult factory.
Labels
UL (1286), cUL and I.B.E.W.
11" (27.94cm)
10.59" (26.90cm)
4
7.96"
(20.22cm)
2.38"
(6.05cm)
1 2 3
Lamps Wattage
1
1 = In cross section 28 = 28 Watt
Individual Only 54 = 54 Watt
Arm Height Panel
5 = 5.5" (13.97cm) A = Answer
1
18 = 18" (45.72cm) K = Kick
Blank for M = Montage
Wall and P = Post & Beam
Post & Beam T = PTW
W = Wall

Lighting Systems

13.73"
Stanchion Mount
(34.87cm)
Length
Style
S = Single 4 = 4 Foot
P = Post & Beam
Power Finish
2
H = Hard SC = Platinum
3
C = Cord3 WH = White
1
Order 18" (45.72cm) station on integrated (H) versions only.
2
Order only "H" option for Wall Mount and Answer.
3
Order only "C" option for Kick and Post & Beam.
Ordering Instructions
Sora single wing can be mounted in two basic configurations; wall and Post &
Beam and Steelcase furniture panel mounted (stanchion). The single wing
luminaires come in only 4-foot nominal length and in one light T5.
The wall mounted versions are designed for drywall mounting and should be
specified as a Single body style. The stanchion mounted luminaires are available
for Pathways Technology Walls (PTW), Montage, Answer and Kick. Pathways and
Montage are available with integrated (Hard) and flexible (Cord) solutions.
Integrated solutions are hard wired to the panels electrical system and permanently
affixed. Flexible solutions with a 10-foot black electrical cord and plug and are
mounted via semi-permanent tool-less brackets to the panels top cap.
The Steelcase Answer panel system is only available in the integrated (Hard)
solution. The Kick panel system is only available in the flexible (Cord) design.
Ordering is completed in two steps. First, the luminaire Body options are selected.
Second, the Arm options are selected. Two catalog items are required to complete
the ordering of a single fixture.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
We reserve the right to change details of design, materials and finish.
SORA-1
11" (27.94cm)
10.59" (26.90cm)
4
7.96"
(20.22cm)
2.38"
(6.05cm)
1 2 3
Finish
4
SC = Platinum
Nominal WH = White
Type:
