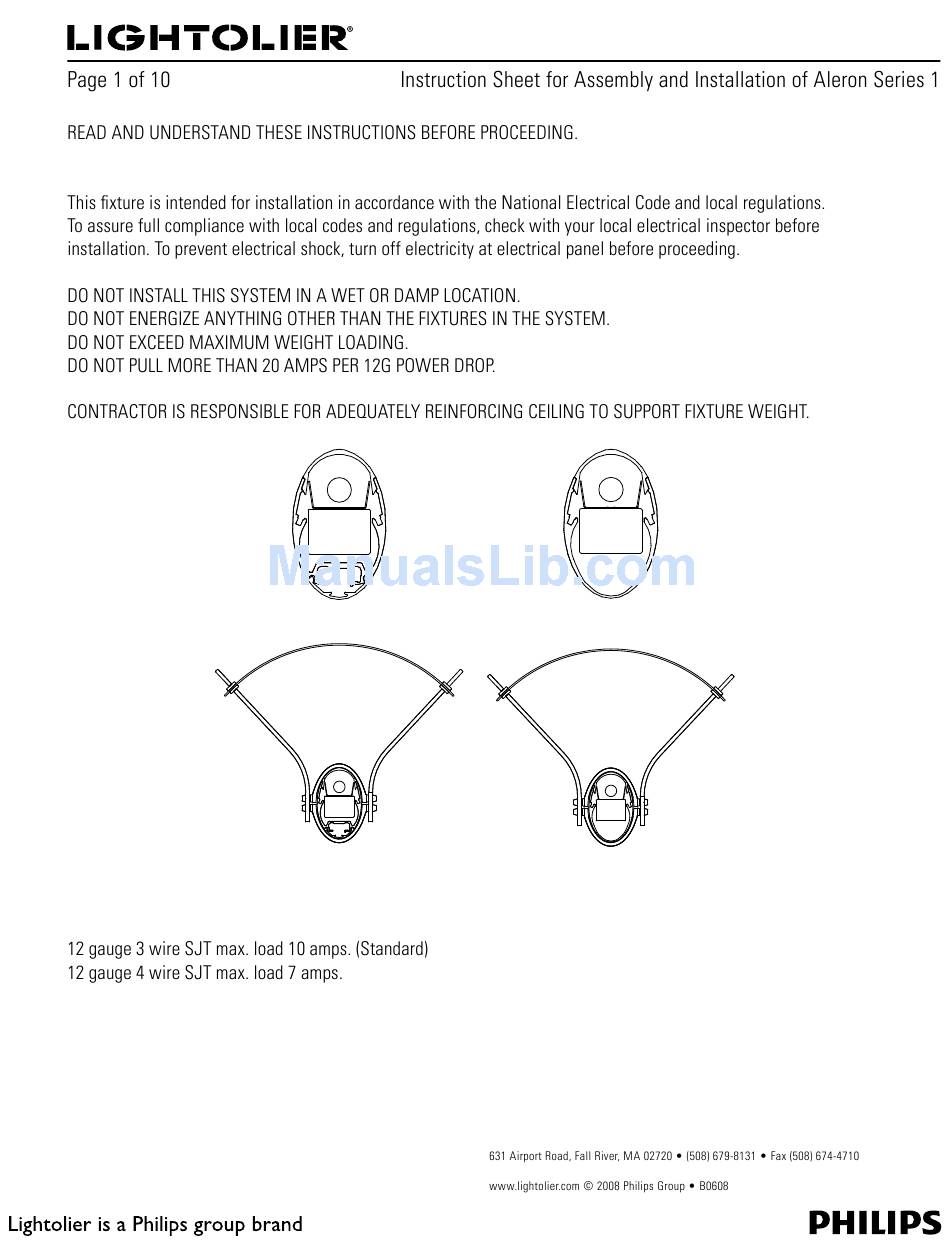

- Page 1 IS-A1 Lighting Systems RETAIN THESE INSTRUCTIONS FOR MAINTENANCE REFERENCE. Track Non-Track Perf-Pierced-Solid Perf-Pierced-Solid We reserve the right to change details of design, materials and finish.
- Page 2 48” 8’ 4’ 4’-7” 144” 12’ 12’-7” 144” 20’ Lighting Systems 96” 8’-7” 96” 20’-7” We reserve the right to change details of design, materials and finish. IS-A1...
- Page 3 Step 1. Installing the Suspension Step 2. Installing the First Fixture Crossbar 1/4-20 Strud #8-32 Screws Strain Relief (By Others) Canopy 4-1/2"Ø 1/4-20 Coupling SJT Power Cord Lighting Systems Mounting Bracket Mounting Hardware (By Others) CANOPY Collar & 8-32 Set Screw Stem DO NOT CUT Consult Factory for Adjustment...
- Page 4 Step 3. Installing the Remaining Fixtures Step 4. Installing the End Cap Step 5. Installing the Lens (Fig. 5) Lighting Systems Figure 3 Figure 5 We reserve the right to change details of design, materials and finish. IS-A1 Figure 4...
- Page 5 IS-A1 Lighting Systems ALERON TRACK We reserve the right to change details of design, materials and finish.
- Page 6 Step 1. Installing the Power Feed Tighten set screws on the end cap. Step 2. Locating the Track Head opposite side. ALERON TRACK Figure 6 Figure 7 We reserve the right to change details of design, materials and finish. IS-A1 Lighting Systems Figure 8...
- Page 7 IS-A1 Lighting Systems Step 3. Installing the Track Cover Figure 9 Figure 10 Figure 11 We reserve the right to change details of design, materials and finish.
- Page 8 IS-A1 Lighting Systems ALERON SHIELD We reserve the right to change details of design, materials and finish.
- Page 9 Step 1. Creating Lens Assembly Figure 12 Step 2. Installing Lens Assembly to Housing Repeat on opposite end. Lighting Systems ALERON SHIELD Figure 14 We reserve the right to change details of design, materials and finish. IS-A1 Figure 13...
-
Page 10: Lighting Systems
Step 3. Installing the Cable Balancer tighten. Figure 15 Step 4. Installing an Intermediate Cable Balancer Step 3-A Repeat Step 3-B and 3-C Figure 18 Lighting Systems Figure 17 We reserve the right to change details of design, materials and finish. IS-A1 Figure 16 Figure 19...
