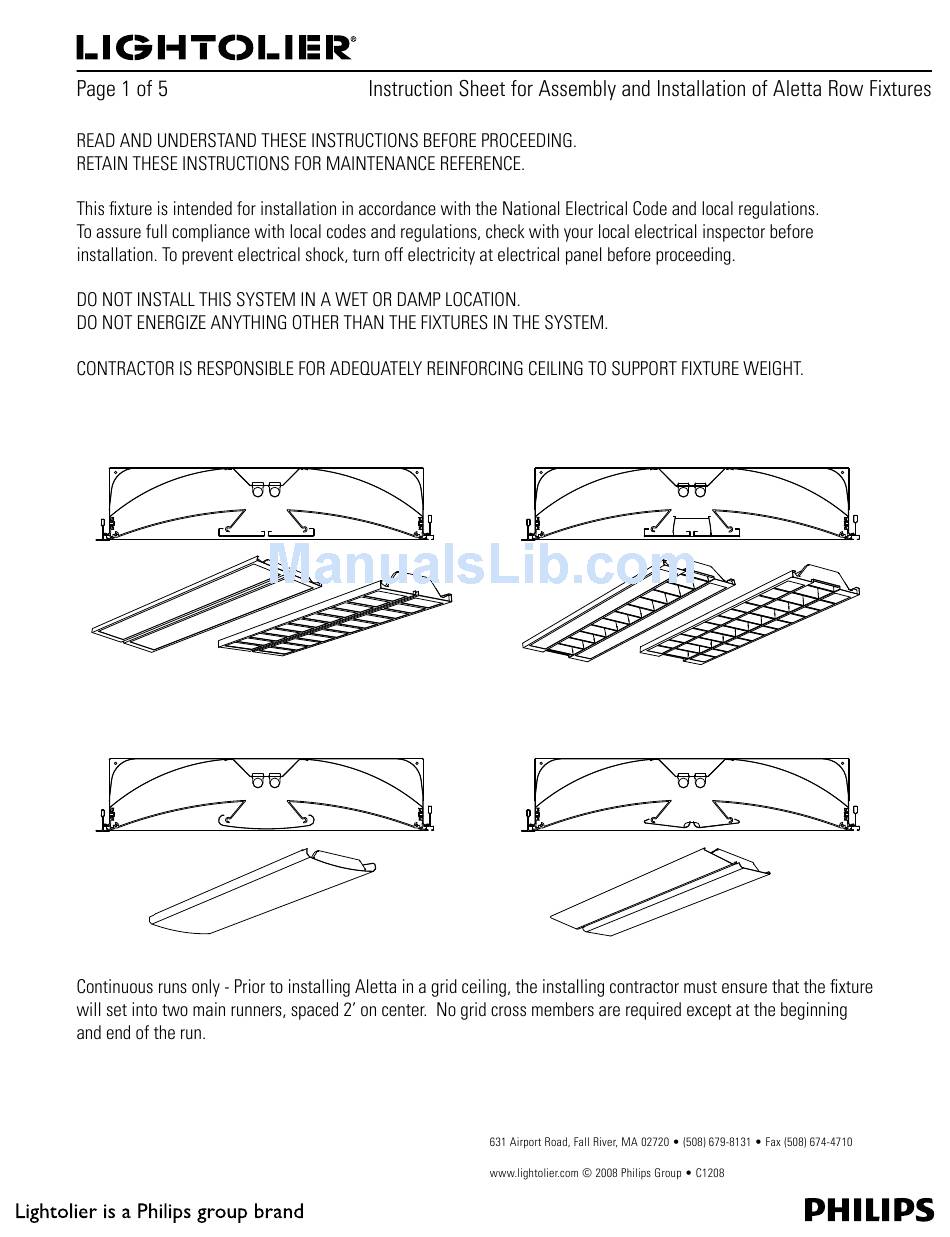

- Page 1 IS_ALETTA-ROW Lighting Systems We reserve the right to change details of design, materials and finish.
- Page 2 IS_ALETTA-ROW Lighting Systems GRID MAIN RUNNERS GRID MAIN RUNNERS STARTER STARTER Figure 1 Figure 2 STARTER STARTER JOINER JOINER Figure 3 We reserve the right to change details of design, materials and finish.
- Page 3 IS_ALETTA-ROW Lighting Systems ENDER ENDER Figure 4 Figure 5 ACCESS PLATE ACCESS PLATE GRID CLIP GRID CLIP GRID CLIP Figure 6 Figure 7 We reserve the right to change details of design, materials and finish.
- Page 4 IS_ALETTA-ROW Lighting Systems Figure 8 Figure 9 NOTE: Depending on lamp configuration, installer may need to swing down a SIDE DIFFUSER to simplify lamp installation. (Fig. 11) SIDE DIFFUSER SUPPORT PIN Figure 10 Swing up one side diffuser and Swing up the second side diffuser Snap in the center diffuser.
-
Page 5: Lighting Systems
IS_ALETTA-ROW Lighting Systems NOTE: Diffusers from STARTER/ENDER and JOINER fixtures are not interchangeable. SUPPORT PIN DIFFUSER SPRING DIFFUSER SPRING Raise diffuser until all four DIFFUSER SPRINGS make contact with all four SUPPORT PINS. Shift diffuser to one side to hook spring over pin. Figure 12 Figure 13 SUPPORT PIN...
