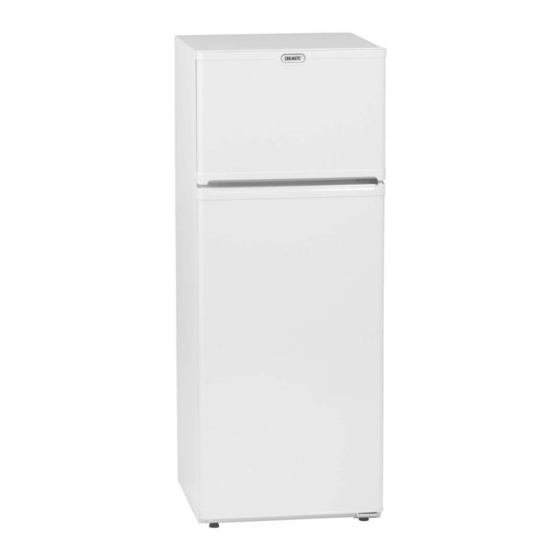

Waeco CoolMatic HDC-161 Instruction Manual
  1. Manuals
  2. Brands
  3. Waeco Manuals
  4. Refrigerator
  5. CoolMatic HDC-161
  6. Instruction manual

Waeco CoolMatic HDC-161 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

CoolMatic
HDC-161, HDC-221
Refrigerator
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CoolMatic HDC-161 and is the answer not in the manual?

Questions and answers

Related Manuals for Waeco CoolMatic HDC-161

Summary of Contents for Waeco CoolMatic HDC-161

  • Page 1 CoolMatic HDC-161, HDC-221 Refrigerator Instruction Manual...
  • Page 2 HDC-161, HDC-221...
  • Page 3 HDC-161, HDC-221 ∅/mm² 12 V 24 V...
  • Page 4 HDC-161, HDC-221...

  • Page 5: Table Of Contents

    Notes on using the instruction manual HDC-161, HDC-221 Please read this manual carefully before starting the machine. Keep it in a safe place for future reference. If the device is resold, this operating manual must be handed over to the purchaser along with the device. Contents Notes on using the instruction manual.

  • Page 6: Safety Instructions

    6 1 on page 5. Please observe the following safety instructions. Safety instructions Caution! Dometic WAECO International will not be held liable for claims for damage resulting from the following: – Damage to the device resulting from mechanical influences and overvoltage –...

  • Page 7: Scope Of Delivery

    Scope of delivery HDC-161, HDC-221 Food may only be stored in its original packaging or in suitable containers. If the cable is damaged, it must be replaced to prevent possible electrical hazards. Only replace a damaged power cable with a power cable of the same type and specifications.

  • Page 8: Intended Use

    HDC-161, HDC-221 Intended use Intended use The refrigerator is suitable for cooling and freezing foodstuffs. The device is also suitable for use on boats. If you wish to cool medicines, please check if the cooling capacity of the device is suitable for the medicine in question. Technical description The refrigerator is suitable for use with a 12 V or 24 V DC voltage and can therefore also be used for camping or on boats.
  • Page 9 Using the refrigerator HDC-161, HDC-221 Connecting the refrigerator Connecting to a battery The refrigerator can be operated with a 12 V to 24 V DC voltage supply. To avoid voltage loss and therefore a drop in performance, the cable should be kept as short as possible and should not be interrupted if this is possible.
  • Page 10 HDC-161, HDC-221 Using the refrigerator 12 V 24 V 10.4 V 22.8 V Switch-off voltage 11.7 V 24.2 V Switch-on voltage Connecting to 230 V mains supply Danger of fatal injuries! Never handle plugs and switches with wet hands or if you are standing in a puddle.
  • Page 11 Using the refrigerator HDC-161, HDC-221 Ensure that the objects placed in the refrigerator are suitable for cooling to the selected temperature. ➤ Turn the knob further if necessary to set the temperature in levels from “1” to “7” (see table below). Setting the temperature You can set the temperature in levels using the knob.
  • Page 12 HDC-161, HDC-221 Using the refrigerator Each individual drawer and shelf can bear an evenly divided load of max. 20 kg. Wrap food in aluminium foil or cling film and shut in in a suitable box with a lid. This ensures that aromas, the shape and the freshness are better conserved.
  • Page 13 Using the refrigerator HDC-161, HDC-221 ➤ Leave the door slightly open. This prevents odours from building up. Locking the refrigerator You can lock the refrigerator, to prevent children accessing it, for example. To do this you need to glue on a security bolt and hook. The surfaces to be bonded must be clean and dry.

  • Page 14: Cleaning And Maintenance

    Guarantee Our general guarantee conditions apply. If the product is defective, please send it back to the WAECO branch in your country (addresses on the back of the instruction manual) or to your specialist dealer. For repair and guarantee processing, the following documents must be sent along with the device:...

  • Page 15: Disposal

    Disposal HDC-161, HDC-221 Disposal ➤ Place the packaging material in the appropriate recycling waste bins wherever possible. If you wish to finally dispose of the device, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.
  • Page 16 HDC-161, HDC-221 Troubleshooting Interior temperature too low in control setting “1” Fault Possible cause Remedy Compressor runs Thermostat sensor has no contact to Secure the sensor constantly the vaporiser Short circuit in the thermostat line Change the thermostat Thermostat defective Compressor runs for a Large quantities have been frozen in –...

  • Page 17: Technical Data

    Technical data HDC-161, HDC-221 Technical data HDC-161 HDC-221 Capacity: 165 l 218 l Freezer proportion: 40 l 41 l Connection voltage: 12 V DC or 24 V DC Average power consumption: 75 W Cooling temperature range – refrigerator: +10 °C to +2 °C Cooling temperature range –...
  • Page 18 Dometic WAECO International GmbH Hollefeldstraße 63 · D-48282 Emsdetten ℡ +49 (0) 2572 879-195 · +49 (0) 2572 879-322 Mail: info@dometic-waeco.de · Internet: www.dometic-waeco.de Europe Overseas + Middle East Dometic Austria GmbH Dometic Italy S.p.A. Dometic Australia Neudorferstrasse 108 Via Virgilio, 3...

This manual is also suitable for:

Coolmatic hdc-221
