Summary of Contents for BenQ EW2730
-

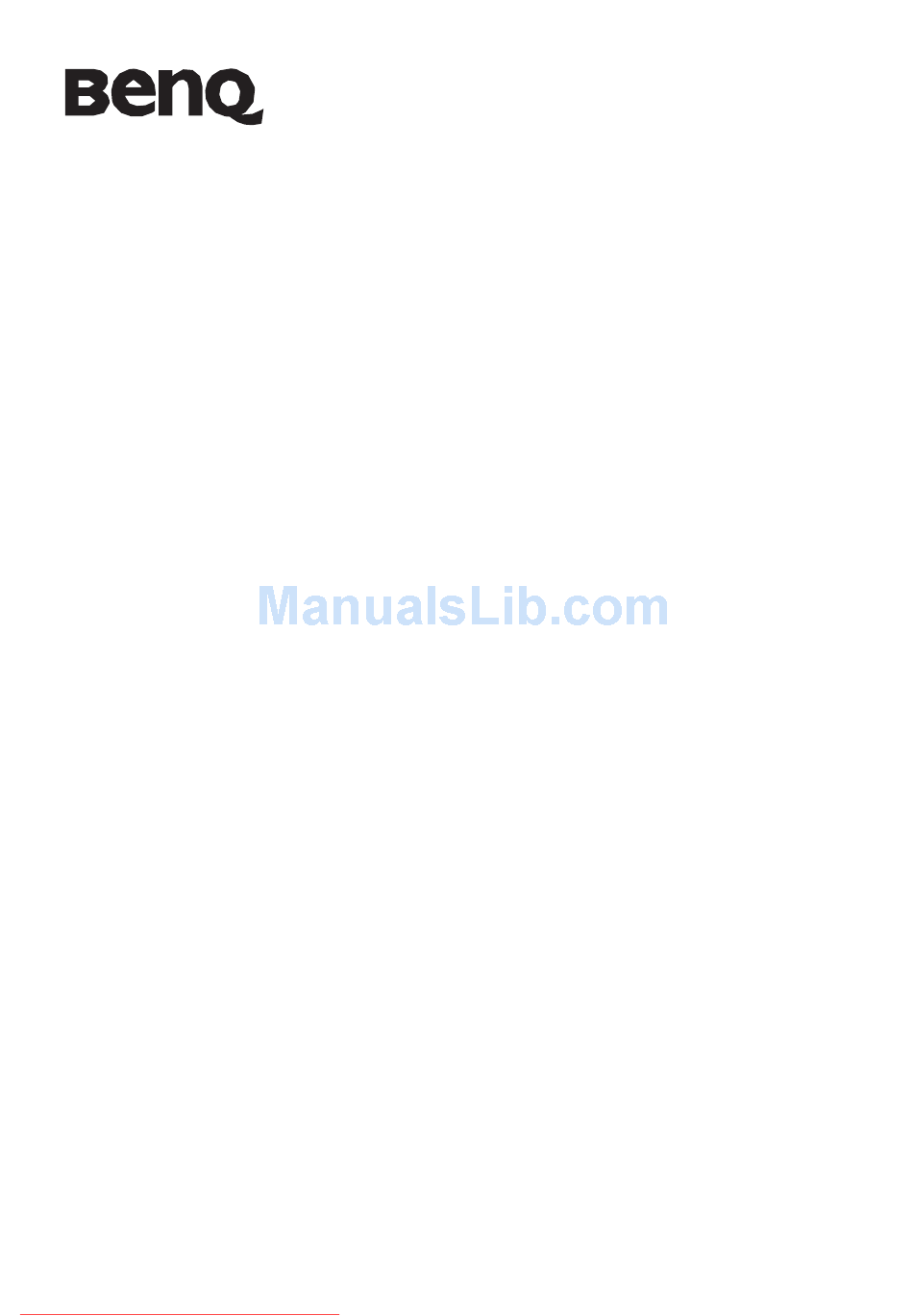

Page 1: Lcd Monitor
LCD Monitor User Manual EW2430 EW2730 Downloaded from ManualMonitor.com Manuals... -
Page 2: Copyright
Copyright Copyright © 2011 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation. -
Page 3: Table Of Contents
Getting to know your monitor ..................6 Front view ............................6 Back view ............................6 Connection ............................7 Getting to know the remote control (EW2730 only) ............. 8 Front view ............................8 Installing the battery ........................9 How to assemble your monitor hardware ..............10 How to detach the stand base .......................14... -
Page 4: Getting Started
1. Getting started When unpacking please check you have the following items. If any are missing or damaged, please contact the place of purchase for a replacement. BenQ LCD Monitor Monitor Base Quick Start Guide CD-ROM Remote Control (EW2730 only) - Page 5 Audio Cable USB Cable Video Cable: DVI-D (Optional accessory for models with DVI inputs, sold separately) Video Cable: HDMI (Optional accessory for models with HDMI inputs, sold separately) Consider keeping the box and packaging in storage for use in the future when you may need to transport the monitor.
-
Page 6: Getting To Know Your Monitor
2. Getting to know your monitor Front view 1. USB port x 4 (downstream; connecting to USB devices) 2. Speakers 3. Power button 4. Remote control sensor (EW2730 only) Back view 5. Control buttons 6. AC Power Input jack 7. Headphone jack 8. -
Page 7: Connection
Connection The following connection illustrations are for your reference only. For cables that are not supplied with your product, you can purchase them separately. For detailed connection methods, see page - 13. USB peripherals Headphone Speakers Blu-ray player Gaming PC/Notebook console Getting to know your monitor Downloaded from ManualMonitor.com Manuals... -
Page 8: Getting To Know The Remote Control (Ew2730 Only)
3. Getting to know the remote control (EW2730 only) Front view 1. Mute button Mutes the volume. 2. Input source button Switches between different video signals that may be connected to your monitor. 3. Senseye mode button Switches to different Senseye modes. -
Page 9: Installing The Battery
3. Replace the provided battery onto the battery holder properly. Make sure that the positive terminal (+) faces upward. 4. Replace the battery cover. The remote control is ready to use now. Getting to know the remote control (EW2730 only) Downloaded from ManualMonitor.com Manuals... -
Page 10: How To Assemble Your Monitor Hardware
4. How to assemble your monitor hardware If the computer is turned on you must turn it off before continuing. Do not plug-in or turn-on the power to the monitor until instructed to do so. 1. Attach the monitor base. Please be careful to prevent damage to the monitor. - Page 11 You should position the monitor and angle the screen to minimize unwanted reflections from other light sources. 2. Connect the video cable. To Connect the D-Sub Cable Connect the plug of the D-Sub cable (at the end without the ferrite filter) to the monitor video socket. Connect the other end of the cable (at the end with the ferrite filter) to the computer video socket.
- Page 12 3. Connect the audio cable. To Input Audio Signals Connect the provided audio cable between the socket on the rear of the monitor (Line In) and your computer audio outlet. To check the available audio inputs that go with each Video sources and the available video source, see audio inputs on page 34...
- Page 13 Turn on the monitor by pressing the power key. Turn on the computer too, and follow the instructions in Getting the most from your BenQ monitor on page to install the monitor software. To extend the service life of the product, we recommend that you use your computer's power management function.
-
Page 14: How To Detach The Stand Base
How to detach the stand base 1. Prepare the monitor and area. Turn off the monitor and the power before unplugging the power cable. Turn off the computer before unplugging the monitor signal cable. Protect the monitor and screen by clearing a flat open area on your desk and placing a soft item like a towel on the desk for padding, before laying the screen face down on a flat clean padded surface. -
Page 15: Using The Monitor Wall Mounting Kit
Using the monitor wall mounting kit The back of your LCD monitor has a VESA standard mount with 100mm pattern, allowing the installation of a wall mount bracket. Before starting to install a monitor wall mounting kit, please read the precautions carefully. Precautions: •... -
Page 16: Getting The Most From Your Benq Monitor
5. Getting the most from your BenQ monitor To gain the most benefit from your new BenQ color LCD flat screen monitor, you should install the custom BenQ LCD Monitor driver software as provided on the BenQ LCD Monitor CD-ROM. -
Page 17: How To Install The Monitor On A New Computer
BenQ LCD Monitor is the first ever monitor to be connected to it. If you are adding the BenQ LCD Monitor to an existing computer that has already had another monitor connected to it (and has monitor driver software installed), you should not be following these instructions. -
Page 18: How To Upgrade The Monitor On An Existing Computer
The BenQ LCD Monitor driver for your model may well function perfectly with other versions of Windows, however, as at the time of writing, BenQ has done no testing of this driver on other versions of Windows and cannot guarantee its operation on those systems. -
Page 19: How To Install On Windows 7 System
5. Click the tab and the button. Driver Update Driver 6. Insert the BenQ LCD Monitor CD-ROM into a CD drive on the computer. 7. In the window, select the option Update Driver Software Browse my computer for driver software 8. -
Page 20: How To Install On Windows Vista Systems
5. Click the tab and the button. Driver Update Driver 6. Insert the BenQ LCD Monitor CD-ROM into a CD drive on the computer. 7. In the window, select the option Update Driver Software Browse my computer for driver software 8. -
Page 21: How To Install On Windows Xp System
The Monitor Properties window will display. If the driver provider is listed as BenQ, and the model matches that of your new monitor, the proper drivers are already installed, and you need do nothing further. Cancel out of these property windows. -
Page 22: Picture Optimization
If you wish, you can always adjust the screen geometric settings manually using geometry menu items. To assist you in this endeavour, BenQ has provided a screen test image utility which you can use to check for screen color, grayscale and line gradient display. -
Page 23: How To Adjust Your Monitor
7. How to adjust your monitor The control panel : Adjusts vertical position, phase, horizontal position and pixel clock automatically. AUTO key: Activates OSD main menu and return to the previous menu or exit OSD. MENU /Custom key 1: For Up/Increase adjustment. By default, the key is the hot key for Volume To change the default settings, see Custom key 1 on page 37... -
Page 24: Hot Key Mode
Hot key mode The monitor keys perform as hot keys to provide direct access to particular functions whenever the menu isn't currently displaying on-screen. Custom key 1 Press the key to display the functions that can be accessed by this key. Press the keys to change the settings if needed. -
Page 25: Main Menu Mode
Main menu mode You can use the OSD (On Screen Display) menu to adjust all the settings on your monitor. Available menu options may vary depending on the input sources, functions and settings. Menu options that are not available will become grayed out. Press the key to display the following main OSD menu. -
Page 26: Display Menu
Display menu Available menu options may vary depending on the input sources, functions and settings. Menu options that are not available will become grayed out. 1. Press the key to display the main MENU menu. 2. Press the keys to select DISPLAY MODE: Standard and then press the... - Page 27 H. Position Adjusts the horizontal 0 to 100 Press the keys to position of the screen image. adjust the value. V. Position Adjusts the vertical position 0 to 100 of the screen image. Pixel Clock Adjusts the pixel clock 0 to 100 frequency timing to synchronize with the analog input video signal.
-
Page 28: Picture Menu
Picture menu Available menu options may vary depending on the input sources, functions and settings. Menu options that are not available will become grayed out. 1. Press the key to display the main MENU menu. 2. Press the keys to select and then press the PICTURE ENTER... - Page 29 - Press to enter the Color menu. Color ENTER Color Temperature Normal: Allows video and Press the keys to still photographs to be select this option. viewed with natural coloring. This is the factory default color. Bluish: Applies a cool tint to the image and is factory pre-set to the PC industry standard white color.
-
Page 30: Picture Advanced Menu
Picture Advanced menu Available menu options may vary depending on the input sources, functions and settings. Menu options that are not available will become grayed out. 1. Press the key to display the main MENU menu. 2. Press the keys to select PICTURE ADVANCED MODE: Standard and then press the... - Page 31 Senseye Demo Displays the preview of • ON Press the keys to screen images under the • OFF change the settings. selected mode from Picture Mode. The screen will be divided into two windows; the left window demonstrates images of Standard mode, while the right window presents the images under the specified...
- Page 32 Color Format Determines the color space Press the key to • RGB ENTER (RGB or YUV) based on the select this option. Press the • YUV following detected video keys to change signal: the settings. • D-Sub (VGA) from PC: The default Color Format is RGB.
-
Page 33: Audio Menu
Audio menu Available menu options may vary depending on the input sources, functions and settings. Menu options that are not available will become grayed out. 1. Press the key to display the main MENU menu. 2. Press the keys to select AUDIO AUDIO MODE: Standard... - Page 34 Video sources and the available audio inputs Depending on the input video sources, the available audio inputs may vary. Video sources and the available audio inputs are as follows: Available audio selection PC Audio HDMI Audio HDMI Audio Inputs Auto Detect (Line In) D-Sub (VGA) DVI-D...
-
Page 35: System Menu
System menu Available menu options may vary depending on the input sources, functions and settings. Menu options that are not available will become grayed out. 1. Press the key to display the main MENU menu. 2. Press the keys to select SYSTEM MODE: Standard and then press the... - Page 36 - Press to enter the menu. OSD Settings ENTER OSD Settings Language Sets the OSD menu • English Press the keys to language. • French change the settings. • German • Italian • Spanish • Polish • Japanese The language options displayed on your OSD may •...
- Page 37 OSD Lock Prevents all the monitor • YES Press the keys to settings from being • NO change the settings. accidentally changed. When this function is activated, the OSD controls and hotkey To unlock the OSD controls operations will be disabled. when the OSD is preset to be locked, press and hold the "MENU"...
- Page 38 When activated and the Press the key to select • ON ENTER (EW2730 only) monitor is connected to a • OFF this option. Press the multimedia device keys to change the supporting CEC feature settings. through HDMI, the device's remote control can be used to turn on the device and the monitor simultaneously.
-
Page 39: Troubleshooting
8. Troubleshooting Frequently asked questions (FAQ) The image is blurred: Read the instructions on the link "Adjusting the Screen Resolution" on the CD, and then select the correct resolution, refresh rate and make adjustments based on these instructions. How do you use a VGA extension cable? Remove the extension cable for the test. - Page 40 Is the prompt on the display illuminated in orange? If the LED is illuminated in orange, the power management mode is active. Press any button on the computer keyboard or move the mouse. If that does not help, check the signal cable connectors.
-
Page 41: Need More Help
• Check whether upstream and downstream USB are properly connected. • Install a corresponding USB device driver if available. Need more help? If your problems remain after checking this manual, please contact your place of purchase or e-mail us at: Support@BenQ.com. Troubleshooting Downloaded from ManualMonitor.com Manuals...
