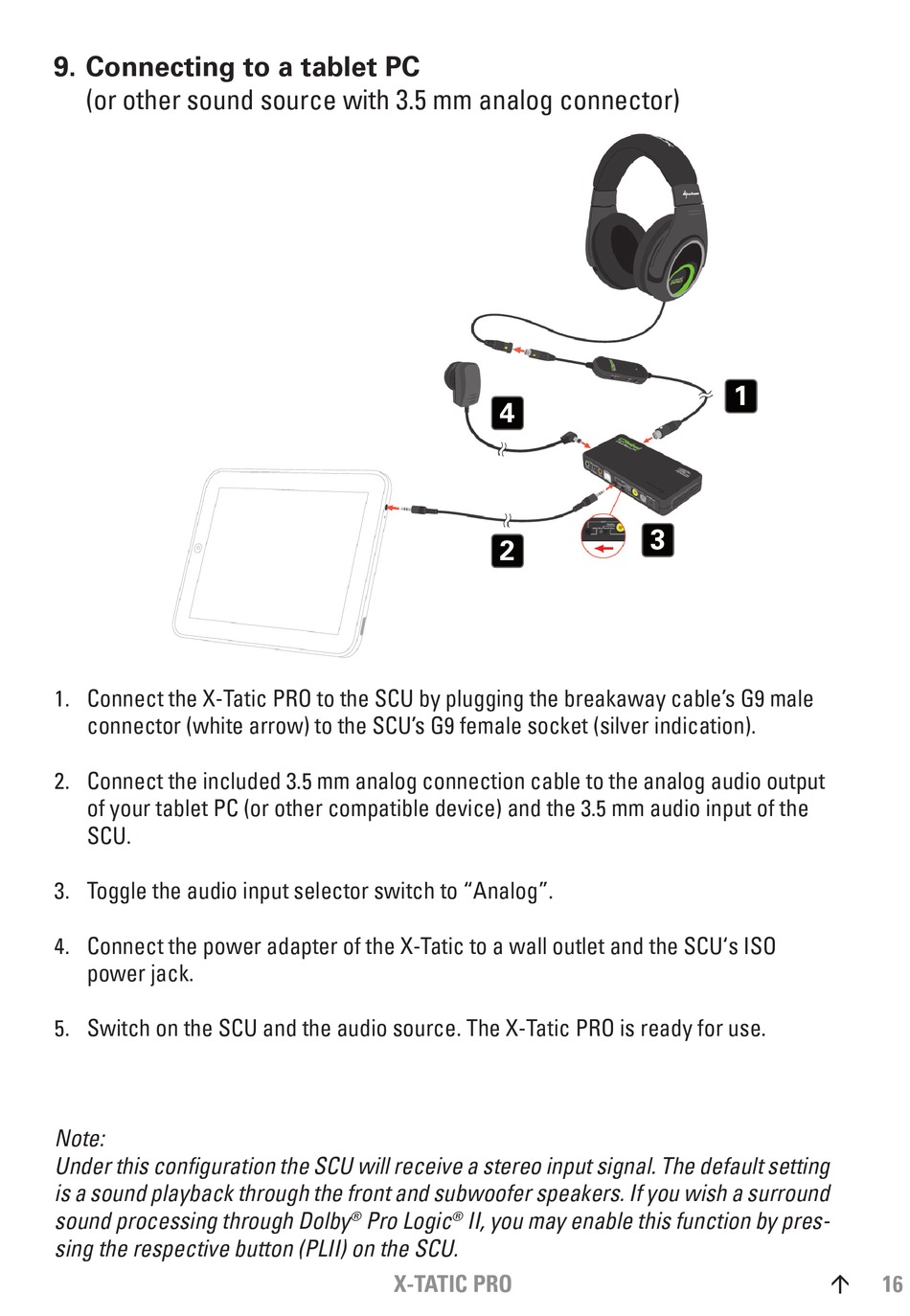

9. Connecting to a tablet PC

(or other sound source with 3.5 mm analog connector)

1. Connect the X-Tatic PRO to the SCU by plugging the breakaway cable's G9 male
connector (white arrow) to the SCU's G9 female socket (silver indication).
2. Connect the included 3.5 mm analog connection cable to the analog audio output
of your tablet PC (or other compatible device) and the 3.5 mm audio input of the
SCU.
3. Toggle the audio input selector switch to "Analog".
4. Connect the power adapter of the X-Tatic to a wall outlet and the SCU's ISO
power jack.
5. Switch on the SCU and the audio source. The X-Tatic PRO is ready for use.
Note:
Under this configuration the SCU will receive a stereo input signal. The default setting
is a sound playback through the front and subwoofer speakers. If you wish a surround
sound processing through Dolby
sing the respective button (PLII) on the SCU.
4
2
Pro Logic II, you may enable this function by pres-
® ®
X-TATIC PRO
1
3
16

