Summary of Contents for Sharkoon X-Tatic SR

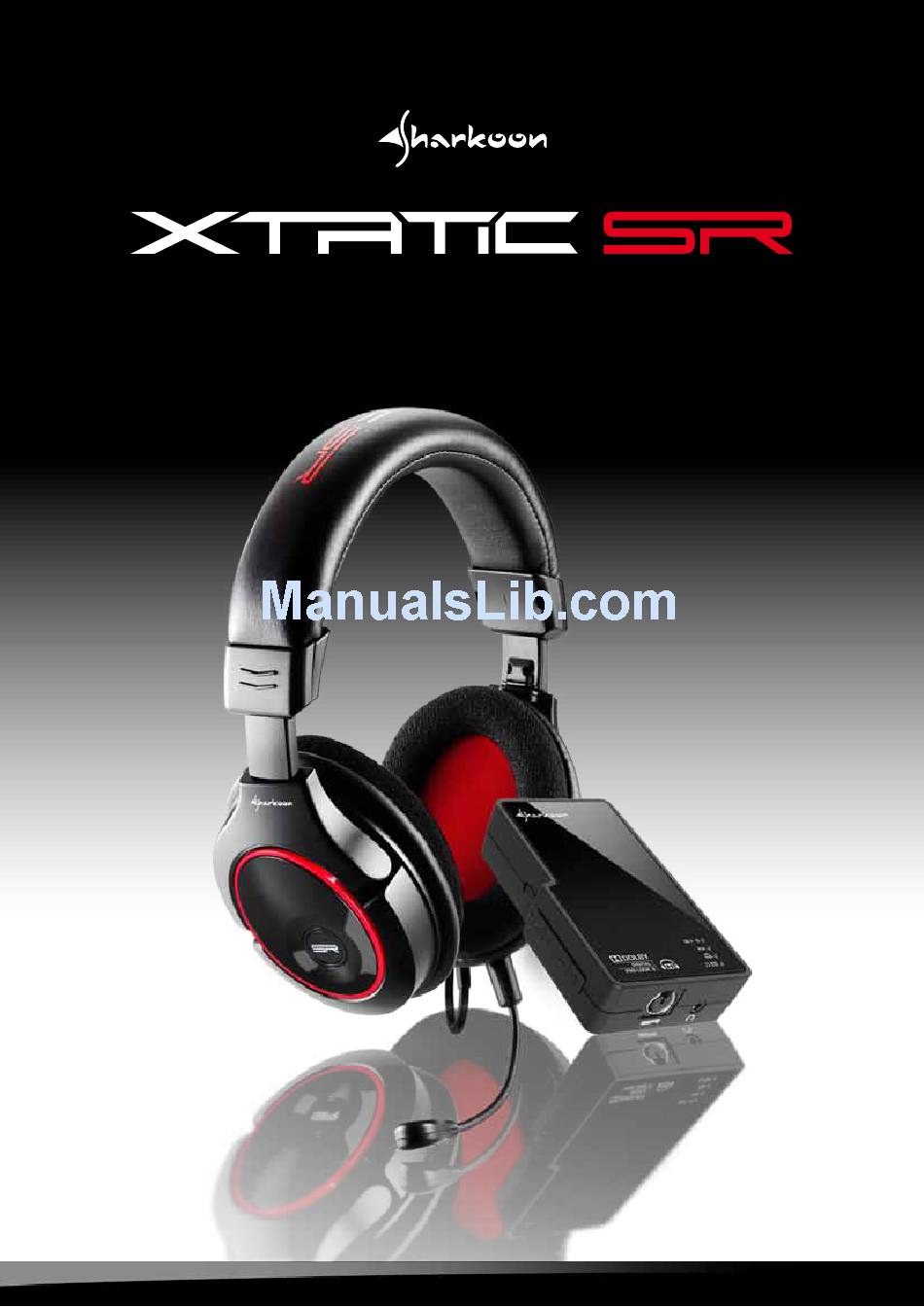

- Page 1 Manual www.sharkoon.com...
-
Page 2: Table Of Contents
® ® 8. Legal disclaimer Dear customer! Congratulations for purchasing this premium quality SHARKOON product. For a long life time and to take full advantage of this product we recommend you to read this manual completely. Enjoy our product! SHARKOON Technologies... -
Page 3: Basic Information
1. Basic information The X-Tatic SR is a multi-platform headset that supports the Dolby -Headphone technology, thus delivering ® a completely new sound experience: Dolby Headphone makes sound more spatial, creating a natural sound feeling and – in connection with ®... -
Page 4: Specifications
• 1x digital optical input (S/PDIF) • 1x analog 3.5 mm audio input (line in / stereo) • 1x 6-pin audio output for the X-Tatic SR headset (G6) • 1x analog 3.5 mm audio output (line out / stereo) for additional headset •... -
Page 5: Suitable For
, iPhone ® ® ® 5. Parts and accessories A X-Tatic SR B Sound Control Unit (SCU) C Detachable microphone D Microphone connection cable for Xbox 360 (3.5 mm jack > 2.5 mm jack) ® E Stereo connection cable (3.5 mm jack > 3.5 mm jack) F Stereo extension cable (3.5 mm plug >... -
Page 6: The Device At A Glance
6. The device at a glance X-Tatic sr A Padded headband B Adjustable headphone C Connection cable (cable length: 400 cm +/-10 cm) D Cable integrated amplifier with volume controller and microphone mute E 1x 6-pin analog connector (G6) for SCU connection ... -
Page 7: Sound Control Unit
– Volume - i – Dolby Headphone switch ® j – X-Tatic SR headset connector (G6) k – Analog input for speakers or non-SR head set (3.5 mm stereo connector) l – Power/source LED m – Dolby ProLogic II on/off LED ®... -
Page 8: The Led Indications Of The Sound Control Unit
The LED indications of the sound control Unit The SCU supports the sound input formats "Stereo" and "Dolby Digital 5.1". ® Both these signals can be converted into a Dolby Headphone output signal by the SCU. ® As the input signal is depending on the medium (game, movie etc.) used, we recommend you to check the package and/or documentation of the medium used to find information about the supported sound modes. -
Page 9: Scu Switched Off
6.4.1 scU switched off SCU switched off 6.4.2 stereo input signal SCU switched on Input signal: stereo Output signal: stereo SCU switched on Input signal: stereo Output signal: Dolby Headphone in gaming mode ® SCU switched on Input signal: stereo Output signal: Dolby Headphone in music mode ®... -
Page 10: Dolby ® Digital 5.1 Input Signal
6.4.3 Dolby Digital 5.1 input signal ® SCU switched on Input signal: Dolby Digital 5.1 ® Output signal: Dolby Headphone in gaming mode ® SCU switched on Input signal: Dolby Digital 5.1 ® Output signal: Dolby Headphone in music mode ®... -
Page 11: Getting Started
7. Getting started connecting the microphone The microphone will only fit in one direction. Both the microphone and the headset bear markings. Turn the microphone until its marking and the marking on the headset are opposite to each other. Press the microphone into the connector of the headset and turn it to the front and into the desired position. -
Page 12: Connecting To
1. Connect the optical cable to your console and the SCU. 2. Connect the USB cable to the console and the SCU. 3. Connect the X-Tatic SR to the SCU. 4. On the SCU activate the optical input. 5. Switch on the console and the SCU. - Page 13 3. Audio Output Settings 4. Optical Digital 5. Select the respective sound format Note: The final settings depend on the sound modes the source medium offers. You will find respective information on the cover of the movie or game. ...
- Page 14 b) Microphone 1. Settings > 2. Accessory Settings 3. Audio Device Setting 4. Input device: USB PnP Sound Device / Output Device: USB PnP Sound Device ...
-
Page 15: Xbox ® 360
In case your Xbox 360 does not include one of the cables mentioned below, you need to buy one of ® them in order to connect the X-Tatic SR: When connecting your Xbox using "Component Video" or "Composite Video" you require the respective ®... - Page 16 a) Sound output: 1. System Settings 2. Console Settings 3. Audio ...
- Page 17 4. Digital Output > Dolby Digital 5.1 ® Note: The final settings depend on the sound modes the source medium offers. You will find respective information on the cover of the movie or game. b) Microphone 1. Login user 2. Press "Guide" button ...
- Page 18 3. Preferences 4. Voice 5. Select "Play Through Headset" ...
-
Page 19: Pc/Laptop
7.2.3 Pc/Laptop The X-Tatic SR can be connected to a PC in different ways: 7.2.3.1 with scU via optical connection 1. Connect the optical cable to the optical connector of your PC sound card and the SCU. 2. Connect the USB cable to the PC and the SCU (power supply and microphone connection!). -
Page 20: Without Scu Via G6 Adapter Cable
Application: You have connected the SCU to your console and now want to use the X-Tatic SR with your PC/laptop. 1. Connect the G6 adapter cable (G6 > USB2.0 A and 2x 3.5 mm connectors) to the G6 connector of the X-Tatic SR. -
Page 21: With Other Stereo Headset Using The Scu
7.2.3.3 with other stereo headset using the scU Application: You want to use another stereo headset (e.g. from another maker) with the SCU. 1. Connect the optical cable to the PC and the SCU. 2. Connect the USB cable to the PC and the SCU (power supply for the SCU). 3. -
Page 22: Tablet-Pcs, Smartphones And Mp3-/Mvp-Player (E.g. Ipod ® , Ipad ® , Iphone ® )
1. Connect the stereo connection cable to the device and the SCU. 2. Connect the USB cable to the SCU and a USB power adapter (not included!). 3. Connect the X-Tatic SR to the SCU. 4. Activate the analog input on the SCU. -
Page 23: Legal Disclaimer
Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences to the environment and human health. © SHARKOON Technologies 2011 www.sharkoon.com ...
