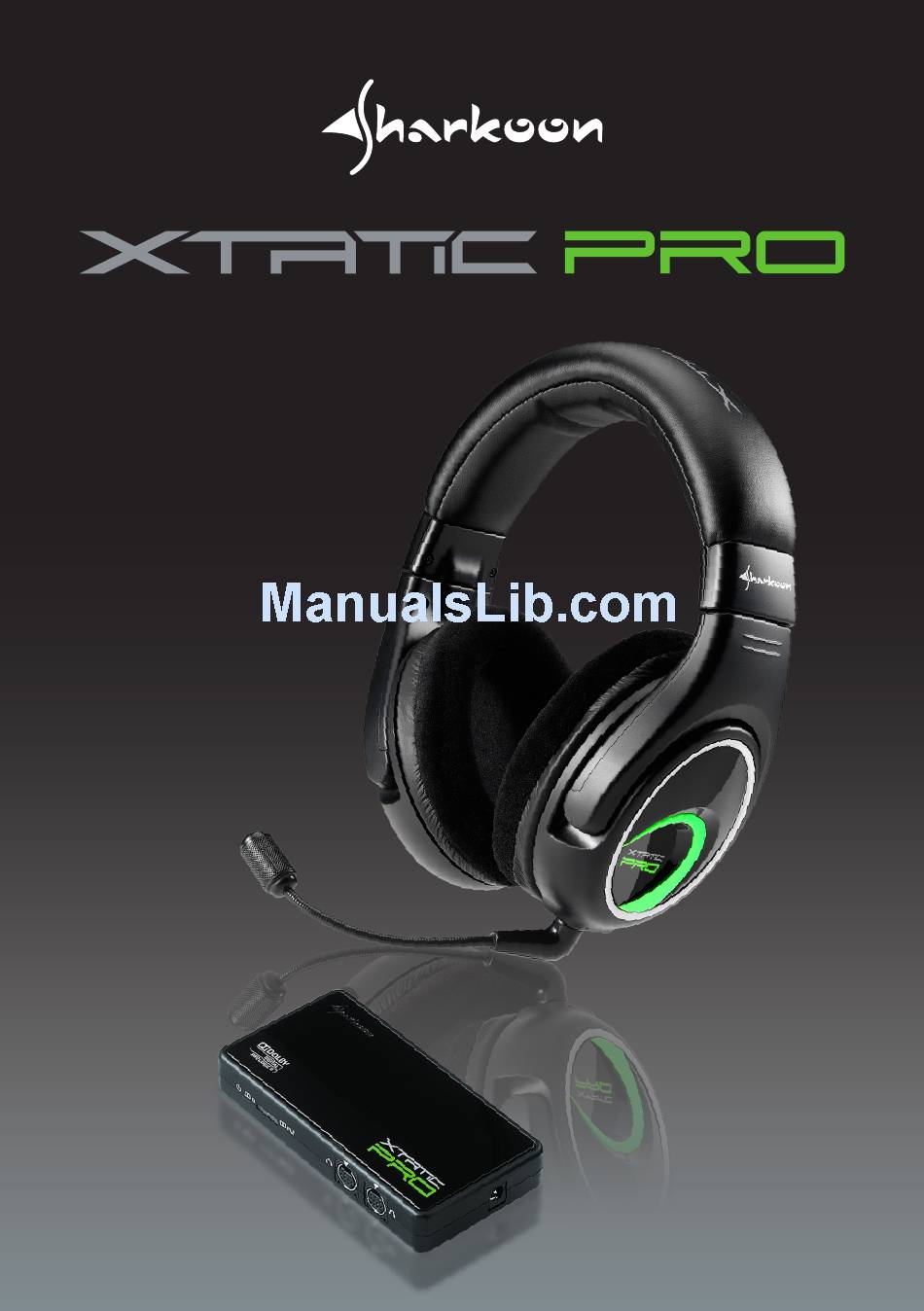

- Page 1 Manual...
-
Page 2: Table Of Contents
(or other device with optical audio in) to the SCU Dear customer! Congratulations for purchasing one premium quality SHARKOON product. For a long life time and to take full advantage of this product we recommend that you read this manual completely. -
Page 3: Package Contents
1. Package contents A – X-Tatic PRO 5.1 surround headset B – Breakaway cable with in-line controller (G9 connector > G9 connector) C – Detachable microphone with QuickOn connection D – X-Tatic SCU with Dolby Digital decoder ® E – Power supply incl. travel adapters (EU, US and UK) F –... -
Page 4: The In-Line Volume Controller At A Glance
(3x 3.5 mm jacks for front, surround and center/subwoofer speaker) 12 – ISO power connector (DC In) 13 – Analog audio outputs for the X-Tatic headset (2x G9 connector) 14 – Status LEDs for power, Dolby Digital and Pro Logic input ® ® X-TATIC PRO ... -
Page 5: Led Indications
Master volume muted: LED flashing slowly 4.2 SCU Input signal: Dolby Digital 5.1 ® Input signal: Not Dolby Digital 5.1 ® Dolby Pro Logic II off ® ® Input signal: Nicht-Dolby Digital 5.1 ® Dolby Pro Logic ® ® X-TATIC PRO ... -
Page 6: Restore The Factory Default / Reset
(PLII) on the SCU: 4.3 Restore the factory default / reset 1. Switch on the SCU: 2. Press and hold the buttons “Vol -”, “Vol +” and “Power on/off” until the status LEDs flash 3 times. X-TATIC PRO ... -
Page 7: Getting Started
5.2 Connecting the breakaway cable 1. Plug the G9 male connector (yellow arrow!) of the breakaway cable into the G9 female connector (yellow arrow!) of the X-Tatic PRO headset. 2. Connect the breakaway cable’s G9 male connector (white arrow!) to one of the SCU’s G9 female sockets (silver indication!). -
Page 8: Attaching/Changing The Travel Adapter
SCU: 2. Using the in-line controller: 1. When the status LED is illuminating white, the master volume can be set using the volume controller: 2. During the volume adjustment the status LED will be flashing fast. X-TATIC PRO ... -
Page 9: Channel Volume Adjustment
LED color = maximum volume level; green LED color = minimum volume level). Note: To adjust another channel’s volume and / or the master volume wait until the LED has turned back to white color. 6. Connecting to Xbox 360 ® X-TATIC PRO ... - Page 10 1. Connect the X-Tatic PRO to the SCU by plugging the breakaway cable’s G9 male connector (white arrow) into the SCU’s G9 female socket (silver indication). 2. Connect the optical cable (remove protective caps on both ends!) to the optical audio output of your Xbox 360 and the SCU’s optical audio input (grey lid).
-
Page 11: Connecting To Playstation
7. Connecting to Playstation ® 1. Connect the X-Tatic PRO to the SCU by plugging the breakaway cable’s G9 male connector (white arrow) to the SCU’s G9 female socket (silver indication). 2. Connect the optical cable (remove protective caps on both ends!) to the optical audio output of your PS3™... - Page 12 In this menu you may also adjust the microphone intensity setting. The default value for this setting is “3” and does normally not need to be adjusted when using the X-Tatic PRO’s microphone. Increase the intensity setting, in case your chat partner does not properly hear you. X-TATIC PRO ...
-
Page 13: Connecting To Pc
8. Connecting to PC 1. Connect the X-Tatic PRO to the SCU by plugging the breakaway cable’s G9 male connector (white arrow) to the SCU’s G9 female socket (silver indication). 2. Connect the optical cable (remove protective caps on both ends!) to the optical audio output of your PC ‘s sound card and the SCU’s optical audio input (grey lid). - Page 14 Control Panel > All Control Panel Items > Sound > Recording > Right-click “USB PnP Sound device” and choose “Set as default device” from the context menu: X-TATIC PRO ...
- Page 15 Control Panel > All Control Panel Items > Sound > Playback > Right-click the Digital Output (Optical) and choose “Set as Default Device” from the context menu: X-TATIC PRO ...
-
Page 16: Connecting To A Tablet Pc
4. Connect the power adapter of the X-Tatic to a wall outlet and the SCU‘s ISO power jack. 5. Switch on the SCU and the audio source. The X-Tatic PRO is ready for use. Note: Under this configuration the SCU will receive a stereo input signal. The default setting is a sound playback through the front and subwoofer speakers. -
Page 17: Connecting To A Dvd Player
3. Connect the power adapter of the X-Tatic to a wall outlet and the SCU‘s ISO power jack. 4. Toggle the audio input selector switch to “Coaxial”. 5. Switch on the SCU and the audio source. The X-Tatic PRO is ready to use. Note: Some manufacturers may use different color indications for Coaxial Out Connections (e.g. -
Page 18: Connecting A 5.1 Surround Sound System
SCU’s optical audio input (grey lid). 3. Connect the power adapter of the X-Tatic to a wall outlet and the SCU‘s ISO power jack. 4. Switch on the SCU, the audio source and the sound system/headset. X-TATIC PRO ... -
Page 19: Connecting An Amplifier
The signal still needs to be decoded by your amplifier. To pass through the optical signal the SCU must be powered on. The optical output only works, when the SCU receives a digital signal input (coaxial or optical). X-TATIC PRO ... -
Page 20: Important Notes
All named products and descriptions are trademarks and / or registered trademarks of the respective manufacturers and are accepted as protected. As a continuing policy of product improvement at SHARKOON, the design and specifications are subject to change without prior notice. National product specifications may vary.
