ZyXEL VoIP 2602HWL
Contents

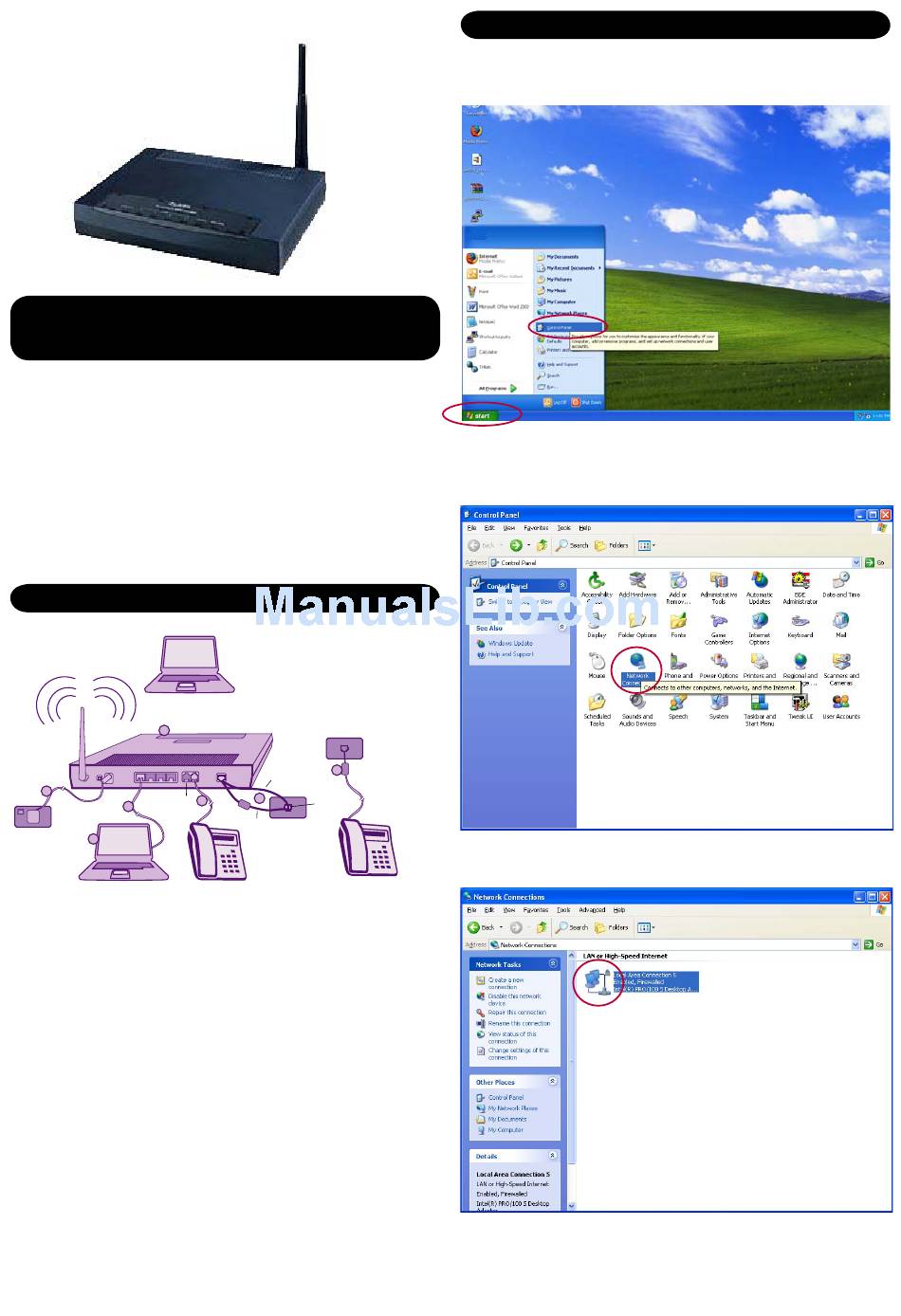

1. 0 Setup Hardware
2. 0 Setup Network
3.0 Setup Wireless
4.0 Test VoIP Account
5.0 Changing Password
1.0 Setup Hardware
1. 1.
NOT TO SCALE
4
3
2
1
A/C
POWER
Adapter
7. 7.
DO NOT
RJ-45 Cable
6. 6.
Power Point
5. 5.
1 (of up to 4) Home Computer(s)
1.1 Please ensure that you have the following equipment:
1. ZyXEL 2602HWL
2. Vshaped cable - Green cable (lifeline) and Gray cable (DSL)
note: you need to use double adapter to connect to phone socket
with a fi lter on the green cable.
3. RJ-11 Cable
4. Standard PSTN Telephone
5. Network Card for connection to your PC (not supplied by TPG)
6. Ethernet Cable (blue) for connection to a PC or Hub
7. AC power supply adaptor
8 . Micro Filter
1.2 Please follow the setup diagram above. Please keep in mind
that it is necessary to have a micro fi lter for each device
plugged into a telephone wall socket that is on the same
service number as your ADSL (eg: telephone/answering
machine/fax/PayTV). Your PC should be turned off during this
process.
- Setup guide
Phone Line
Wall Socket
8. 8.
ADSL Filter
PHONE 2
PHONE 1
LINE
grey line
2. 2.
3. 3.
double
USE
adapter
ADSL-Filter
RJ-11 Cable
green line
Phone Line
Wall Socket
Regular PSTN Landline
Regular Telephone used
for VoIP out going calls
2.0 Setup Network
2.1 Click on the Start button on the bottom left hand corner, and
then choose Control Panel.
2.2 Double click on Network Connections. If there is no icon for
Network Connections, click on Switch to Classic View on
the top left hand corner and then double click on Network
Connections.
2.3 On the Network Connections window double click on Local
Area Connection.
Page 1 of 6
