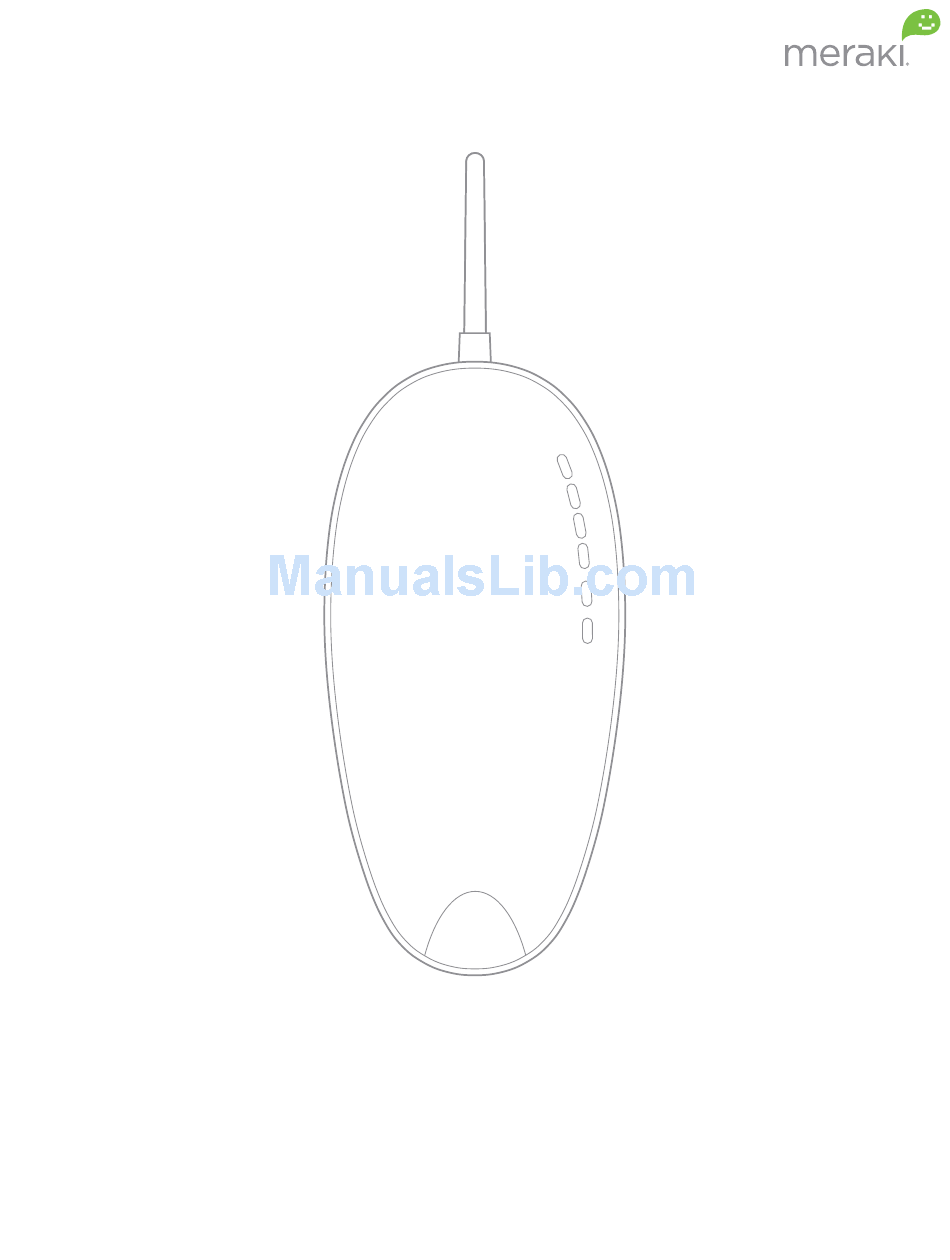

- Page 1 Meraki Outdoor Hardware Installation Guide...
- Page 2 In the interest of improving internal design, operational function, and/or reliability, Meraki reserves the right to make changes to the products described in this document without notice. Meraki does not assume any liability that may occur due to the use or application of the product(s) or circult layout(s) described herein.
-
Page 3: Table Of Contents
3.1 Confi gure Your Network in Dashboard 3.2 Check and Confi gure Firewall Settings 3.3 Check and Upgrade Firmware 3.4 Determine How IP Addresses will be Assigned to Your Outdoor 3.5 Collect Tools 3.6 Collect Additional Hardware for Installation Installation Instructions 4.1 Choose Your Mounting Location... -
Page 4: Scope Of Document And Related Publications
Scope of Document and Related Publications The Outdoor Hardware Installation Guide describes the installation procedure for the Outdoor access points. Additional reference documents are available online at www.meraki.com/library/products. -
Page 5: Outdoor Overview

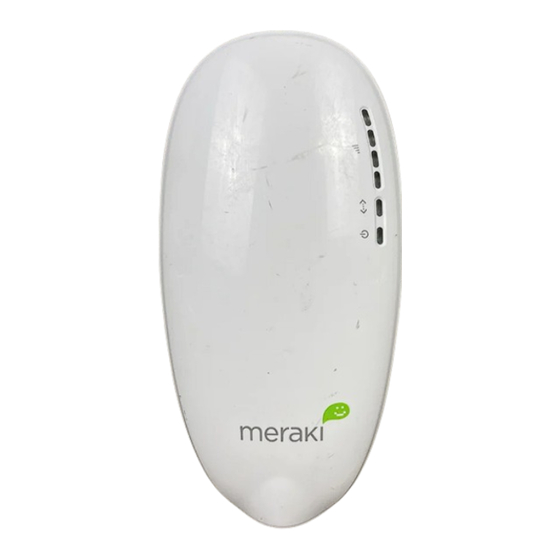

Outdoor Overview The Meraki Outdoor is a weather-proof and UV-protected wireless access point, gateway, and repeater, designed to boost your network’s range out of doors. 2.1 Package Contents The Outdoor package contains the following: Meraki Outdoor Antenna Mounting feet Screws and... - Page 6 Mounting feet holes (2x) Back panel Cable bay mounting holes (3x) Weatherproofi ng plugs Ethernet jack #1 Ethernet jack #2 PC jack...
-
Page 7: Led Indicators And Run Dark Mode
2.3 LED Indicators and Run Dark Mode Your Outdoor is equipped with a series of LED lights on the front of the unit to convey information about system functionality and performance. Signal Strength One Light: Fair Four Lights: Strongest Moving Lights:... -
Page 8: Pre-Install Preparation
1. Attach your Outdoor to power and a wired Internet connection. See p.11 of this Hardware Installation Guide for details. 2. The Outdoor will turn on and the Power LED will glow solid orange. If the unit does not require a fi rmware upgrade, the Power LED will turn green within thirty seconds. -
Page 9: Determine How Ip Addresses Will Be Assigned To Your Outdoor
All gateway Outdoorss (Outdoors with Ethernet connections to the LAN) must be assigned routable IP addresses. These IP addresses can be confi gured directly on each Outdoor (see instructions below), or assigned to the Outdoors via an upstream DHCP server. -
Page 10: Collect Tools
3.5 Collect Tools You will need the following tools to perform an installation: Straight-slot Phillips Drill and appropriate screwdriver screwdriver drill bit. (if wall mounting) 3.6 Collect Additional Hardware for Installation Wall anchors Hose clamps Network cables with (if wall mounting) (if pole mounting) RJ45 connectors long enough for your particular... -
Page 11: Installation Instructions
2. Power over Ethernet supports a maximum cable length of 300 ft (100 m). 3. If being used in a mesh deployment, the Outdoor should have line of sight to at least two other Meraki devices. For more detailed instructions regarding access point location selection, reference the Meraki Network Design Guide (meraki.com/library). -
Page 12: Deploy Your Repeaters
3. Check connection or signal strength using LEDs (see section 2.6 for details). 4. Mount your unit to maximize its signal. Mast or pole Zip tie or hose clamp (not included) Wall Wall screws (not included) 4.3 Deploy your repeaters Now that your gateway is set up, install your repeators to create a mesh network. -
Page 13: Verify Device Functionality And Test Network Coverage
Meraki device. See LED Indicator section of Hardware Installation Guide on p. 6 for further details about information conveyed by LEDs. Note: Your Outdoor must have an active route to the Internet to check and upgrade its fi rmware. 2. Verify access point connectivity Use any 802.11b/g or 802.11 b/g/n client device to connect to the Outdoor and verify proper connectivity using... -
Page 14: Regulatory Information
Regulatory Information U.S. Regulatory Wireless Notice Federal Communication Commission Interference Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 15 This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 - 2483 MHz. For detailed information...
- Page 16 Con la presente Meraki, Inc. dichiara che questo wireless device è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski (Latvian) Ar ššo Meraki, Inc. deklar , ka wireless device atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist tajiem noteikumiem.
- Page 17 Meraki, Inc. declara que este wireless device está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Slovensko (Slovenian) Meraki, Inc. izjavlja, da je ta wireless device v skladu z bistvenimi zahtevami in ostalimi relevantnimi dolocili direktive 1999/5/ES. Slovensky (Slovak) Meraki, Inc.
- Page 18 © 2009 Meraki, Inc. All rights reserved. Trademarks Meraki® is a registered trademark of Meraki, Inc. Warranty Meraki hardware products are protected by the standard Meraki warranty of one year parts/labor. For more information, refer to the Meraki End User License Agreement.
- Page 19 660 Alabama St. San Francisco, California 94110 Phone: +1 415 632 5900 Fax: +1 415 632 5890...
- Page 20 © Meraki, Inc. 2009 280-09100-A...
