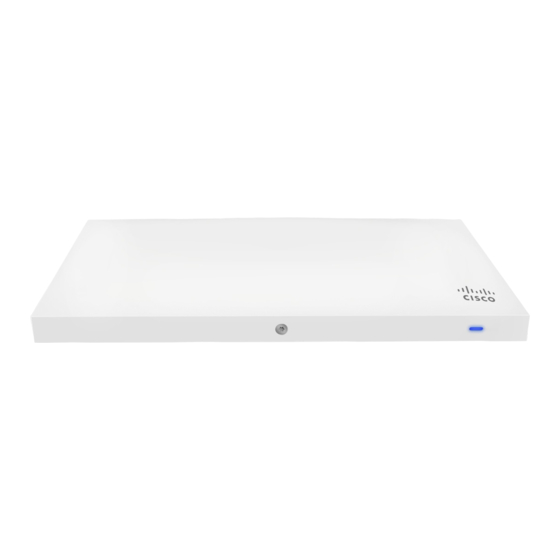

- Page 1 Meraki MR33 Hardware Installation Guide Trademarks Cisco, Cisco Meraki, Meraki, Meraki MR33, and Meraki Cloud Controller are trademarks of Cisco Systems, Inc. Other brand and product names are...
-
Page 2: Warranty
Warranty Meraki, Inc. provides a lifetime warranty on this product. Warranty details may be found at www.meraki.com/legal. Table of Contents 1 Scope of Document and Related Publications 2 MR33 Overview 3 Pre-Install Preparation... -
Page 3: Package Contents
When connected to the Meraki Cloud Controller, the MR33 enables the creation of high-speed, reliable indoor wireless networks quickly, easily, and cost-effectively. The Meraki MR33 has an operating temperature of 32 ° F to 104 ° F (0 ° C to 40 ° C). 2.1 Package Contents... -
Page 4: Pre-Install Preparation
2. Find the network to which you plan to add your nodes or create a new network. 3. Add your nodes to your network. You will need your Meraki order number (found on your invoice if you ordered directly from Meraki) or the serial number of each node, which looks like Qxxx-xxxx-xxxx, and is found on the bottom of the unit. -
Page 5: Check And Configure Firewall Settings
2. The MR33 will turn on and the LED will glow solid orange. If the unit does not require a firmware upgrade, the LED will turn solid white within 30 seconds. * If the unit requires an upgrade, the LED will cycle rainbow until the upgrade is complete, at which point the Power LED will turn solid white. -
Page 6: Collect Tools
- 802.3at PoE power source (either PoE switch or Meraki 802.3at PoE Injector) - Connection to the internet (if you are setting up your MR33 as a gateway to the internet) - Specialized mounting hardware if mounting to surface other than wood,... - Page 7 3. While holding the mount plate release tab up, slide the mount plate off the access point. 4.2.2 Attach the Mount Plate The MR33 mount plate can be used to install your access point in a wide range of scenarios. 4.2.2.1 Wall or Solid Ceiling Mount Using Mount Plate...
-
Page 8: Verify Device Functionality And Test Network Coverage
Using included wall anchors and screws, attach the mount plate to your mounting wall or ceiling. It is recommended that the MR33 be mounted to a wall or solid ceiling using the mount plate for physical security reasons. 4.2.3 Mount the MR33 Insert the posts on the mount plate into the attachment slots on the access point. - Page 9 • Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications no expressly approved by Meraki could void the user’s authority to operate this equipment. This Transmitter must not be co-located or operation in conjunction with any other antenna or transmitter.
- Page 10 other antenna or transmitter. IEEE 802.11b or 802.11g operation of this product in the USA is firmware- limited to channels 1 through 11. If the device is going to be operated in the 5.15 - 5.25 frequency range, then it is restricted to indoor environment only. This device meets all other requirements specified in Part 15E, Section 15.407 of the FCC Rules.
- Page 11 This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Déclaration d’exposition aux radiations Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non con trôlé.
