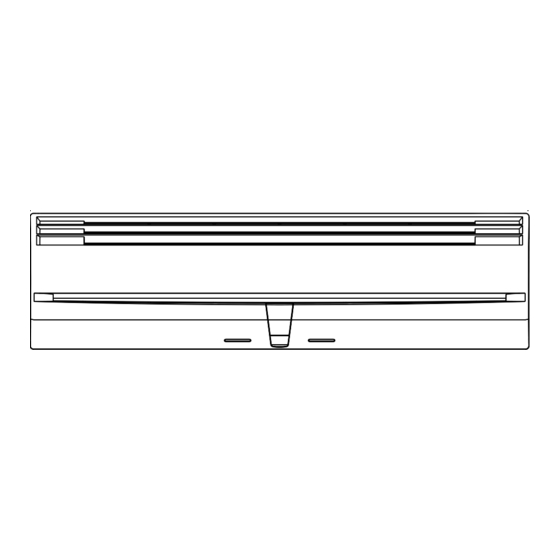

SPLIT TYPE ROOM AIR
CONDITIONER
WALL MOUNTED
Models
Indoor unit
ASH14FSBCW
ASH14USBCW
CONTENTS
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . 1
OUTLINE AND DIMENSIONS . . . . . . . . . . . . . . 2
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . 4
PCB CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . .
ERROR DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . .
DISASSEMBLY ILLUSTRATION . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
type
Outdoor unit
AOH14FSBC
AOH14USBC
. . . . . . . 3
6
8
Advertisement
Table of Contents
Related Manuals for General ASH14FSBCW
Summary of Contents for General ASH14FSBCW
-
Page 1: Table Of Contents
WALL MOUNTED type Models Indoor unit Outdoor unit ASH14FSBCW AOH14FSBC ASH14USBCW AOH14USBC CONTENTS SPECIFICATIONS ......1 OUTLINE AND DIMENSIONS . -
Page 2: Specifications
SPECIFICATIONS TYPE COOLING COOLING & HEATING INDOOR UNIT ASH14FSBCW ASH14USBCW OUTDOOR UNIT AOH14FSBC AOH14USBC COOLING CAPACITY (kW) 4.20 4.25 HEATING CAPACITY (kW) ------ 4.80 ELECTRICAL DATA POWER SOURCE 230V 50Hz 230V 50Hz COOL RUNNING CURRENT HEAT ------ COOL 1.48 1.38... -
Page 3: Outline And Dimensions
DIMENSIONS Unit : mm INDOOR UNIT Models : ASH14FSBCW, ASH14USBCW OUTDOOR UNIT Models : AOH14FSBC, AOH14USBC 2004.10.27... -
Page 4: Refrigerant System Diagram
REFRIGERANT SYSTEM DIAGRAM Models : ASH14FSBCW / AOH14FSBC [ INDOOR UNIT ] Evaporator (Flare connection) (Flare connection) [ Connecting pipe ] Gas pipe (12.7 dia.) Liquid pipe (6.35 dia.) (Flare connection) (Flare connection) [ OUTDOOR UNIT ] 3-Way valve 2-Way valve... -
Page 5: Circuit Diagram
CIRCUIT DIAGRAM Model : ASH14FSBCW CONTROL BOARD STEPPING MOTOR TEST THERMISTOR (PIPE TEMP.) THERMISTOR (ROOM TEMP.) POWER RELAY POWER TERMINAL FUSE Model : AOH14FSBC TERMINAL 2005.08.03... - Page 6 Model : ASH14USBCW Model : AOH14USBC 2005.08.03...
-
Page 7: Pcb Circuit Diagram
INDOOR PCB CIRCUIT DIAGRAM Model : ASH14FSBCW BLUE POWER SOURCE 220 / 240V BROWN 50Hz GREEN / YELLOW CONTROLLER PCB ASSEMBLY ( MAIN PCB ) K02DG-0401WSE-C1 I C 1 uPD780024ASGB-X49-8ET-A TERMAL FUSE R4 1.0K 2P-SAN ROOM TEMPERATURE THERMISTOR R25 - R24 <1/10W>... - Page 8 Model : ASH14USBCW BLUE POWER SOURCE 220 / 240V BROWN 50Hz GREEN / YELLOW CONTROLLER PCB ASSEMBLY ( MAIN PCB ) K02DG-0400HSE-C1 I C 1 uPD780024ASGB-X49-8ET-A TERMAL FUSE R4 1.0K 2P-SAN ROOM TEMPERATURE THERMISTOR R25 - R24 <1/10W> AN I 0 CN2-1 BLACK 10K <1/10W>...
-
Page 9: Error Display
ERROR DISPLAY Troubleshooting check table Operation lamp : Red lamp Timer lamp : Green lamp Large division indication Small division indication Error contents LED indication Error contents LED indication thermistor error RED lamp (2 times) thermistor error (room temp.) RED lamp Green lamp Green lamp (2 times) -
Page 10: Disassembly Illustration
DISASSEMBLY ILLUSTRATION Indoor unit 2004.10.29... - Page 11 2004.09.15...
- Page 12 Model : AOH14FSBC 2004.10.13...
- Page 13 Model : AOH14USBC 2004.10.13...
-
Page 14: Parts List
PARTS LIST INDOOR UNIT Ref. Ord. Part No. Description Q'ty ASH14FSBCW ASH14USBCW Air Filter 9311027010 9311027010 Front Panel 9309999039 9309999039 Clamper(Grille) 9306755010 9306755010 Intake Grill Assy 9312142026 9312142026 Emblem-A 9311784036 9311784036 Gear-A 9309994003 9309994003 Casing Assy 9312112074 9312112074 Cover(Casing)-B 9309988002... - Page 15 OUTDOOR UNIT Ref. Ord. Ref. Ord. Part No. Part No. Description Description Q'ty Q'ty AOH14FSBC AOH14FSBC S crew, Taptite (Earth) 0700179013 S eparator 9310969014 S crew 301171134250 Box (S witch) 9310971024 Clamp No.1219 313361271706 S ealed Tube 9305695027 Clamp S KB-100 313361275805 Cover (S witch) 9310979013...
- Page 16 OUTDOOR UNIT Ref. Ord. Ref. Ord. Part No. Part No. Description Description Q'ty Q'ty AOH14USBC AOH14USBC S crew, Taptite (Earth) 0700179013 S eparator 9310969014 S crew 301171134250 Box (S witch) 9310971024 Clamp No.1219 313361271706 Cover (S witch) 9310979013 Clamp S KB-100 313361275805 Protection Net 9310980019...
-
Page 17: Accessories
STANDARD ACCESSORIES Name and Shape Part No. Wall hook bracket 9310001004 Remote control 9313693022 unit for FSBCW 9371190174 for USBCW Battery (penlight) 0600185534 Cloth tape 9310519004 Tapping screw ( big ) 0700076046 Tapping screw ( small ) 0700019036 Seal A 9304536000 Remote control unit holder... - Page 18 0408G2650...
