Silicon Graphics F181 User Manual page 11

Quick Start
This LCD display is designed for use with a flexible arm.

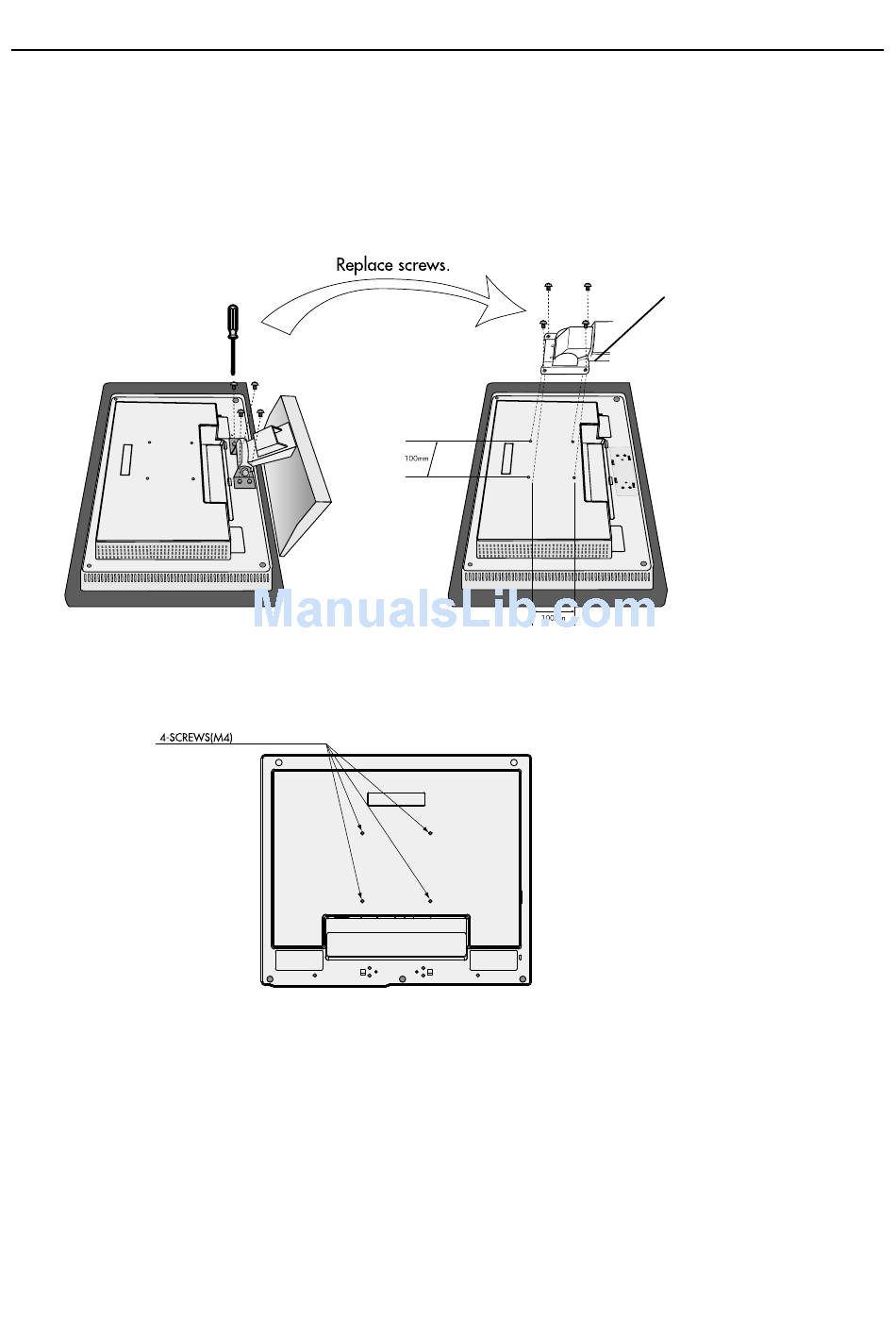

Please use the attached screws (4pcs) as shown in the picture when installing.
To meet the safety requirements, the display must be mounted to an arm which guaranties the necessary stability under consid-
eration of the weight of the display.
The LCD display shall only be used with an approved arm (e.g. GS mark).
Specifications
(MAX depth: 10mm)
- Continued
If using other screws, check depth of holes.
Weight of LCD assembly: 6.2kg (MAX)
English-6
Thickness of Bracket (Arm)
2.0~3.2mm
Tighten all screws.
