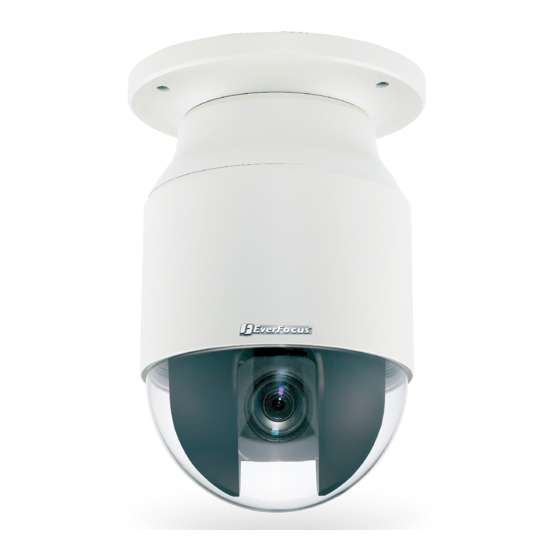

EverFocus EPN4122 User Manual

Epn series ip speed dome
Hide thumbs Also See for EPN4122:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

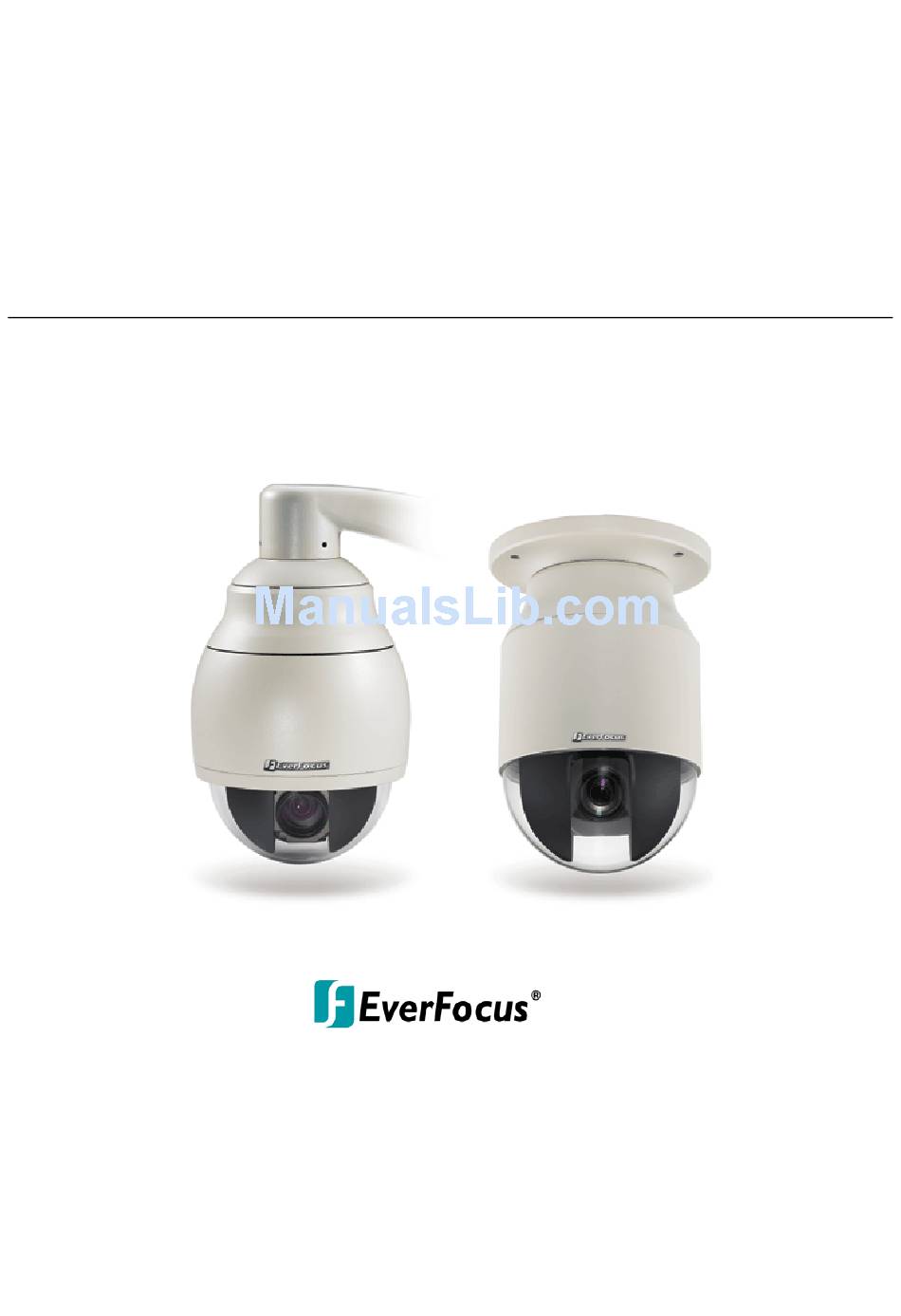

EPN Series
IP Speed Dome
User's Manual
Copyright © EverFocus Electronics Corp,
Release Date: March, 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPN4122 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EverFocus EPN4122

Summary of Contents for EverFocus EPN4122

  • Page 1 EPN Series IP Speed Dome User’s Manual Copyright © EverFocus Electronics Corp, Release Date: March, 2013...
  • Page 2 Copyright  2013 EverFocus Electronics Corp. All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or by any means without written permission of the EverFocus Electronics Corporation. EverFocus 12F, No.79, Sec. 1, Shin-Tai Wu Road,...
  • Page 3 - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this equipment, not expressly approved by EverFocus or parties authorized by EverFocus could void the user's authority to operate the equipment.
  • Page 4 Precautions 1. Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation. 2.

  • Page 5: Table Of Contents

    Contents Introduction .......................... 1 Features ..........................2 Installation ..........................3 Packing List ..........................3 Optional Accessories ........................ 4 Cable Descriptions ........................5 I/O Terminal Block ........................6 Basic Installation for Outdoor Models ..................7 3.5.1 Installation Requirements................... 7 3.5.2 Important Note for Installation .................. 8 3.5.2.1 Replacing the Desiccant Bags ..............
  • Page 6 7.9.2 Daylight Saving ......................83 7.9.3 SD Card ........................83 7.9.4 Maintenance ......................84 7.10 EKB200 ..........................86 Upgrading Firmware Using IP Utility ............88 Specifications ..................90 Appendix ...................... 93 A.Working in Conjunction with EverFocus’ EKB500 Keyboard ............93...

  • Page 7: Introduction

    The EPN series is designed for simple installation and supports all types of outdoor / indoor mounting applications. Outdoor Indoor (EPN4122 / 4220 / 4222 / 4222p) (EPN4122i / 4220i / 4222i / 4222pi) Item Name No. Item Name No.

  • Page 8: Features

    Smart alarm reaction & resume after alarm  Enhanced auto-resume & power-up function  Digital flip function  One-click easy installation  Supports EverFocus’ CMS and Mobile applications  ** These three features vary among models. Please refer to 9. Specifications for details.

  • Page 9: Installation

    Note: Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process.

  • Page 10: Optional Accessories

    EPN Series Optional Accessories • EPTZ- PBOX (External power connection box) • Corner mount adapter (Used for fixing a wall-mount bracket to a 90° wall corner, indoors or outdoors.) • Pole mount adapter • Indoor ceiling pendant mount bracket (Used for installing a wall-mount bracket to a (Used for installing a speed dome against pole, indoors or outdoors.) a ceiling.)

  • Page 11: Cable Descriptions

    Connects to a microphone. Note that microphones with external Audio In (Green) power supplies are required. Audio Out (Blue) Connects to a speaker. RJ-45 Cable Connects to the network. Note: For details on working in conjunction with EverFocus’ EKB500 keyboard, please refer to Appendix A.

  • Page 12: I/O Terminal Block

    EPN Series I/O Terminal Block The I/O terminal block, located on the rear panel of the Base Board, can be used to develop applications for alarm input and output, motion detection, PTZ control or a variety of other functions. CON3 1 2 3 4 5 6 7 8 9 10 11 12...

  • Page 13: Basic Installation For Outdoor Models

    EPN Series Basic Installation for Outdoor Models There are two ways to install the outdoor models of EPN series IP Speed Dome: Wall Mount and Ceiling Mount. 3.5.1 Installation Requirements The installation should be handled by a qualified service agent and should be complied with all ...

  • Page 14: Important Note For Installation

    EPN Series 3.5.2 Important Note for Installation Before installing, insert a micro SD card into the main body and replace the 3 desiccant bags inside the top housing. The desiccant bag loses its effectiveness after you open the camera. To keep the camera’s interior dry, it is highly recommended to replace the desiccant bags every time when you open the camera.

  • Page 15: Inserting A Micro Sd Card

    EPN Series 3.5.2.2 Inserting a Micro SD Card Unscrew the four screws on the camera main body to remove the black housing. Micro SD Card Slot Insert the micro SD card to the micro SD card slot. Screw back the black housing. 3.5.2.3 Restoring to Factory Default There are two ways to restore all of the camera’s settings to factory default values: 1.

  • Page 16: Optionally Setting Up The Dip Switch

    EPN Series 3.5.2.4 Optionally Setting Up the DIP Switch To allow the control device, such as a keyboard, to recognize and then control multiple cameras, you need to set up the ID address for the cameras using the DIP switch on the Camera Main Body. You can also set up the Protocol and Baud Rate for the cameras.
  • Page 17 EPN Series Switch Address Switch Switch Switch Address Address Address Switch Switch Switch Switch Address Address Address Address Switch Switch Switch Switch Switch Address Address Address Address Address...
  • Page 18 EPN Series Switch Address Switch Switch Switch Address Address Address Switch Switch Switch Switch Address Address Address Address Switch Switch Switch Switch Address Address Address Address Switch Address Protocol...
  • Page 19 EPN Series The first, second and the third switches on the left are used to set the communication protocol. Please refer to the sticker on the camera main body for setting up the protocol. The default protocol is EVF. Sticker on the Camera Main Body DIP Switch Note: If you switch the three protocol switches to ON, the camera will enter a self-test mode.

  • Page 20: Wall-Mount Installation

    EPN Series 3.5.3 Wall-Mount Installation 1. Replace the desiccant bags inside the top housing. See 3.5.2.1 Replacing the Desiccant Bags. 2. Drill 4 screw-depth holes for mounting the bracket base plate and then drill a through-wall hole for inserting the camera cables. You can optionally drill a second through-wall hole to separate cable feeding (see Step 4).
  • Page 21 EPN Series 5. Connect the camera’s cables to the related devices such as a speaker. Feed the cables of the related devices through the wall and then through the holes of the bracket base plate. Note: 1. Related connectors may be required and prepared on your own for using the extension cables of the related devices.
  • Page 22 EPN Series 8. Put on the supplied gloves before pushing upward the main body into the top housing. Make sure the red triangle on the inside of the top housing lines up with the red triangle on the outside of the main body. Push the main body upward into the top housing until the orange catches on both sides click into position.

  • Page 23: Ceiling Mount Installation

    EPN Series 3.5.4 Ceiling Mount Installation It is required to use the optional Indoor Recessed Mount Bracket and Surface Ring to attach the camera to the ceiling for supporting the camera’s weight. Make sure the ceiling is strong enough to easily support the weight of the bracket and the camera.
  • Page 24 EPN Series 4. Place and then screw the camera’s top housing on the top disk of the indoor recessed mount bracket by using the 3 short screws. Top Disk 5. Use a cable or other mechanism to hang the indoor recessed mount bracket on the ceiling. 6.
  • Page 25 EPN Series 7. Put on the supplied gloves before pushing upward the main body into the top housing. Make sure the red triangle on the inside of the top housing lines up with the red triangle on the outside of the main body. Push the main body upward into the top housing until the orange catches on both sides click into position.
  • Page 26 EPN Series 9. Slide the surface ring to the fillister and slightly turn it until it is firmly fixed. Note: When you turn on the power, the camera will enter self-inspection mode and run a self-testing program. Once this is complete, you will be able to operate it via any IP network.

  • Page 27: Accessing The User Interface

    EPN Series 4. Accessing the User Interface This section explains how to access the Web interface of the camera for configuration. 4.1 Checking the Dynamic IP Address You can look up the IP address and access the Web interface of the camera using the IP Utility (IPU) software, which is included in the software CD.
  • Page 28 EPN Series To change the IP address, double-click the IP Address of the camera. Type a new IP address and then click Set IP Address to save the settings. You can also change the other settings by double-clicking the values. After configuring the values, click Save Configuration.

  • Page 29: Settings For Microsoft Internet Explorer

    EPN Series 4.2 Settings for Microsoft Internet Explorer To enable Remove Live View, Firmware Upgrade and ActiveX Prompt on Internet Explorer, some settings have to be complete. Please follow the steps below: On the computer, click Start > Control Panel > System and Security > Action Center (click Change User Account Control Settings), the User Account Control Settings window appears.
  • Page 30 EPN Series In the Download unsigned ActiveX controls field, select Prompt. In the Include local directory path when uploading files to a server field, select Enable. Click OK. In the Internet Options window, click the Advanced tab and then disable Enable memory protection to help mitigate online attacks.

  • Page 31: Connecting The Camera To The Network

    EPN Series Connecting the Camera to the Network There are three methods to connect the IP camera to the network: Router or LAN Connection, Direct High-Speed Connection and One-to-One Connection. Router or LAN connection This is the most common connection in which the IP camera is connected to a router and allows multiple users on and off site to see the IP camera on a LAN/WAN (Internet).
  • Page 32 EPN Series Direct High-Speed Connection In a Direct High-Speed Connection, the camera connects directly to a modem without the need for a router. You need to set the static or dynamic WAN IP address assigned by your ISP (Internet Service Provider) in the camera’s configuration web pages. To access the camera, just type “http://xxx”, where xxx is the IP address given by your ISP.

  • Page 33: Live View Window

    EPN Series 5. Live View Window Press the button to display the "Live View" window. Double-click on the image to show a full-screen display, double-click again or press ESC to return to the normal display. If you experience video feed lag time (if connected via Internet), you can reduce the resolution or limit the number of streams.
  • Page 34 EPN Series Video Stream Select the Video Stream (Stream 1 or Stream 2) that will be displayed in the video box on the right. Stream 2 is only selectable if you have enabled the stream. The default setting is Stream 1 only. See 7.4.1 Multi Streaming.
  • Page 35 EPN Series Navigation Mode: Select this to navigate the camera view with your mouse. Move your mouse cursor on the live view image, the mouse cursor will turn into a control icon (direction, focus or zoom) in different areas of the live view image. You can control PTZ direction, focus and zoom by clicking directly on the image.
  • Page 36 EPN Series 12. Status Display (info line that can be placed above video box or at bottom of page) This shows the name of the camera that is currently active or being configured, current date/time and current frame rate. You can activate these info displays in the Settings > User Config page (see 7.2 User Config).

  • Page 37: Ptz Control Window

    EPN Series PTZ Control Window Click to Zoom In / Zoom Out Click to Focus Near / Focus Far Click to widen / narrow down the IRIS opening Click the direction buttons to force the camera to turn into that direction Click to stop the current action, such as Auto Pan, Tour or Pattern Select a speed for Pan and Tilt...
  • Page 38 EPN Series To move the camera in a preconfigured sequence consists of a selection of Patterns and Preset Positions, click the Tour button, select a tour number and then click the Go button. Note: To use this function, you have to set up at least one tour on the PTZ Settings page.

  • Page 39: Playback

    EPN Series 6. Playback You can remotely play back the recordings stored in the on-camera micro SD card on the Web interface, or play back the recordings stored in the computer using the ARV Viewer included in the software CD. Playback is designed as a quick way to check recent recordings that were triggered by Events that were configured to “Record to SD Card”...

  • Page 40: Recording List

    EPN Series Search by File: Click the Search button to search for all recording files on the on-camera SD card. Search results will be displayed in the Filename area. Search by Time: Click the calendar icon and select the date and time from which you want to search until the present moment.

  • Page 41: Setting Up The Playback Function

    EPN Series Setting Up the Playback Function Note that the Playback function will not be active until the user has inserted a micro SD card in the camera’s micro SD card slot. The card may also have to be formatted in the Settings submenu. 6.2.1 Preparing the Micro SD Card Once you insert a functional Micro SD card into the slot, the Playback button on the Live page should become active within seconds (see section 6.2.2 below –...

  • Page 42: Testing The Playback Function

    EPN Series 6.2.2 Testing the Playback Function Once the micro SD card is detected by the system, the button (inactive) will turn to (active). To test the Playback function (this is not required), set up a “Manual Trigger” Recording Event by clicking Settings >...

  • Page 43: Playing Back Using Arv Viewer

    EPN Series Playing Back Using ARV Viewer You can play back the recordings stored in the computer using the ARV Viewer included in the software CD. To store the recordings in the computer, please refer to Recording List > Copy in 6.1 Remote Playback using Playback Page.

  • Page 44: Settings

    EPN Series 7. Settings Click the Settings button on the Live View Window to enter the settings submenu. There are nine buttons on the left-side of the submenu: Live, System Info, User Config, Network, Video, Audio, User, Event and System. Click the Live button can go back to the Live View Window. System Info The System Information and System Log can be checked on this page.

  • Page 45: Log

    EPN Series 7.1.2 Click the Log tab, the following dialog box appears. The sequence number, date, time and event messages of the log event will be displayed in the System Log field. The log will display the last 256 log events.

  • Page 46: User Config

     RTP over HTTP: The RTSP protocol uses HTTP for camera data stream transmission.  Nevio CGI: This is EverFocus’ protocol designed for EverFocus’ IP devices. Select this protocol for  camera data stream transmission. 【Text Settings】 Check the box of each option (Machine name, Date/Time, Frame Rate) to display this info on the Live View Page.
  • Page 47 EPN Series Click Apply to apply the changes or Reset to reset without saving the changes. 【Date/Time Format Used in Text】Click the dropdown menu to select date/time format from the listed options. Click on the desired hour format. Click Apply to apply the setting changes or Reset to reset without saving the change.

  • Page 48: Network

    EPN Series Network This page covers network-related settings, including Network, DDNS, SMTP/FTP, HTTPS, SNMP, and Network Alarm. 7.3.1 Network The following information is required to configure the network settings. Contact your network administrator or your internet service provider to get the info. 【IP Settings】...
  • Page 49 EPN Series IP address: When DHCP is not used, the user needs to manually enter the IP address of the camera. Do not enter an IP address that is already used for your computer or other network cameras. Subnet Mask: This field is used to set the subnet mask for your network, so that the IP camera will be recognized within the network.

  • Page 50: Ddns

    Enable: Check this box to enable the DDNS function. Service ISP: You can either apply for a host name from EverFocus or other DDNS server providers. If you choose the EverFocus DDNS server, you can obtain a free host name from EverFocus by...
  • Page 51 In certain router models, it is possible that you will not be able to access the camera using DDNS while inside the router’s network. Please try using a PC located outside of your router’s network. Default Ports on All EverFocus IP Cameras: HTTP: 80 RTSP: 554...

  • Page 52: Smtp / Ftp

    EPN Series 7.3.3 SMTP / FTP 【Set SMTP Server (email)】This area is for configuring the mail server that is used to send e-mail text notifications and one image file from the camera to predefined addresses via SMTP. Note that to enable e-mail notification function, you have to check the Send Mail Notification item on the Event dialog box (see 7.7.1 Event).
  • Page 53 EPN Series Sender Address: Input the sender’s e-mail address, so that the receiver can recognize the sender when an Event message is received. Attach Image: Check this box if you want to attach an image when an alarm is triggered or an IP camera detects events.

  • Page 54: Https

    EPN Series 7.3.4 HTTPS Hypertext Transfer Protocol Secure (HTTPS) is a combination of the Hypertext Transfer Protocol and the SSL/TLS protocol and provides encrypted communication and secure identification of a network web server. Before using the HTTPS function for communication with the IP camera, a Certificate must be created first. There are two ways to create and install a certificate: Create Self-Signed Certificate and Create Certificate Request.
  • Page 55 EPN Series 3. Click the Property button, a pop-up window appears to display the details of the certificate. 4. To optionally create and install other certificates, remove the existing one by clicking the Remove button to erase the certificate. 5. On the Web page, change the address from “http://” to https:// in the address bar and press Enter on the keyboard.
  • Page 56 EPN Series 3. Click the Property button, a pop-up window appears to display the details of the certificate. 4. To optionally create and install other certificates or request, remove the existing one by clicking the Remove button to erase the certificate or request. 5.

  • Page 57: Snmp

    Make your changes as desired. Click on the Trap Address field to enter the digits, if required. 7.3.6 Network Alarm This function works with EverFocus’s CMS software, e.g. the PowerCon or the Power Video Plus. For the setting details, please refer to the CMS network alarm protocol.

  • Page 58: Video

    EPN Series Video The settings relating to video such as streaming, camera OSD can be configured on this page. The "Video" page has five tabs: Multi-streaming, Camera, Advanced, ROI and Privacy Mask. 7.4.1 Multi Streaming 【Stream Settings】This IP camera can output two video streams simultaneously. For each of these streams, the user can set the compression format, resolution, bit rate, and frame rate individually.
  • Page 59 EPN Series 【Video Recording Settings】Select the stream you want to configure and then select whether you want the recording files of that stream to be saved in AVI or ARV format. Click Apply to apply the setting changes or Reset to reset without saving the changes. 【Time Stamp Settings】...

  • Page 60: Camera

    EPN Series 7.4.2 Camera 【Image Settings】 Use the slider to adjust the value for Brightness, Saturation and Sharpness of the image. Click Apply to apply the changes, or Reset to reset without saving the changes. 【Camera Settings】 AE: The options vary among models: Auto: Select this option to automatically apply the optimal iris value and shutter speed.
  • Page 61 EPN Series Middle and High. Note that when WDR is ON, some parts of the image may appear solarized. This is normal for WDR, and is not a camera malfunction. D/N Mode Auto: Select to let the camera automatically switch to Night mode (black and white) when the ...

  • Page 62: Advanced

    EPN Series 7.4.3 Advanced...
  • Page 63 EPN Series Lens Settings: Focus Mode: Select one from the three modes. You can click the Push button on the right side to instruct the camera to the selected mode. This is like a “semi-automatic” way to adjust the focus mode to suit the user.
  • Page 64 The BLC will measure the light of the image center and the lens iris will automatically set for optimal image quality. For EPN4122 / 4122i: Select ON (BLC), the button next to the Mode drop-down list will be active (see image below).
  • Page 65 EPN Series D-WDR (Digital Wide Dynamic Range): This feature provides clearer images when both of the very bright and dark areas simultaneously appear on the camera view. Four options are included: off, low, middle and high. WDR Mode: This function is only available for EPN4220 / 4220i. Select one from the 5 modes that delivers the best image quality.
  • Page 66 Monitor Type: Select a gamma value (Set 1 / Set 2 / Set 3) for the video quality of the monitor. This function is only available for EPN4122 / 4122i. IR Focus Correction: This function is useful when you install the external IR lights in conjunction with the camera.

  • Page 67: Roi (Region Of Interest)

    EPN Series 7.4.4 ROI (Region of Interest) The Region of Interest (ROI) function allows users to set up multiple regions within an image with better quality and less distortion than the rest of the image. You can also use this function together with the Digital Zoom function on the Live View Page to get a better image result.

  • Page 68: Privacy Mask

    The Privacy Mask can block out sensitive areas from view, covering the areas with colored or black and white boxes in both live view and recorded clips. This feature is useful when users’ don’t want the sensitive information visible. Up to four (EPN4122 / 4122i) / eight (EPN4220 / 4220i) Privacy Masks can be configured.
  • Page 69 EPN Series 1. Click the Program button, the Privacy Masks panel appears. 2. To set up a Privacy Mask, select a Privacy Mask number from the Privacy drop-down list. Click enable to enable the Privacy Mask function. 3. Click the Add button, a Privacy Mask (rectangle) appears in the middle of the image. And the Adjust Height / Adjust Width buttons will be activated.

  • Page 70: Ptz

    EPN Series 7.5.1 PTZ Control You can set up the Preset Position, Auto Pan, Tour and Pattern functions to force the camera to move to a certain position or to move in a setup sequence. 【Position Settings】You can configure up to 192 preset positions in this field. To set up a Preset Position: Click the Program button, the following Preset panel appears.
  • Page 71 EPN Series Adjust the camera view to a desired position using the direction button. You can select the pan / tilt speed from the PT Speed drop-down list for controlling the direction buttons. Adjust zoom, focus and Iris if necessary. To set up the current camera view as a preset position, select a preset number from the Preset No drop-down list for the current camera view.
  • Page 72 EPN Series To set up an Auto Pan Sequence: 1. Click the Program button next to Set Auto Pan, the following Preset panel appears. 2. Using the direction buttons to adjust the camera view to a desired position where you want to set up the position as the Left Position.
  • Page 73 EPN Series Tour: You can combine up to 16 preconfigured camera positions and patterns into one long sequence. Up to 16 Tour sequences can be set up. To set up a Tour Sequence: 1. Click the Program button next to Set Tour, the following Tour panel appears. 2.
  • Page 74 EPN Series Pattern: You are given 90 seconds to move the camera (via the PTZ buttons) to different positions (and different zoom / focus / Iris positions). The camera then saves that sequence under the Pattern No. you’ve selected. Up to 4 Patterns can be configured. To set up a Pattern Sequence: 1.
  • Page 75 EPN Series Power Up Func.: Select the mode that the system will revert to when a power failure occurs. Available options of this field are OFF, POS.1 (H) (the Preset position “1”), TOUR1, PAT.1 (Pattern “1”), AUTOPAN and PREV.MODE. Auto Flip: Select ON to tilt the camera by 180° using the direction controls on the PTZ Control window. Owing to the mechanical design, the camera will tilt 90°...

  • Page 76: Ptz Osd / Area

    EPN Series 7.5.2 PTZ OSD / Area You can set up the Preset Position, Auto Pan, Tour and Pattern functions to force the camera to move to a certain position or to move in a setup sequence. 【Area Setting】You can configure up to eight zones on the camera view. To set up a zone: 1.
  • Page 77 EPN Series 4. To set up the Left / Right positions for the area, use the direction buttons to move to a desired position and then click the Set button. Optionally use the Zoom / Focus / Iris buttons if necessary. You can select a pan and tilt speed from the PT Speed drop-down list for the camera to move to the directions when you use the direction buttons during the configuration period.

  • Page 78: Audio

    EPN Series Audio You can transmit audio to your computer if you have connected an external microphone to its audio Input cable. It can also receive audio input from you and transmit it via an external speaker, if you have connected such a speaker to its audio Output cable.

  • Page 79: User

    EPN Series User 7.7.1 User Information The system administrator can create up to ten user accounts on this page. To set up a user account: Highlight a user account and click the Modify button. The following dialog box appears. Type the account name, account description and password for the account. Type the password again in the Confirm field.
  • Page 80 EPN Series Guest: The lowest level of access, which only allows the user access to the Live View page. Select Active or Disable from the Status drop-down list to active or disable the user account. Click On in the SD Card Playback field to allow the user to access the SD card playback function. Click OK.

  • Page 81: Ip Address Filter

    EPN Series 7.7.2 IP Address Filter Use this page to specify IP addresses that are not allowed to access this camera. By default, any IP address can access the camera. Note: The Allowed List addresses only become relevant when the Denied List contains a network or range, and the supervisor wants to allow one or more IP addresses within that excluded range or network.

  • Page 82: Event

    EPN Series Event You can set up the Motion Detection event, Tamper Detection event or the Alarm I/O to automatically notify the users when an event occurs or an alarm is triggered. You can also set up a schedule to automatically record the videos when an event occurs or an alarm is triggered.
  • Page 83 EPN Series Alarm Input: Select this if you want a reaction trigger coming from any external, connected sensor to activate a to-be-specified-below reaction/s via the camera system. Make sure that a suitable device is actually connected to the alarm input relay. Manual Trigger: Select this option if you want to manually trigger the alarm by clicking the Trigger Event button on the Live View Page.
  • Page 84 EPN Series Record to SD Card: Click if you want the camera to start recording its video feed (when the  event occurs) on an on-camera SD Card (if such a card has been inserted). Note: The recording will only be as long as the combined Pre- and Post-trigger Buffers, so make sure you enable at least one of these buffers, especially the Post-trigger Buffer.

  • Page 85: Motion Detection

    EPN Series 7.8.2 Motion Detection Use this page to configure up to four areas in which motion will be detected. When a motion is detected by the camera, the motion detection icon will appear at the top right of the Live page to alert the user.

  • Page 86: Tamper Detection

    EPN Series 7.8.3 Tamper Detection Use this page to set the number of seconds that an alarm signal will be active if the device is physically tampered (moved, covered up, or out of focus. 7.8.4 Alarm I/O Use this page to set the type of trigger input and the type of output contact for each of the camera’s two configurable alarm channels.

  • Page 87: Schedule

    EPN Series 7.8.5 Schedule Use this page to configure a schedule for periods during which the camera should deactivate all user-activated Events (gray Deselect periods), or when the camera should deactivate all user-activated Events, except Schedule Recording (SR) events (blue Schedule Recording-only periods), or when the camera should deactivate only SR events (red Event Recording-only periods), or when it should enable all activated Events (yellow periods).

  • Page 88: System

    EPN Series System You can set up the system’s time and SD card settings, and to do maintenance and reset actions like reboots and upgrades. 7.9.1 Date/Time 【Machine Name Settings】If required, enter a new name for the machine. This name will be visible in the Machine Name field of the IP Utility software, which is included in the software CD.

  • Page 89: Daylight Saving

    EPN Series 7.9.2 Daylight Saving Click Enable Daylight Saving to enable this schedule, and select the dates when the region’s daylight saving period begins and ends. Click Apply to save all settings, or click Reset to cancel. 7.9.3 SD Card Use this page to prepare the system for safely removing the SD Card from its slot.

  • Page 90: Maintenance

    EPN Series 7.9.4 Maintenance 【Maintenance Server】 Reboot: Click this button to reboot the unit without changing any of the settings. Use this function if the unit is not behaving as expected. Restore: Click this button to restart and reset most of the current settings to their factory default values.
  • Page 91 EPN Series 【Save/Load Video Configuration Server】 Save: To make a backup file of the machine’s video configurations, press Save to save the video configurations to a config. file. This will enable the user to reload these configuration settings if the settings are changed and there is unexpected behavior.

  • Page 92: Ekb200

    7.10 EKB200 You can connect an EKB200, which is EverFocus’ USB keyboard, to the USB port on the computer to remotely control the Iris, focus or the pre-configured PTZ control functions of the connected cameras. For details on how to configure the PTZ control functions on the Web interface, including Preset Position, Auto Pan, Tour and Pattern, please refer to 7.5.1 PTZ Control.
  • Page 93 EPN Series Set Auto Tracking: This function is not available. Press this key to switch On / Off the Auto-Tracking  function. Select Tracking Object: This function is not available. Press the key to display the tracking crosshairs  on the screen. Use the joystick on the keyboard to select the desired tracking object and press this key again to save the selection.

  • Page 94: Upgrading Firmware Using Ip Utility

    EPN Series 8. Upgrading Firmware Using IP Utility You can upgrade the Firmware using the IP Utility software included in the software CD. Install and then start the IP Utility . The following dialog box appears. IPU will automatically search the cameras connected in the LAN. The default network values of the cameras will be displayed.
  • Page 95 EPN Series Check the box to select the camera and then click Upgrade Firmware. A browsing window appears. Select the firmware file (.evb) and then click Open. The IP Utility will automatically upgrade the firmware. The camera will reboot once the update is complete. Click Find Devices, the new firmware version should be displayed in the last part of the Machine Name.

  • Page 96: Specifications

    EPN Series 9. Specifications EPN4222/4222p (Outdoor) EPN4122 (Outdoor) EPN4220 (Outdoor) Model EPN4222i/4222pi (Indoor) EPN4122i (Indoor) EPN4220i (Indoor) Camera Image Sensor 1/3" Panasonic CMOS 1/3” Sony CMOS 1/3" Panasonic CMOS Megapixel 1.3 MP 2 MP 2 MP Scanning System NTSC / PAL...
  • Page 97 EPN Series PAN / TILT Control Horizontal Rotation Speed 0.01°/s ~ 360°/s (1-255 grade shift gears) Manual Pan/Tilt Speed Pan: 0.01° ~ 180°/s ; Tilt: 0.01° ~ 180°/s Position Accuracy ± 0.1° Horizontal Rotation Range 360° unlimited rotation Tilt Rotation Range 90°...
  • Page 98 EPN Series General EPN4222 / 4222i: 24 VAC~ Power Source 24 VAC~ EPN4222p / 4222pi: PoE EPN4222 / 4222i: 30W Max Power Consumption 30W Max EPN4222p / 4222pi: n/a -40°C ~ +50°C ≦ 95% / -40°F ~ +122°F ≦ 95% (outdoor) -5°C ~ +50°C ≦...

  • Page 99: Appendix

    Appendix Working in Conjunction with EverFocus’ EKB500 Keyboard You can control multiple EPN Series cameras using an EverFocus’ EKB500 keyboard. For details on how to connect the keyboard to the EPN Series camera, please refer to EKB500 Universal Keyboard User’s Manual.
  • Page 100 EverFocus USA - California: EverFocus USA - New York: 1801 Highland Avenue, Unit A, Duarte, CA 91010, USA 415 Oser Avenue, Unit S, Hauppauge, NY 11788, USA TEL: +1 626 844 8888 TEL: +1 631 436 5070...

This manual is also suitable for:

Epn4122iEpn4222Epn4222pEpn4222iEpn4220Epn4222pi ... Show all
