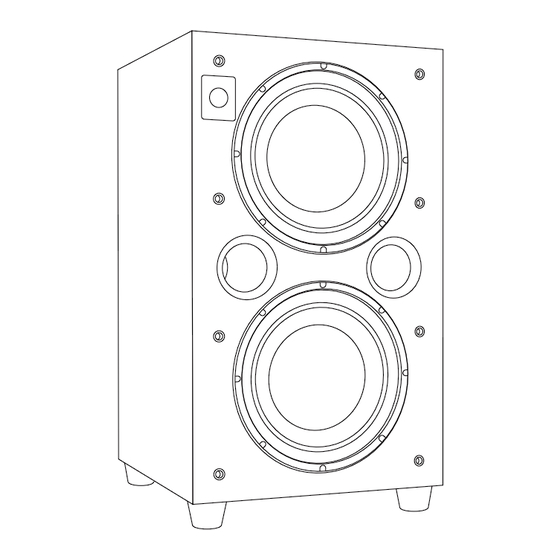

  • Page 1 ICS Sub 24 mk3 Powered Subwoofer Owner‘s Manual ICS Sub 24 mk3...
  • Page 2 For all other servicing, consult your dealer Ventilation: The appliance should be situated so that its or contact Snell Acoustics. location or position does not interfere with its proper functioning. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may obstruct the heat sink surfaces;...
  • Page 3 4 cabinet feet I N T R O D U C T I O N We designed the ICS Sub 24 mk3 for maximum output In addition to powerful and sophisticated electron- and performance for today’s digital formats. With bass...
  • Page 4 � � � � � � � � � � �...
  • Page 5 Bass Level Control and smooth sides. The Bass Level control adjusts the sound level output of the ICS Sub 24 mk3. It is located on the front of the cabinet, behind the grille. To access the control grasp the top and bottom edges of the grill and pull it straight off the front of the cabinet.
  • Page 6 Warning: To reduce the risk of electric shock, always switch off the subwoofer and the amplifier and or receiver when making connections to the subwoofer and speakers. THX® Connection Use this setup when the ICS Sub 24 mk3 is con- ��� �������� ��� ��� �� ��� ���...

  • Page 7: High Level Connection

    High Level Connection If the electronics in your system does not have Preamp Output/Power Amp Input connections, the ICS Sub 24 mk3 can be connected via the speaker wiring using the “High Level” Connections. There are two methods for making high level connections the ICS Sub 24 mk3.
  • Page 8 High Level Connection The method for making high level connections is to connect both the ICS Sub 24 mk3 and the main speakers directly to the amplifier. Consequently the main speakers will operate full range. High pass filtering is available only via the low level inputs or through your processor There are two connection methods.
  • Page 9 �� ��� � � To connect two ICS Sub 24 mk3’s using speaker-level inputs, use the ”HIGH LEVEL INPUTS“ binding posts on one sub- woofer to daisy chain to the second ICS Sub 24 mk3. ���������� �������� �� ������������ ���...
  • Page 10 Note: Avoid placing the ICS Sub 24 mk3 close to a television or monitor. There should be at least 8 inches (20cm) be- tween the two components. If getting the best sound, together with the physical constrains of the room, require that the two units must be closer than that you can purchase a magnetic shielding kit from Snell Acoustics.

  • Page 11: Bass Level Control

    Bass Level Control The Bass Level control adjusts the volume of the ICS Sub 24 mk3 output. The Level Control should be adjusted to achieve a good main speaker-to-subwoofer balance. However there is significant interaction between the Crossover control and the Bass Level control. This interaction affects the sound in the midbass range where the transition from the main speakers to the subwoofer occurs.
  • Page 12 The warranty period for all parts of the ICS Sub 24 mk3, except the amplifier, is five (5) years. The warranty period on the amplifier is one (1) year.
