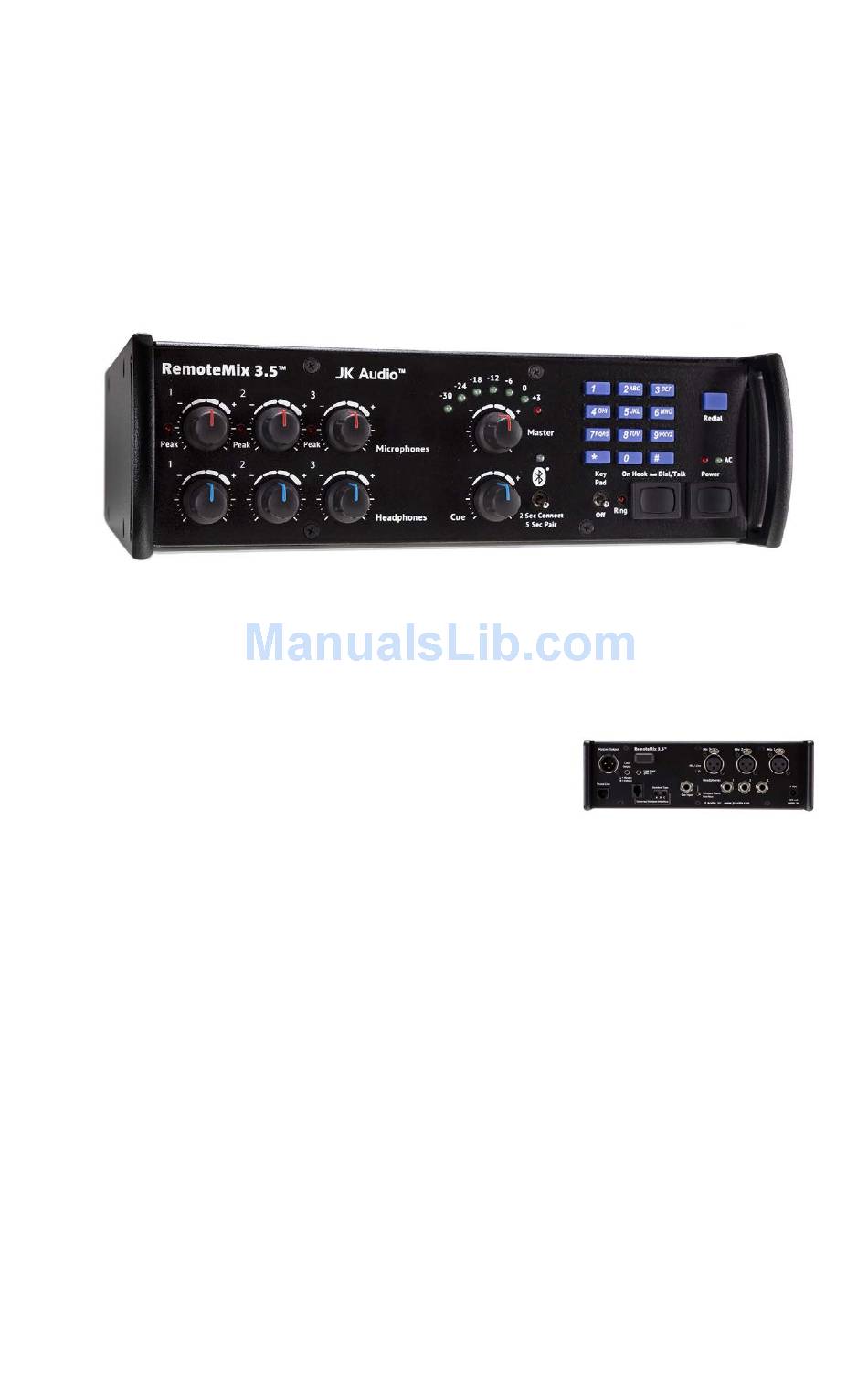

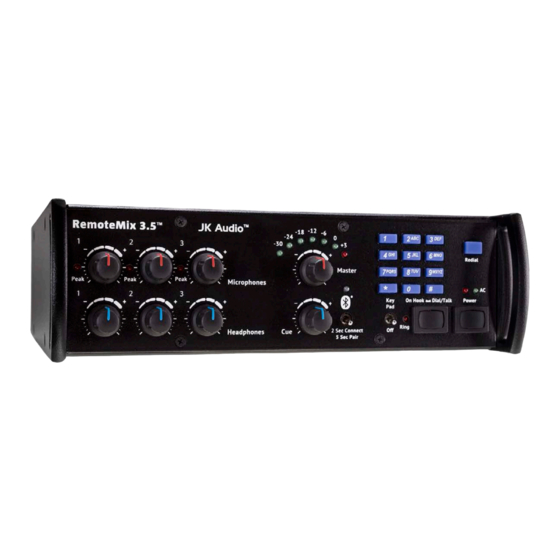

- Page 1 RemoteMix 3.5 ™ Broadcast Field Mixer User Guide JK Audio...
-
Page 2: Thank You
Or, check out our FAQ section for answers to common questions. Limited Warranty The RemoteMix 3.5 is covered by a 2 year warranty to be free from defective workmanship and materials. To obtain service, contact JK Audio by phone or email for return authorization. -
Page 3: Table Of Contents
Contents Overview Getting to know your RemoteMix 3.5™ 2 Controls & Indicators 4 Inputs & Outputs Getting Connected Setting Up Making a Call Operation Bluetooth Wireless Technology 8 Status LED, Pairing 9 Reconnecting, and Disconnecting FAQs Technical Information Contents... - Page 4 Wireless HD Calls. To take advantage of this extended bandwidth, both phones on the call must support HD Voice, and both phones must be on the same carrier, in coverage areas that support HD Voice. 7 kHz RemoteMix 3.5™ Broadcast Field Mixer...
-
Page 5: Overview
Radio – RemoteMix 3.5™ is perfect for sports remotes. Use it as a phone line hybrid, calling into your studio talk show hybrid. Use it as a front-end mixer for your POTS, ISDN, IP or smart phone codec. -
Page 6: Getting To Know Your Remotemix 3.5
Getting to Know Your RemoteMix 3.5 Controls & Indicators Mic Level Controls Each of the three XLR inputs has a level control knob with a separate red <Peak> LED to indicate clipping on each channel. If you see more than an occasional flash of the <Peak>... - Page 7 Ringer RemoteMix 3.5 does not have an audible ringer but there is a visual ring indicator that will flash for incoming calls. This red LED is located directly below the keypad.
-
Page 8: Inputs & Outputs
Getting to Know Your RemoteMix 3.5 Inputs & Outputs Mic Inputs 1 and 2 Balanced XLR jacks with low-noise pre-amplifiers. Mic Input 3 Balanced XLR jacks with low-noise pre-amplifiers. A <Mic/Line> selector switch adds a 40 dB pad for a line level balanced input. - Page 9 Getting to Know Your RemoteMix 3.5 Phone Line Connection Phone Line The RemoteMix 3.5 has an RJ-11 jack that can be connected to any standard, single line analog telephone line. This jack should not be connected directly to digital PBX or ISDN phone systems.
-
Page 10: Getting Connected
D. Bluetooth Wireless Technology. See page 8. Making a Call There are also 3 ways to initiate an outbound call with the RemoteMix 3.5. First turn on the power switch and flip the <Phone Line> switch to Dial/Talk. A. When connected to an analog line: Flip the <Keypad> switch to On and dial your call. -
Page 11: Operation
Power RemoteMix 3.5 is powered by two 9 volt alkaline batteries located on the side of the unit. The red <Power> LED on the front of the device will gradually dim as the battery runs down, then extinguish about a half hour before the unit shuts down. -
Page 12: Bluetooth Wireless Technology
Pairing Mode In Pairing Mode, any Bluetooth wireless technlogy enabled device within range can pair with your RemoteMix 3.5. To put the unit in Pairing Mode, pull up the < > switch for 5 seconds while the unit is on. The blue LED will flash rapidly at a rate of 100ms off, 100ms on. - Page 13 3.4 kHz mono duplex connection. If both phones on the call support HD voice, Hands-Free mode supports a 7 kHz mono duplex connection. If a Hands-Free connection is not available, RemoteMix 3.5 will attempt to connect in A2DP mode with a 20 kHz, one-way, stereo connection. Consult your cell phone or portable device for more details.
-
Page 14: Faqs
The audible ringer found on some of our other RemoteMix units was replaced with a visual ring indicator on the RemoteMix 3.5. This red LED flashes when a call comes in. The Ring indicator is located directly below the keypad on the front of the unit. - Page 15 No. You may use rechargeable batteries, but you must remove and recharge the batteries outside of the RemoteMix 3.5. 11) I’ve lost my power supply for my RemoteMix 3.5 unit. I have a power supply that fits from a different product. Can I...
-
Page 16: Technical Information
Technical Information Block Diagram RemoteMix 3.5™ Broadcast Field Mixer... -
Page 17: Specifications
JK Audio, Inc. Manufacturer’s Address: 1311 E 6 Street Sandwich, Illinois 60548 USA Declares that the product: Product Name: RemoteMix 3.5 Broadcast Field Mixer Model Numbers: RemoteMix 3.5 Conforms to the following Product Specifications: Safety: AS/NZS 60950.1:2003 CAN/CSA-C22.2 No. 60950-01-03... - Page 18 815-786-2929 phone 815-786-8502 fax FCC Registration Your new JK Audio product has been registered with the Federal Communications Commission (FCC). This product complies with the standards in Part 68 of the FCC rules. 1. Connection and use with the nationwide telephone network The FCC requires that you connect this telephone equipment to the national telephone network through a USOC RJ-11C modular telephone jack.
- Page 19 FCC. Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your JK Audio product. If such changes are planned, you’ll be notified by your telephone company.
- Page 20 RemoteMix 3.5™ Broadcast Field Mixer User Guide Version 8/7/14 JK Audio, Inc. 1311 E 6th St. Sandwich, IL 60548 United States Telephone: 815.786.2929 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2014 JK Audio, Inc. All rights reserved. JK Audio...
