Summary of Contents for JK Audio RemoteMix 2

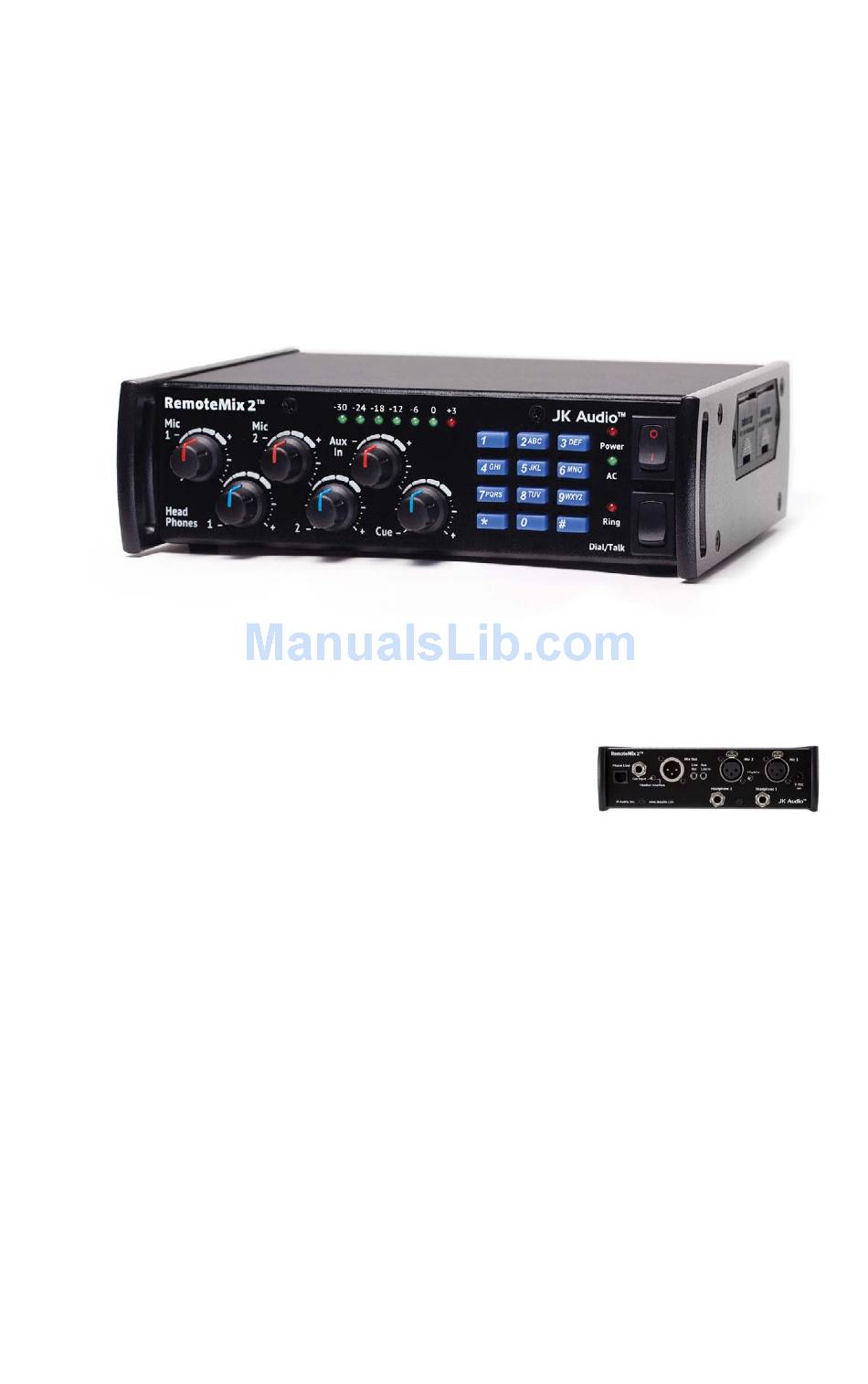

- Page 1 RemoteMix 2 ™ Broadcast Field Mixer User Guide JK Audio...
-
Page 2: Thank You
Or, check out our FAQ section for answers to common questions. Limited Warranty The RemoteMix 2 is covered by a 2 year warranty to be free from defective workmanship and materials. To obtain service, contact JK Audio by phone or email for return authorization. -
Page 3: Table Of Contents
Contents Overview Getting to know your RemoteMix 2 ™ 2 Controls & Indicators 4 Inputs & Outputs Getting Connected Operation Power Configuration FAQs Technical Information Contents... - Page 4 Power Supply LED VU Meter Phone Line Hybrid with DTMF Keypad In the Box Universal Power supply with 3.5 mm 4-conductor Wireless Interface Cable detachable cord 60” RJ11 Phone Cord 2.5 mm 3-conductor Wireless Interface Cable RemoteMix 2™ Broadcast Field Mixer...
-
Page 5: Overview
These parts were designed to work together, saving setup time in the field. Radio – RemoteMix 2™ is perfect for live remotes. Use it as a phone line hybrid, calling into your studio talk show hybrid. Use it as a front-end mixer for your POTS, ISDN, IP or smart phone codec. -
Page 6: Getting To Know Your Remotemix 2
You should keep in mind that your wireless telephone also has level control. If you are having level problems that cannot be corrected with the controls on the RemoteMix 2, try adjusting the level on the wireless telephone itself. - Page 7 Dial / Talk position. Ringer RemoteMix 2 does not have an audible ringer but there is a visual ring indicator that will flash for incoming calls. This red LED is located to the right of the keypad.
-
Page 8: Inputs & Outputs
Getting to Know Your RemoteMix 2 Inputs & Outputs Mic Input 1 Balanced XLR jack with low-noise pre-amplifiers. Mic Input 2 Balanced XLR jacks with low-noise pre-amplifiers. A <Mic/Line> selector switch adds a 40 dB pad for a line level balanced input. - Page 9 Getting to Know Your RemoteMix 2 Phone Line Connection Phone Line The RemoteMix 2 has an RJ-11 jack that can be connected to any standard, single line analog telephone line. This jack should not be connected directly to digital PBX or ISDN phone systems.
-
Page 10: Getting Connected
Connect your audio equipment, microphones, cue input, and headphones to the input and output jacks on RemoteMix 2. There are 2 ways to connect the RemoteMix 2 to the phone line: A. For Analog Phones: Connect the jack marked <Phone Line> to any standard analog telephone line, or B. -
Page 11: Operation
Operation Making a Call There are also 2 ways to initiate an outbound call with the RemoteMix 2. First turn on the power switch and flip the Phone Line switch to Dial/Talk. A. When connected to an analog line: Simply answer or dial your call. You are now ready to broadcast or record a telephone interview. -
Page 12: Power
We also provide a high quality, regulated AC to DC adaptor to power RemoteMix 2 when AC power is available. Simply plug it into the back of RemoteMix 2 and plug the transformer into a wall outlet. This is a switching power supply so you can connect to a 110 or 220 VAC power source. -
Page 13: Configuration
Begin by sending white noise or a test tone into any one of the RemoteMix 2 inputs. While monitoring the right channel of the 3.5 mm output jack, insert a small flat blade screwdriver into the null trim pot, then slowly rotate the pot back and forth to find the minimum or lowest audio return. -
Page 14: Faqs
The audible ringer found on some of our other RemoteMix units was replaced with a visual ring indicator on the RemoteMix 2. This red LED flashes when a call comes in. The <Ring> indicator is located directly below the keypad on the front of the unit. - Page 15 Our products are designed for and tested with their respective power supplies for optimum operation. If you have lost your power supply, please contact your JK Audio dealer or our Customer Service department and ask for a PS009 power supply for your RemoteMix 2. FAQs...
-
Page 16: Technical Information
8 ohms / 1/3 watt per channel Phone Line Connector RJ11C Ringer 0.5B REN Isolation 3750 VAC Power 100-240 VAC, 50-60Hz or Two 9 VDC batteries Size 7.75” x 6.5” x 2.3” Weight 2.1 lbs (960 g) RemoteMix 2™ Broadcast Field Mixer... - Page 17 Technical Information RemoteMix 2 Block Diagram Technical Information...
- Page 18 FCC. Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your JK Audio product. If such changes are planned, you’ll be notified by your telephone company.
-
Page 19: Fcc Compliance Notice
Changes or modifications not expressly approved by JK Audio can void the user’s authority to operate the equipment. FCC Compliance Notice... - Page 20 RemoteMix 2™ Broadcast Field Mixer User Guide Version 7/25/14 JK Audio, Inc. 1311 E 6th St. Sandwich, IL 60548 United States Telephone: 815.786.2929 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2014 JK Audio, Inc. All rights reserved. JK Audio...
